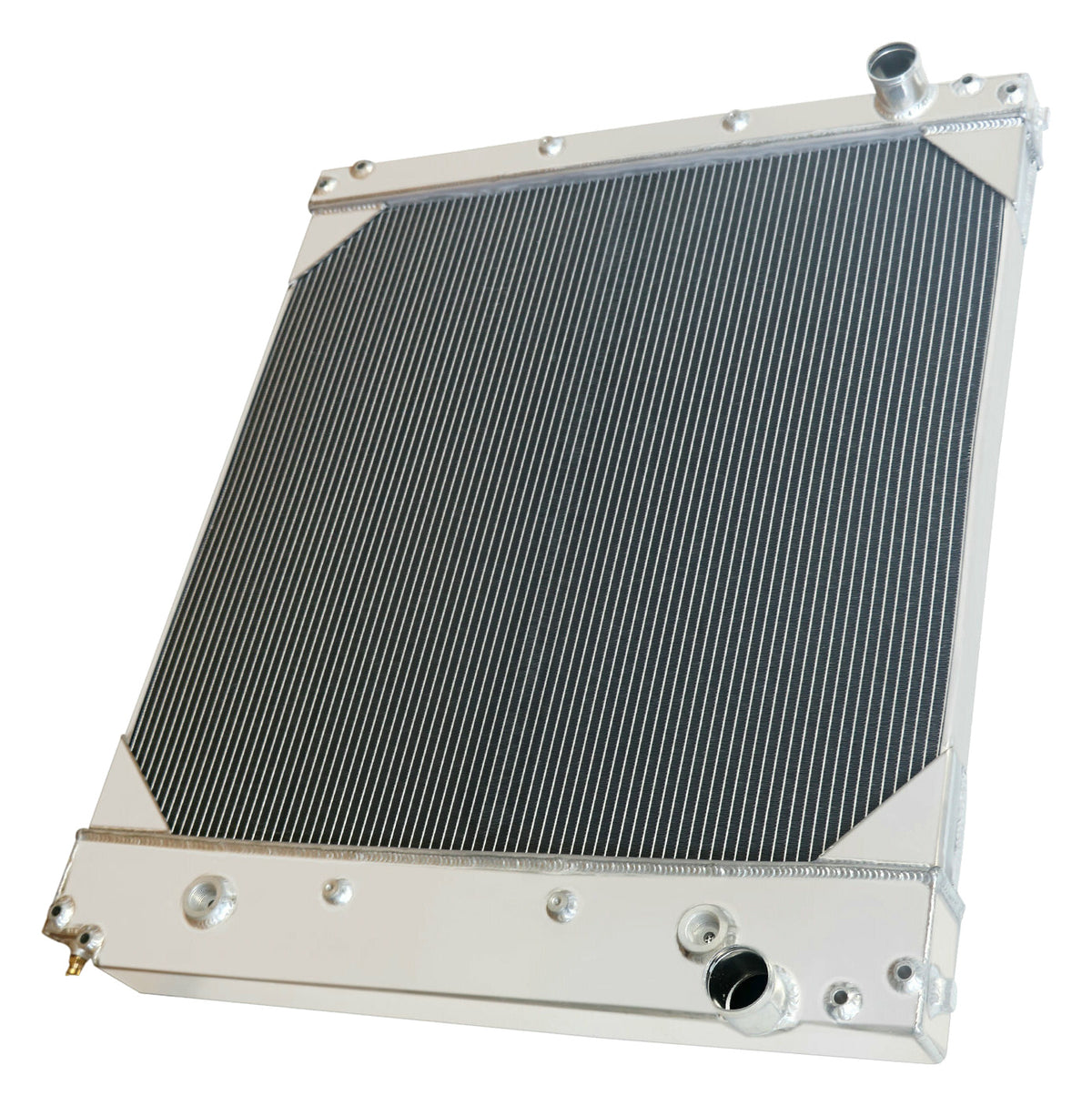

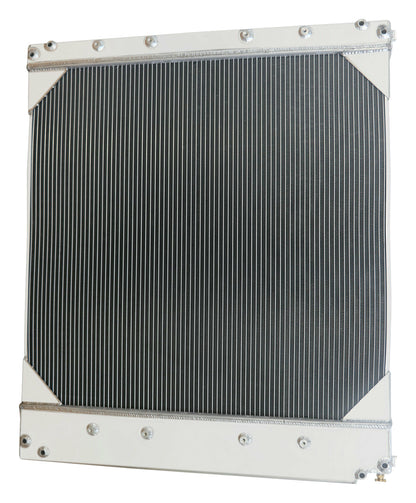

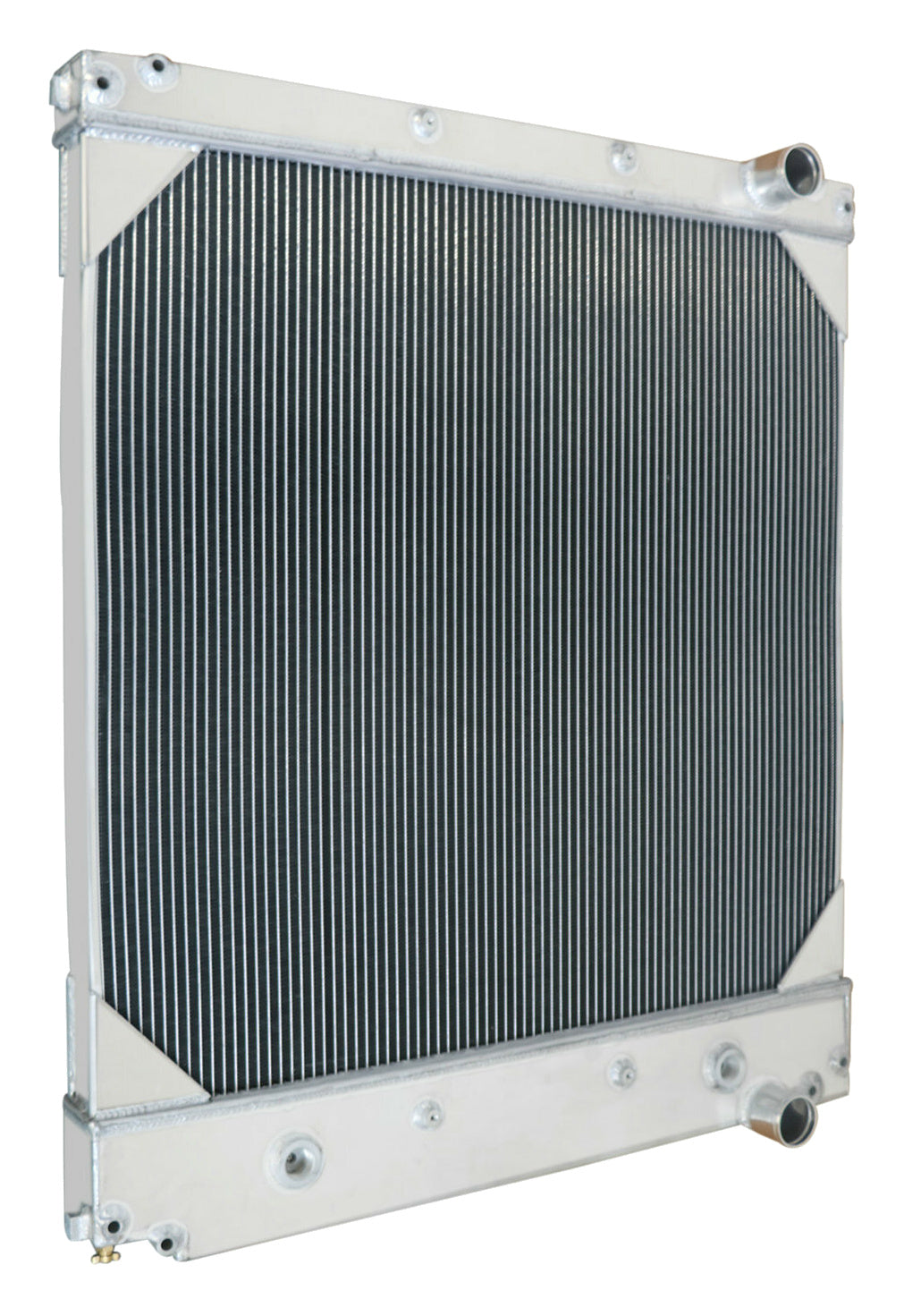

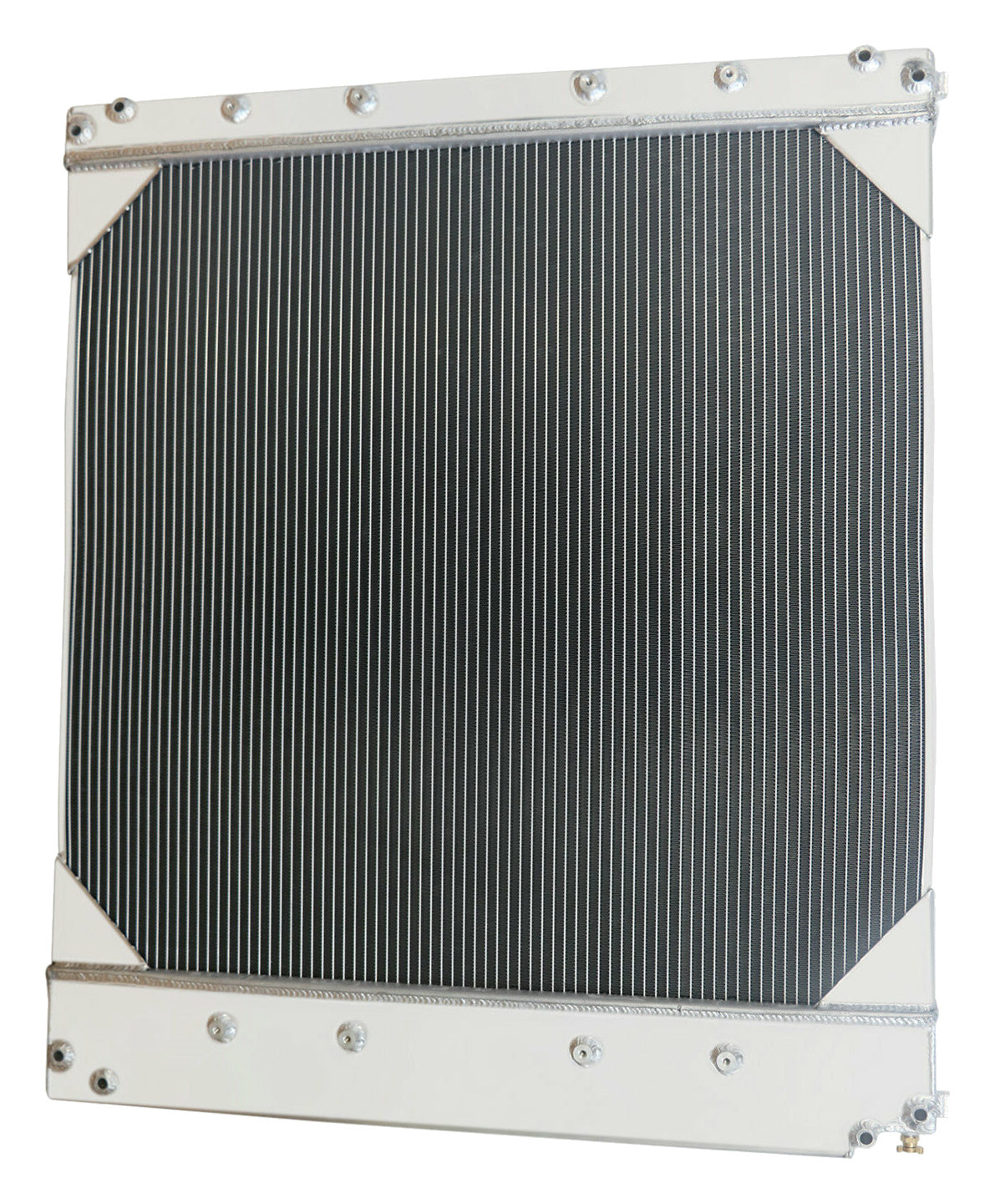

Heavy-Duty 3-Row Aluminum Radiator for 2008-2014 Freightliner Business Class
What it Does: Replaces failure-prone factory plastic-tank units with a fully TIG-welded, 3-row all-aluminum assembly designed to stabilize coolant temperatures under sustained commercial payload and towing cycles.
The Stock Business Class Cooling Degradation
Factory radiators in commercial M2 platforms rely on crimped plastic end tanks mated to aluminum cores via elastomeric gaskets. Over continuous thermal cycling and heavy vocational engine loads, prolonged exposure to operating pressures up to 15-18 PSI degrades the polymer tanks, causing fatigue cracking along the tank header seams. Compounding this, factory core pitch restricts airflow under heavy low-speed hauling, leading to progressive heat soak and thermal derating on both the MBE 900 series and Cummins ISC platforms.
The Engineering Solution

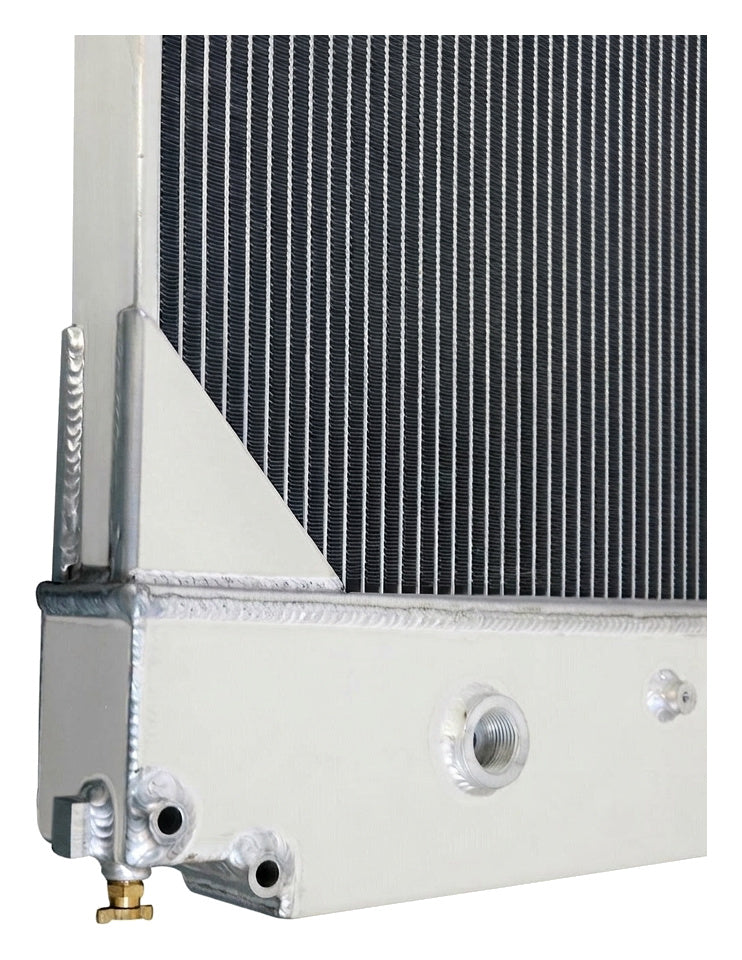

Engineered for commercial duty cycles, this performance radiator features a high-density 3-row brazed aluminum tube-and-fin core paired with robotically TIG-welded 5052-grade aluminum end tanks. By eliminating crimped plastic junctions entirely, structural shear strength is significantly increased to prevent blowouts under pressure spikes. The high-capacity multi-louvered fin matrix maximizes conductive surface area, dropping return coolant temperatures more efficiently than standard OEM designs during prolonged hill climbs and high-ambient idling.
Technical Specifications
| Fitment | 2008-2014 Freightliner Business Class (M2 106 / M2 112) |
| Engine / Chassis | MBE 906 (6.4L) / Cummins ISC (8.3L) / M2 Chassis |
| Stock Output | 260-350 hp / 800-1,025 lb-ft (Approx) |
| Part Number | N/A |
Compatibility
- 2008-2014 Freightliner Business Class M2 106 6.4L Turbo Diesel
- 2008-2014 Freightliner Business Class M2 106 8.3L Turbo Diesel
- 2008-2014 Freightliner Business Class M2 112 8.3L Turbo Diesel
The Freightliner Commercial Standard
Built strictly for severe-duty hauling, heavy urban distribution, and high-GVWR transport, this all-aluminum cooling system resists chassis torsional twist and road vibrations while keeping operating oil and water temps in check under maximum rated gross vehicle weights.
