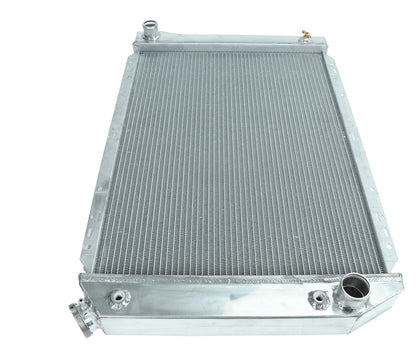

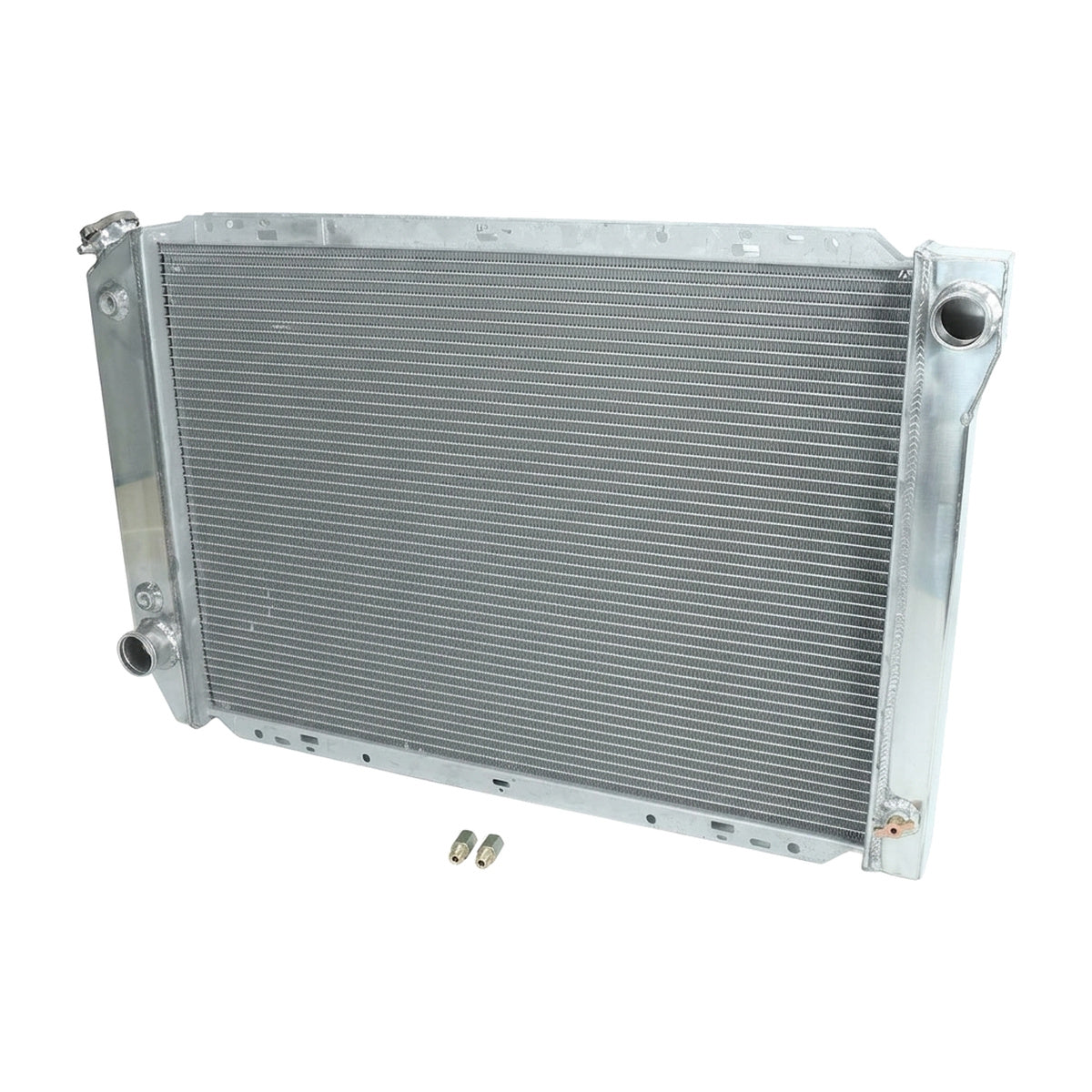

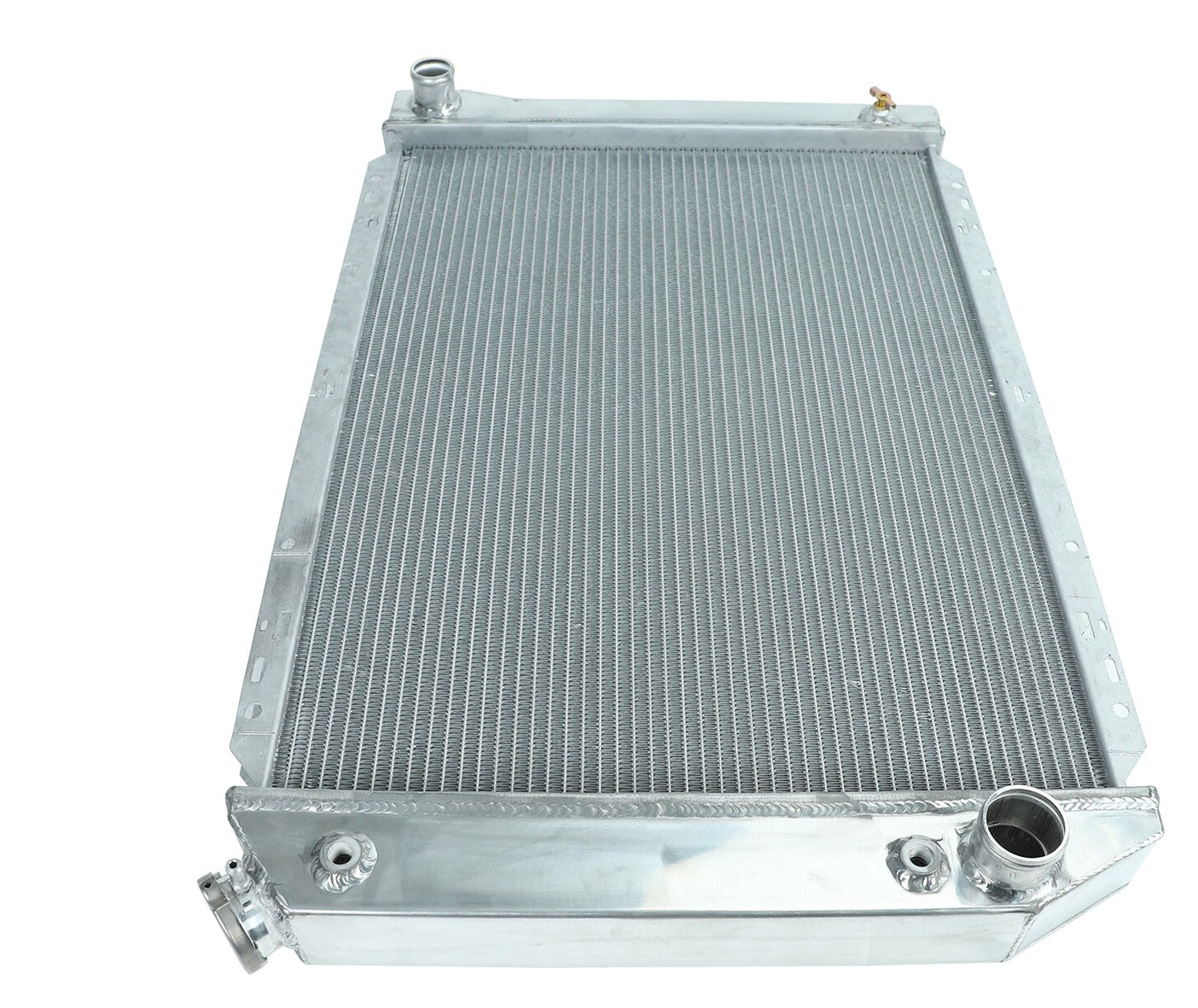

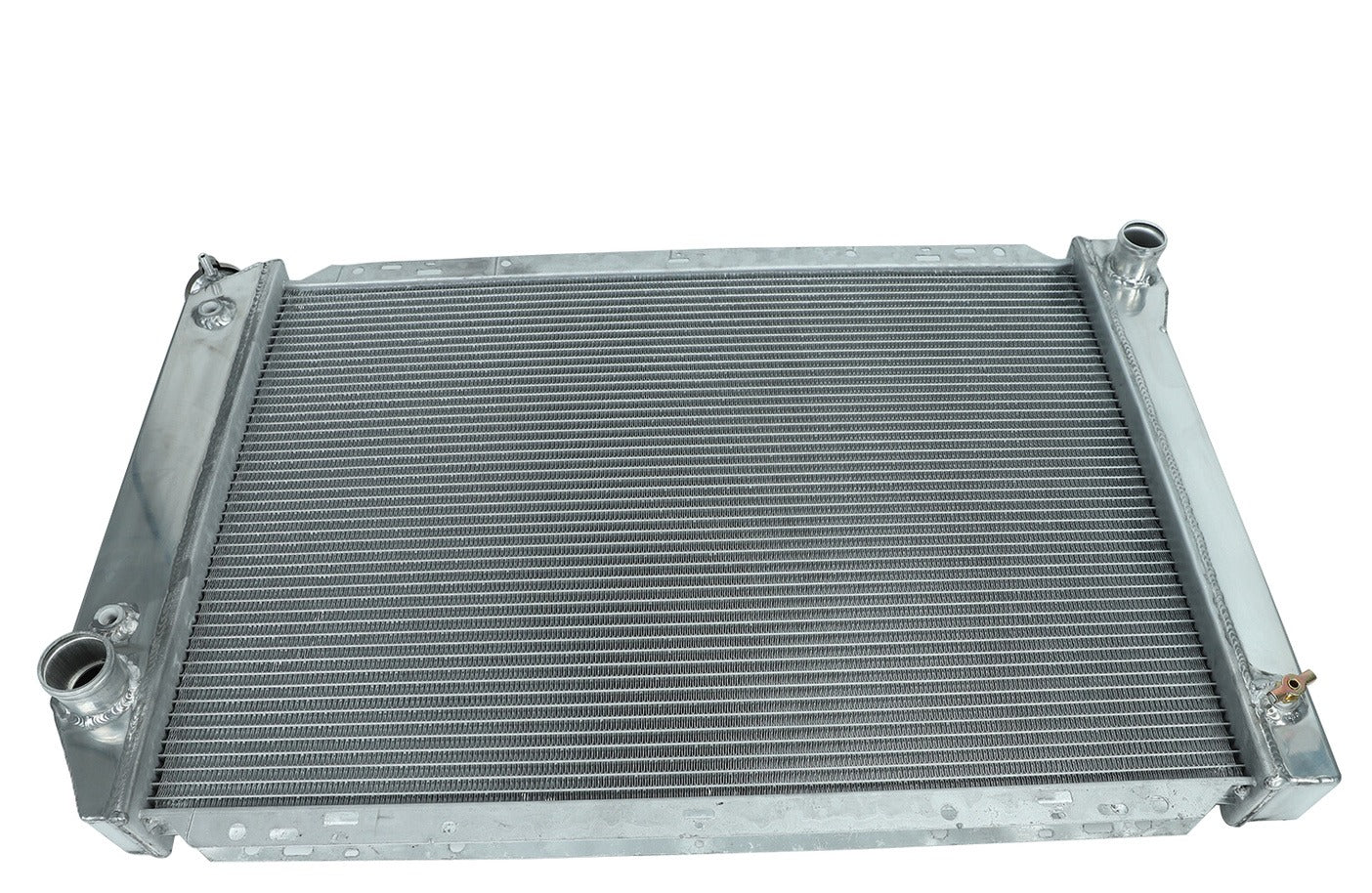

Aluminum Radiator for Ford F-100 (1980-1983) 5.0L

Heavy-Duty All-Aluminum Crossflow Radiator for 1980-1983 Ford F-100

Engine Cooling Upgrade: Direct-fit all-aluminum replacement engineered to eliminate thermal runaway and factory tank seam fatigue in 5.0L Windsor-powered trucks.

The Stock Bullnose F-100 Cooling Bottlenecks

Factory radiators in 1980-1983 F-100 pickups rely on aging copper-brass construction or crimped composite tanks that succumb to thermal fatigue, internal scaling, and fin corrosion over decades of heat cycles. Under heavy payload or towing conditions, factory cores suffer from heat soak and restricted crossflow efficiency, while aged internal transmission coolers risk cross-contaminating coolant and ATF fluid.

The Engineering Solution

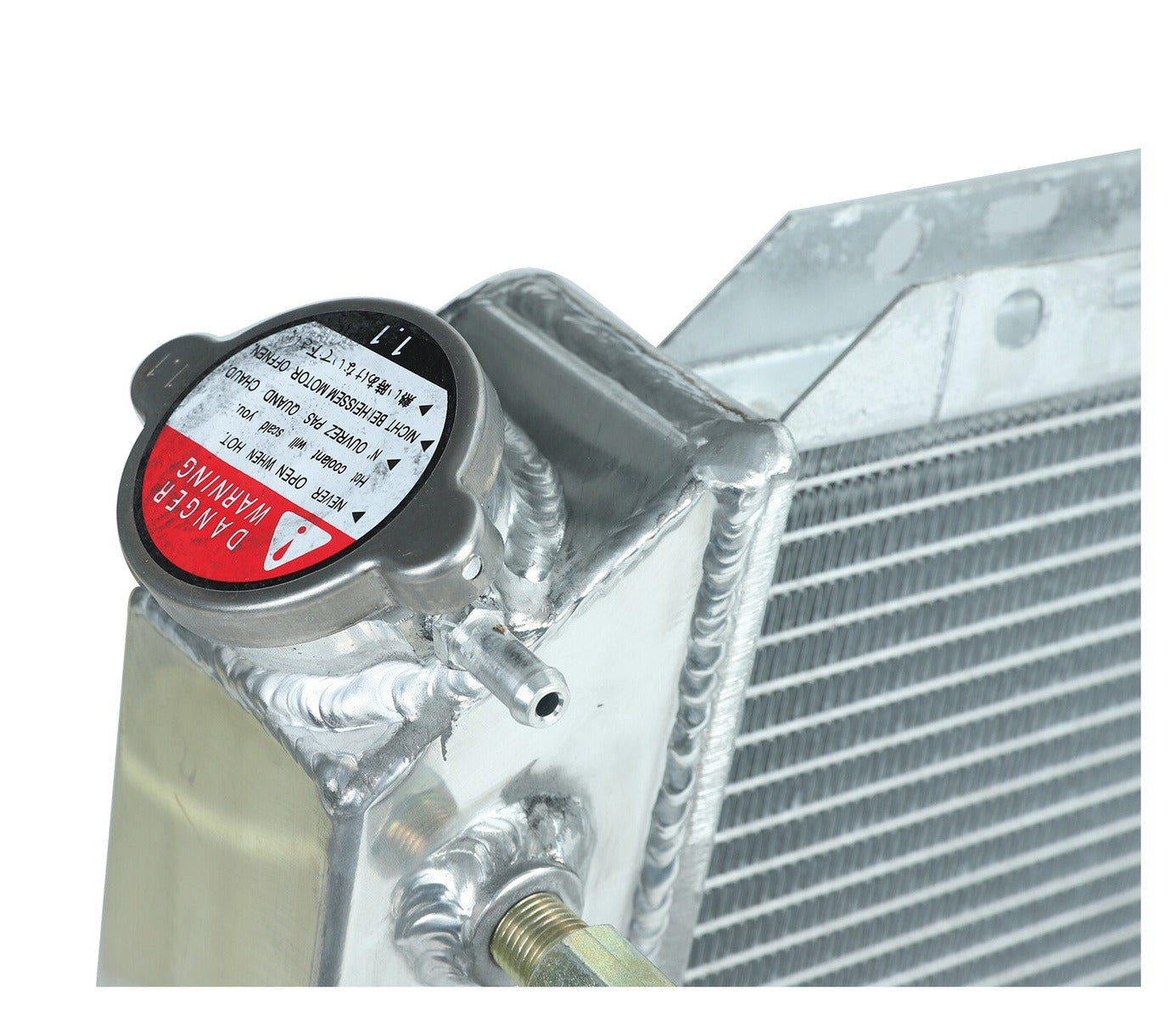

This high-efficiency replacement features a 1-row vacuum-brazed aluminum core (19.21" x 27.56" x 1.02") paired with 100% TIG-welded aluminum end tanks, completely eliminating failure-prone epoxy bonds and gasket crimps. The assembly incorporates an internal transmission oil cooler, standard 1.50" inlet and 1.75" outlet ports, and a precision CNC-machined filler neck to maintain consistent cooling pressure across the 302ci Windsor block under sustained load.

Technical Specifications

Compatibility

• 1980-1983 Ford F-100 Base, Custom, Ranger, XL, XLT (5.0L 302ci V8 Automatic & Manual)
• Direct interchange: DPI 561, CU561, CC561, MC561, EC561, AE561

The Ford Truck Standard

Engineered to handle sustained highway towing, high-ambient summer work, and rugged off-road hauling without temperature spikes or structural fatigue.
