Cone Filters on a Supercharged Jaguar XJ 5.0: Whine vs Heat


2 min read

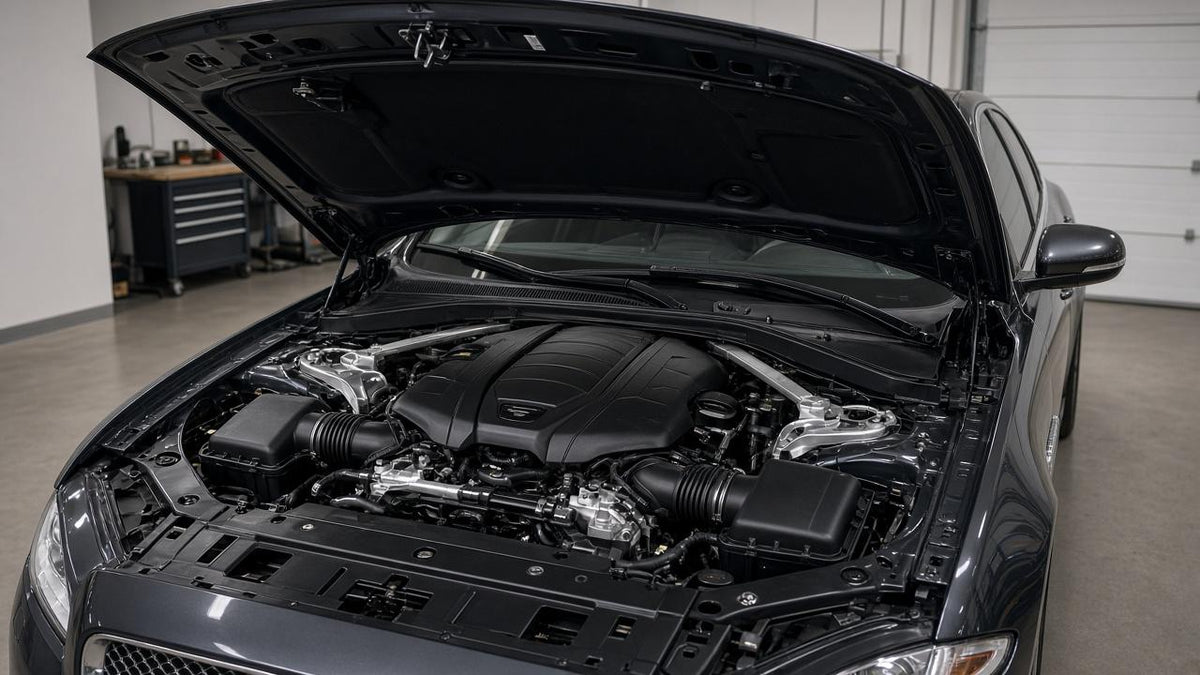

Jaguar XJ 5.0 supercharged V8 engine bay with twin front airboxes

Cone filters on a supercharged Jaguar XJ get you a lot more supercharger whine. Whether they get you any power depends on where the air comes from.

The Short Answer (TL;DR)

On a 2012 Jaguar XJ Supersport with the 5.0 supercharged V8, open cone filters make more supercharger noise. Keep a cold-air feed to the filters and shield them from engine heat rather than leaving them to draw hot air from the bay.

Jaguar XJ 5.0 supercharged V8 engine bay with twin front airboxes

The question

On the 2012 XJ Supersport, replacing the factory airboxes with cone filters exposes more supercharger whine. Plan the filter placement and cold-air feed before pulling the stock boxes out.

What owners said

  • Noise: Everyone agrees cones add a lot of supercharger whine. One reply put it as "no gain, only noise."
  • Heat: The stock system already pulls cool air from the front. Open cones in the engine bay breathe hot air, and one owner says that loses some torque and performance.
  • Stock filters: One reply says clean factory filters already flow more air than the engine can use at max rpm, because the supercharger keeps the intake manifold under positive pressure.
  • A kit that worked: One XJR owner ran a cone-filter kit but said its sheet-metal boxes fit badly and needed a lot of rework. He connected the factory ram-air tubes to his own filter boxes and says that brought intake temps to within about 5-10 degrees of the factory air box.

Diagram comparing factory ram-air airbox with an open cone filter breathing hot engine bay air

The symposer side note

Two owners pointed out the 5.0 V8 usually has a symposer. It's a mechanical part that pipes intake sound into the cabin, and some owners find it sounds odd. They blocked it off instead of changing filters. One reply notes this makes the cabin quieter, not louder, so it doesn't help if what you want is more whine.

If you go with an intake kit

Keep cold air going to the filters. If you fit a kit, keep the filters fed from the front of the car and shielded from engine heat. We sell a cold air intake filter kit for the 2010-2021 XJ and XJR with the 5.0 supercharged V8. Check your year and engine before you order.

Cold air intake filter kit for Jaguar XJ XJR 5.0 supercharged

Shop the XJ/XJR 5.0 supercharged intake kit

Shop Jaguar performance parts

Frequently Asked Questions

Will cone filters add power on a 5.0 supercharged XJ?

More supercharger noise does not tell you how much power changed. Keep the filters supplied with cold air rather than drawing hot air from the engine bay.

How do you keep intake temps down with cones?

One owner hooked the factory ram-air tubes to his filter boxes so they still got cool air from the front. He says that brought intake temps to within about 5-10 degrees of stock.
