DIY Guide: Cold Air Intake Install (BMW N20/N26 Engine)

5 min read
DIY Guide: Cold Air Intake Install (BMW N20/N26 Engine)

The N20/N26 2.0L Turbo found in the F-Chassis BMWs is a capable engine, but the factory airbox is designed for silence, not flow. Upgrading to a Cold Air Intake (CAI) is the best way to hear that turbo spool and improve throttle response.

This guide applies to the F30 328i, F32 428i, and F22 228i.

Vehicle Fitment:
  • 2012-2016 BMW 328i / 320i (F30/F31)
  • 2014-2016 BMW 428i / 420i (F32/F33/F36)
  • 2014-2016 BMW 228i (F22)

⚠️ The "MAF Sensor" Warning

The Mass Air Flow (MAF) sensor on the N20 is extremely sensitive and expensive. Read this before you start:

  • Do NOT reuse the factory screws: The stock screws are designed for plastic. Most aftermarket metal intake pipes require the specific machine screws (usually M4) included in your kit. Forcing stock screws into a metal pipe will strip the threads.
  • Fragile Electronics: Do not touch the sensor element with your fingers or drop it. It will cause a Check Engine Light (CEL).

Tools Required

  • T20 or T25 Torx Driver (For MAF sensor screws)
  • Flathead Screwdriver (For hose clamps)
  • 6mm or 7mm Socket (Optional, for hose clamps)
  • 10mm Socket (For strut brace bolts, if equipped)
  • Clean rag (To cover the turbo inlet)

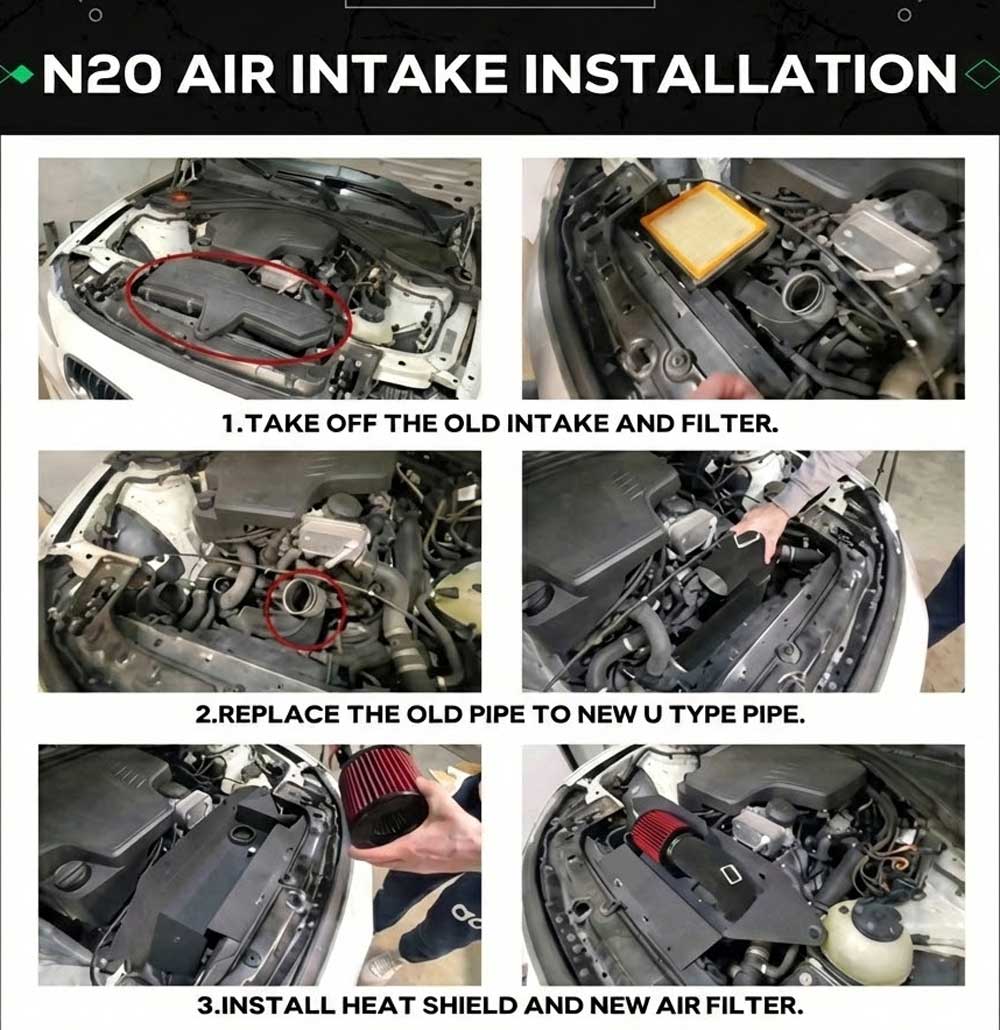

Phase 1: Removal of Stock System

Step 1: Disconnect Battery & MAF

Disconnect the Negative (-) battery terminal. Locate the MAF sensor on the intake tube near the airbox. Use a small flathead to release the grey locking tab, press down, and unplug the connector. Move the wiring harness out of the way.

Step 2: Remove the Airbox Lid

Release the four metal clips holding the airbox lid to the lower box. Loosen the hose clamp connecting the intake tube to the turbo inlet pipe (down deep near the engine). Pull the lid and tube assembly out.

Note: If you are removing the entire lower box as well (most kits require this), simply pull the bottom half of the box straight up. It is held in by rubber grommets—no bolts.

Step 3: Transfer the MAF Sensor

Using your Torx driver (T20 or T25), unscrew the two screws holding the MAF sensor into the factory tube. Carefully slide the sensor out and set it on a clean cloth. Do not reuse these screws.

Step 4: Vacuum Lines (N20 vs N26)

Check your stock intake tube. If you have an N26 engine (SULEV), you will likely see a small vacuum line connected to the side of the tube. Disconnect this line carefully. If you have a standard N20, you might not have this line.

Phase 2: Installation

Step 5: Install Heat Shield

Place the new heat shield into the engine bay. Most aftermarket shields utilize the factory rubber grommets from the bottom of the old airbox. If the grommets stuck to the old box, pull them off and push them back into the car's frame rails before dropping the new shield in.

Step 6: Install MAF into New Tube

Insert your factory MAF sensor into the new intake pipe. Orientation matters: The "open" side of the sensor bulb should face the incoming air (towards the filter). Secure it using the supplied M4 screws from your kit.

Step 7: Turbo Inlet Connection

Crucial Step: Ensure the factory turbo inlet pipe (the plastic pipe remaining on the engine) is clean and free of cracks. Slide your new silicone coupler onto this inlet pipe and tighten the clamp loosely.

Step 8: Install the Intake Tube

Lower the new intake tube into position.

  • Connect the engine side to the silicone coupler.
  • Connect the other end to the filter/heat shield opening.
  • Vacuum line check: Our 2/3/4 Series N20/N26 tube does not include a vacuum port. If you found a vacuum line on your stock intake tube in Step 4, confirm fitment with us before you start (call 1-877-763-2804 or use our Contact page with your VIN). Never leave an open port or loose line after the MAF.



Step 9: Filter & Final Tightening

Install the high-flow cone filter onto the end of the tube and tighten the clamp. Once the tube is aligned and not rubbing against the strut brace or radiator fan, tighten all hose clamps. Reconnect the MAF sensor plug.

🔧 Mechanic's Pro Tips

1. The "Turbo Inlet" Weakness
The factory plastic turbo inlet pipe (the piece the intake connects to) is notorious for cracking on the N20 engine. If you see oil residue around the connection or the plastic feels brittle, consider upgrading to an aluminum Turbo Inlet Pipe while you are doing this install.

2. Vacuum Leaks (Rough Idle)
If you start the car and it idles roughly or stalls, look for an unplugged line or a coupler that is not fully seated. Any unmetered air after the MAF sensor causes a rough idle.

3. MAF Cleaning
Since you have the sensor out, inspect it. If the filament looks dirty or oily, spray it gently with specific MAF Sensor Cleaner. Do not use brake cleaner or carburetor cleaner, as these will destroy the sensor plastics.

Pick the Right Kit for Your Chassis

2, 3 and 4 Series (F22/F23, F30/F31/F34, F32/F33/F36): Our N20/N26 kit uses a 3.5" mandrel-bent aluminum tube in black powder coat, an insulated air box that seals to BMW's factory air scoop, a washable inverted cone filter, a billet SAI breather adapter, a billet anti-rattle bracket, and silicone couplers with stainless clamps. It fits 220i/228i (2013–2016), 320i/328i (2012–2016) and 420i/428i (2014–2016), RWD and xDrive.

Cold air intake for BMW 228i 328i 420i 428i N20 N26 with sealed heat shield box and red cone filter

Shop the N20/N26 cold air intake for 228i, 328i, 420i and 428i

5 Series (F10/F11): The 5 Series kit replaces the baffled factory box and panel filter with a smooth-bore aluminum pipe and a high-flow conical filter inside a heat shield, and keeps the factory sensor placement. It fits US 2012–2016 528i and 528i xDrive, plus international 2012–2018 520i and 528i with the N20.

Cold air intake for BMW 520i 528i F10 F11 N20 with heat shield and conical filter

Shop the N20 cold air intake for 520i and 528i F10/F11

Driving something else? Browse every BMW air intake we carry.

Frequently Asked Questions

Which BMW chassis does an N20 cold air intake fit?

Our 2/3/4 Series kit fits the N20 and N26 in the F22/F23 220i and 228i (2013–2016), the F30/F31/F34 320i and 328i (2012–2016) and the F32/F33/F36 420i and 428i (2014–2016), RWD and xDrive. The 5 Series kit covers the F10/F11 528i (US 2012–2016) and the 520i and 528i (international 2012–2018). Confirm your year and engine before you buy.

Will a cold air intake cause a check-engine light on the N20?

It is built to run on the factory ECU. Handle the MAF sensor carefully, use the supplied screws, seal every coupler, then keep the negative battery cable disconnected for at least 60 seconds after the install so the ECU resets and adapts to the extra airflow.

Do I need a tune after installing it?

No. No tune is required, though pairing the intake with a tune unlocks additional gains.

How long does the install take?

Most installs are done in 1 to 2 hours with common hand tools by anyone with basic mechanical skills. Work on a completely cool engine.
