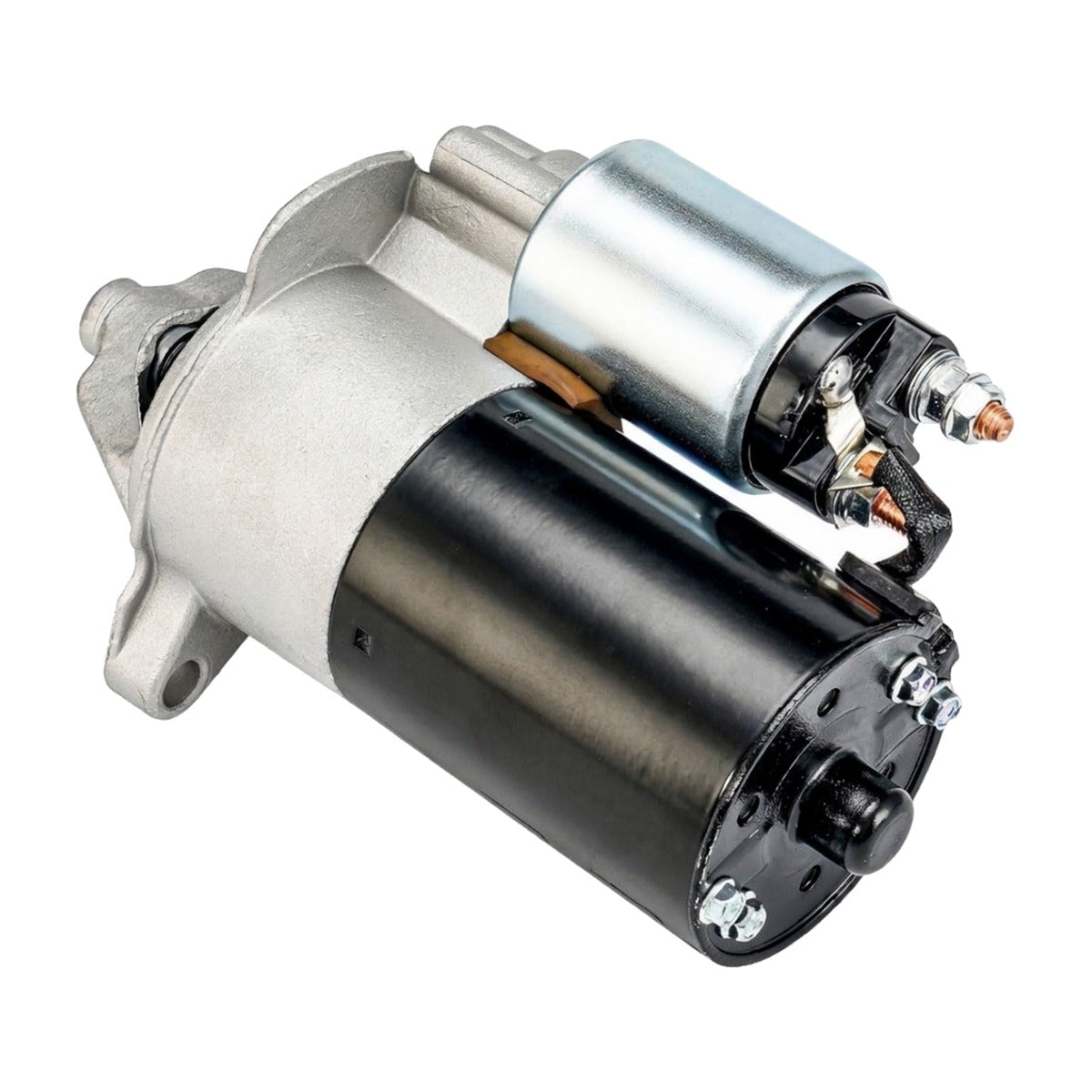

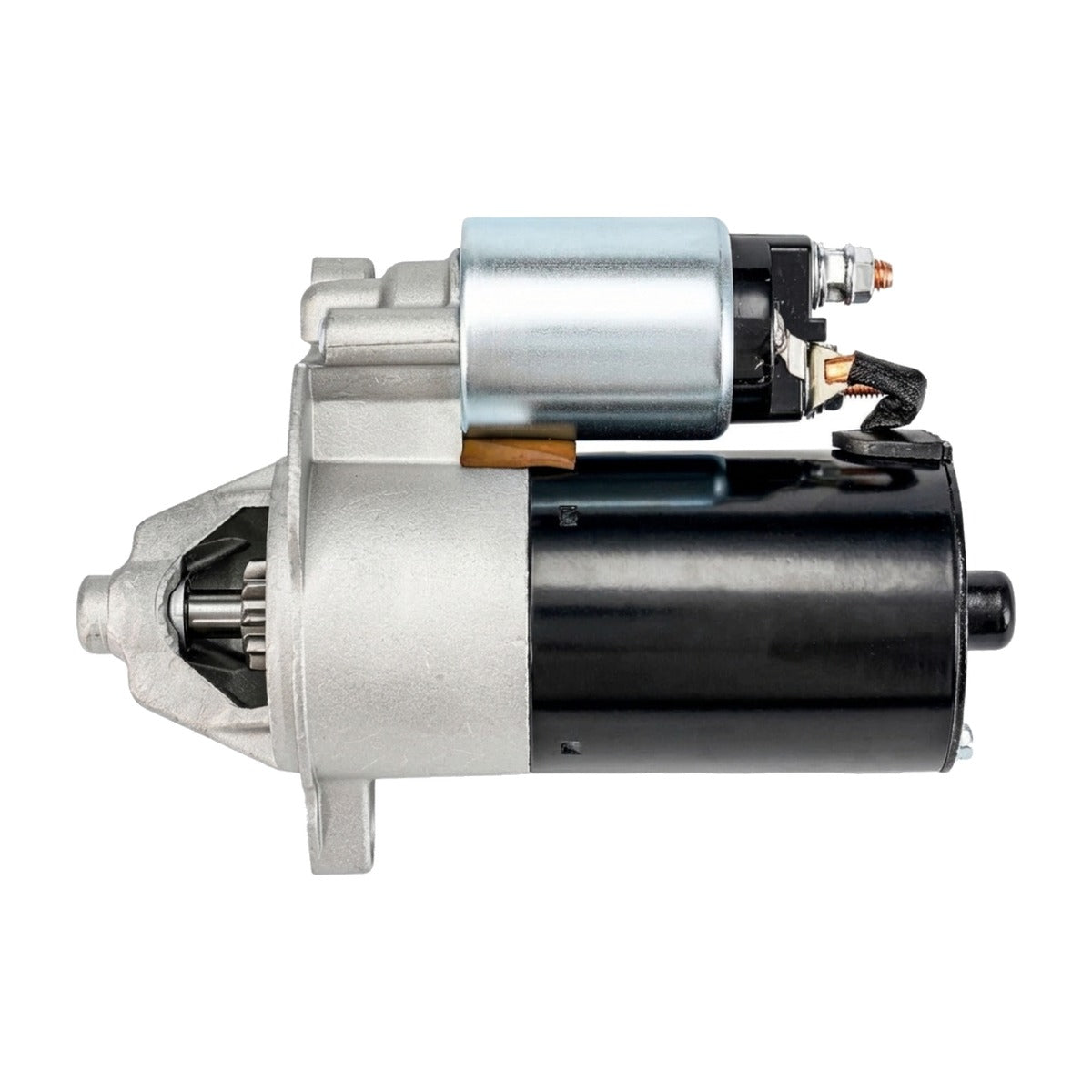

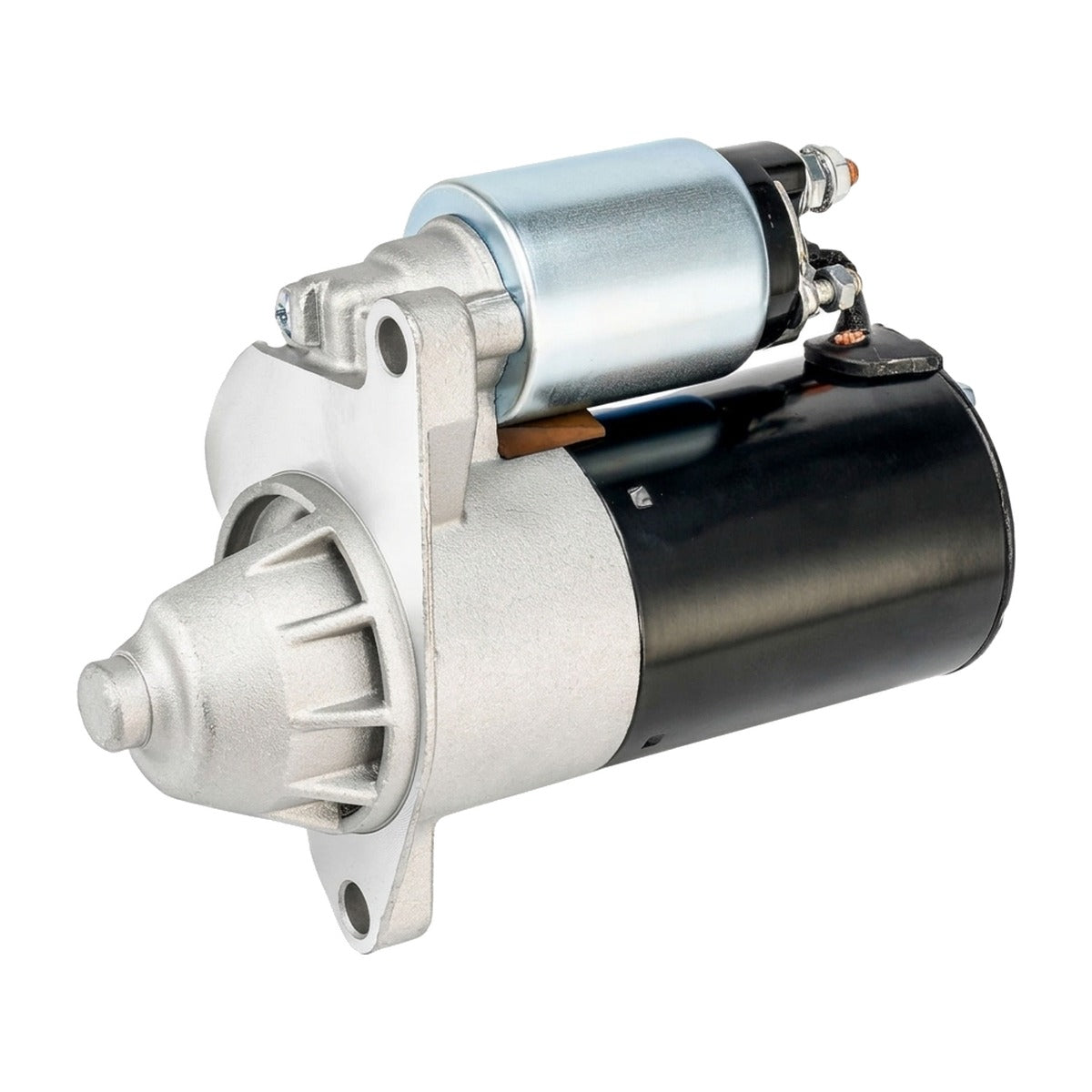

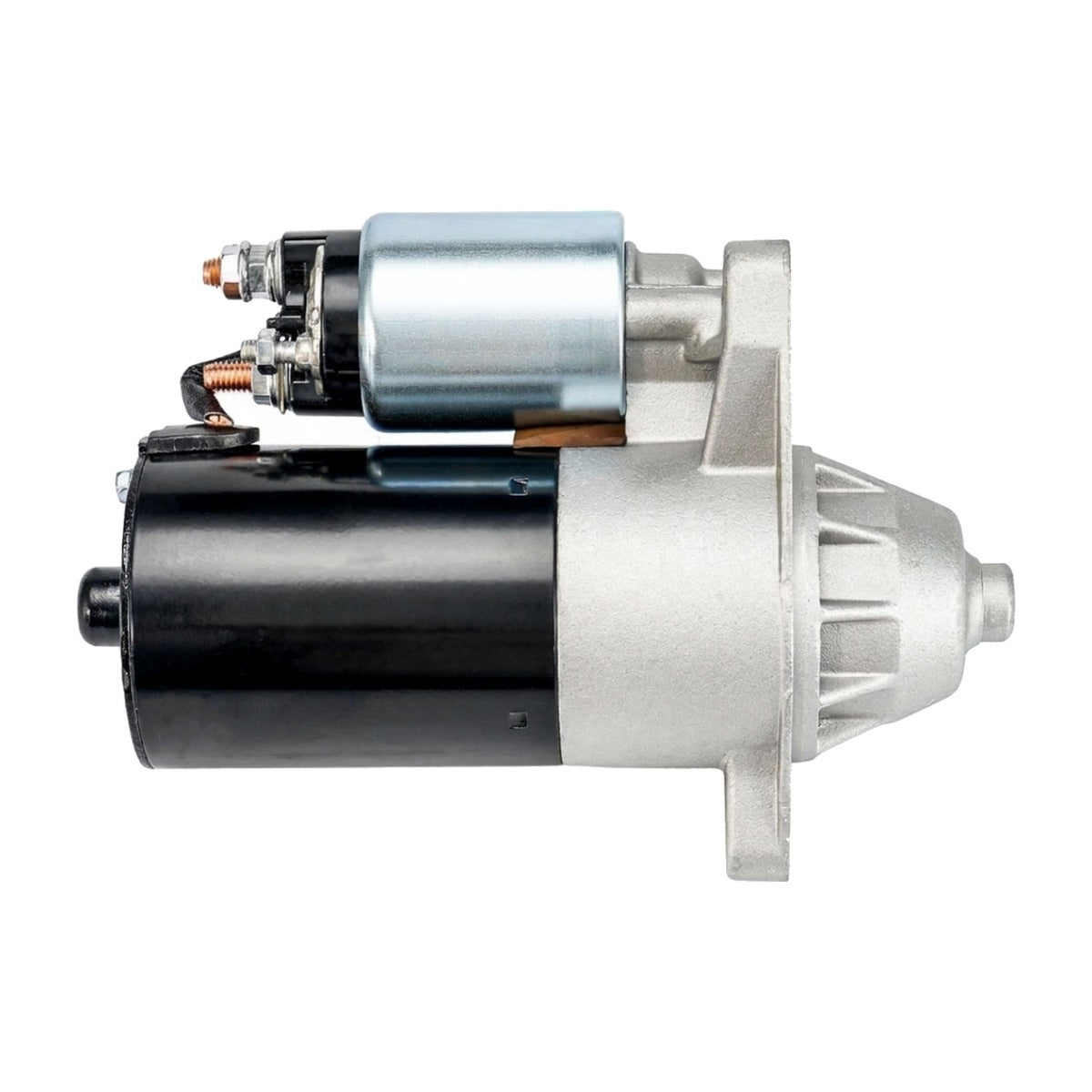

Starter for Ford Ranger (1998-2011) 4.0L

High-Torque PMGR Starter Motor for 1998-2011 Ford Ranger (PJ/PK Chassis)

What it Does: The permanent magnet gear reduction starter motor replaces the failed or dragging factory unit on the 1998-2011 Ranger to restore immediate, high-torque engine cranking under extreme operating conditions.

The Stock Ford Ranger Starter Failure Points

Factory starters on the Cologne 4.0L V6 suffer from thermal degradation and brush gear wear over high-mileage duty cycles. Prolonged underhood heat soak from exhaust manifold proximity breaks down the internal varnish on copper windings and causes the internal solenoid contacts to pit and carbonize. This mechanical degradation manifests as high resistance, audible single-click or rapid chatter without engagement, dragging pinion engagement, and intermittent no-start conditions when hot. Furthermore, worn planetary reduction gears or damaged Bendix drive splines lead to flywheel ring gear grinding and catastrophic non-engagement.

The Engineering Solution

This replacement unit incorporates a Permanent Magnet Gear Reduction (PMGR) motor rated at 1.4 kW and 12 volts, delivering increased cranking torque across lower operating current draws compared to traditional direct-drive starters. Engineered with high-temp copper field windings, heavy-duty silver-alloy solenoid contact plates, and a case-hardened 10-tooth pinion drive gear, it withstands thermal cycling and repetitive engagement shock. The precision-machined mounting flange directly matches factory bellhousing bolt patterns, while balanced armatures prevent harmonic vibration during rapid rotation.

What's Included

• 1 Starter Motor (PMGR, 1.4 kW, 10-Tooth Pinion, Clockwise Rotation)

Technical Specifications

Compatibility

• 1998-2011 Ford Ranger 4.0L V6 (Automatic Transmission Only)

Frequently Asked Questions & Fitment Warnings

Does this fit the PJ/PK Chassis Ranger?

Yes, this is a direct fit for the 1998-2011 Ford Ranger equipped with the 4.0L Cologne V6 engine. Note: This starter is engineered strictly for automatic transmission applications; manual transmissions require a different pinion offset.

What diagnostic step should I take before installing this replacement starter?

Always verify the vehicle battery is fully charged (minimum 12.6V resting) and clean all primary ground and solenoid positive leads of corrosion to eliminate external voltage drops.

The Ford Truck Reliability Standard

Built for rigorous work truck duty cycles and severe off-road environments, this heavy-duty starter ensures dependable ignition whether idling on job sites or towing heavy payloads.
