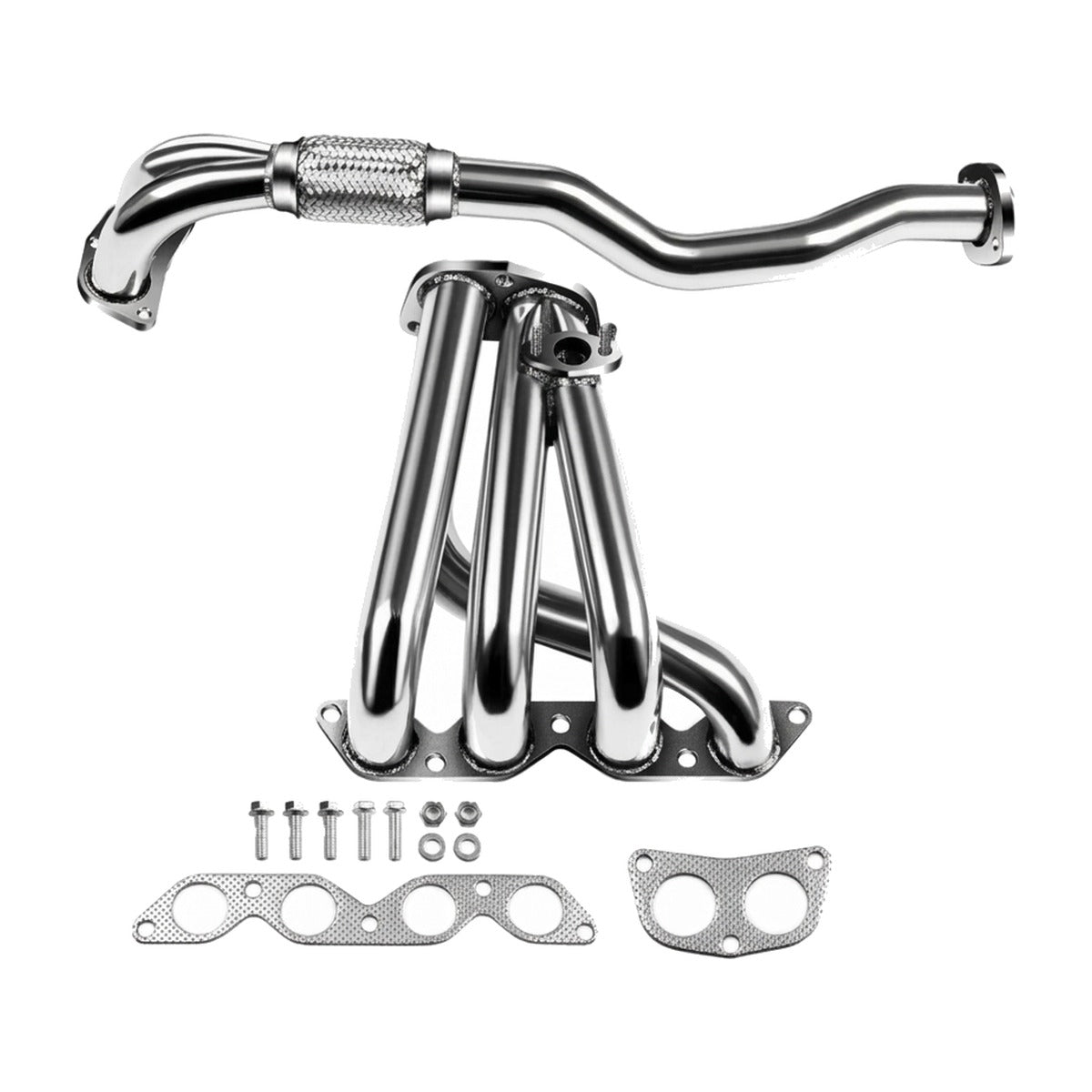

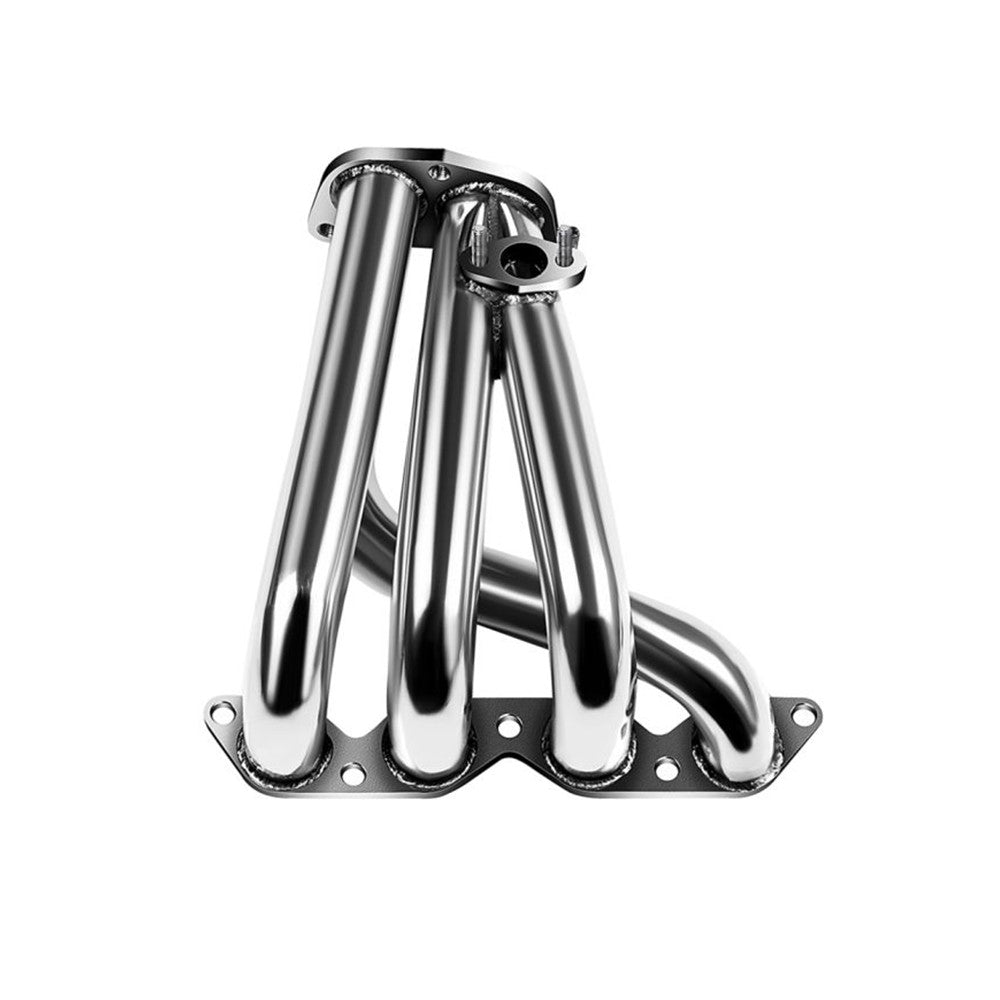

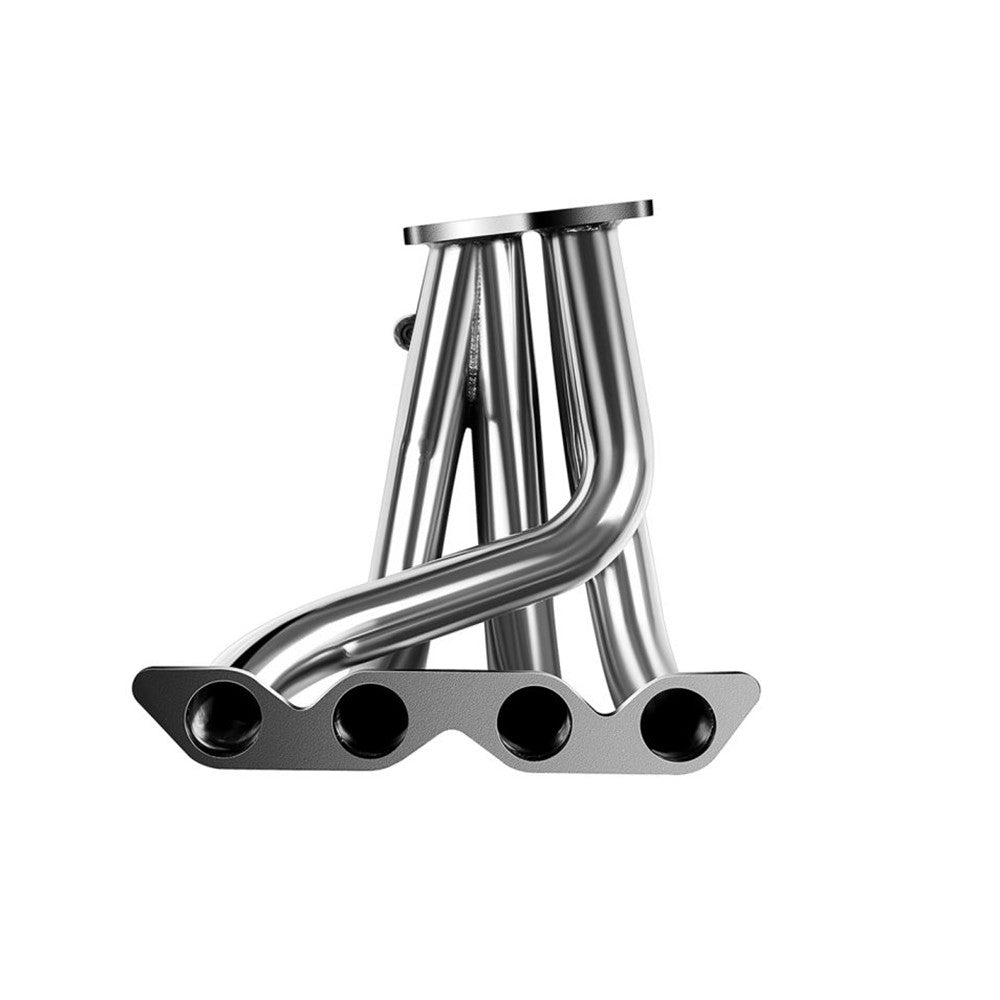

Stainless Steel Exhaust Header for Toyota Corolla (1993-1997) 1.6L

High-Flow 4-2-1 Exhaust Header for 1993-1997 Toyota Corolla (AE101)

What it Does: The 4-2-1 stainless steel exhaust header replaces the restrictive factory cast iron manifold on the 1993-1997 Toyota Corolla to improve exhaust scavenging and decrease backpressure for faster throttle response.

The Stock Toyota Corolla Exhaust Manifold Restriction

The factory E100 cast-iron exhaust manifold is designed with tight, uneven runner geometries and rough internal casting surfaces that create turbulent bottlenecks. Under repeated thermal cycling, these OEM cast units are prone to hairline fatigue cracks near the primary collector. This restrictive OEM design chokes high-RPM gas evacuation on the 4A-FE engine, compounding parasitic pumping losses and deadening throttle sensitivity across the rev range.

The Engineering Solution

Fabricated from mandrel-bent T-304 stainless steel, this 4-2-1 header utilizes stepped 1.50-inch primary tubes flowing into paired secondaries and a 2.00-inch collector. This geometry harnesses exhaust gas inertia to scavenge residual gases directly out of the combustion chamber. CNC-machined, warp-resistant mounting flanges ensure an airtight seal against the cylinder head, while an integrated front-pipe flex coupling absorbs engine rocking to prevent mechanical fatigue fractures.

What's Included

• 1x 4-2-1 T-304 Stainless Steel Exhaust Header

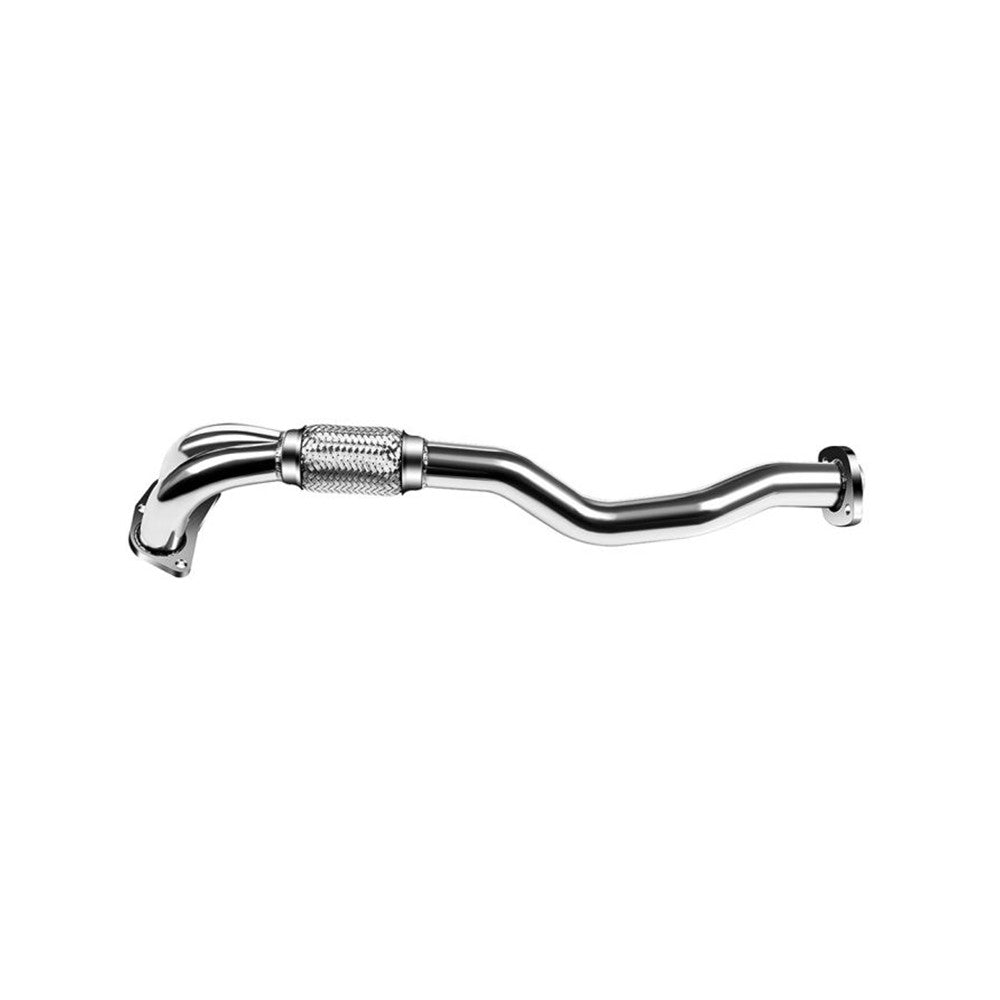

• 1x Front Downpipe with Integrated Flex Section
• 2x Multi-Layer Flange Gaskets
• 1x Pre-Welded O2 Sensor Bung
• Complete Mounting Bolt and Nut Hardware Kit

Technical Specifications

Compatibility

• 1993-1997 Toyota Corolla Base 1.6L 4-Cylinder (4A-FE)
• 1993-1997 Toyota Corolla DX 1.6L 4-Cylinder (4A-FE)

Frequently Asked Questions & Fitment Warnings

Does this fit the AE101 Corolla?

Yes, this is a direct fit for the 1993-1997 Toyota Corolla equipped with the 1.6L 4A-FE engine. Non-CARB compliant; intended for off-road and competition use only and not street legal in emissions-restricted jurisdictions.

Do I need to retorque the hardware after installation?

Yes, retorque all manifold stud nuts and collector bolts after the first 2 to 3 thermal heat cycles to ensure the gaskets maintain an airtight seal against the cylinder head.

The Toyota Performance Caliber

Tailored for the iconic reliability of Toyota's A-series platform, this stainless system improves volumetric efficiency, producing clean mid-range torque along with a deeper, crisper naturally aspirated tone.
