Silicone Air Intake Boot for BMW E46 M3 (2001-2006) 3.2L

High-Flow Silicone Air Intake Boot for 2001-2006 BMW M3 (E46)

What it Does: The Silicone Air Intake Boot replaces the deteriorated factory rubber intake tract on the 2001-2006 BMW M3 to eliminate unmetered vacuum leaks and increase intake volume entering the individual throttle bodies.

The Stock BMW M3 Intake Degradation

The factory rubber intake elbow on the E46 M3 degrades quickly under sustained underhood thermal cycles. Subjected to constant radiant heat from the high-revving S54 engine, the stock elastomeric rubber dries out, hardens, and develops stress fractures along the accordion flex ribs. These micro-cracks permit unmetered air to bypass the Mass Airflow (MAF) sensor, skewing fuel trims and triggering fault codes such as P0171 and P0174. In addition, the factory boot features restrictive internal profiling and internal ribs that induce boundary-layer turbulence right before the throttle plenum, dampening transient throttle response and engine acoustics.

The Engineering Solution

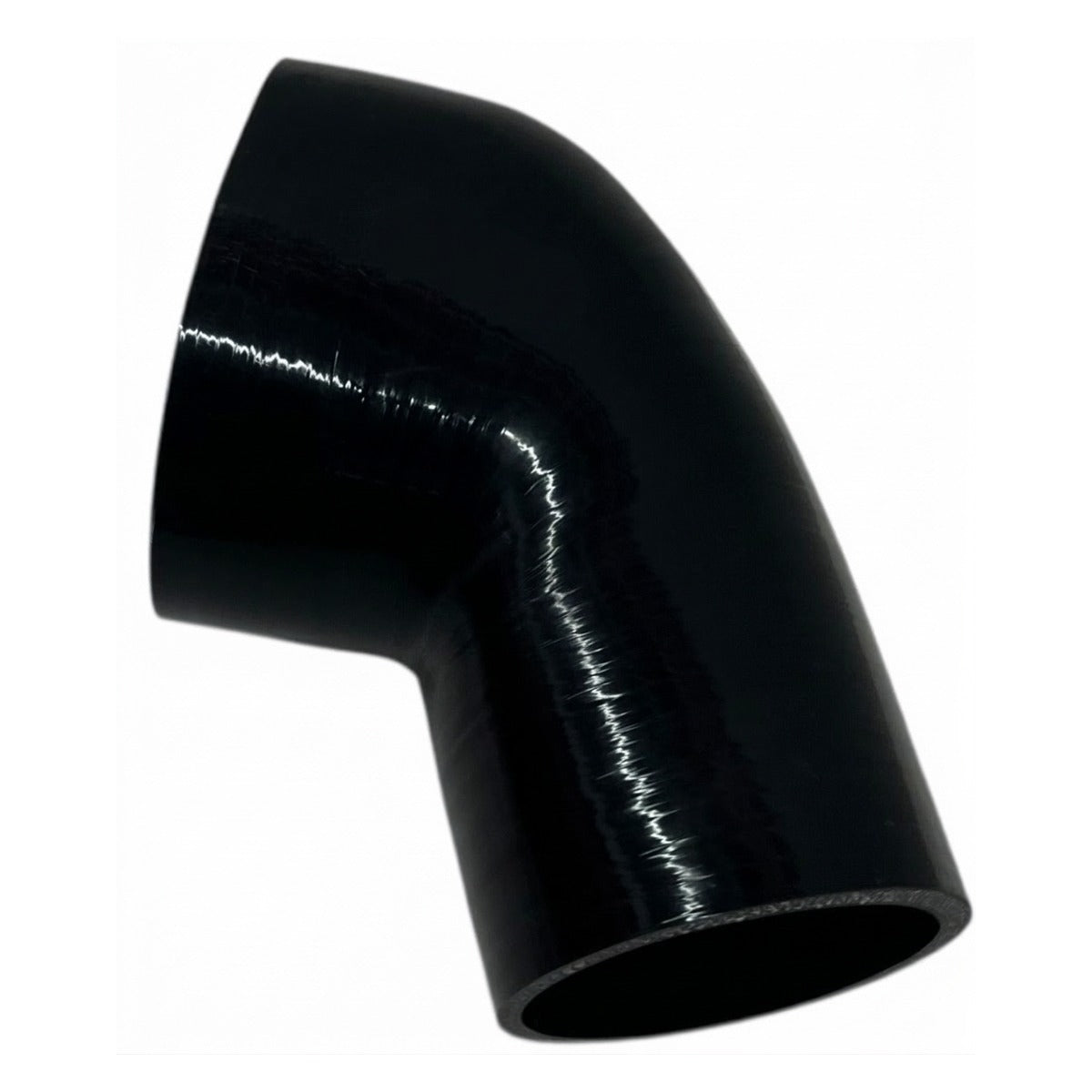

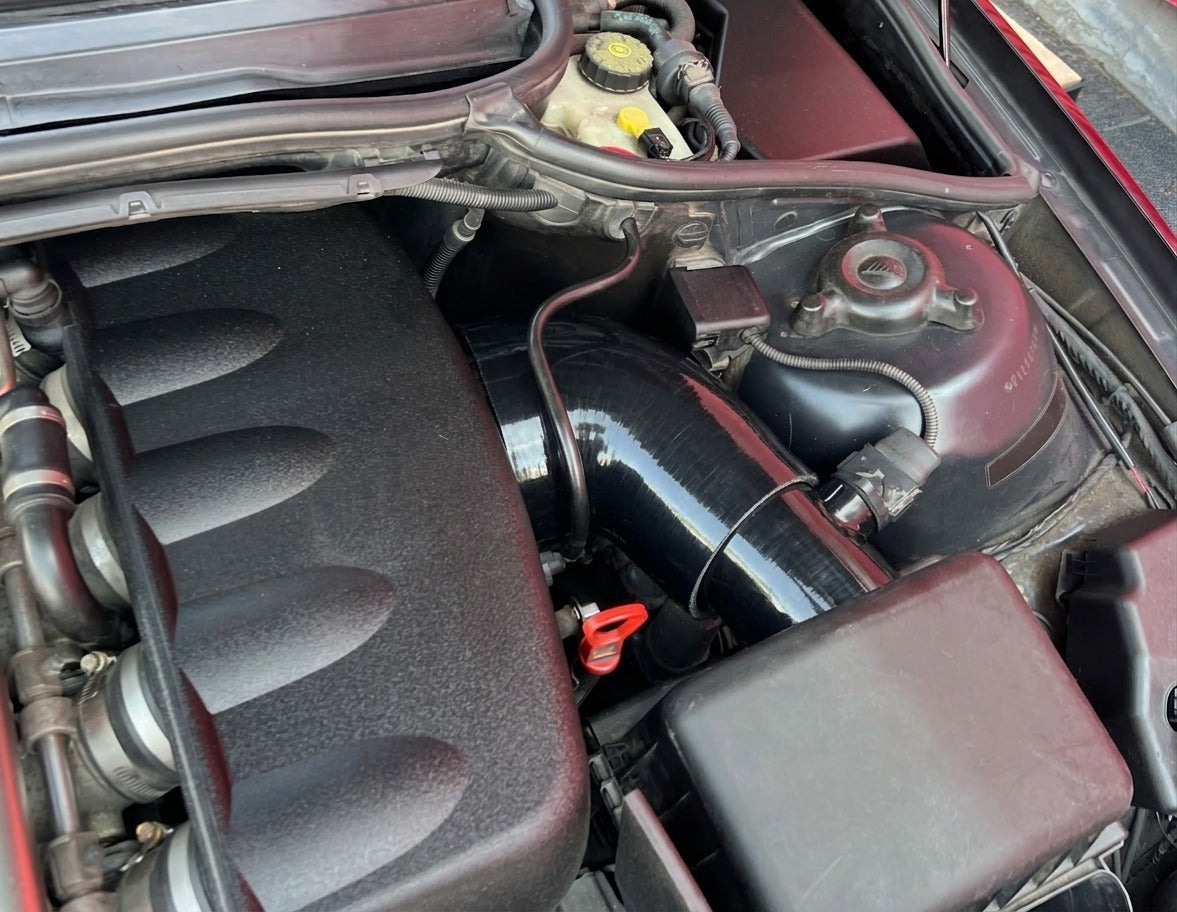

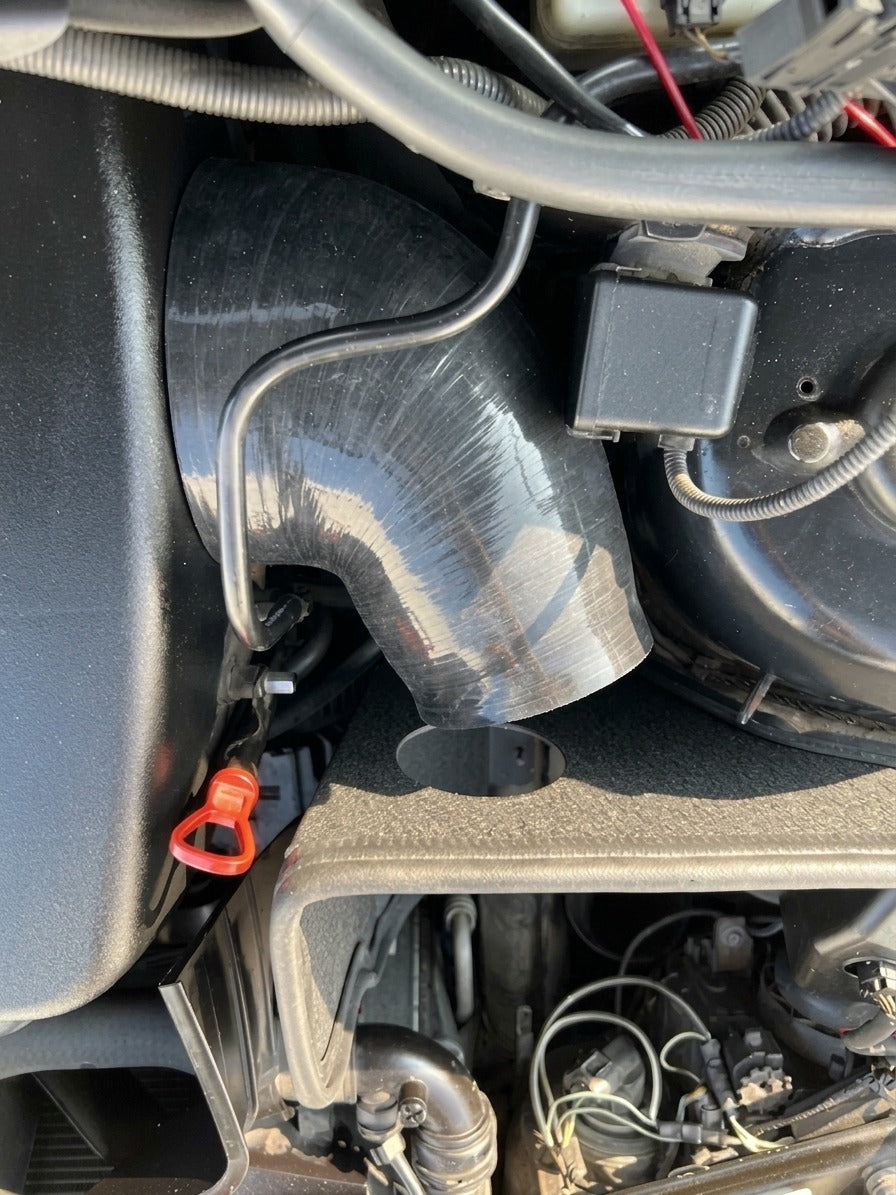

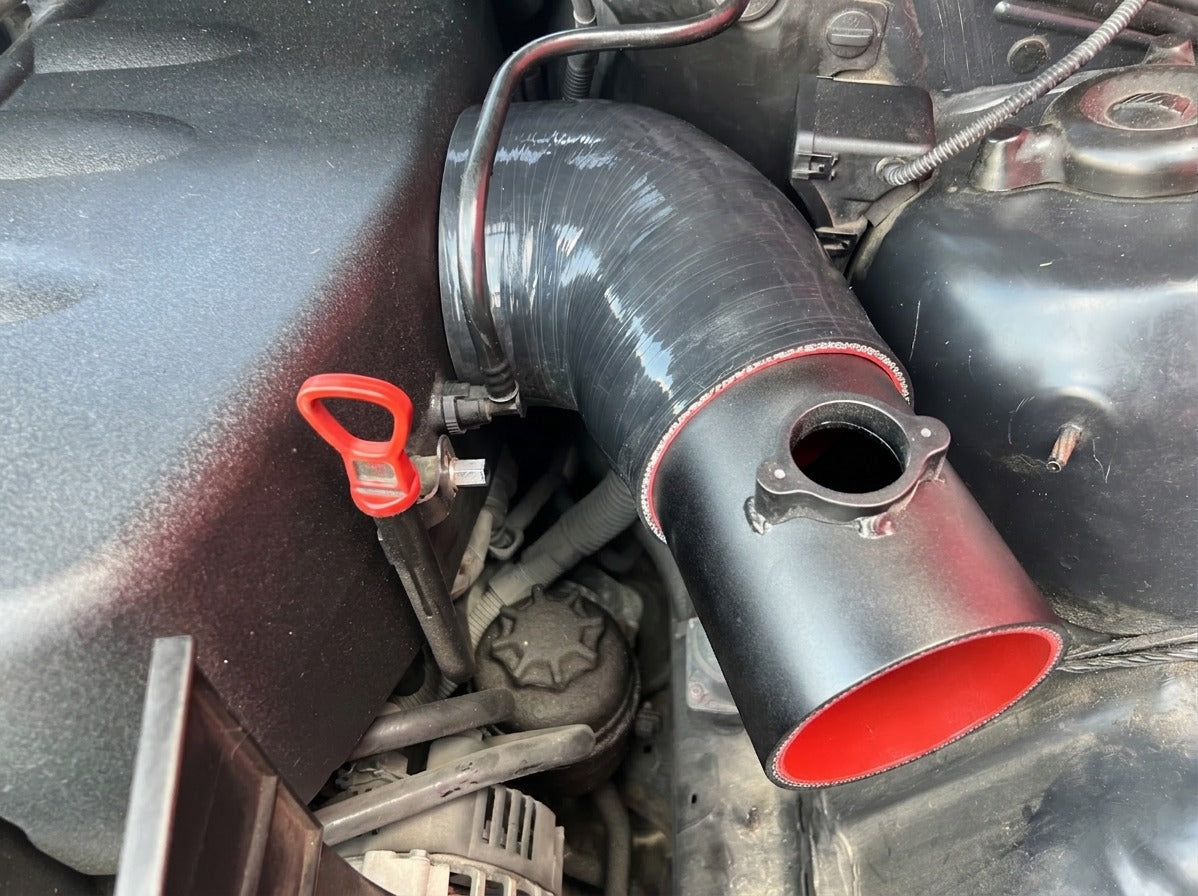

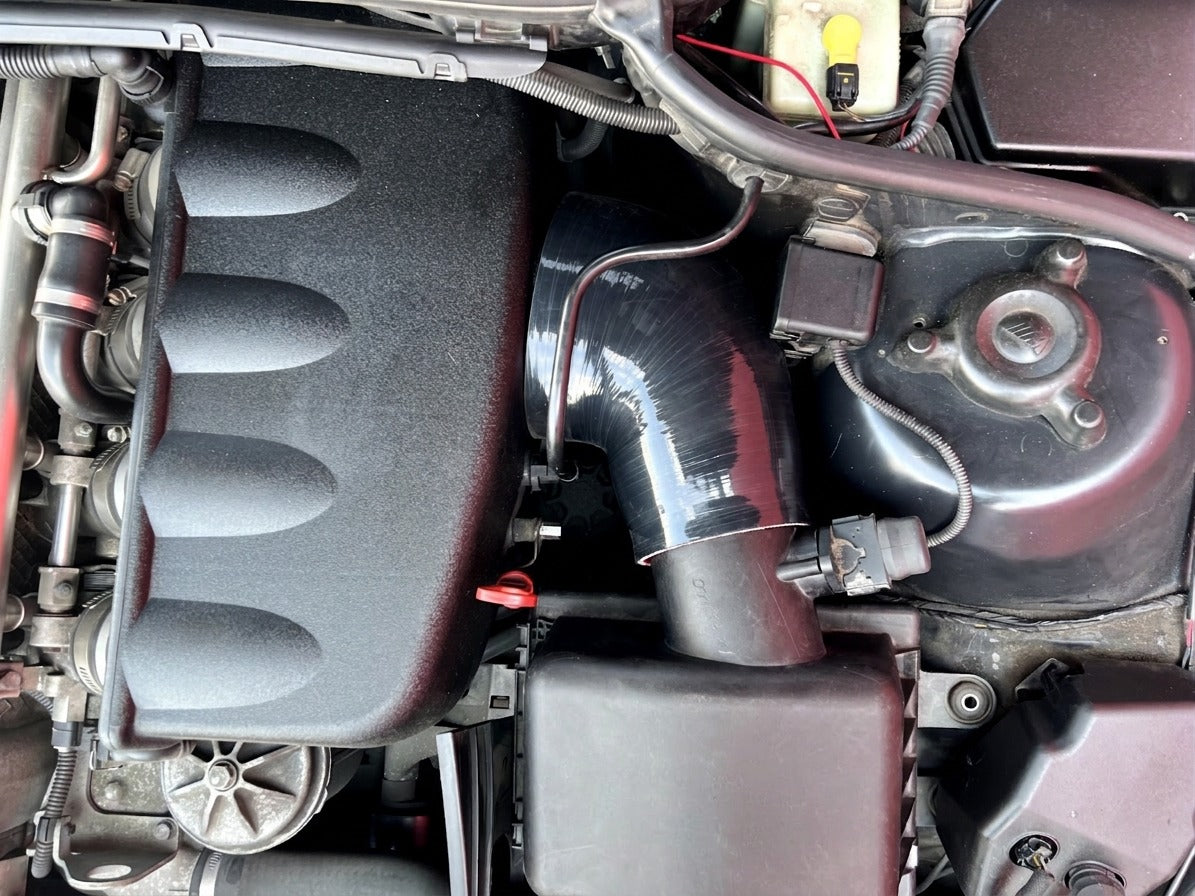

Engineered as a direct structural replacement, this intake boot is constructed from multi-ply, reinforced high-temperature silicone with heavy wall construction. It resists collapse under intense engine vacuum while completely insulating the incoming air charge from thermal heat soak. The internal geometry is precision-molded to eliminate internal stepped edges and accordion folds, creating a roughly 35% larger internal volume with a laminar flow profile. It interfaces directly with the factory airbox housing and the factory intake manifold plenum using heavy-duty stainless steel worm-drive clamps, maintaining a rigid 4-inch architecture that accommodates stock equipment or larger aftermarket MAF conversions.

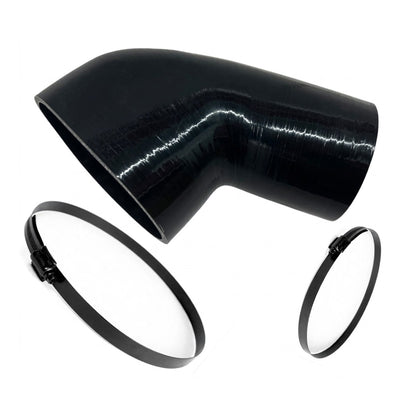

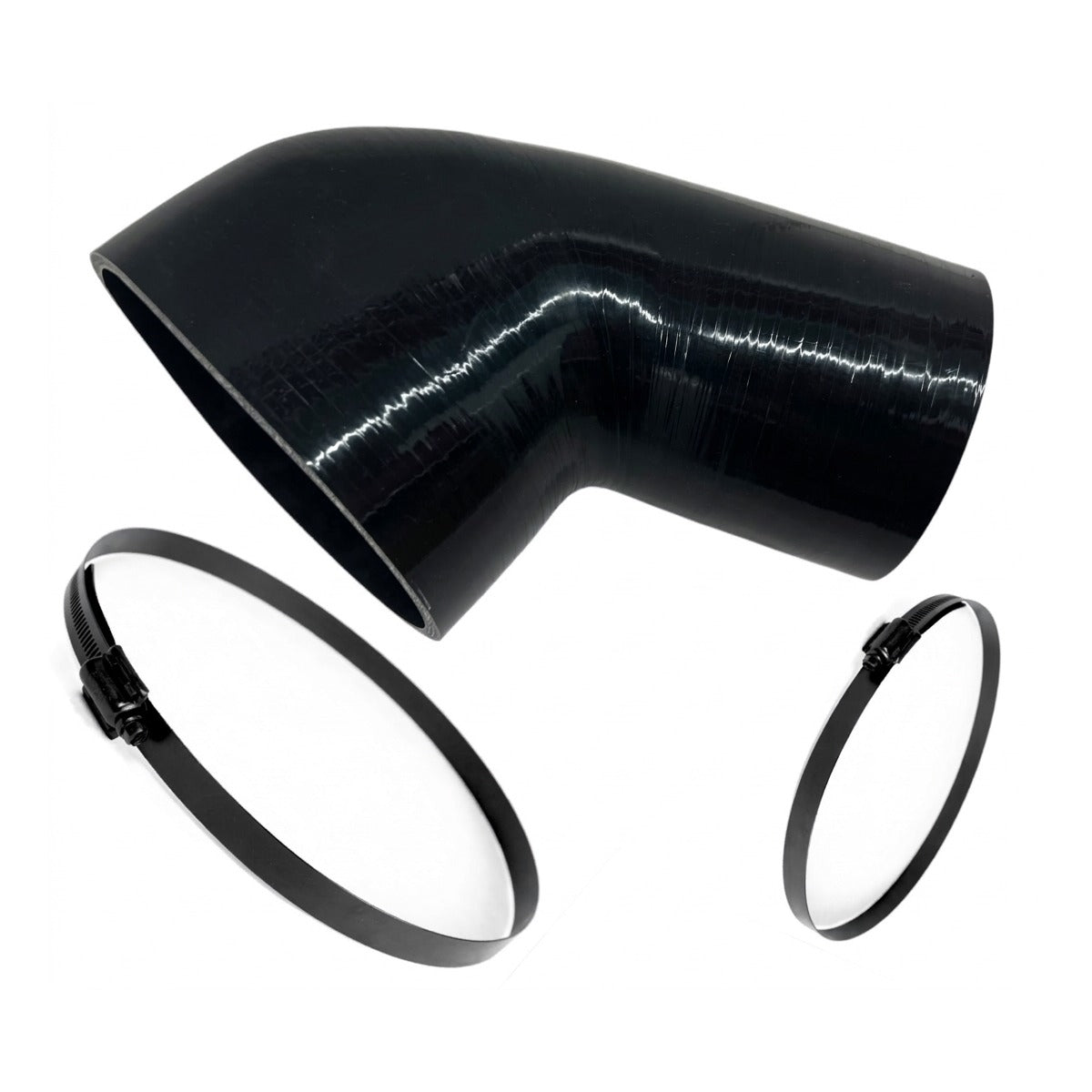

What's Included

• 1 x Reinforced Silicone Air Intake Boot
• 2 x Stainless Steel Hose Clamps

Technical Specifications

Compatibility

• 2001-2006 BMW M3 Coupe 3.2L S54
• 2001-2006 BMW M3 Convertible 3.2L S54

Frequently Asked Questions & Fitment Warnings

Does this fit the E46 M3?

Yes, this is a direct fit for the 2001-2006 BMW M3 equipped with the S54 3.2L inline-six engine.

Is ECU tuning required after installing this silicone boot?

No, ECU recalibration is not required because this intake boot maintains proper factory MAF scaling while utilizing OEM mounting points.

The BMW Precision Standard

European high-performance powerplants require precise air metering to prevent lean running conditions; this reinforced silicone upgrade seals the intake tract permanently to maintain pristine closed-loop fuel trims without triggering check engine lights.
