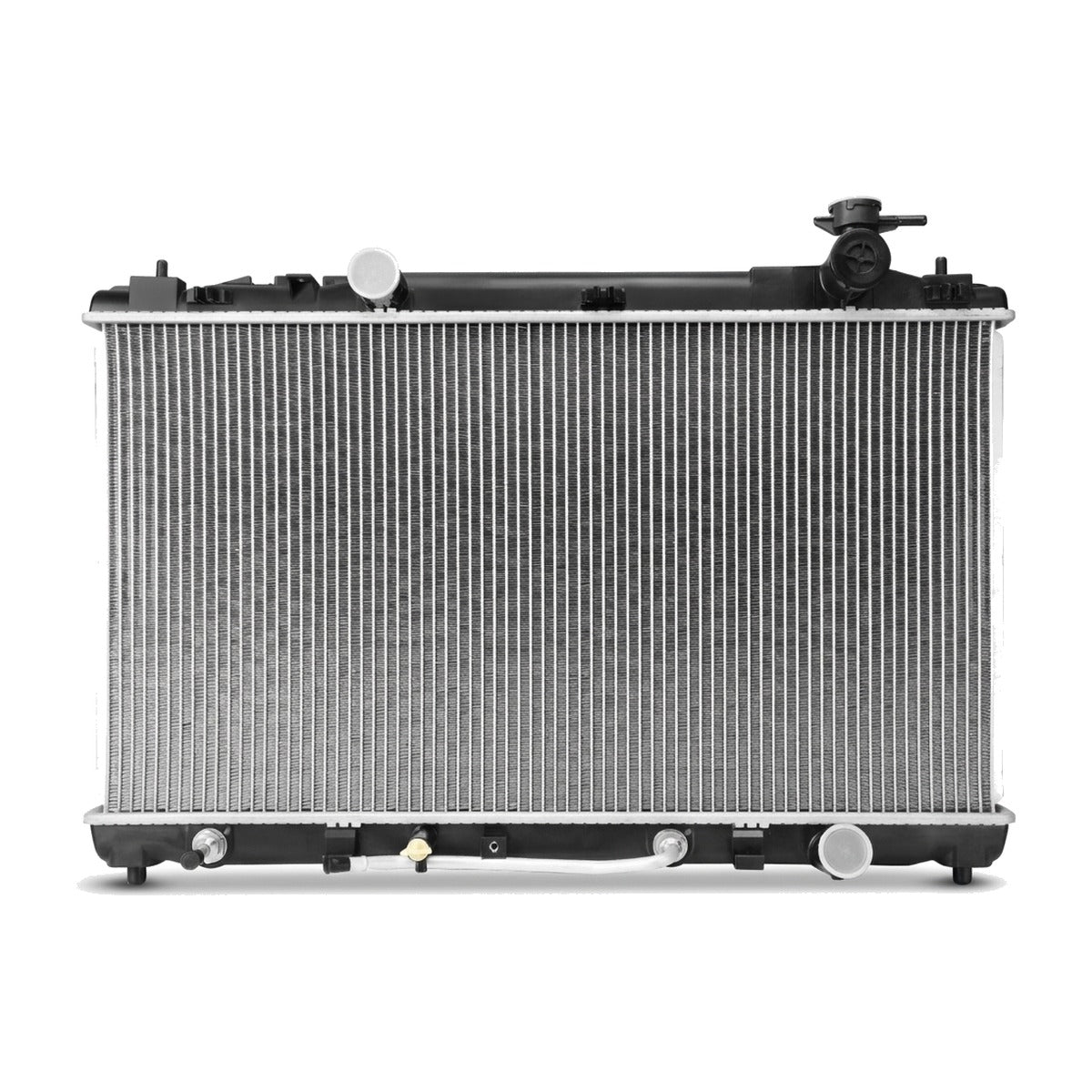

Radiator for Toyota Camry (2007-2011) 2.4L 2.5L

Direct-Fit Replacement Radiator for 2007-2011 Toyota Camry (XV40)

What it Does: The replacement OE-style radiator restores factory thermal efficiency and coolant flow on the 2007-2011 Toyota Camry to prevent engine overheating and protect against catastrophic head gasket failure.

The Stock Toyota Camry XV40 Radiator Weakness

Factory radiators in the XV40 platform degrade primarily at the crimped seams bonding the composite polyamide end tanks to the aluminum core. Constant thermal cycling from commuting causes embrittlement in the aging glass-reinforced plastic, leading to microfractures at the filler neck and tank seams. Additionally, road debris and atmospheric oxidation lead to bent louvered cooling fins and internal calcification, restricting coolant flow and causing rapid temperature spikes under traffic load or extended idle.

The Engineering Solution

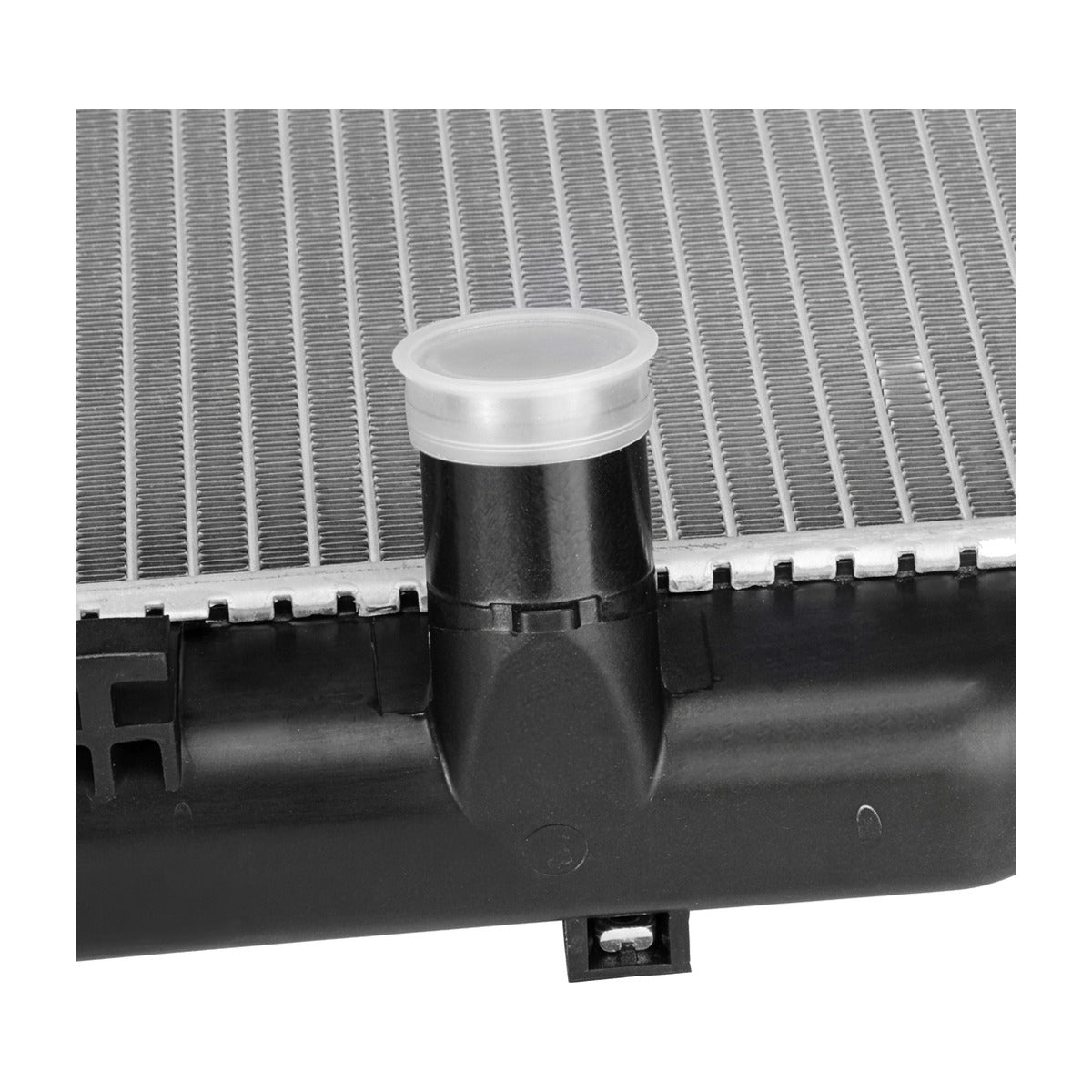

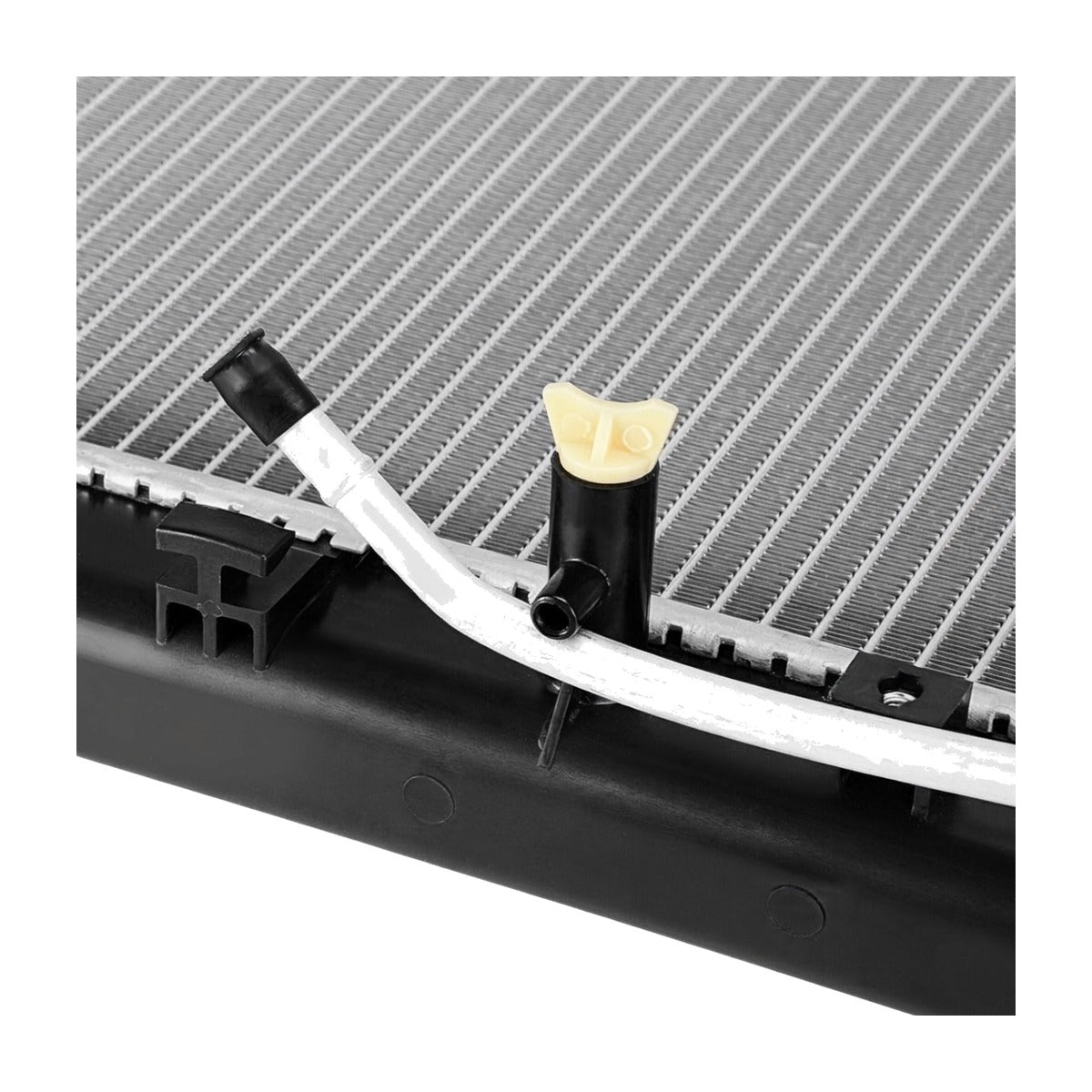

Engineered to exact OEM dimensional parameters, this replacement unit features a high-grade brazed aluminum core equipped with high-density louvered heat rejection fins for maximum convective surface area. The heavy-duty plastic end tanks are secured with fortified mechanical crimps and high-grade elastomeric gaskets to withstand operating pressures without weeping. Factory-spec inlet/outlet positions, transmission/engine oil cooler integration, and factory bracket locations guarantee true drop-in installation without line relocation or bracket modification.

What's Included

• 1x Complete Aluminum Core & Composite Tank Radiator with Internal Cooler

Technical Specifications

Compatibility

• 2007-2009 Toyota Camry 2.4L 4-Cylinder (2AZ-FE) US-Built without Towing Package
• 2010-2011 Toyota Camry 2.5L 4-Cylinder (2AR-FE) US-Built without Towing Package
• Excludes 3.5L V6 (2GR-FE), Hybrid powertrain models, and vehicles equipped with factory Towing Package

Frequently Asked Questions & Fitment Warnings

Does this fit the XV40 Camry?

Yes, this is a direct fit for the 2007-2011 Toyota Camry equipped with the 2AZ-FE (2.4L) or 2AR-FE (2.5L) engine. Does not fit 3.5L V6 models, Hybrid variants, or vehicles equipped with the factory tow package.

Do I need to bleed the cooling system after installing this radiator?

Yes, thorough burping of the cooling system via the factory air-bleed procedure is required to eliminate air pockets and prevent hot-spot cavitation around the cylinder head.

The Toyota Caliber

Engineered for bulletproof everyday reliability, this cooling solution ensures your Japanese-engineered powertrain maintains strict target operating temperatures mile after mile without degradation.
