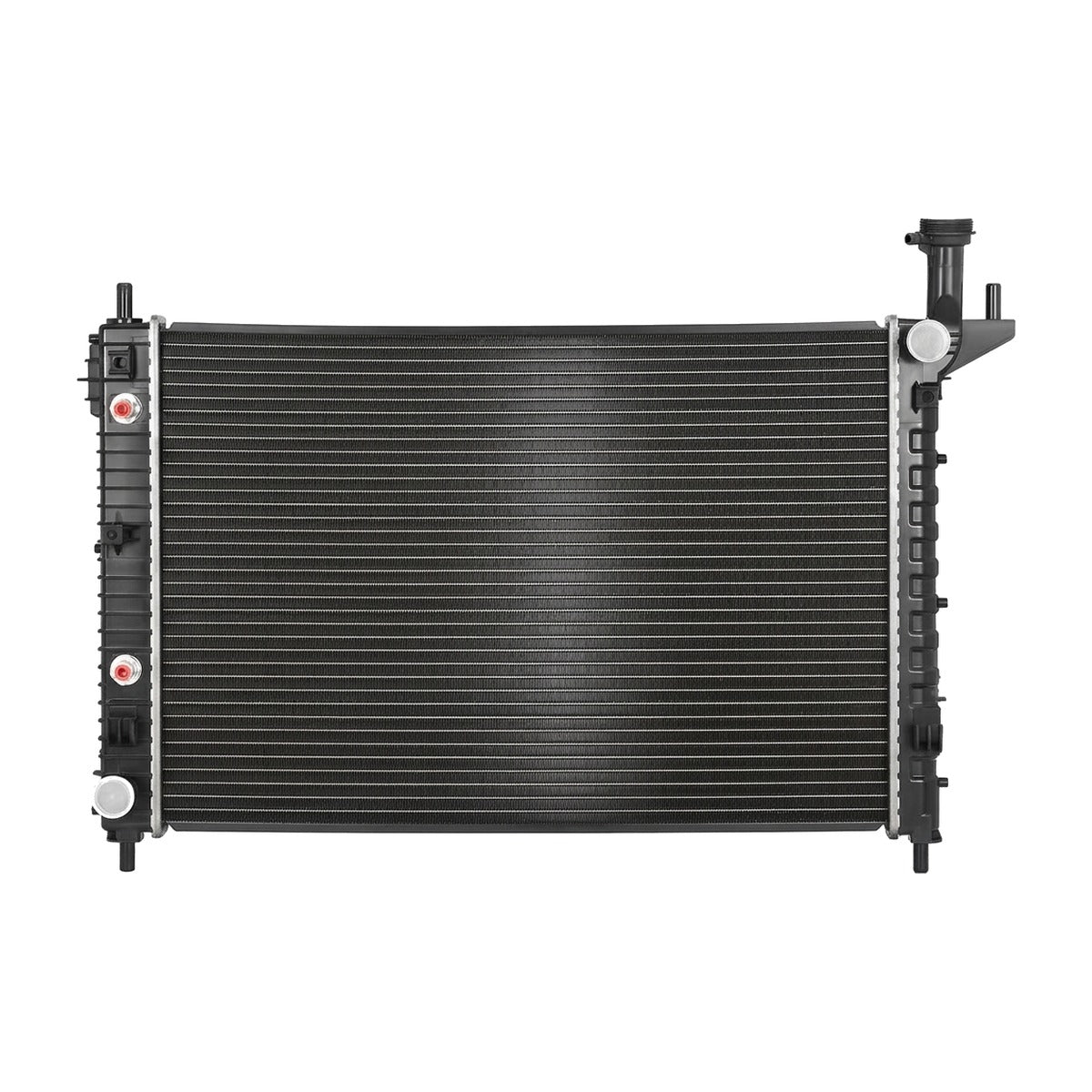

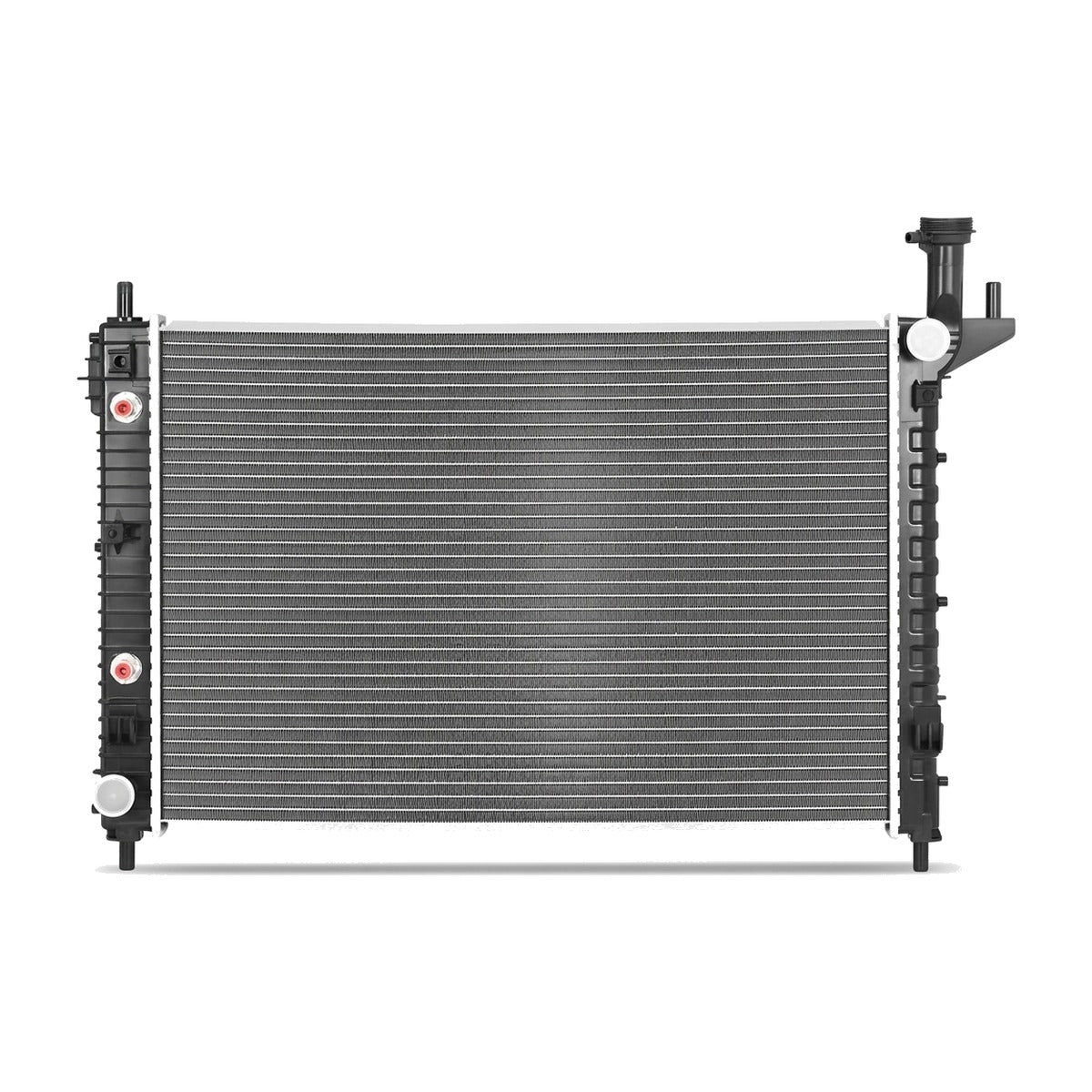

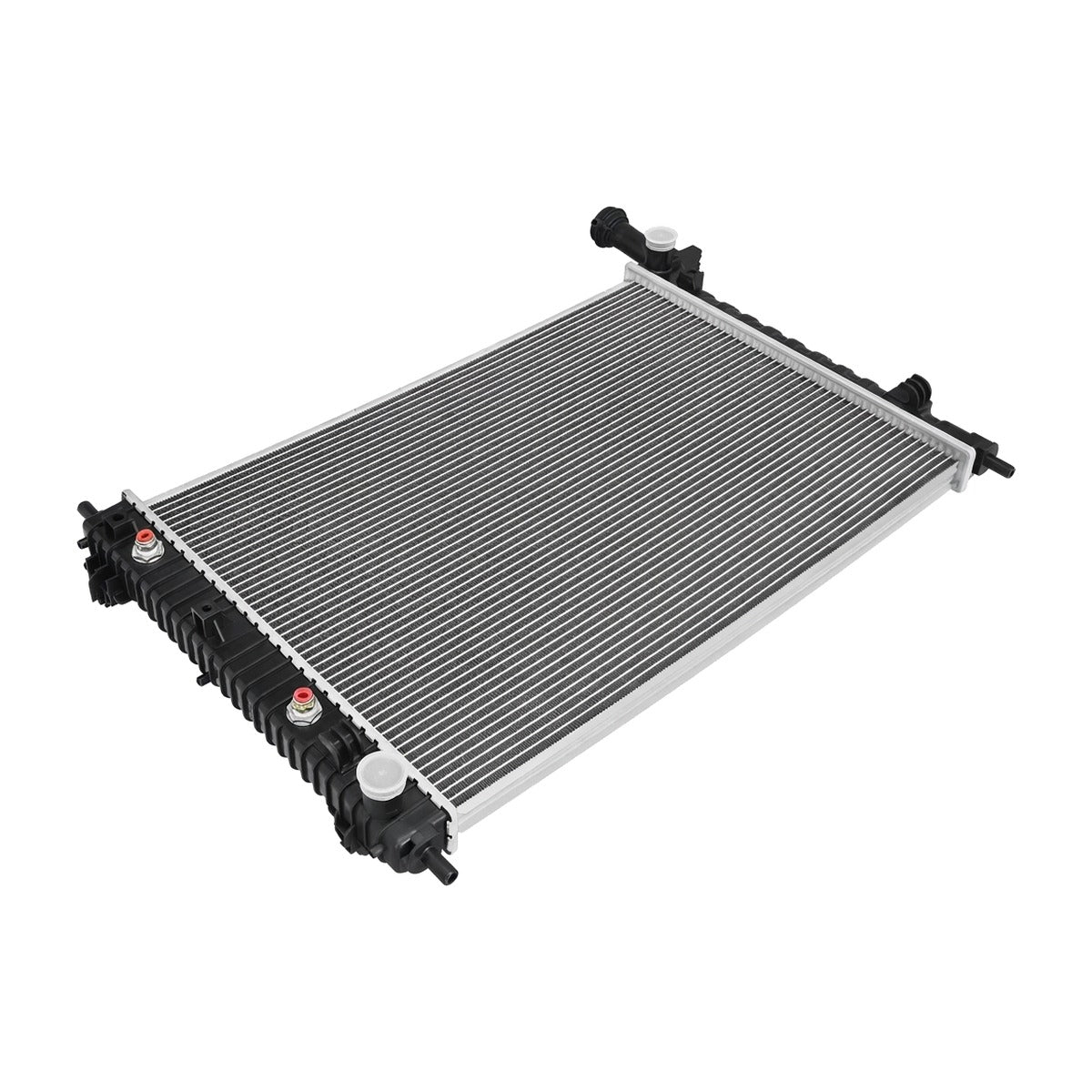

Radiator for Saturn Outlook (2007-2010) 3.6L

Direct-Fit Heavy-Duty Radiator for 2007-2010 Saturn Outlook (Lambda)

What it Does: The replacement engine radiator restores factory heat rejection capacity on the 2007-2010 Saturn Outlook to prevent engine overheating and maintain optimal automatic transmission fluid operating temperatures.

The Stock Saturn Outlook Cooling System Failure Points

The factory radiator on the GM Lambda platform is susceptible to stress-induced fatigue at the crimped header plate joints, where the aluminum core joins the glass-reinforced polymer tanks. Hundreds of heat cycles cause the nylon side tanks to embrittle and the internal rubber gasket seals to flatten, leading to pinhole leaks, hairline tank cracks, and loss of operating pressure. Furthermore, internal sediment accumulation in the narrow factory tubes decreases cooling volume, exposing the LY7 and LLT high-feature cylinder heads to localized hot spots, warped deck surfaces, and blown head gaskets.

The Engineering Solution

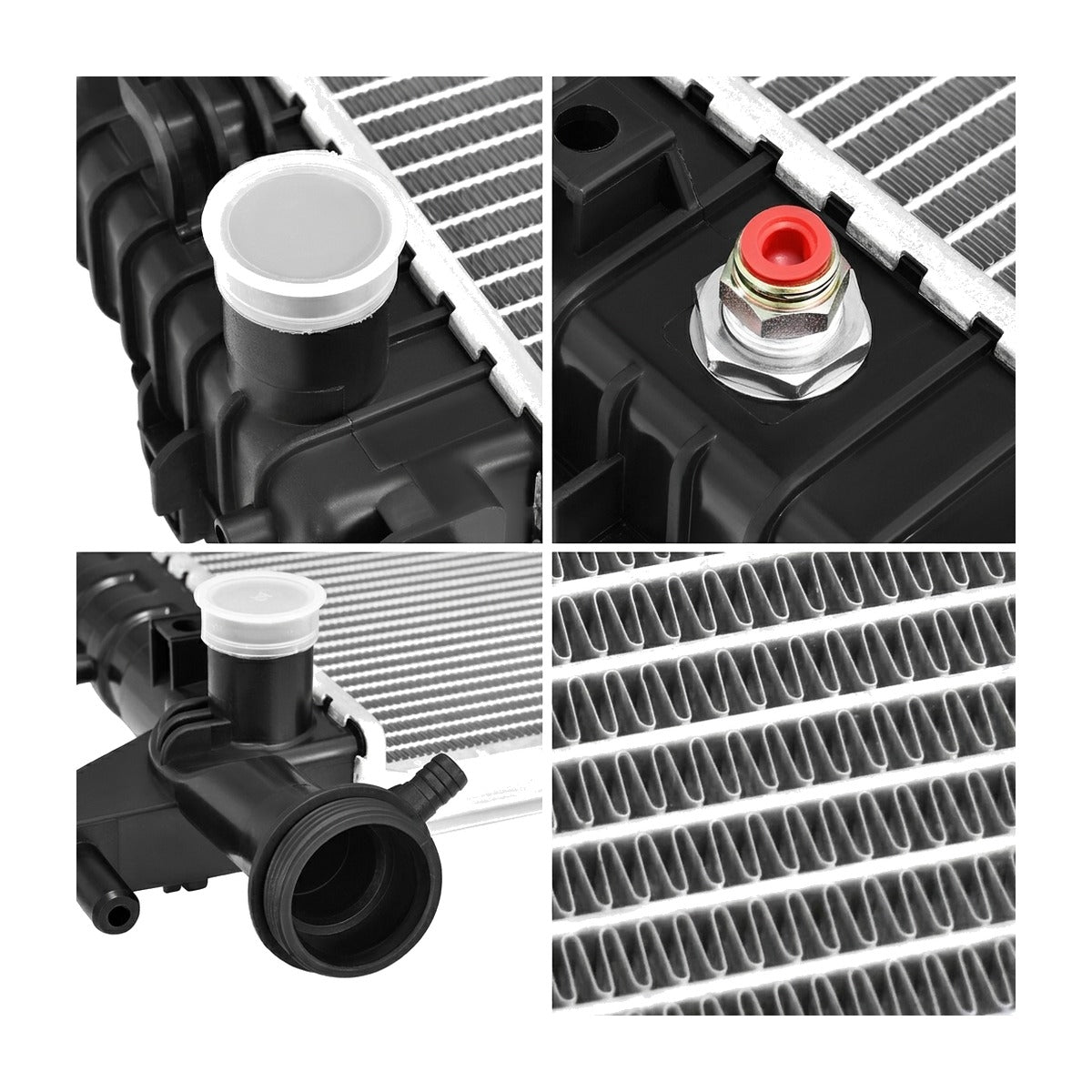

This replacement radiator is manufactured with a high-density, brazed aluminum single-row core featuring louvered cooling fins designed to maximize convective airflow and rapid thermal dissipation. The polymer tanks are secured using mechanical crimp tabs engineered to withstand internal pressure surges without separating. Featuring an integrated internal concentric transmission oil cooler, this downflow unit restores fluid circulation efficiency and protects the 6-speed transmission from fluid degradation. All mounting brackets and hose connections correspond to factory placements for direct fitment under OEM part numbers 15950813 and 20759654.

What's Included

• 1x Downflow Aluminum Core Radiator with Integrated Transmission Oil Cooler

Technical Specifications

Compatibility

• 2007-2010 Saturn Outlook XE (3.6L V6, FWD & AWD)
• 2007-2010 Saturn Outlook XR (3.6L V6, FWD & AWD)

Frequently Asked Questions & Fitment Warnings

Does this fit the Lambda Outlook?

Yes, this is a direct fit for the 2007-2010 Saturn Outlook equipped with the LY7 or direct-injected LLT 3.6L V6 engine.

Do I need to bleed the cooling system after replacement?

Yes, thoroughly purge trapped air pockets from the cooling circuit using the factory bleed procedures to ensure complete coolant circulation and prevent immediate thermal spikes.

The Saturn Outlook Durability Standard

Engineered for full-size crossover utility, this radiator provides the thermal stability and continuous heat transfer required to handle heavy passenger payloads and long-distance highway hauling reliably.
