Ignition Coil + Spark Plugs for Ford E-Series (2009-2014) 4.6L

Direct-Replacement Ignition Coil and Spark Plug Kit for 2009-2014 Ford E-Series (VN Platform)

What it Does: The ignition coil and spark plug kit restores secondary ignition voltage and combustion integrity on the 2009-2014 Ford E-Series to eliminate cylinder misfires, hesitation under load, and unburned fuel wash.

The Stock Ford E-Series Ignition Coil Degradation

In the recessed "doghouse" engine bay of the VN platform, thermal dissipation around the 4.6L Modular V8 is notoriously restricted. Sustained commercial payloads and extreme heat soak break down the factory ignition coil epoxy encapsulation and silicone boots. Over time, internal winding insulation degrades, leading to dielectric breakdown and secondary voltage leakages straight into the spark plug wells. Concurrently, factory spark plug electrode erosion increases the plug gap, demanding higher secondary kv output from already stressed coils. This manifests as cold-start shudder, rough idle, poor fuel economy, and persistent P0300–P0308 diagnostic trouble codes.

The Engineering Solution

This comprehensive tune-up kit replaces tired ignition components with high-dielectric epoxy-encapsulated coils and precision Motorcraft Platinum spark plugs. Built with high-conductivity copper primary and secondary windings, each coil delivers stable secondary kilovolt output across varying duty cycles. High-grade silicone boots resist continuous thermal cycling, preventing high-voltage flashover to the cylinder head. Paired with platinum center electrodes designed for minimal gap wear and optimal arc stability, this package restores crisp throttle response, clean flame-front propagation, and reliable cold-start ignition.

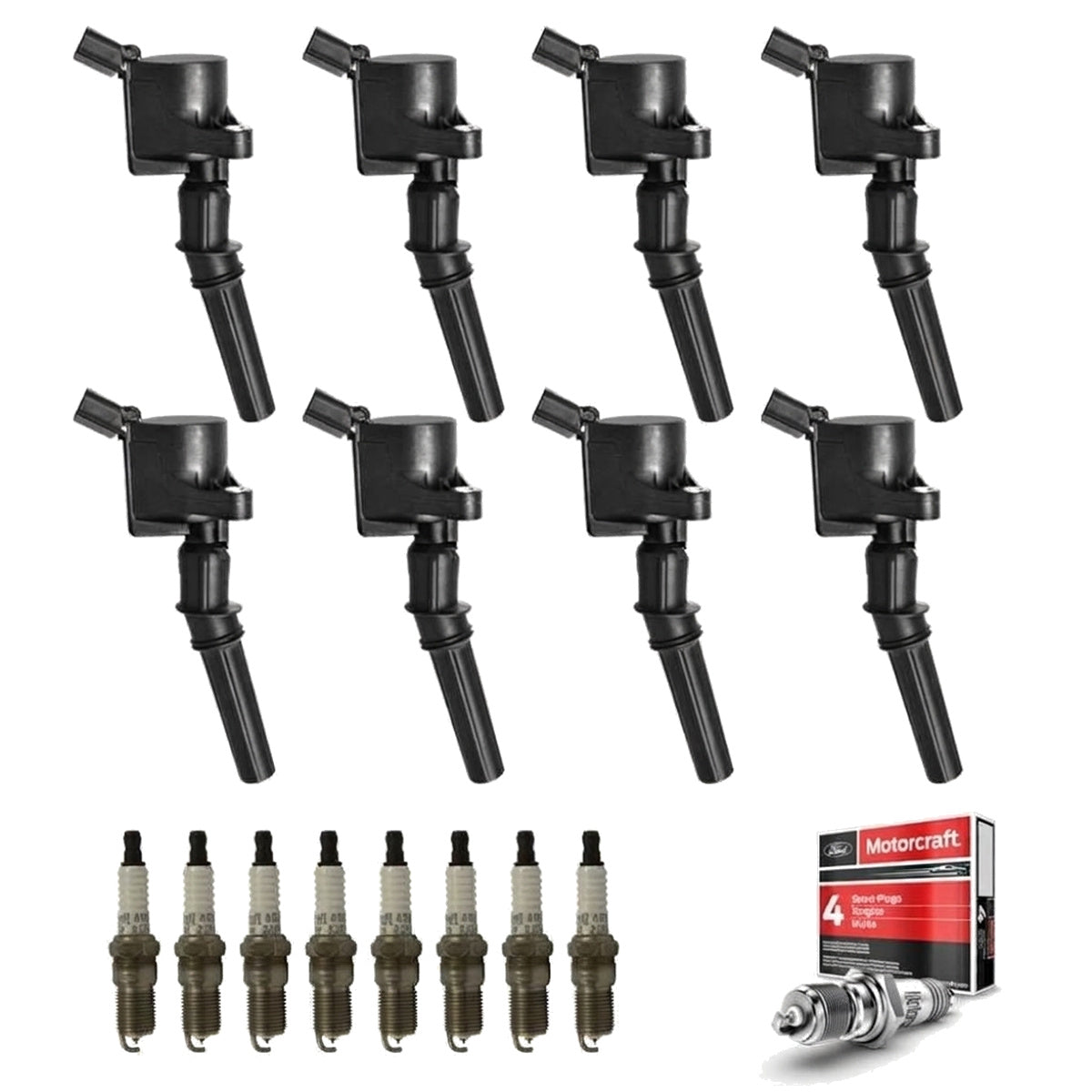

What's Included

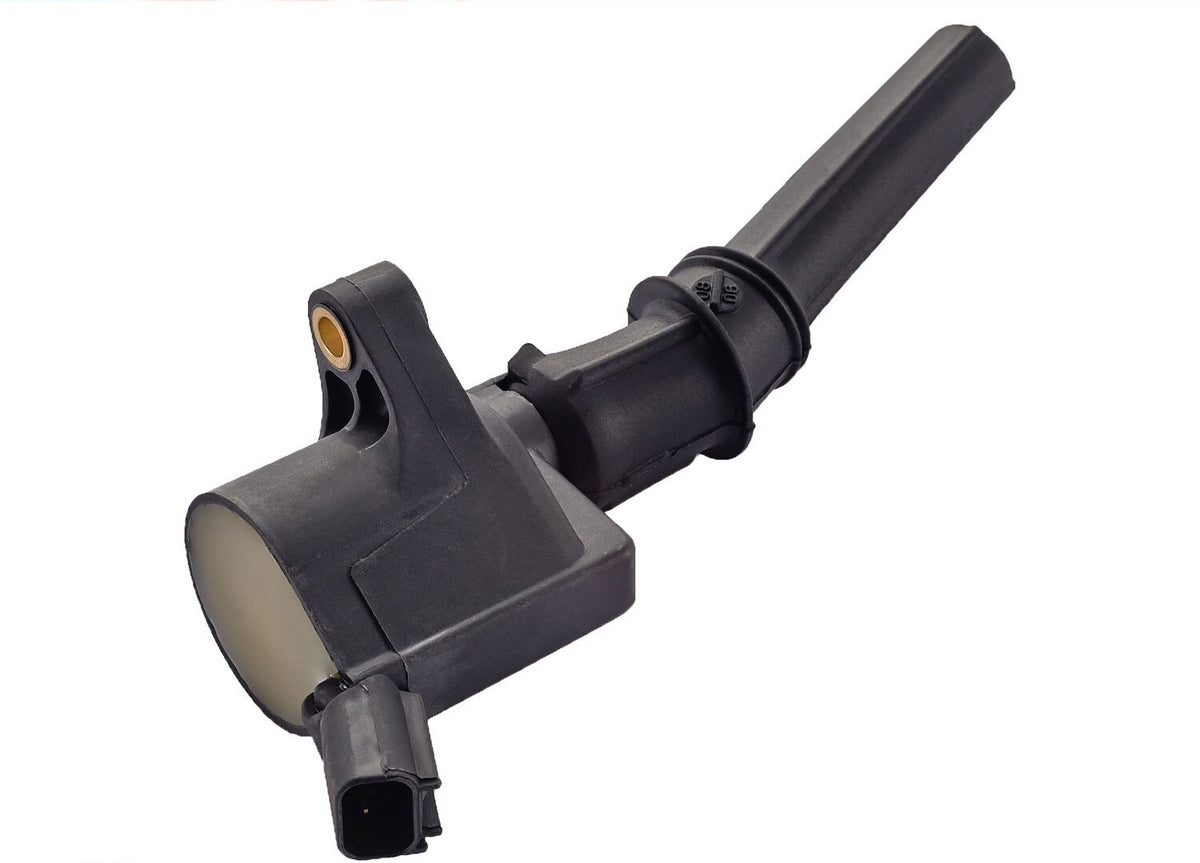

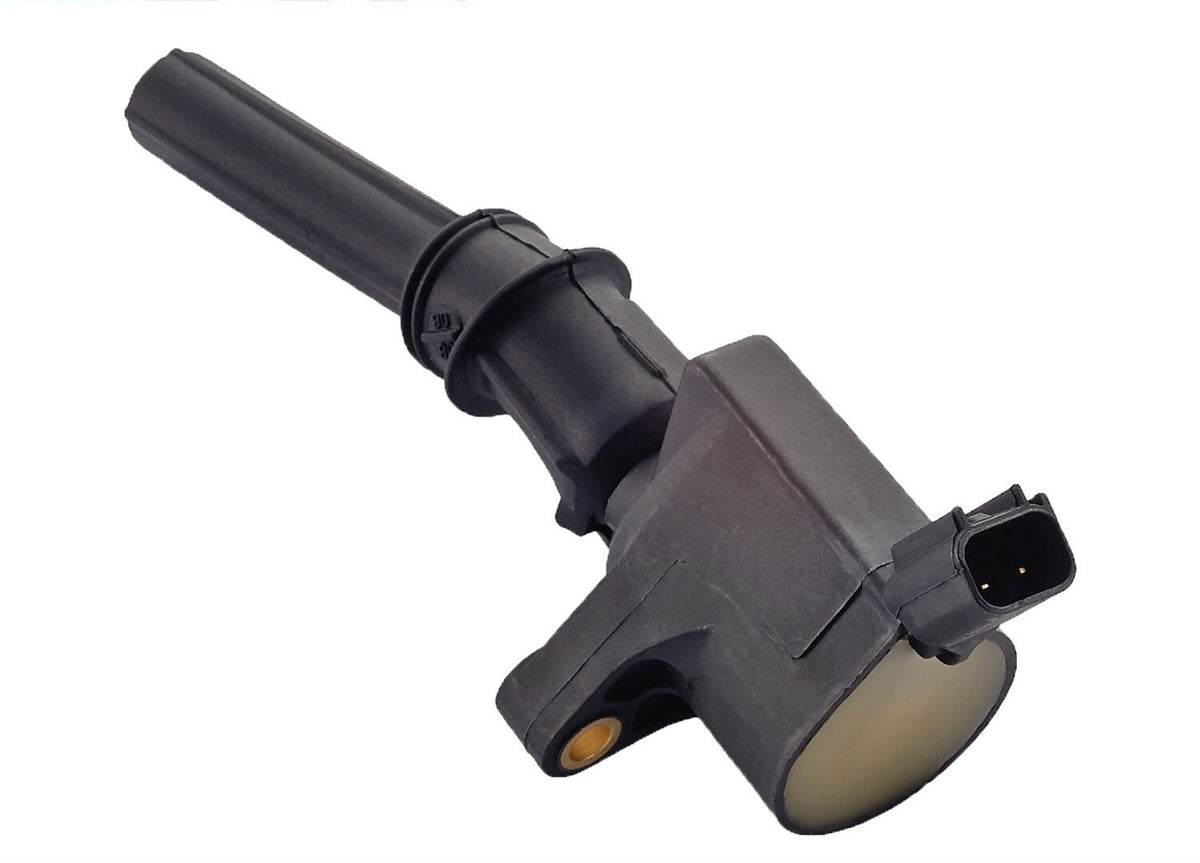

• 8x Ignition Coils (Replacement for FD503)

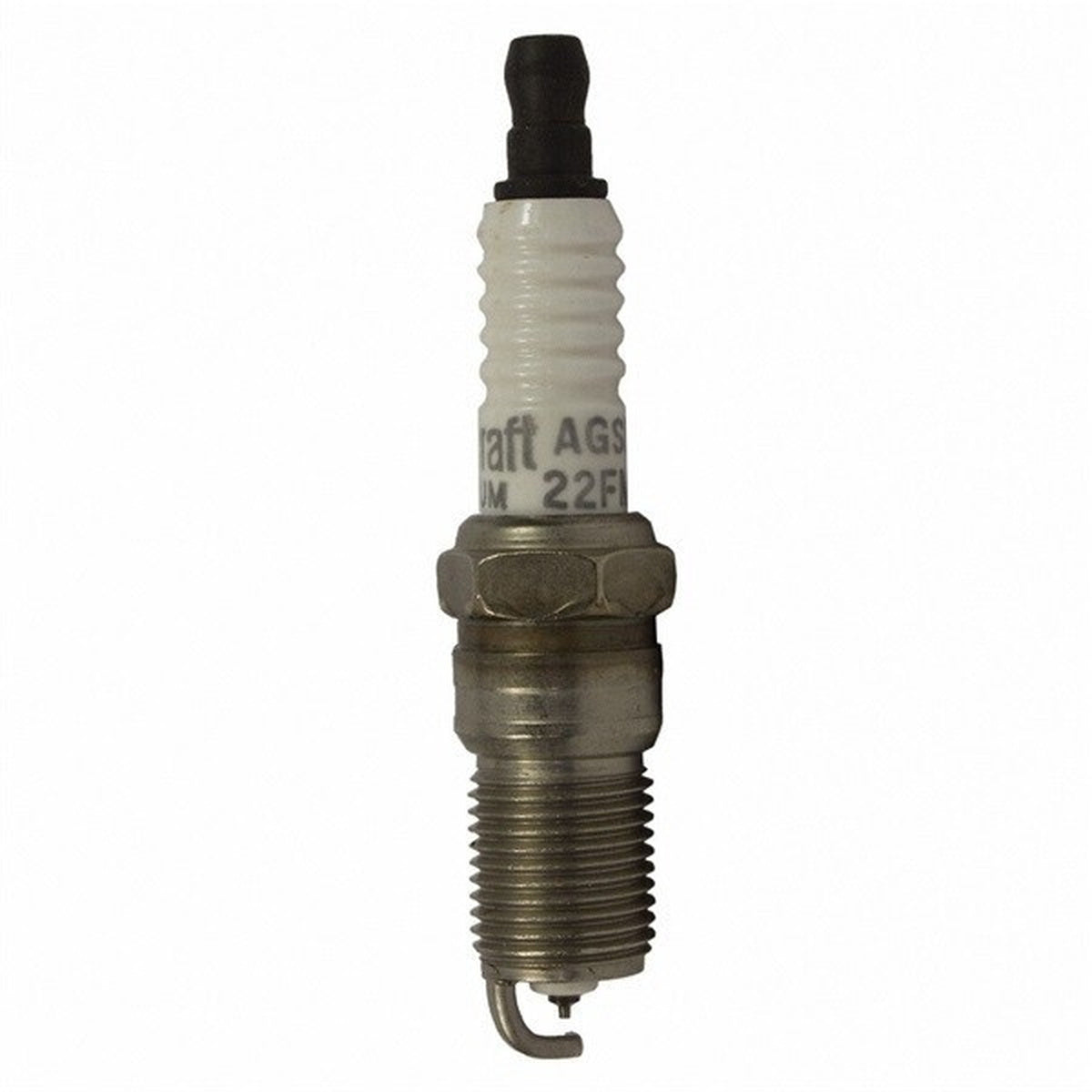

• 8x Motorcraft Platinum Spark Plugs (SP405)

Technical Specifications

Compatibility

• 2009-2014 Ford E-150 4.6L
• 2009-2014 Ford E-250 4.6L

Frequently Asked Questions & Fitment Warnings

Does this fit the VN Platform E-Series?

Yes, this is a direct fit for the 2009-2014 Ford E-Series equipped with the 4.6L Modular V8. This kit is not universal and does not fit other engine configurations or connector profiles.

Are spark plug wires required for installation?

No, this application uses a direct Coil-on-Plug (COP) configuration where each coil mounts directly atop the spark plug without secondary ignition wires.

The Ford Fleet Standard

Engineered to handle severe commercial towing, stop-and-go delivery duty, and extreme underhood thermal stress, this ignition service package provides the consistent combustion stability required to keep your van working reliably on the road.
