Hubcentric Wheel Spacer Kit for Mercedes Benz G-Class G63 G65 (2010-2024) 35mm

Track-Widening 35mm Hubcentric Wheel Spacer Kit for 2010-2024 Mercedes Benz G-Class (W463)

What it Does: The 35mm Hubcentric Wheel Spacer Kit increases total axle track width by 70mm on the 2010-2024 Mercedes Benz G-Class to significantly improve lateral stability, eliminate inner wheel-well rubbing, and create an aggressive stance.

The Stock Mercedes Benz G-Class Inset Track Geometry

From the factory, the heavy W463 chassis utilizes high positive-offset wheels that sit deeply tucked inside the fender flares. This narrow track width compromises dynamic roll resistance on tall, high-center-of-gravity platforms powered by the twin-turbocharged M177 and M157 V8 or M279 V12 platforms. Furthermore, installing wider aftermarket tires or heavy-duty suspension links frequently causes high-load rubbing against inner fender liners, frame rails, and suspension components during full steering lock or high articulation.

The Engineering Solution

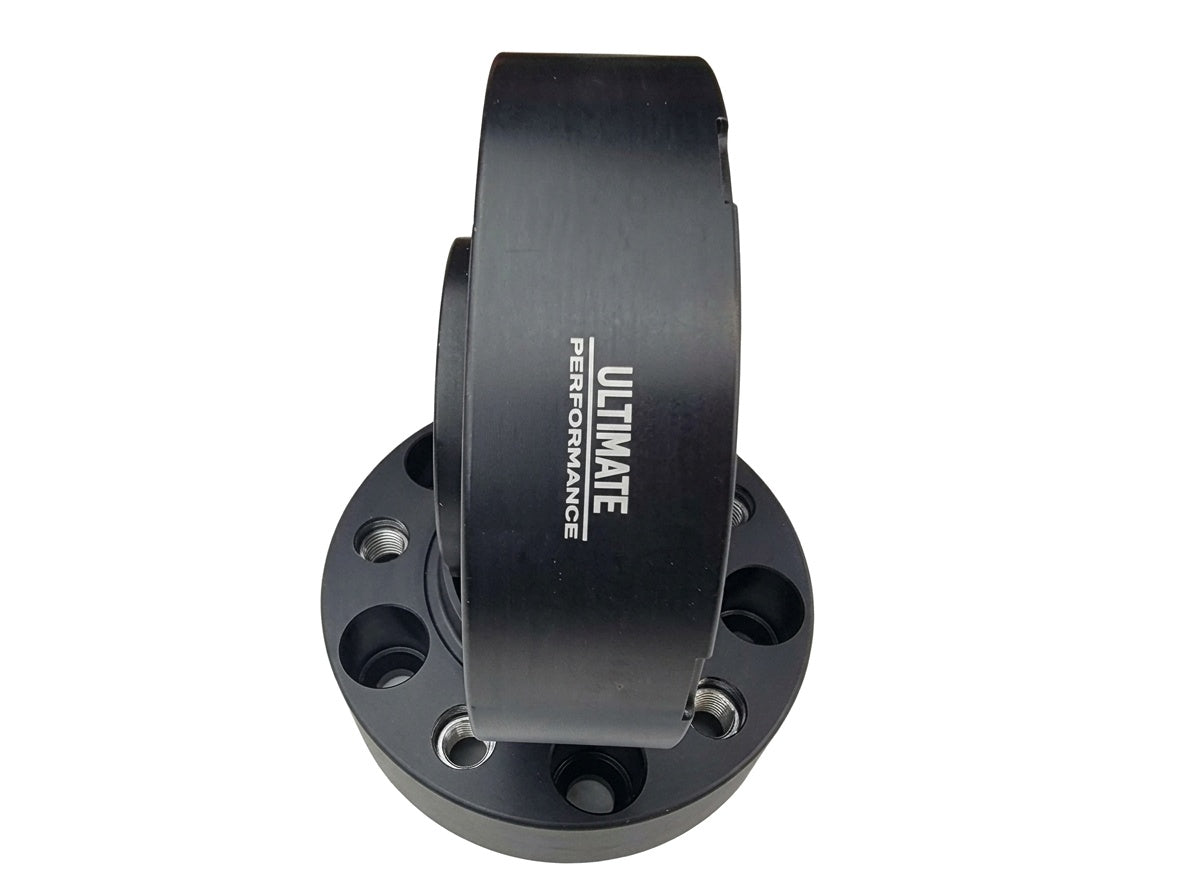

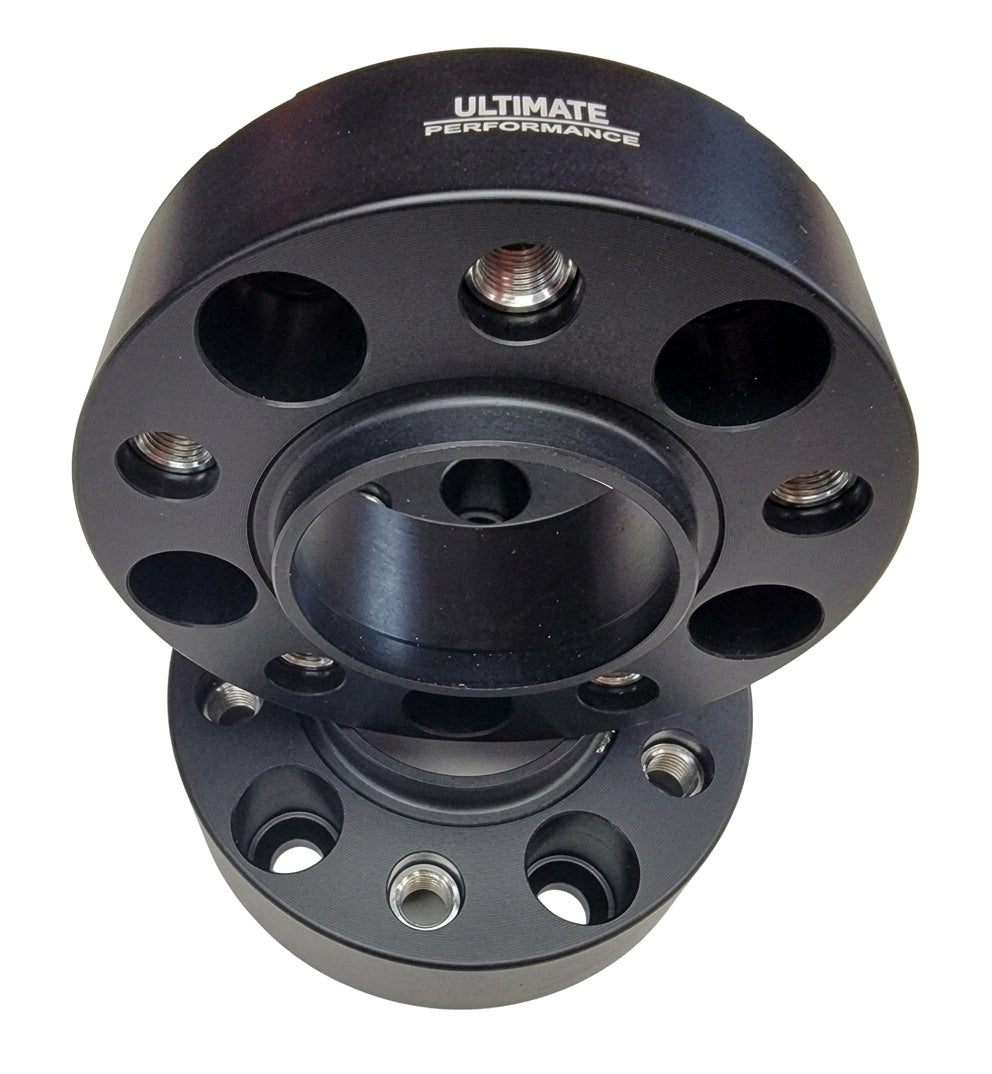

This kit incorporates precision-machined 35mm hubcentric wheel spacers turned from billet aluminum alloy, featuring a hard-anodized surface finish for maximum corrosion resistance and galvanic isolation against steel hubs. Engineered with an exact hub-centric snout to seamlessly match the G-Class 84.1mm center bore and 5x130 bolt circle, it eliminates radial runout, hub-shear stress, and rotational vibrations. Supplied with high-tensile extended fasteners, this 70mm total track expansion lowers vehicle roll axis, stabilizes high-speed highway tracking, and provides crucial clearance for wider off-road or performance wheel setups.

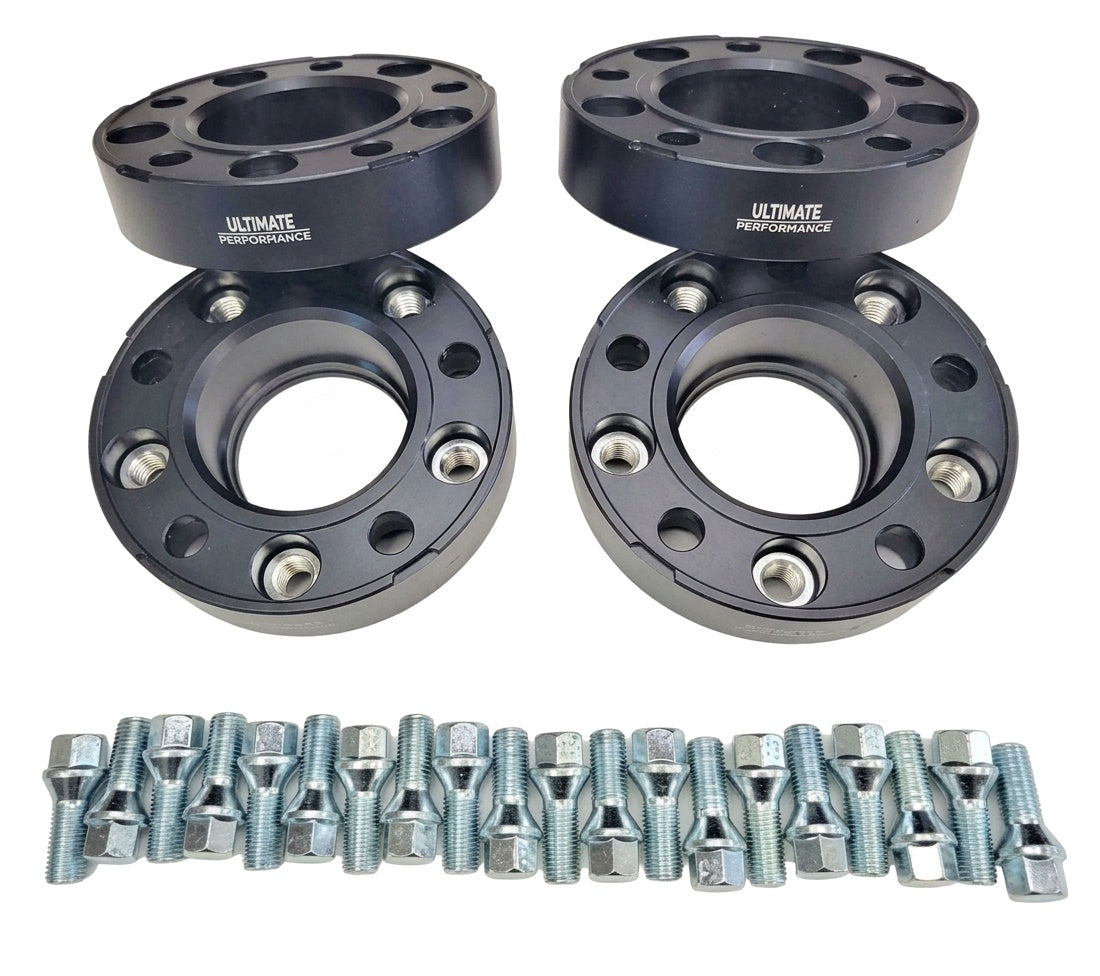

What's Included

• 4 x 35mm hubcentric wheel spacers
• High-tensile fasteners

Technical Specifications

Compatibility

• 2010-2024 Mercedes Benz G-Class G63 AMG (W463 / W462)
• 2010-2024 Mercedes Benz G-Class G65 AMG (W463 / W462)

Frequently Asked Questions & Fitment Warnings

Does this fit the W463 G-Class?

Yes, this is a direct fit for the 2010-2024 Mercedes Benz G-Class equipped with the M177, M157, or M279 engines. Confirm hub bore, bolt pattern, and inner wheel clearance prior to ordering; this kit is distinct from thinner 15mm options.

What torque specifications should be used during installation?

Torque the provided high-tensile hardware to factory wheel-stud torque specifications in a star pattern, and re-torque after the initial 50 to 100 miles of driving.

The Mercedes Benz Precision Standard

Engineered to withstand the extreme torque loads of high-output AMG powertrains, these hubcentric spacers maintain stringent German engineering tolerances, ensuring zero high-speed steering vibration and uncompromised chassis integrity under severe duty.
