High Output Alternator for Toyota FJ Cruiser (2007-2009) 4.0L

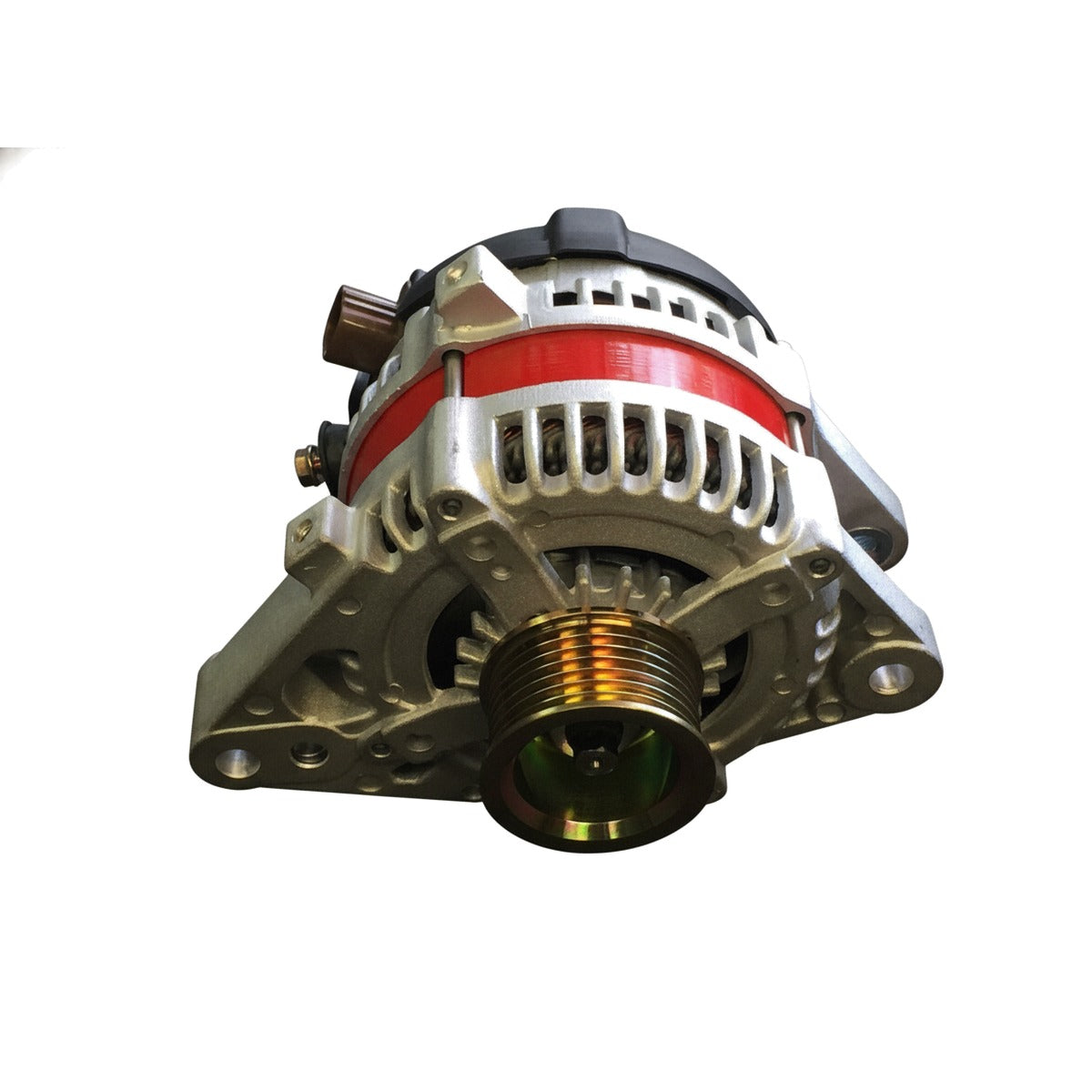

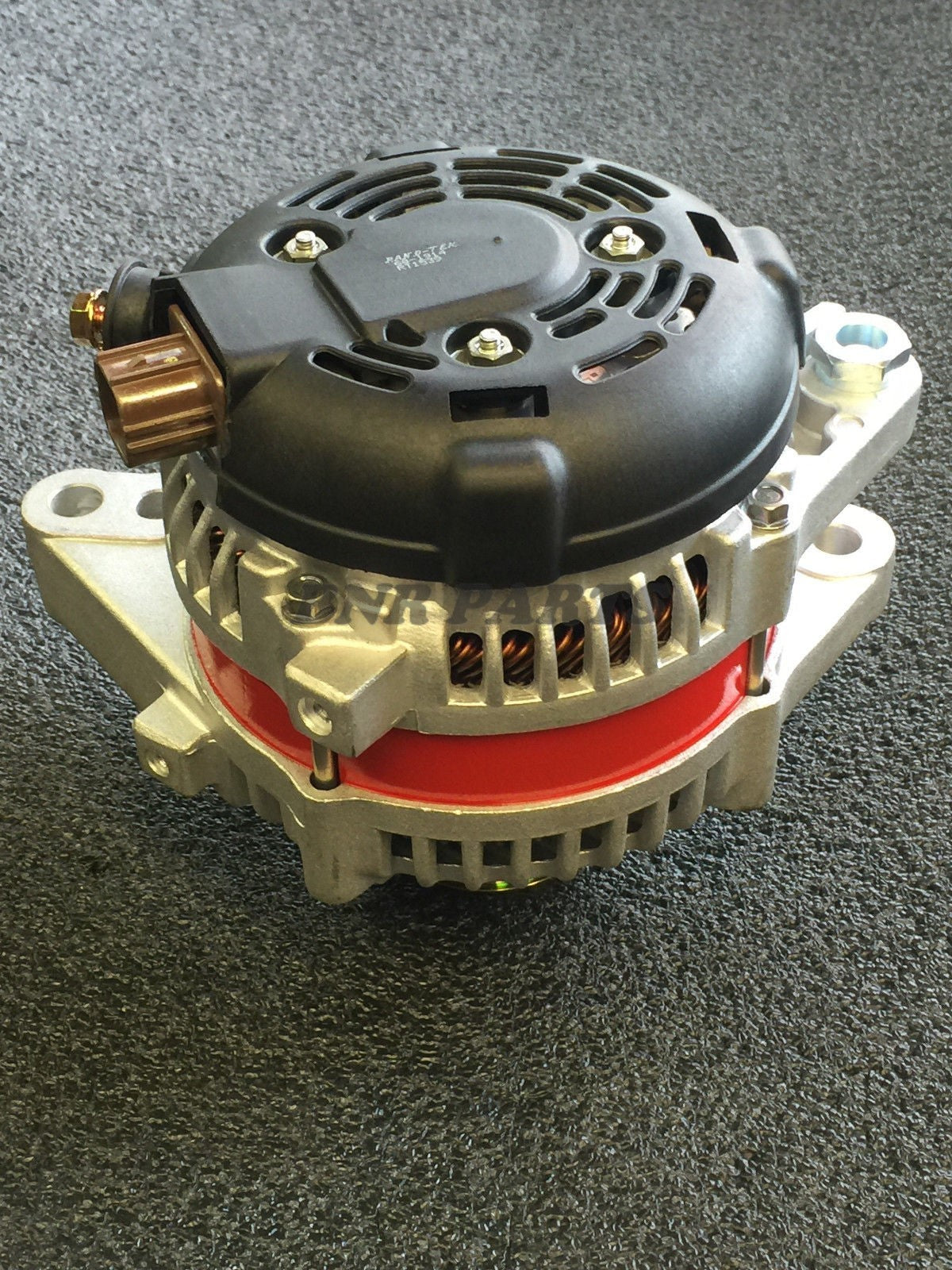

High-Output 250-Amp Alternator for 2007-2009 Toyota FJ Cruiser (GSJ15)

What it Does: The 250-Amp High Output Alternator replaces the low-output factory charging unit on the 2007-2009 Toyota FJ Cruiser to supply reliable, stable voltage to demanding auxiliary electronics and dual-battery systems.

The Stock Toyota FJ Cruiser Charging Limitation

Factory GSJ15 platforms equipped with the 4.0L 1GR-FE V6 utilize a stock alternator rated between 100 and 130 amps. Once an overland rig is outfitted with high-draw equipment—such as 12,000-lb recovery winches, onboard ARB air compressors, 12V camping fridges, and high-wattage auxiliary lighting—the aggregate electrical load surpasses stock stator capacity. At idle or low rock-crawling RPM, the factory unit experiences severe voltage droop under 12.5 volts. Prolonged saturation causes internal diode heat soak, accelerates stator coil degradation, and leaves vehicle starting batteries chronically undercharged in remote environments.

The Engineering Solution

This 250-amp high-output replacement directly remedies electrical deficits by utilizing high-purity copper stator windings and a heavy-duty rectifier assembly built into a heat-dissipating cast housing. Engineered to directly supersede OEM numbers 104210-4920 and 104210-4921, it produces substantial charging current at low engine idle while delivering a consistent 250 amps at operating speeds. Premium heavy-duty diodes tolerate continuous high-amperage recovery cycles without thermal fade, ensuring ignition systems and onboard electronics receive steady 14.2V-14.6V rail power under continuous load.

What's Included

• 1x 250-Amp High Output Alternator

Technical Specifications

Compatibility

• 2007 Toyota FJ Cruiser 4.0L V6
• 2008 Toyota FJ Cruiser 4.0L V6
• 2009 Toyota FJ Cruiser 4.0L V6

Frequently Asked Questions & Fitment Warnings

Does this fit the GSJ15 FJ Cruiser?

Yes, this is a direct bolt-on fit for the 2007-2009 Toyota FJ Cruiser equipped with the single VVT-i 1GR-FE 4.0L V6 engine.

Do I need to upgrade my main charging cables with this 250A alternator?

Yes, a "Big 3" heavy-gauge (1/0 or 4 AWG) wiring upgrade from the alternator positive terminal to the battery and upgraded engine grounding straps are recommended to safely carry 250 amps without line resistance.

The Toyota Durability Standard

Built for extreme off-road duty, technical recovery, and auxiliary battery maintenance under sustained overland conditions.
