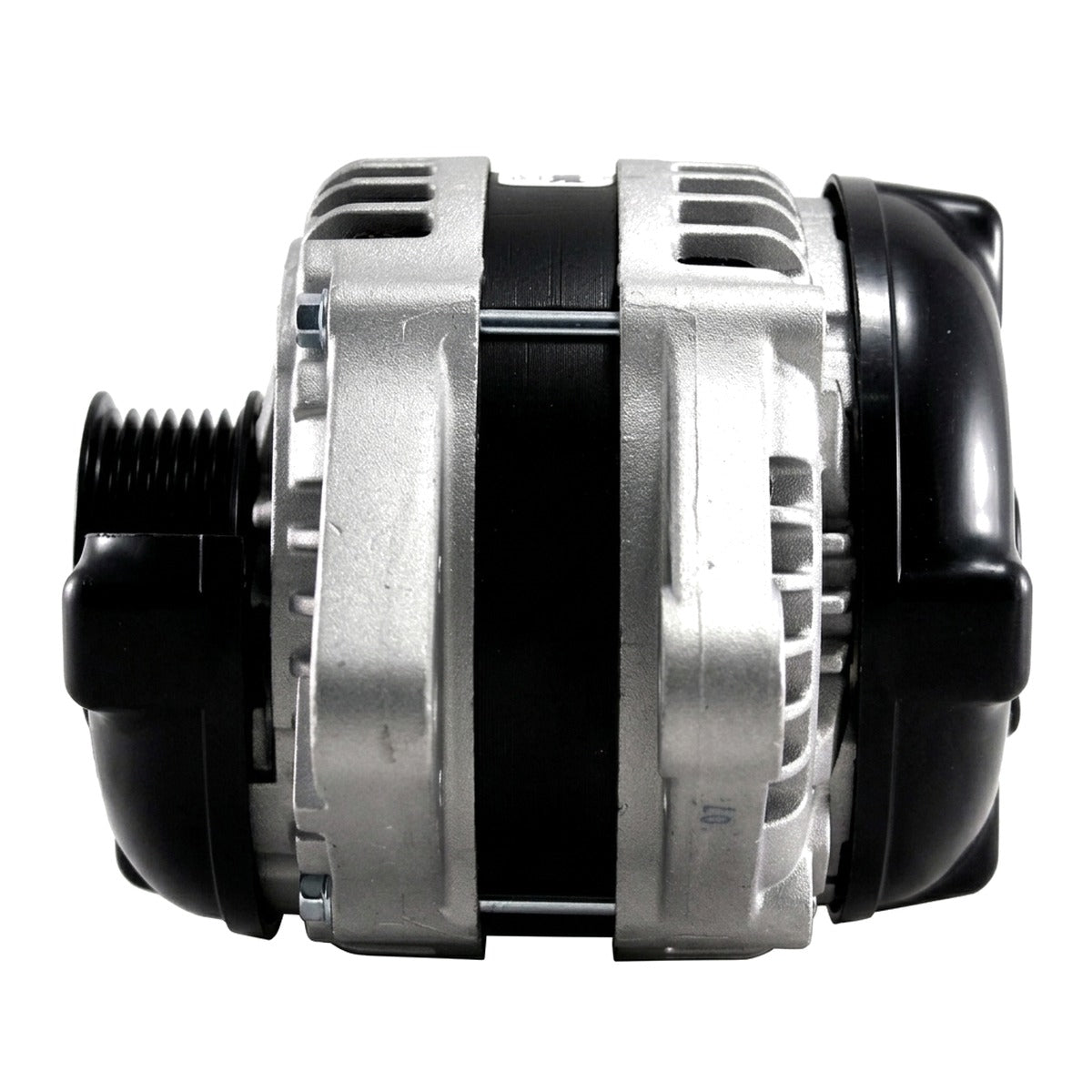

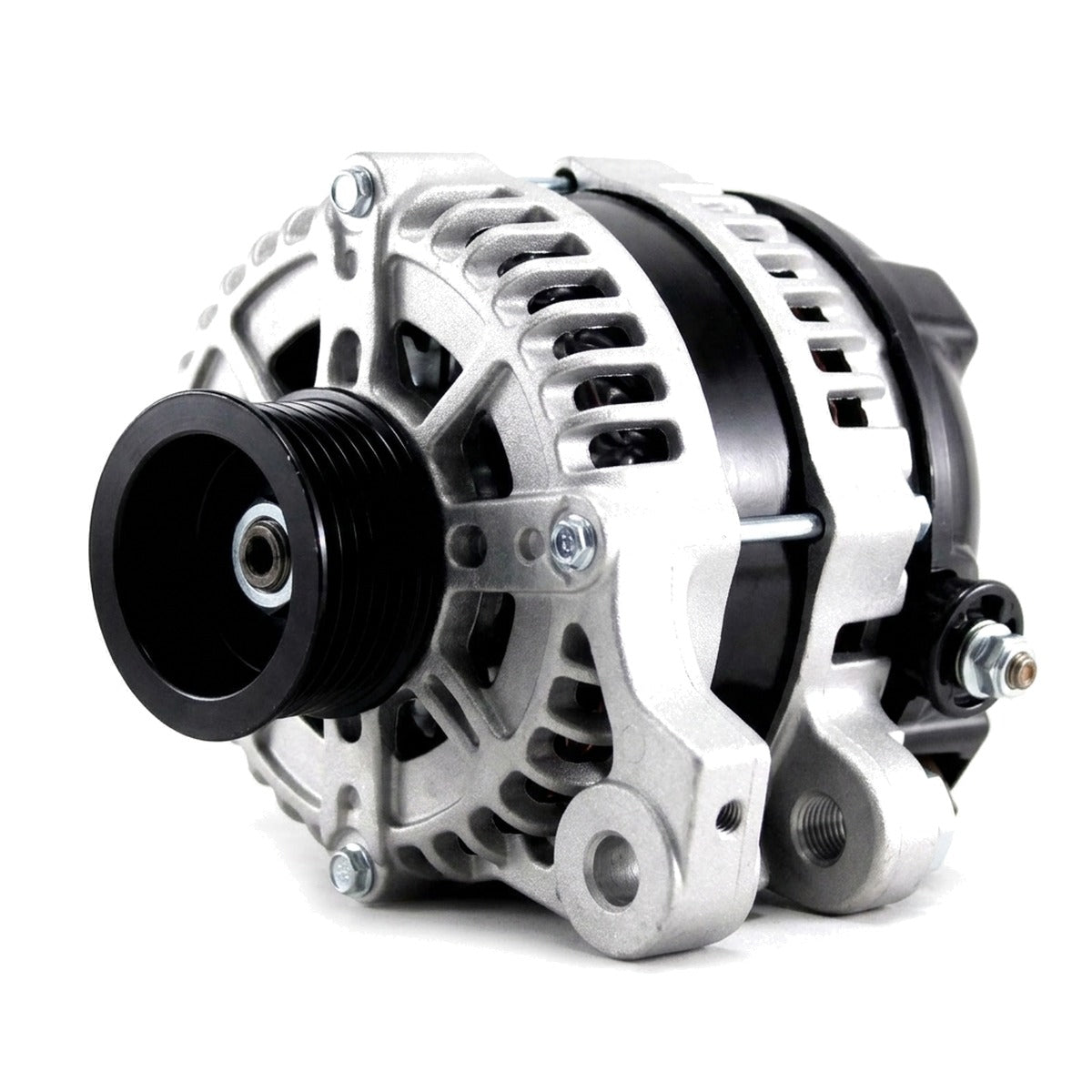

High Output Alternator for Toyota 4Runner (2010-2013) 4.0L

High-Amp High Output Alternator for 2010-2013 Toyota 4Runner (N280)

What it Does: The High Output Alternator replaces the factory charging unit on the 2010-2013 Toyota 4Runner to supply a massive 250 amps of continuous power, stabilizing system voltage under heavy auxiliary loads.

The Stock Toyota 4Runner Charging Limitation

Factory N280 4Runner alternators produce approximately 130 amps at peak, dropping significantly lower at curb idle. When modern trail builds incorporate dual battery isolators, high-draw recovery winches, onboard air compressors, 12V overland refrigeration, and auxiliary lighting arrays, the stock rectifier overheats. This persistent overload causes severe voltage sag below 12.5V, excessive thermal degradation of stator windings, depleted battery banks, and ECU current-starvation during low-RPM crawling.

The Engineering Solution

Engineered and manufactured in the USA, this direct-replacement 250-amp alternator features heavy-duty hairpin windings, high-temperature insulating resins, and an upgraded heavy-duty diode bridge. By utilizing an optimized rotor and heavy-gauge copper internals, it delivers substantial idle current while dissipating heat far more efficiently than the OEM Denso casing. It directly swaps with OEM hardware using factory belt routing to provide clean, ripple-free direct current.

What's Included

• 1x 250-Amp High Output Alternator

Technical Specifications

Compatibility

• 2010 Toyota 4Runner 4.0L V6 (SR5, Trail, Limited)
• 2011 Toyota 4Runner 4.0L V6 (SR5, Trail, Limited)
• 2012 Toyota 4Runner 4.0L V6 (SR5, Trail, Limited)
• 2013 Toyota 4Runner 4.0L V6 (SR5, Trail, Limited)

Frequently Asked Questions & Fitment Warnings

Does this fit the N280 4Runner?

Yes, this is a direct bolt-in fit for the 2010-2013 Toyota 4Runner equipped with the 1GR-FE 4.0L V6 engine.

Do I need to upgrade my charging cables for a 250-amp alternator?

A "Big 3" wiring upgrade utilizing 0-gauge or 1/0-gauge cable is strongly recommended to safely flow 250 amps from the alternator terminal to the battery without resistive voltage drop.

The Toyota Overland Standard

Designed for severe-duty off-road and towing conditions, this unit ensures your overland electrical architecture maintains stable operating voltage under peak winching and accessories loads in extreme remote environments.
