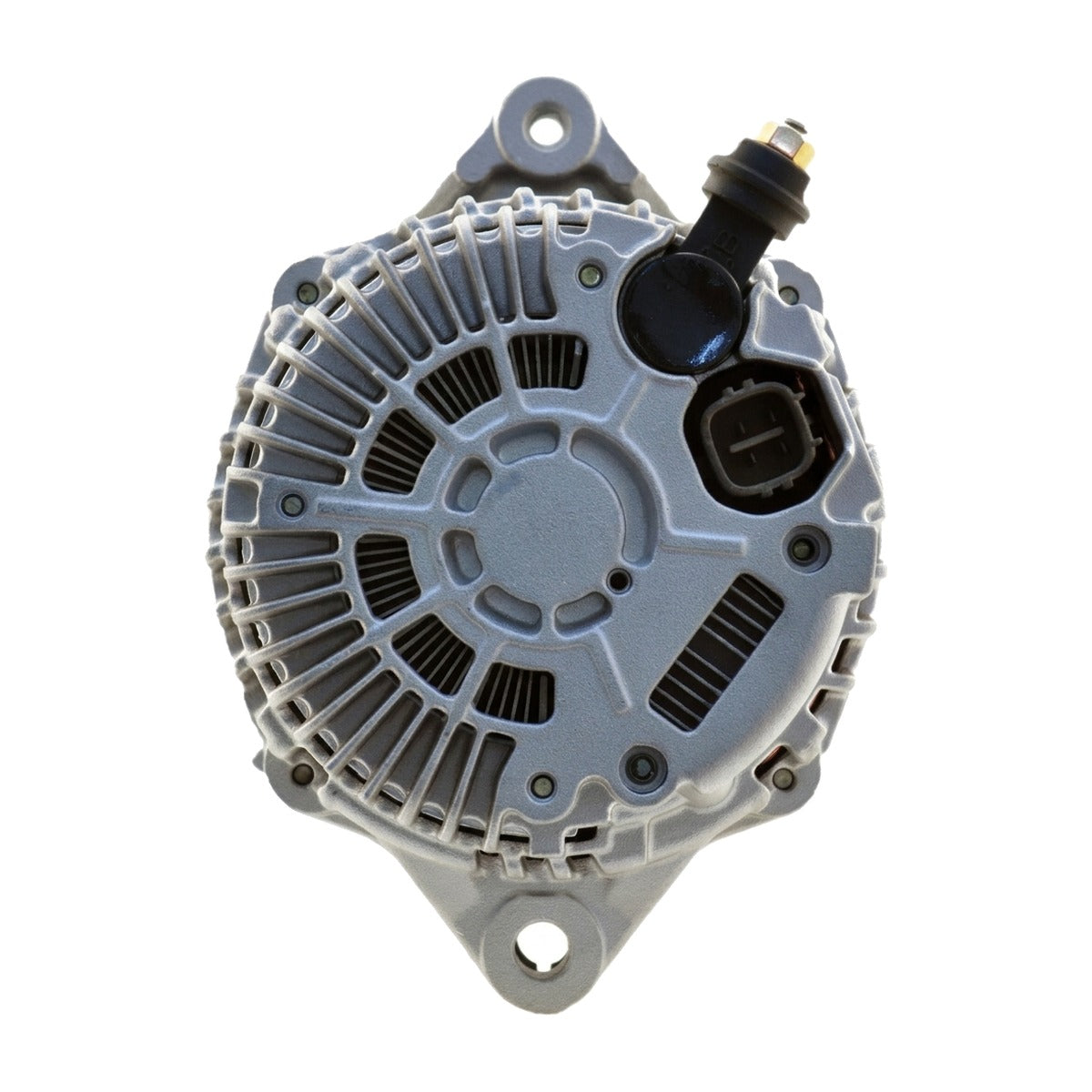

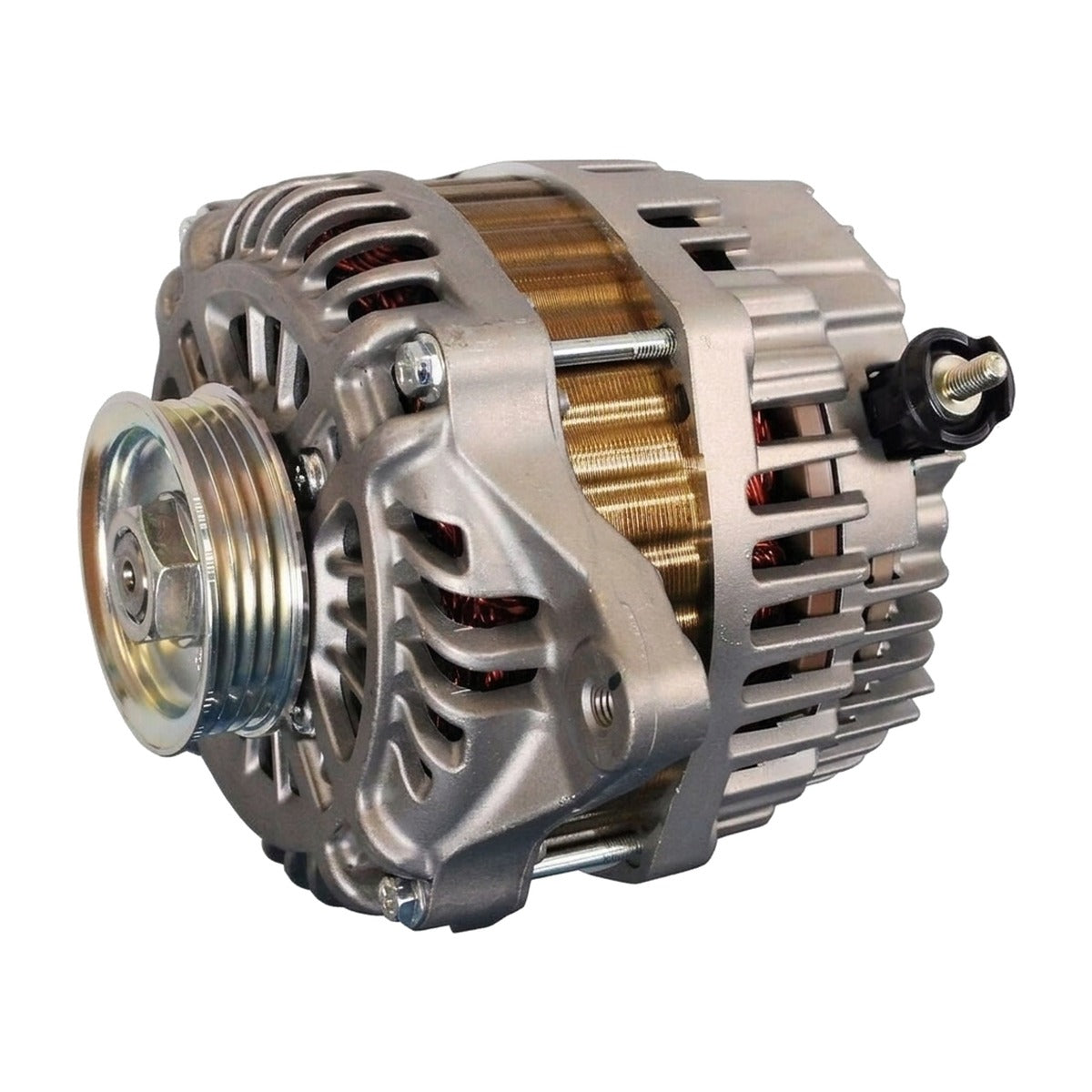

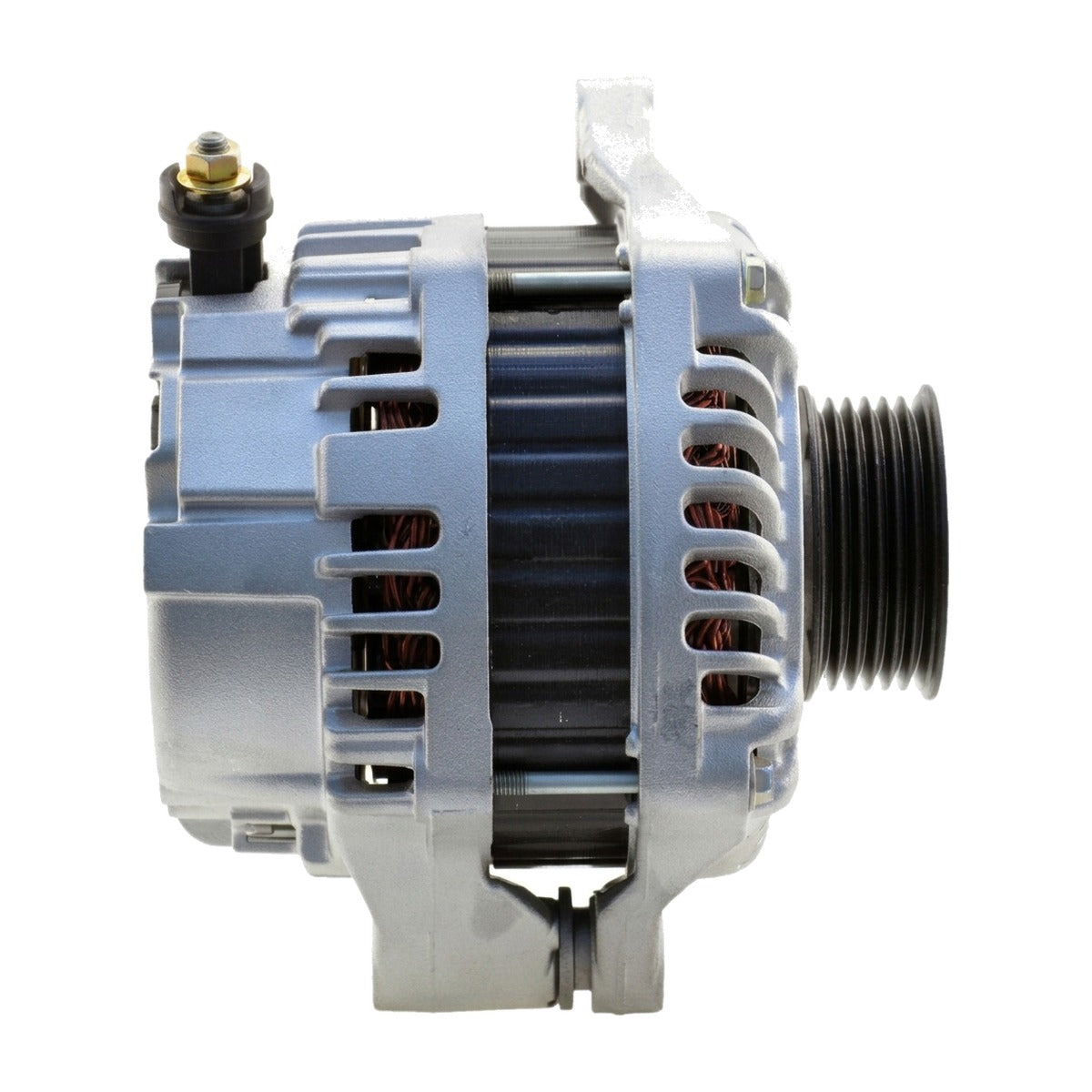

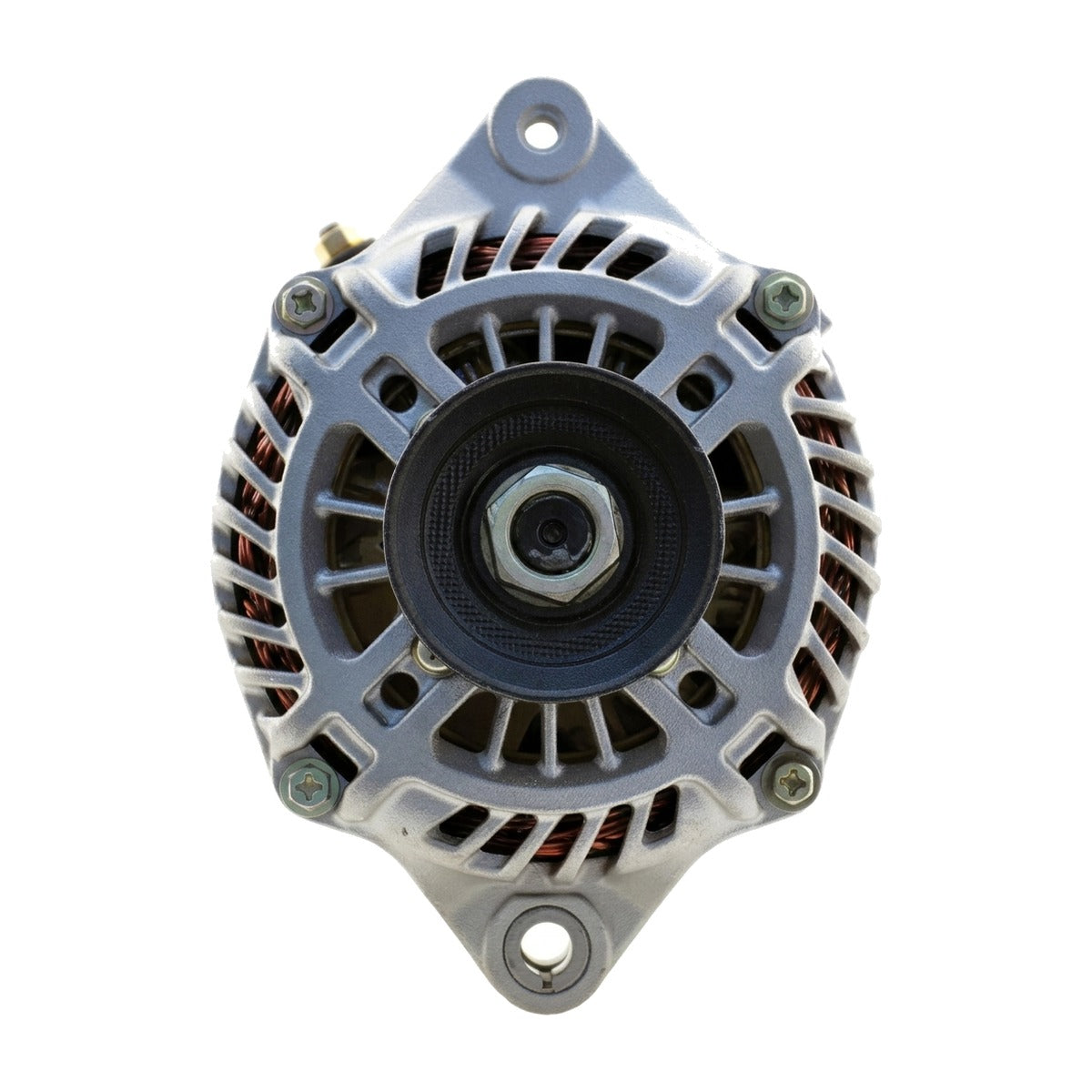

High Output Alternator for Suzuki Grand Vitara (2006-2008) 2.7L

High-Amperage 210A Alternator for 2006-2008 Suzuki Grand Vitara (JT)

What it Does: The high-output alternator replaces the factory charging unit on the 2006-2008 Suzuki Grand Vitara to deliver 210 amps of continuous electrical current, preventing voltage drop under high-demand accessory loads.

The Stock Suzuki Grand Vitara Charging System Deficiencies

The factory charging system on the third-generation JT platform uses an OEM unit rated for only 105 amps. When powering auxiliary overland equipment such as high-draw recovery winches, off-road lighting arrays, aftermarket audio amplifiers, or dual-battery systems, the stock alternator faces severe thermal saturation and system-wide voltage sag. At idle speeds, factory current generation falls drastically short, leading to discharged batteries, flickering interior electronics, slipping voltage regulation, and premature diode failure under extended load.

The Engineering Solution

This 210-amp heavy-duty alternator solves capacity limitations through densely packed, heavy-gauge copper stator windings and a precision-balanced rotor designed for maximum thermal dissipation and electrical throughput. High-grade sealed bearings eliminate premature bearing noise and resist dirt or moisture ingress during off-road operation. Built with an internal solid-state voltage regulator calibrated to maintain a stable 13.5V to 14.5V output, this alternator matches OEM case dimensions, pulley offset, and terminal configurations to bolt directly onto the H27A engine with no bracket fabrication or pigtail wiring modifications.

What's Included

• 1 High Output 210-Amp Alternator (Part # 11224)

Technical Specifications

Compatibility

• 2006 Suzuki Grand Vitara 2.7L V6 (Base, Premium, XSport, Luxury)
• 2007 Suzuki Grand Vitara 2.7L V6 (Base, Premium, XSport, Luxury)
• 2008 Suzuki Grand Vitara 2.7L V6 (Base, Premium, XSport, Luxury)

Frequently Asked Questions & Fitment Warnings

Does this fit the JT Grand Vitara?

Yes, this is a direct fit for the 2006-2008 Suzuki Grand Vitara equipped with the H27A 2.7L V6 engine. It does not fit models equipped with the 2.4L 4-cylinder or 3.2L V6 engines.

Do I need to upgrade wiring when installing this unit?

While this alternator utilizes the factory connector and runs safely on stock wiring, upgrading the primary B+ charging lead and ground wires is recommended to safely transmit full 210-amp current flow.

The Suzuki Off-Road Caliber

Engineered to withstand rigorous overland conditions, this high-capacity unit provides the sustained electrical power needed to run winches and high-draw equipment reliably in remote terrain.
