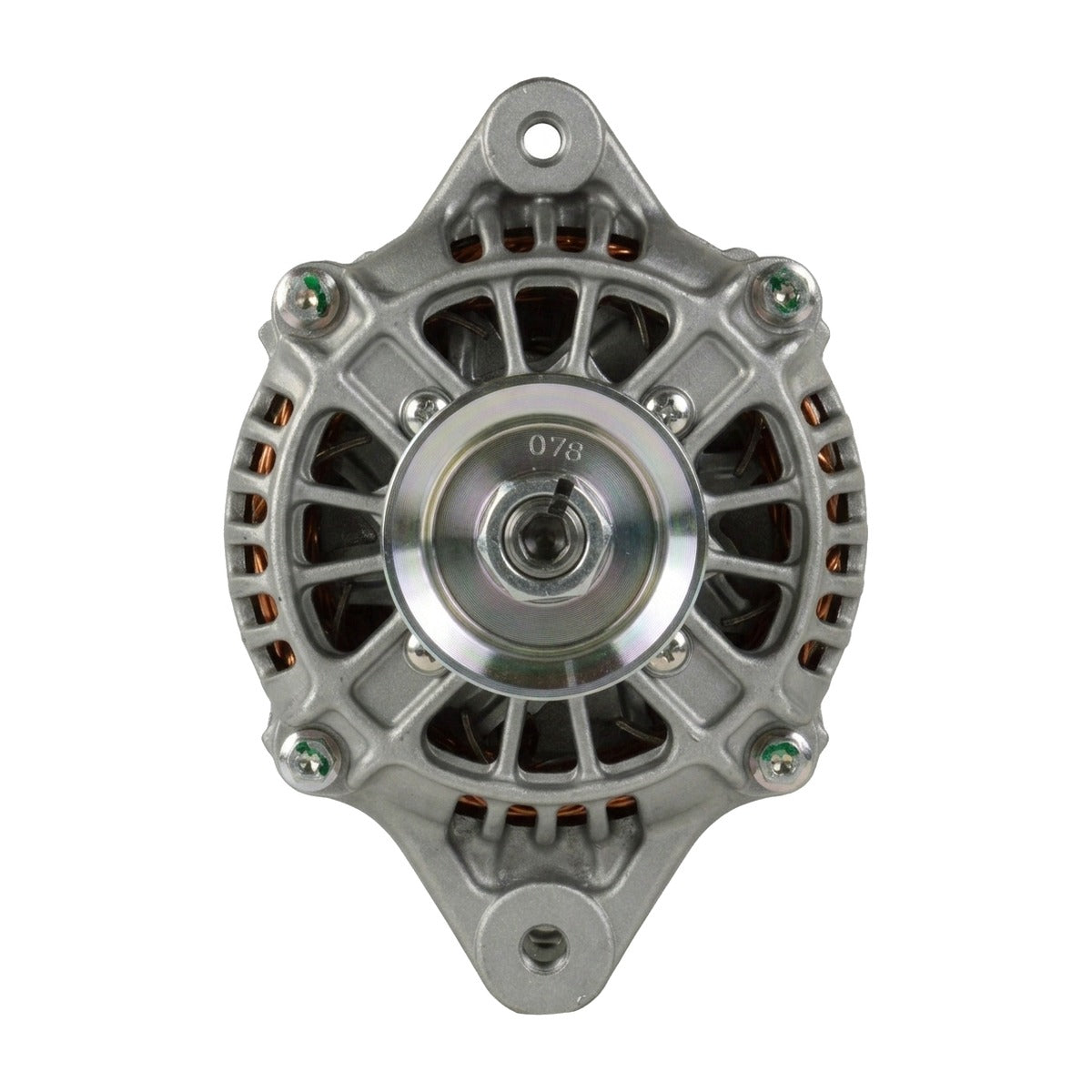

High Output Alternator for Subaru Justy (1990-1995) 1.2L

High Output 120-Amp Alternator for 1990-1995 Subaru Justy (KA7/KA8)

What it Does: The high output 120-amp alternator replaces the low-output factory charging unit on the 1990-1995 Subaru Justy to deliver reliable electrical current and maintain stable battery voltage under auxiliary load.

The Stock Subaru Justy Electrical Limitation

The factory charging system on the KA7 and KA8 chassis Justy was engineered around an extremely modest 40- to 50-amp stator output, adequate only for base mechanical operation and minimal factory lighting. Decades of heat cycling within the compact engine bay degrade the original insulation, brushes, and internal diodes. Furthermore, the OEM unit cannot handle modernized electrical loads; adding auxiliary lighting, electric radiator fans, or modest audio amplifiers causes severe voltage drop at idle, resulting in flickering headlights, slow cranking, drained batteries, and premature alternator stator burn-out.

The Engineering Solution

This 120-amp high-output alternator directly retrofits the EF12 powerplant without bracket modification. Built with heavy-gauge, high-temperature copper stator windings and a dynamically balanced rotor, this unit nearly triples factory amperage capacity while retaining OEM mounting bosses and belt geometry. Premium sealed bearings minimize drag and thermal friction, while an upgraded internal solid-state voltage regulator ensures continuous 13.5V to 14.5V output throughout the rev range. Each component is pre-bench tested to handle demanding continuous duty cycles without diode ripple or thermal decay.

What's Included

• 1 High Output 120-Amp Alternator

Technical Specifications

Compatibility

• 1990-1995 Subaru Justy 1.2L 3-cylinder (FWD and 4WD models)

Frequently Asked Questions & Fitment Warnings

Does this fit the KA7/KA8 Justy?

Yes, this is a direct bolt-in fit for the 1990-1995 Subaru Justy equipped with the EF12 1.2L 3-cylinder engine, utilizing factory bracket locations and harness connections.

Do I need to upgrade my wiring for this 120-amp unit?

While it is plug-and-play with the factory harness, upgrading the main battery charging wire and engine grounding cables to heavier 4-gauge wiring is recommended to utilize full 120-amp output safely.

The Subaru Performance Standard

Compact classic JDM platforms demand absolute electrical stability to ensure consistent spark energy, reliable continuous operation, and worry-free driving regardless of road or trail conditions.
