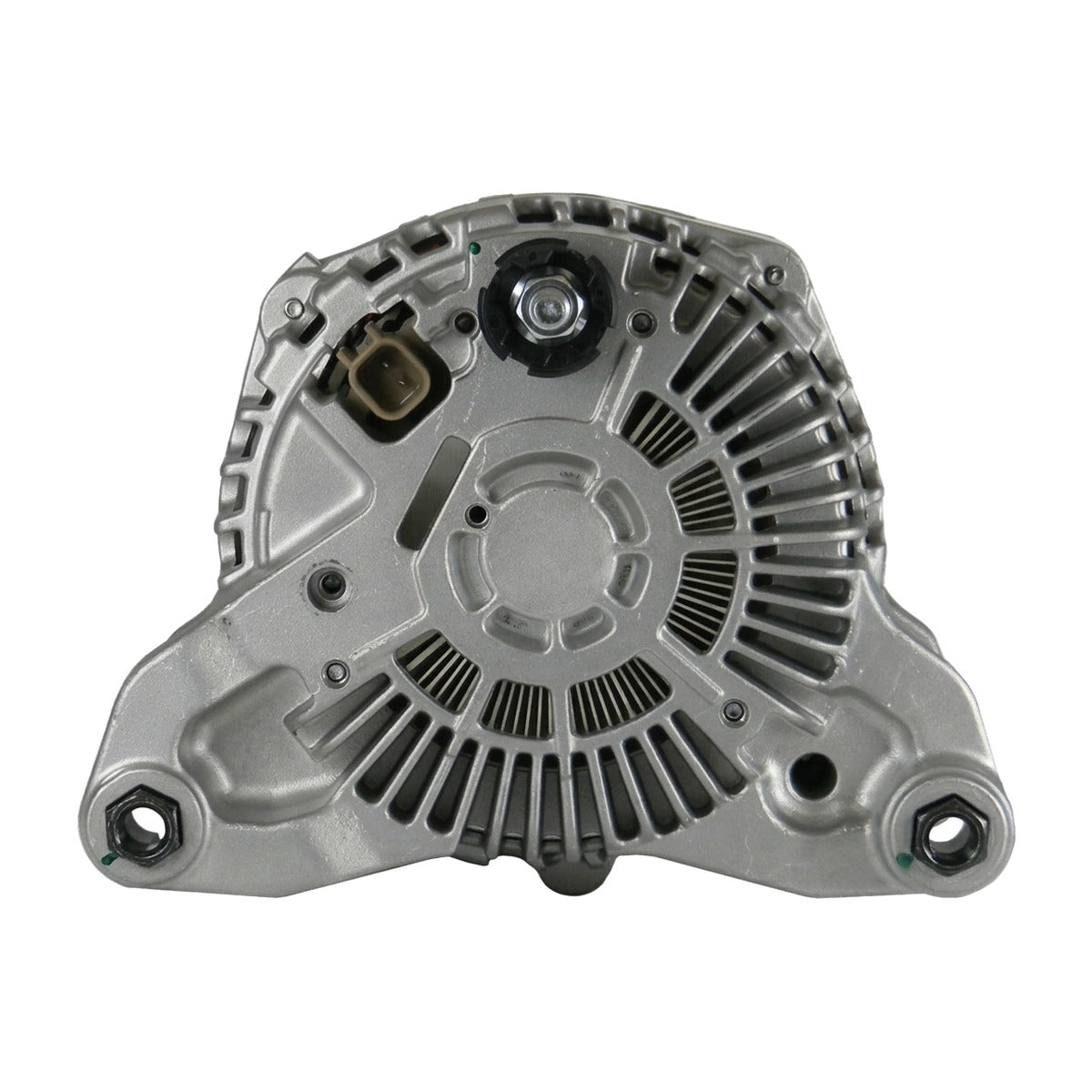

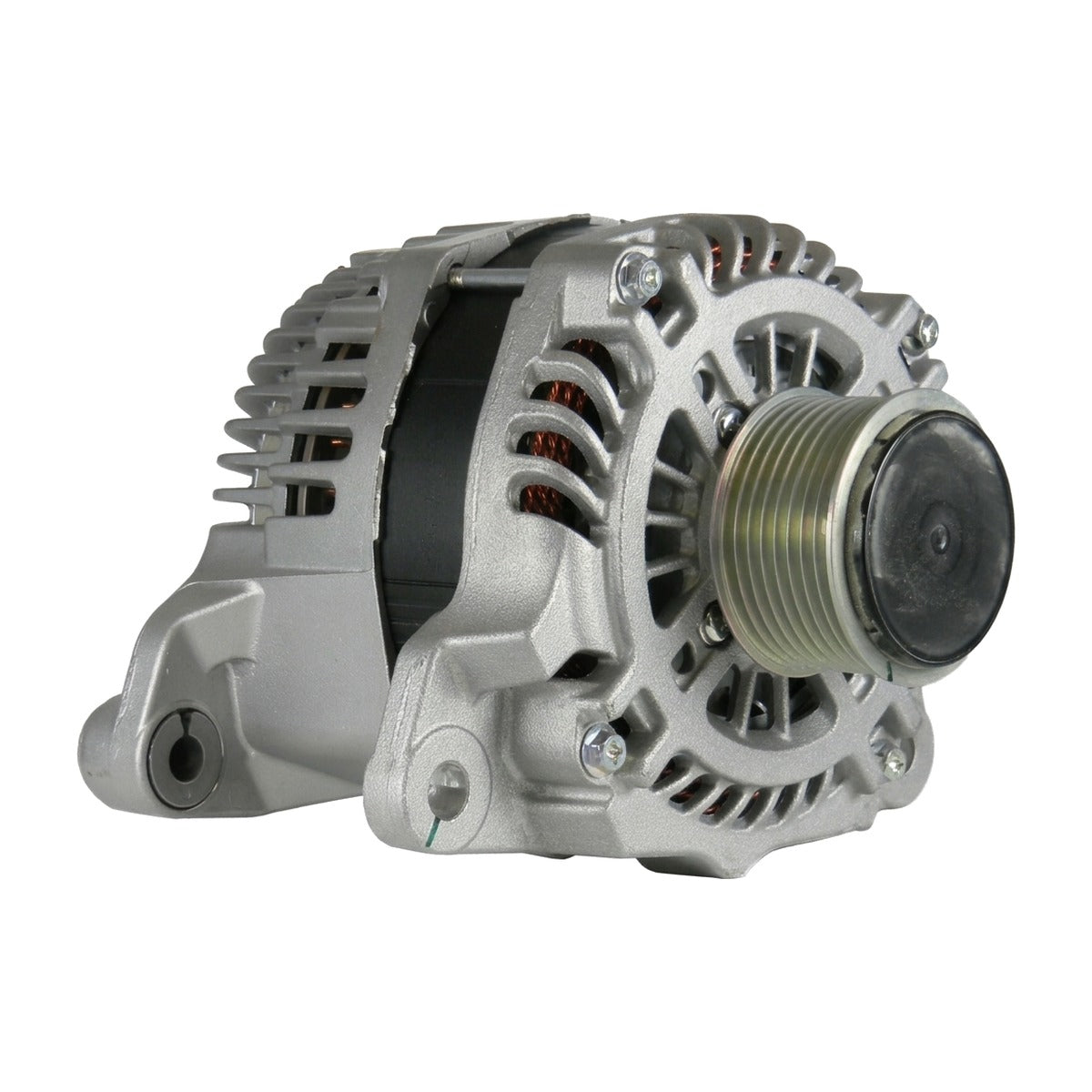

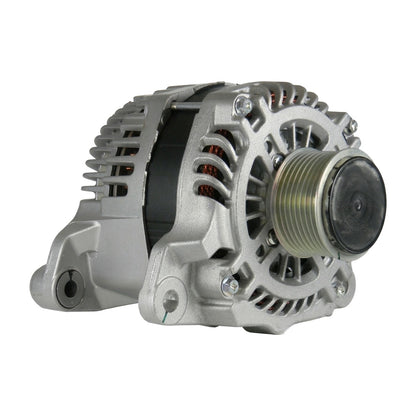

High Output Alternator for RAM 4500 (2011-2012) 6.7L

High-Amp Direct-Replacement Alternator for 2011-2012 RAM 4500 (D2)

What it Does: The 350-amp high output alternator replaces the underpowered factory charging unit on the 2011-2012 RAM 4500 to deliver sustained 12V electrical current under heavy auxiliary accessory loads and high-draw idle conditions.

The Stock RAM 4500 Electrical Limitation

Factory charging systems on the D2 chassis cab platform are engineered strictly for baseline electrical demands. When equipped with high-amperage commercial equipment—such as hydraulic pump power packs, auxiliary work lighting, heavy-duty winches, or aftermarket inverters—the OEM alternator suffers severe thermal saturation and voltage sag. Prolonged high-amp draw causes excessive heat soak in the stock thin-gauge stator windings, accelerating diode rectifier failure, triggering low-voltage battery dash warnings, dimming cab and headlamp illumination, and causing premature dual-battery bank degradation.

The Engineering Solution

This 350-amp direct-replacement unit resolves electrical starvation by utilizing high-density, heavy-gauge pure copper stator windings combined with a precision dynamically balanced rotor. High-temp sealed dual bearings maintain shaft stability under extreme serpentine belt tension on the commercial front-end accessory drive (FEAD). A heavy-duty internal voltage regulator precisely stabilizes charging between 13.5V and 14.5V across all engine speeds, preventing transient voltage spikes. Engineered to retain the OEM 6-groove clutch pulley diameter, factory mounting footprints, and harness plug architecture, it drops directly in place without bracket modification.

What's Included

• 1 High Output 350-Amp Alternator

Technical Specifications

Compatibility

• 2011 RAM 4500 Cab & Chassis 6.7L Turbo Diesel
• 2012 RAM 4500 Cab & Chassis 6.7L Turbo Diesel

Frequently Asked Questions & Fitment Warnings

Does this fit the D2 4500?

Yes, this is a direct fit for the 2011-2012 RAM 4500 equipped with the 6.7L Cummins ISB turbo diesel engine.

Should I upgrade my wiring when installing this 350-amp unit?

For maximum charging efficiency and safe current transfer, upgrading the main B+ charging lead and chassis ground straps with a 0-gauge or 1/0 "Big 3" wiring kit is highly recommended.

The RAM Heavy-Duty Standard

Engineered for the abusive operating cycles of commercial hauling and towing platforms, this heavy-duty unit supplies stable, high-amperage current under extreme underhood heat loads to protect critical onboard electronics and keep commercial auxiliary rigs running reliably.
