High Output Alternator for Ram 1500 (2011-2012) 3.7L

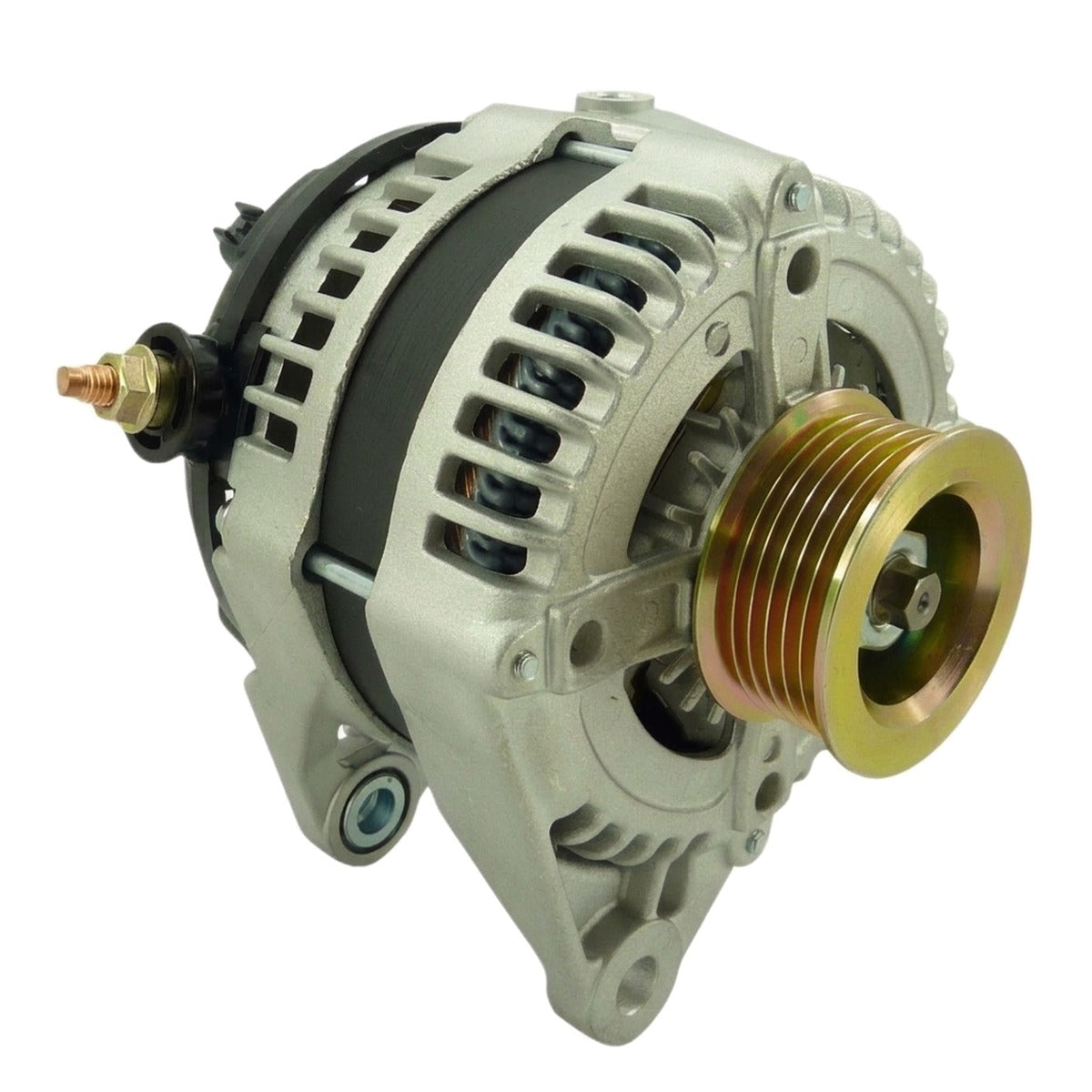

High-Output 250-Amp Alternator for 2011-2012 Ram 1500 (DS)

What it Does: The high-output alternator replaces the factory charging unit on the 2011-2012 Ram 1500 to deliver a massive 250 amps of electrical current, preventing voltage drops under heavy auxiliary loads.

The Stock Ram 1500 Charging Limitations

The factory charging system in the DS chassis was engineered strictly for baseline electrical demands. When equipped with the 3.7L PowerTech V6 (EKG), the original equipment alternator produces limited amperage at idle, leading to thermal stress and severe voltage drop when powering aftermarket winches, commercial work lighting, audio systems, or auxiliary inverters. Continuous high-load demands induce internal diode heat soak, breakdown of factory rotor insulation, and premature battery degradation.

The Engineering Solution

Engineered for high-demand duty cycles, this 250-amp unit delivers maximum charging performance directly into your truck's 12V electrical bus. Built in the USA, it utilizes heavy-gauge copper windings, precision-balanced internal rotors, and an array of heavy-duty avalanche diodes mounted in an aluminum heat sink designed to resist thermal breakdown. It maintains steady voltage regulation across both low-RPM idle and highway cruise, protecting sensitive vehicle electronics from ripple current and low-voltage spikes without requiring bracket modification.

What's Included

• 1 High Output 250 Amp Alternator

Technical Specifications

Compatibility

• 2011 Ram 1500 3.7L V6 Gas (DS Platform)
• 2012 Ram 1500 3.7L V6 Gas (DS Platform)

Frequently Asked Questions & Fitment Warnings

Does this fit the DS 1500?

Yes, this is a direct bolt-on fit for the 2011-2012 Ram 1500 equipped with the 3.7L PowerTech V6 (EKG) engine; it does not fit 4.7L or 5.7L HEMI V8 configurations.

Do I need to upgrade the main charging cable to run this 250A unit?

A heavy-gauge "Big 3" wiring upgrade (0-gauge or 4-gauge power and ground cables) is strongly recommended to safely support the full 250-amp output and prevent wire overheating.

The Ram Heavy-Duty Standard

Built to handle rigorous fleet, worksite, and towing conditions, this charging unit maintains rock-solid voltage stability so your onboard equipment operates at peak efficiency under the harshest work cycles.
