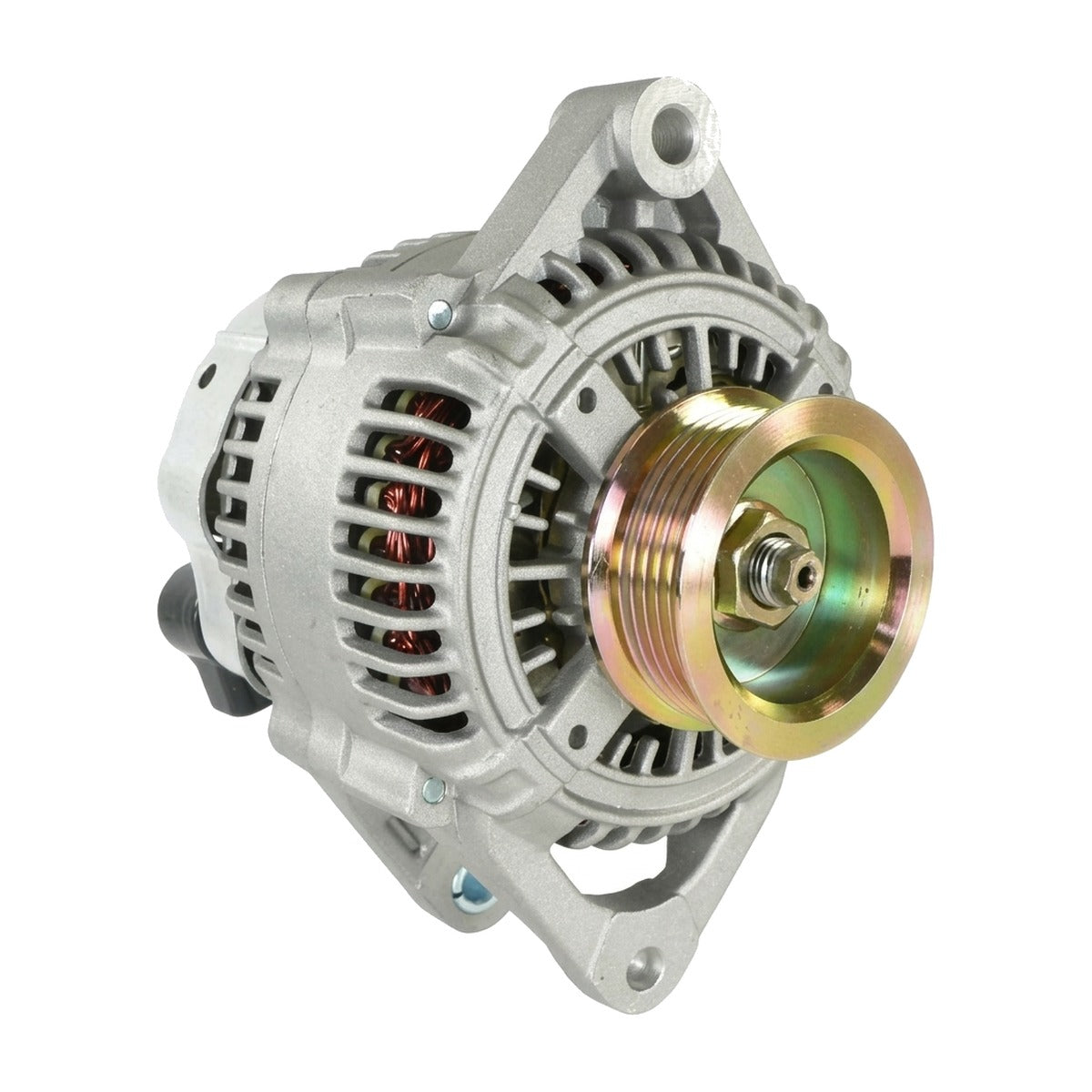

High Output Alternator for Plymouth Grand Voyager Voyager (1998-2000) 3.3L

High-Output 250A Alternator for 1998-2000 Plymouth Grand Voyager, Voyager (NS)

What it Does: The 250-Amp High Output Alternator replaces the low-output factory charging unit on 1998-2000 Plymouth Grand Voyager and Voyager models to deliver continuous electrical current and prevent system-wide voltage sag under heavy auxiliary loads.

The Stock Plymouth Grand Voyager, Voyager Charging Bottleneck

The original charging system on the third-generation NS platform relied on a modest 90A to 120A alternator calibrated purely for factory base loads. When burdened by dual-zone climate blowers, rear defrosters, modern audio amplifiers, auxiliary power inverters, or accessory lighting, the factory rectifier undergoes severe thermal soak. This results in heavy curb-idle voltage drop below 12.6V, rapid battery sulfation, flickering headlights, and premature stator winding failure.

The Engineering Solution

Engineered for the 3.3L EGA pushrod V6, this direct-fit 250-amp unit features dense, high-conductivity heavy-gauge copper stator windings coupled to a precision-balanced rotor. High-efficiency internal solid-state regulation maintains consistent 13.5V to 14.5V output throughout the RPM band, while heavy-duty sealed bearings resist continuous heat and rotational stress. The housing utilizes the factory bolt patterns, standard pulley profile, and OE harness pinouts to provide true bolt-in installation without bracket modification.

What's Included

• 1x 250 Amp High Output Alternator (Internal Regulator)

Technical Specifications

Compatibility

• 1998 Plymouth Grand Voyager 3.3L V6
• 1999 Plymouth Grand Voyager 3.3L V6
• 2000 Plymouth Grand Voyager 3.3L V6
• 1998 Plymouth Voyager 3.3L V6
• 1999 Plymouth Voyager 3.3L V6
• 2000 Plymouth Voyager 3.3L V6

Frequently Asked Questions & Fitment Warnings

Does this fit the NS Grand Voyager, Voyager?

Yes, this is a direct fit for the 1998-2000 Plymouth Grand Voyager and Voyager equipped with the EGA 3.3L V6 engine.

Should I upgrade my battery wiring with this 250A alternator?

While it plugs directly into the factory harness, upgrading the primary B+ charging lead and ground cables (Big 3 upgrade) to 0-gauge or 4-gauge wire is strongly recommended to safely carry the full 250-amp output.

The Plymouth Reliability Standard

Designed to restore unwavering reliability to high-mileage passenger and utility vans, this unit delivers steady, high-amperage electrical current for long-distance highway hauling and high-demand onboard accessory power.
