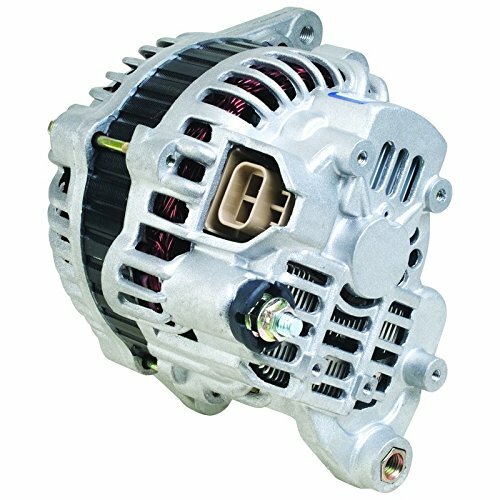

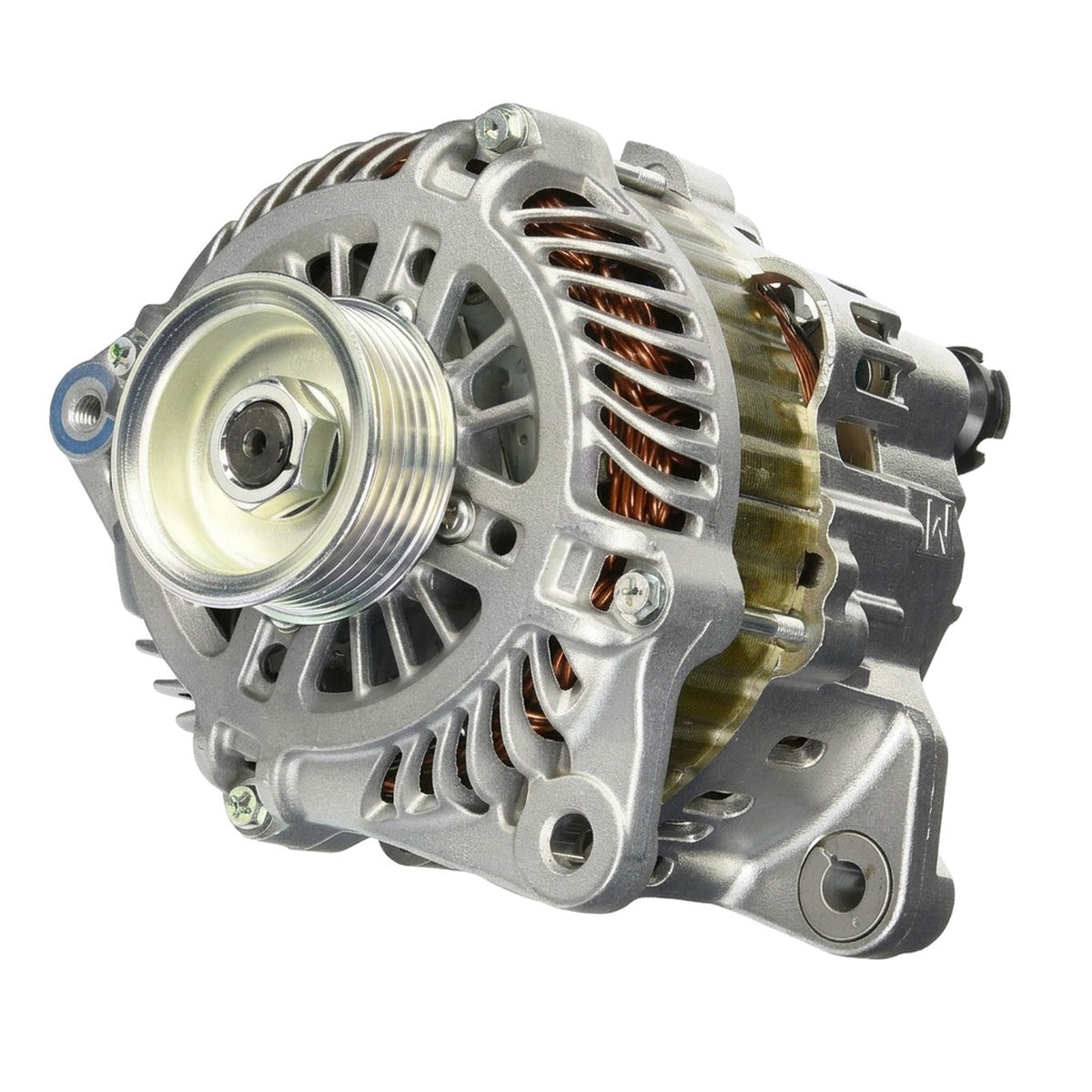

High Output Alternator for Nissan 350Z (2003-2006) 3.5L

High-Output 250-Amp Alternator for 2003-2006 Nissan 350Z (Z33)

What it Does: The 250-Amp High Output Alternator replaces the low-output factory charging unit on the 2003-2006 Nissan 350Z to eliminate electrical voltage drop under heavy auxiliary and performance loads.

The Stock Nissan 350Z Charging Bottleneck

The factory 110-amp charging system on the Z33 platform was engineered strictly for stock electrical loads. When the VQ35DE engine is upgraded with high-draw components—such as dual electric puller fans, high-flow secondary fuel pumps, air suspension compressors, or high-RMS sound systems—the OEM alternator suffers severe voltage drop at idle. Under sustained heat soak in the tight front engine bay, factory internal diodes overheat, causing output degradation, battery drain, and unstable ignition coil firing.

The Engineering Solution

Engineered and assembled in the USA, this direct-fit 250-amp unit delivers more than 140 amps at idle and a full 250 peak amps at operating RPM. Built with a heavy-duty copper stator, oversized avalanche diode rectifier, and high-temp heat-dissipating housing, it withstands aggressive thermal abuse while maintaining a solid 14.4-volt charge across the rev range. Designed as a direct bolt-in unit that swaps directly with OEM numbers 23100-AM610 and 23100-CD010 without bracket modifications.

What's Included

• 1x 250-Amp High Output Alternator

Technical Specifications

Compatibility

• 2003-2006 Nissan 350Z Base 3.5L V6
• 2003-2006 Nissan 350Z Enthusiast 3.5L V6
• 2003-2006 Nissan 350Z Touring 3.5L V6
• 2003-2006 Nissan 350Z Track 3.5L V6
• 2005-2006 Nissan 350Z Grand Touring 3.5L V6

Frequently Asked Questions & Fitment Warnings

Does this fit the Z33 350Z?

Yes, this is a direct fit for the 2003-2006 Nissan 350Z equipped with the VQ35DE engine.

Do I need to upgrade my main power wiring with this 250A alternator?

Yes, running a "Big 3" 4-gauge or 0-gauge fused power lead and ground kit is necessary to safely handle the 250-amp continuous current output.

The Nissan Performance Standard

Engineered to deliver clean, rock-solid voltage throughout aggressive road course and drift sessions, keeping high-demand fuel pumps, ignition coils, and auxiliary electronics fully energized.
