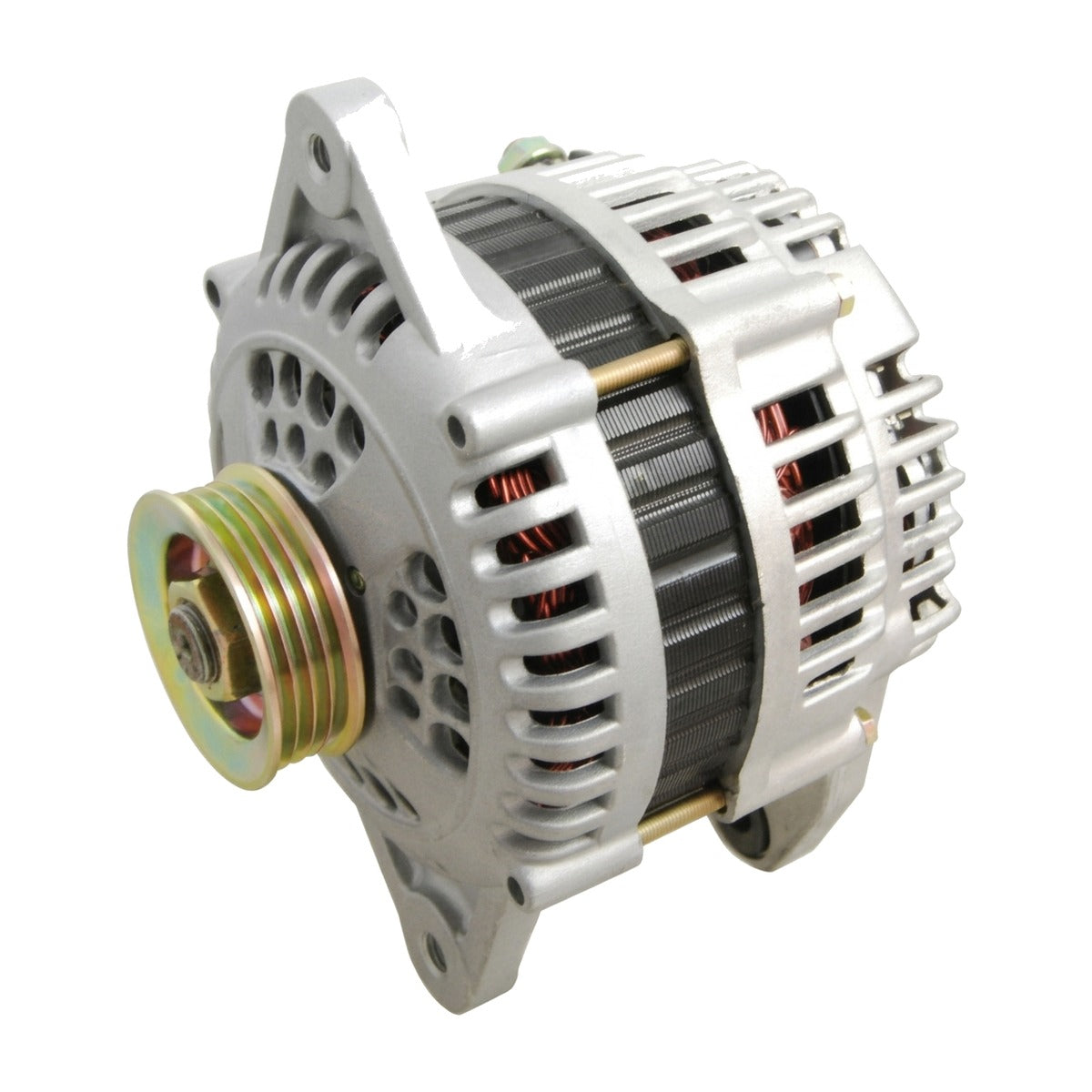

High Output Alternator for Mazda MX-5 Miata (2001-2005) 1.8L

High-Amp Direct-Fit Alternator for 2001-2005 Mazda MX-5 Miata (NB)

What it Does: The high output alternator replaces the factory charging unit on the 2001-2005 Mazda MX-5 Miata to supply stable 130-amp electrical current and prevent voltage drop under heavy auxiliary loads.

The Stock Mazda MX-5 Miata Electrical Deficit

The factory charging system on the NB chassis relies on an undersized 70-amp alternator engineered strictly for base vehicle electrical draw. Introducing aftermarket thermo-fans, high-draw fuel pumps, track telemetry, or multi-channel audio setups overwhelms the stock stator capacity. At warm idle, heavy current demand causes supply voltage to sag below 12.8V, triggering headlight flicker, intermittent ECU sensor readings, slow cranking, and premature battery degradation due to sustained cycling.

The Engineering Solution

Engineered around heavy-gauge copper stator windings and a dynamic high-RPM balanced rotor, this direct-replacement alternator increases output to 130 amps—an 85% capacity increase over stock. High-grade internal silicone diode rectifiers and an integrated internal voltage regulator maintain a rigid 13.5V to 14.5V charging curve even under thermal saturation. Precision sealed needle bearings eliminate radial shaft deflection under high-rev engine harmonics, while OEM-matched mounting brackets and OE connector plug-ins ensure drop-in integration with the factory BP-Z3 wiring harness without bracket modification or bracket shimming.

What's Included

• 1 High Output 130-Amp Alternator

Technical Specifications

Compatibility

• 2001-2005 Mazda MX-5 Miata Base 1.8L
• 2001-2005 Mazda MX-5 Miata LS 1.8L
• 2001-2005 Mazda MX-5 Miata Shinsen 1.8L
• 2004-2005 Mazda MX-5 Miata Mazdaspeed 1.8L Turbo

Frequently Asked Questions & Fitment Warnings

Does this fit the NB MX-5 Miata?

Yes, this is a direct fit for the 2001-2005 Mazda MX-5 Miata equipped with the BP-Z3 1.8L engine using factory hardware and harness connectors.

Do I need to upgrade the main charging cable when installing this alternator?

While compatible with factory wiring, performing a 'Big Three' wiring upgrade on the main B+ charge wire and ground cables is recommended to utilize the full 130-amp output safely.

The Mazda Performance Caliber

Built to endure the high-RPM vibrations inherent to the naturally aspirated BP powerplant, this unit provides rock-solid electrical stability for track and street builds.
