High Output Alternator for Mazda MX-5 Miata (1990-1993) 1.6L

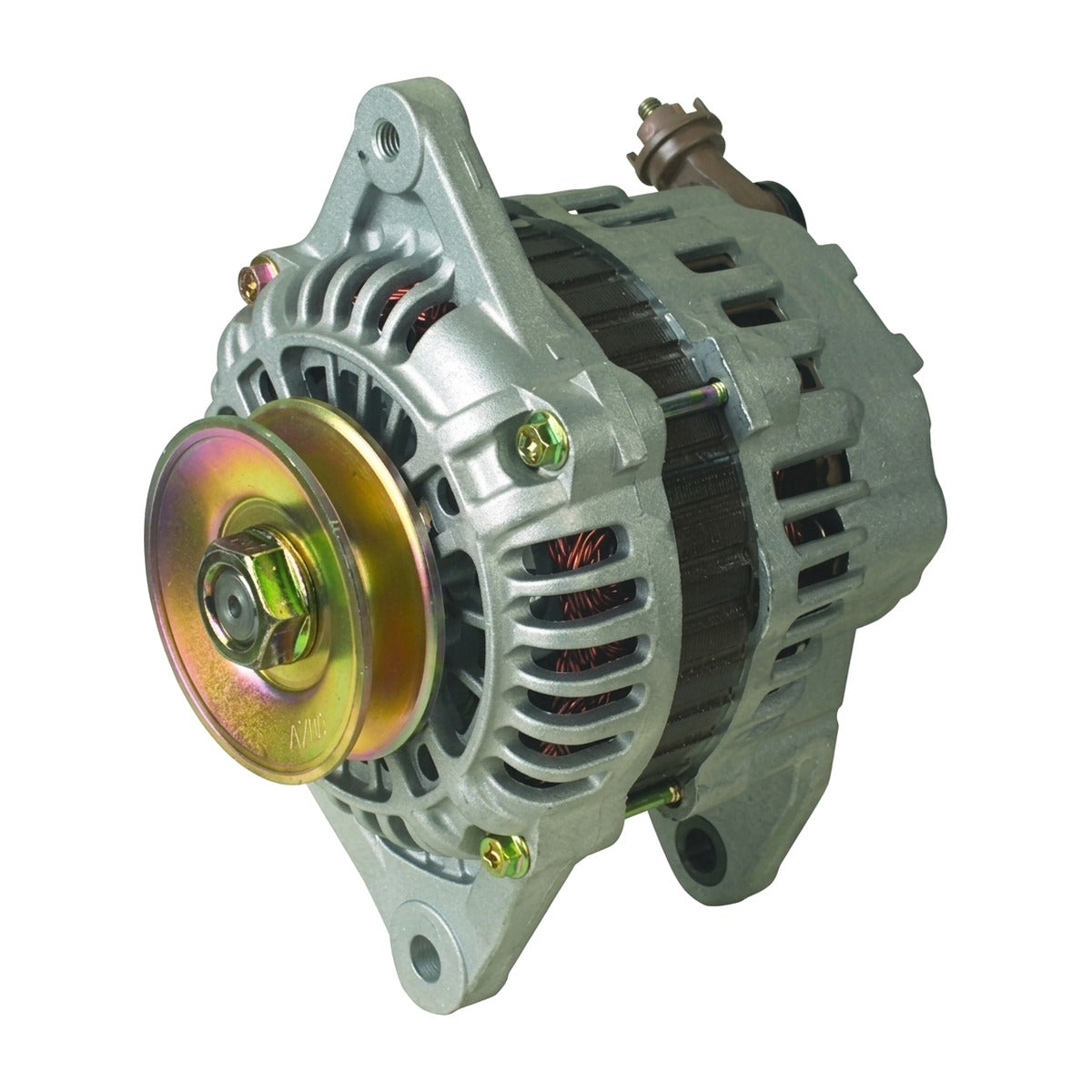

High-Output 130A Direct-Fit Alternator for 1990-1993 Mazda MX-5 Miata

What it Does: The high-output alternator increases charging capacity on the 1990-1993 Mazda MX-5 Miata to 130 amps to maintain stable system voltage under modern auxiliary electrical loads.

The Stock Mazda MX-5 Miata Charging System Limitations

The factory charging system on the first-generation NA chassis was engineered for minimal 1990s electrical demands. When modern aftermarket upgrades are added—such as dual electric radiator fans, auxiliary lighting, standalone ECUs, or high-draw audio amplifiers—the stock alternator suffers from diode heat soak and severe voltage drop at idle. This deficit manifests as dimming instrument clusters, erratic sensor readings, delayed ignition coil saturation, and premature battery degradation during stop-and-go driving.

The Engineering Solution

Engineered as a direct bolt-in replacement, this 130-amp unit utilizes heavy-duty copper stator windings and high-temp internal silicon rectifiers to deliver dependable current without heat fade. Built new in the USA and bench-tested prior to packaging, it retains factory mounting geometry, OE pulley alignment, and the original terminal harness plug. It supplies sustained charging current even at low B6ZE idle speeds, ensuring ignition stability and steady 14V bus supply under full accessory loads.

What's Included

• 1 High-Output 130-Amp Alternator

Technical Specifications

Compatibility

• 1990 Mazda MX-5 Miata 1.6L
• 1991 Mazda MX-5 Miata 1.6L (Base, Special Edition)
• 1992 Mazda MX-5 Miata 1.6L (Base, Sunburst Yellow)
• 1993 Mazda MX-5 Miata 1.6L (Base, Limited Edition)

Frequently Asked Questions & Fitment Warnings

Does this fit the NA MX-5 Miata?

Yes, this is a direct fit for the 1990-1993 Mazda MX-5 Miata equipped with the B6ZE 1.6L engine. Does not fit 1994-1997 1.8L (BP) models due to alternate bracket spacing and harness plug pinouts.

Do I need to upgrade my charging wiring?

For installations drawing continuous high amperage, upgrading the B+ alternator charge cable and chassis ground to 4-gauge wire is recommended to maximize circuit efficiency and avoid resistance heat build-up.

The Mazda Roadster Standard

Engineered to handle sustained high-RPM operation and track-day demands, this alternator delivers uninterrupted power delivery so your roadster's ignition and electronics perform predictably under all operating conditions.
