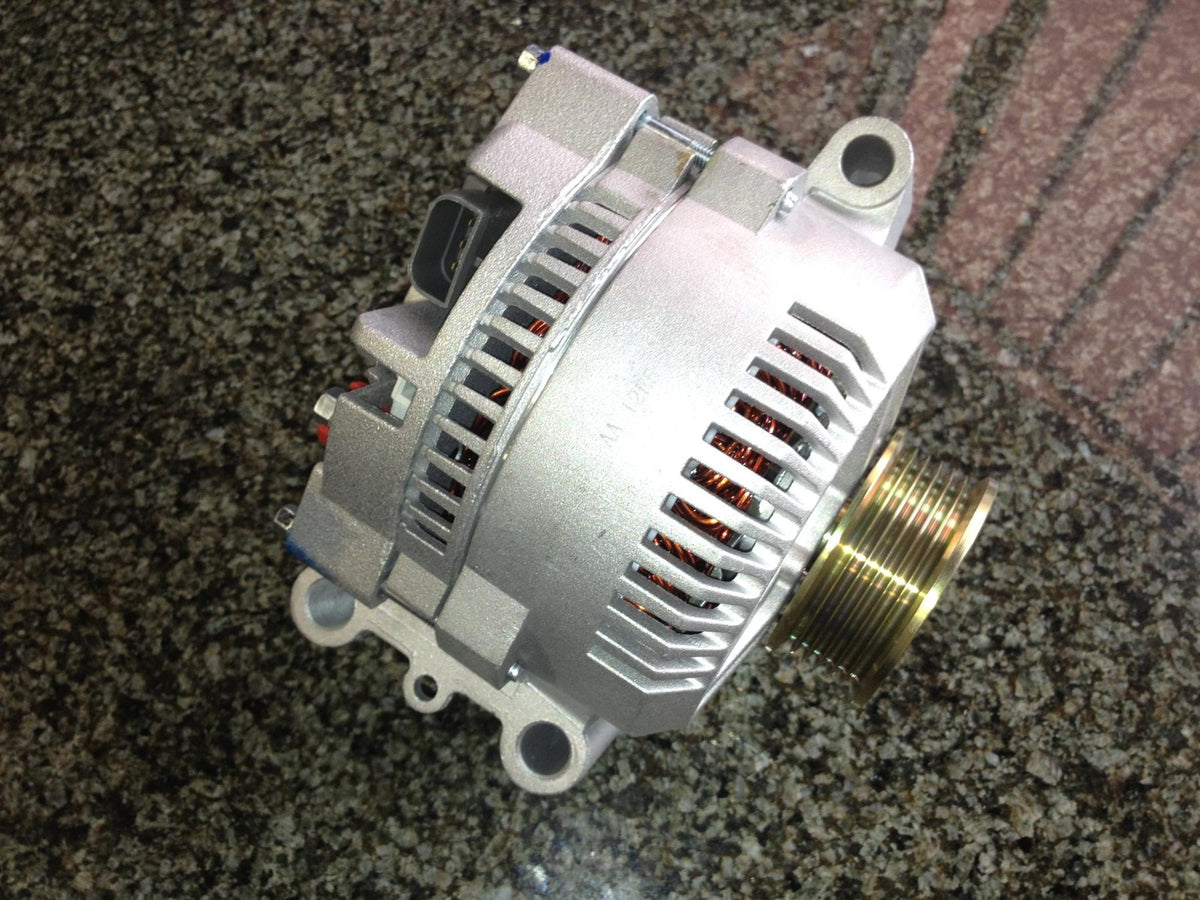

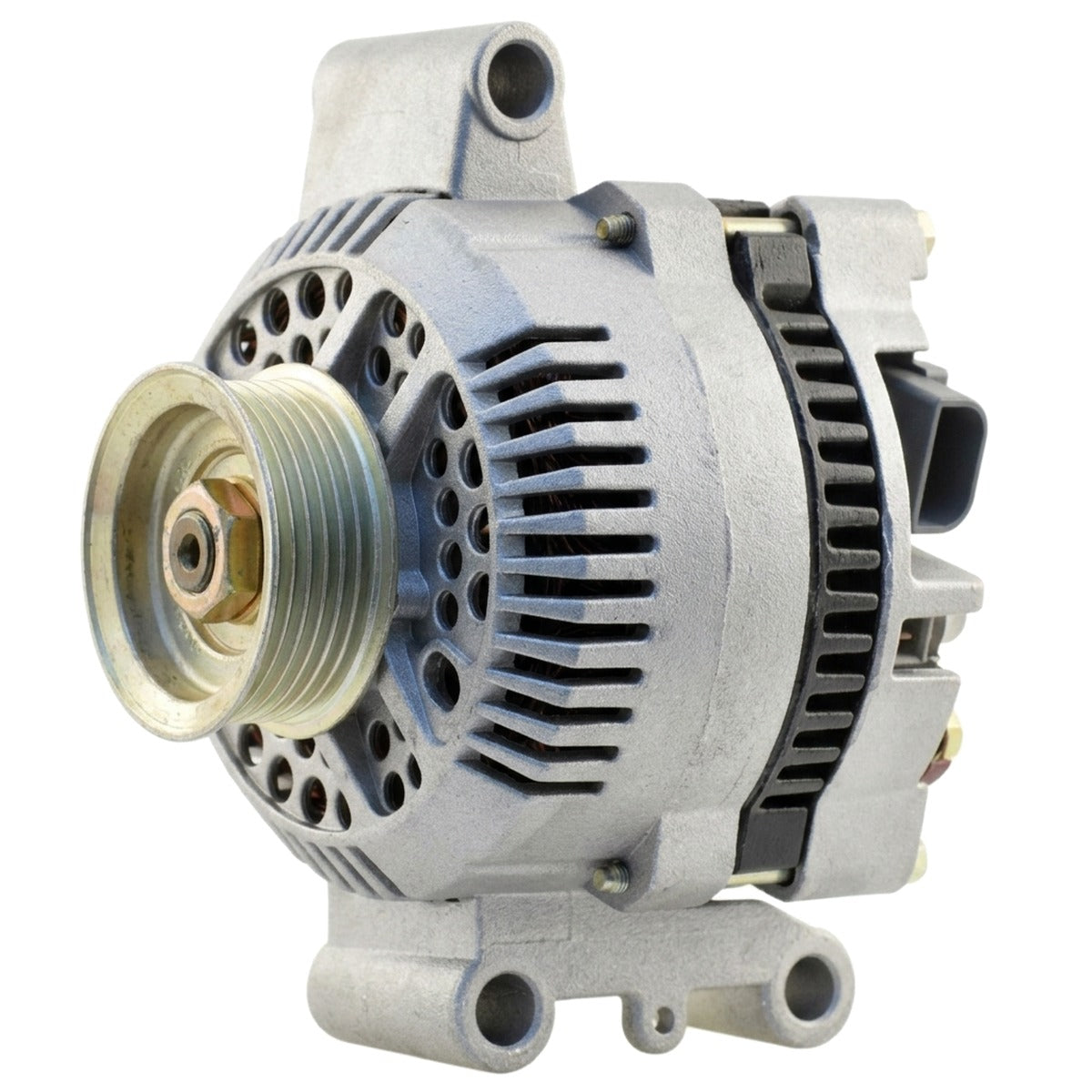

High Output Alternator for Mazda B4000 (2002-2003) 4.0L

High-Amp 200A Alternator for 2002-2003 Mazda B4000 (UN Chassis)

What it Does: The 200-amp high output alternator replaces the factory charging unit on the 2002-2003 Mazda B4000 to supply stable, high-capacity electrical current for demanding auxiliary equipment without voltage sag at idle.

The Stock Mazda B4000 Charging Limitation

Factory charging systems on the UN platform B-Series trucks were engineered strictly for stock electrical loads. The standard OEM alternator produces limited output at idle and suffers thermal saturation under continuous duty. Introducing aftermarket equipment such as off-road winches, high-draw lighting arrays, audio amplifiers, or dual-battery systems quickly overtaxes the stock stator and internal diode trio. This chronic over-amperage causes severe voltage drops, starved ignition coils on the 4.0L Cologne SOHC V6, accelerated battery decay, and premature regulator burnout.

The Engineering Solution

Manufactured in the USA, this 200-amp high output alternator delivers heavy-duty power generation engineered for severe-duty cycles. Built with precision hand-wound copper stators and a heavy-duty rotor assembly, it provides increased amperage output at low engine RPMs while maintaining thermal stability under load. High-temperature avalanche diodes and an upgraded internal heat sink prevent diode bridge meltdown. Designed as a direct bolt-in fit for original equipment units like F07F-10300-AA and 7750, it maintains factory belt alignment without bracket modification.

What's Included

• 1 x 200-Amp High Output Alternator

Technical Specifications

Compatibility

• 2002 Mazda B4000 4.0L V6
• 2003 Mazda B4000 4.0L V6

Frequently Asked Questions & Fitment Warnings

Does this fit the UN B4000?

Yes, this is a direct fit for the 2002-2003 Mazda B4000 equipped with the 4.0L Cologne SOHC V6 engine. This unit does not fit models equipped with the 2.3L inline-4 or 3.0L Vulcan V6 engines.

Do I need to upgrade the primary charging wire?

Yes, installing a fused 4-gauge or 1/0-gauge main charging wire from the alternator output stud to the battery positive terminal is required to handle the increased 200A load without resistance heating.

The Mazda Truck Standard

Engineered for work and trail reliability, this unit ensures your B4000 delivers uninterrupted electrical power for demanding recovery operations, severe towing conditions, and continuous auxiliary loads.
