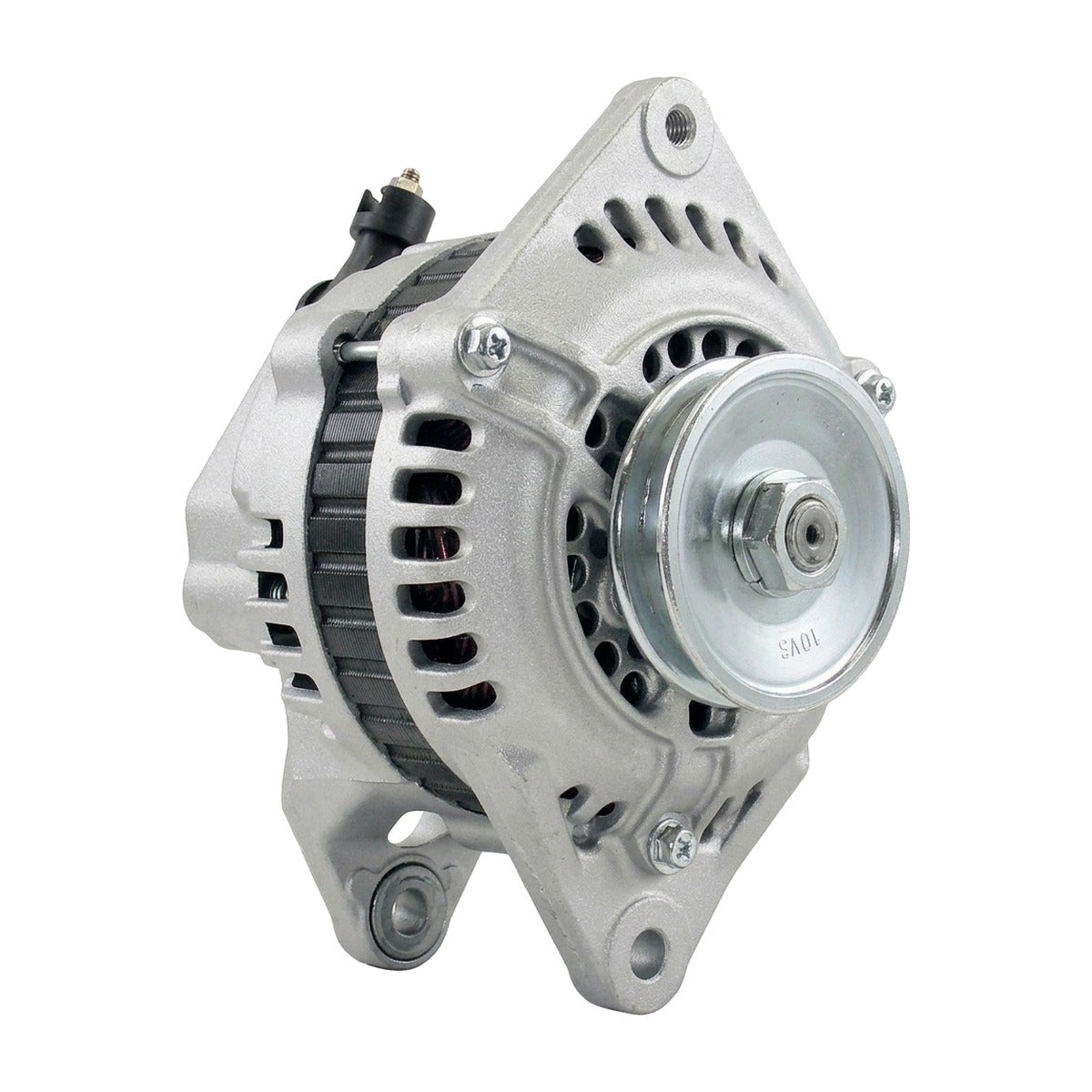

High Output Alternator for Mazda 323 (1986-1987) 1.6L

High-Output 120A Alternator for 1986-1987 Mazda 323 (BF)

What it Does: The High Output 120-Amp Alternator replaces the factory low-output charging unit on the 1986-1987 Mazda 323 to prevent voltage drop and supply stable current under high electrical demands.

The Stock Mazda 323 Charging Limitations

Factory charging systems on the BF platform were engineered for minimal cabin electronics, utilizing an original alternator rated at only 50 to 60 amps. Over time, thermal fatigue deteriorates the factory internal rectifier and small-gauge stator windings, causing pronounced voltage drop at idle when running headlights, HVAC blowers, or aftermarket audio equipment. As heat soak sets in during stop-and-go driving, output drops below 13.0 volts, leading to battery starvation, erratic idle control, and dimming instruments.

The Engineering Solution

Engineered for drop-in installation, this 120-amp unit doubles factory output using dense, heavy-gauge copper stator windings paired with a precision-balanced rotor to prevent high-RPM vibration. Heavy-duty avalanche diodes and an internal solid-state voltage regulator maintain a rock-steady 13.5V to 14.5V profile across all thermal ranges. Factory-matched rotor shaft dimensions, OE pulley offset, and an integrated plug receiver bolt directly onto the B6 block without custom mounting brackets or harness splices.

What's Included

• 1x High Output 120-Amp Alternator (Part # 14903)

Technical Specifications

Compatibility

• 1986 Mazda 323 Base, DX, LX (1.6L 4-Cylinder)
• 1987 Mazda 323 Base, DX, LX (1.6L 4-Cylinder)

Frequently Asked Questions & Fitment Warnings

Does this fit the BF 323?

Yes, this is a direct fit for the 1986-1987 Mazda 323 equipped with the 1.6L B6 engine.

Do I need to upgrade my wiring with this 120-amp alternator?

While the unit plugs into the factory harness, upgrading the primary B+ charge lead and chassis ground straps to heavy-gauge wire is recommended to handle maximum 120A output safely.

The Mazda Power Standard

Preserve authentic JDM responsiveness on your BF chassis with electrical components engineered to handle modern electrical loads without compromising mechanical reliability.
