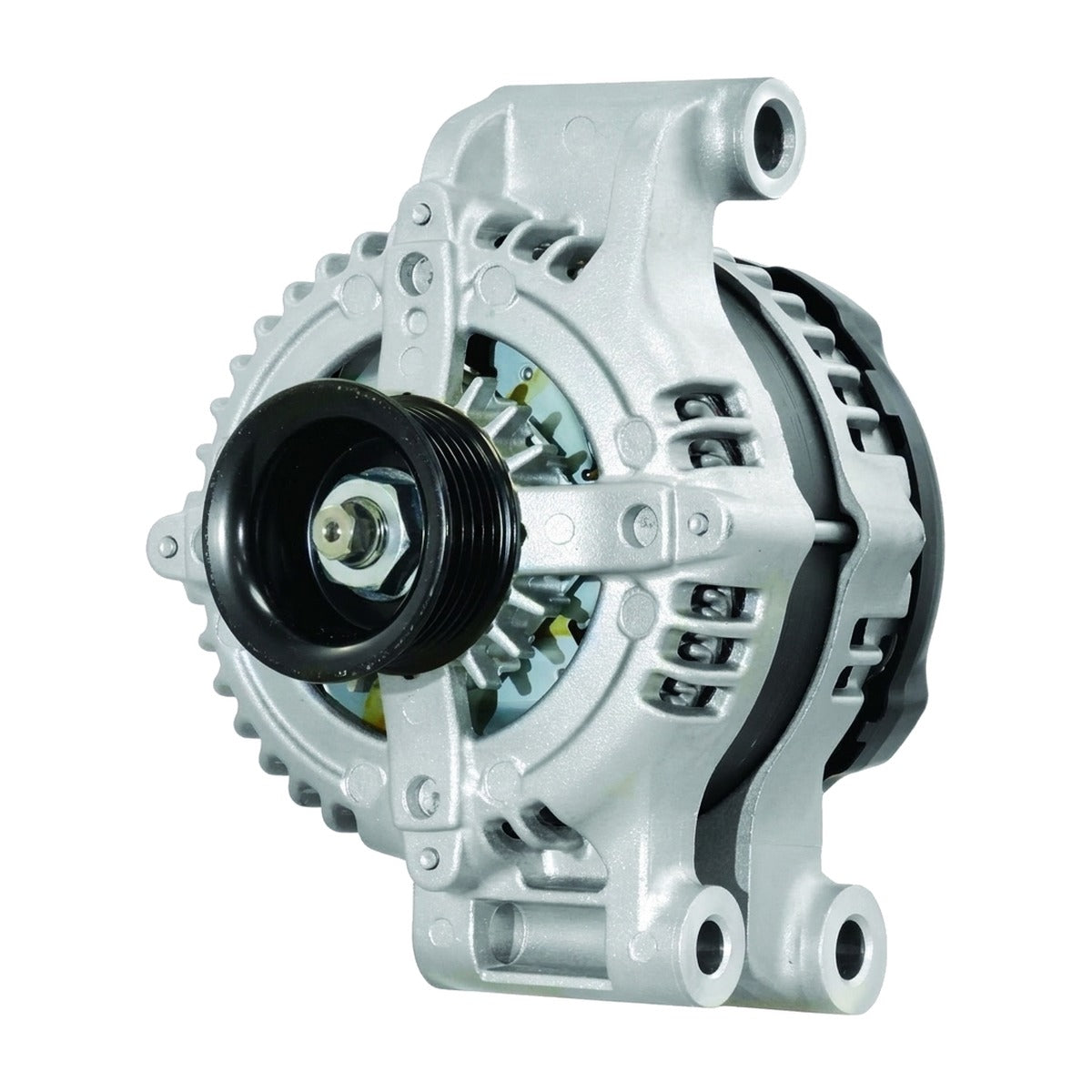

High Output Alternator for Jeep Renegade (2015-2017) 2.4L

High-Amp Direct-Replacement Alternator for 2015-2017 Jeep Renegade (BU)

What it Does: The high output 300-amp alternator replaces the low-amperage factory charging unit on the 2015-2017 Jeep Renegade to eliminate electrical voltage drop under heavy auxiliary loads and maintain optimal system voltage at idle.

The Stock Jeep Renegade Charging Limitations

The factory charging system on the BU platform Jeep Renegade is engineered strictly for baseline cabin electronics and minimal operational draw. When auxiliary electrical equipment—such as multi-channel amplifiers, high-output LED light bars, recovery winches, or auxiliary cooling fans—is added, the stock alternator cannot satisfy the current demand. At idle, the OEM unit suffers severe voltage sag below 12.6V, triggering battery discharge cycles, ECM power faults, headlight flickering, and early diode pack breakdown due to sustained thermal stress and continuous high-duty-cycle operation.

The Engineering Solution

This upgraded 300-amp charging unit is built around heavy-gauge pure copper stator windings and an electronically balanced rotor assembly to maximize electromagnetic efficiency while mitigating internal resistance. It features an integrated solid-state voltage regulator calibrated to sustain 13.5V to 14.5V output throughout the RPM spectrum. Premium sealed, heat-resistant bearings resist axial load wear from the serpentine belt drive. Configured with factory-matched direct-fit bracket locations and an OE-style harness plug, it installs without bracket modification while delivering double the charging capacity of the factory assembly.

What's Included

• 1 High Output 300A Alternator

Technical Specifications

Compatibility

• 2015 Jeep Renegade 2.4L I4
• 2016 Jeep Renegade 2.4L I4
• 2017 Jeep Renegade 2.4L I4

Frequently Asked Questions & Fitment Warnings

Does this fit the BU Renegade?

Yes, this is a direct fit for the 2015-2017 Jeep Renegade equipped with the 2.4L Tigershark MultiAir II engine; it does not fit models equipped with the 1.4L Turbo engine.

Do I need to upgrade my main power cabling?

To safely handle the full 300-amp charging current, upgrading the primary battery charge wire and chassis grounds via a Big 3 wiring upgrade is recommended.

The Jeep Standard

Engineered to handle severe trail recovery operations and heavy accessory demands, this alternator delivers dependable electrical current and durability across demanding off-road conditions.
