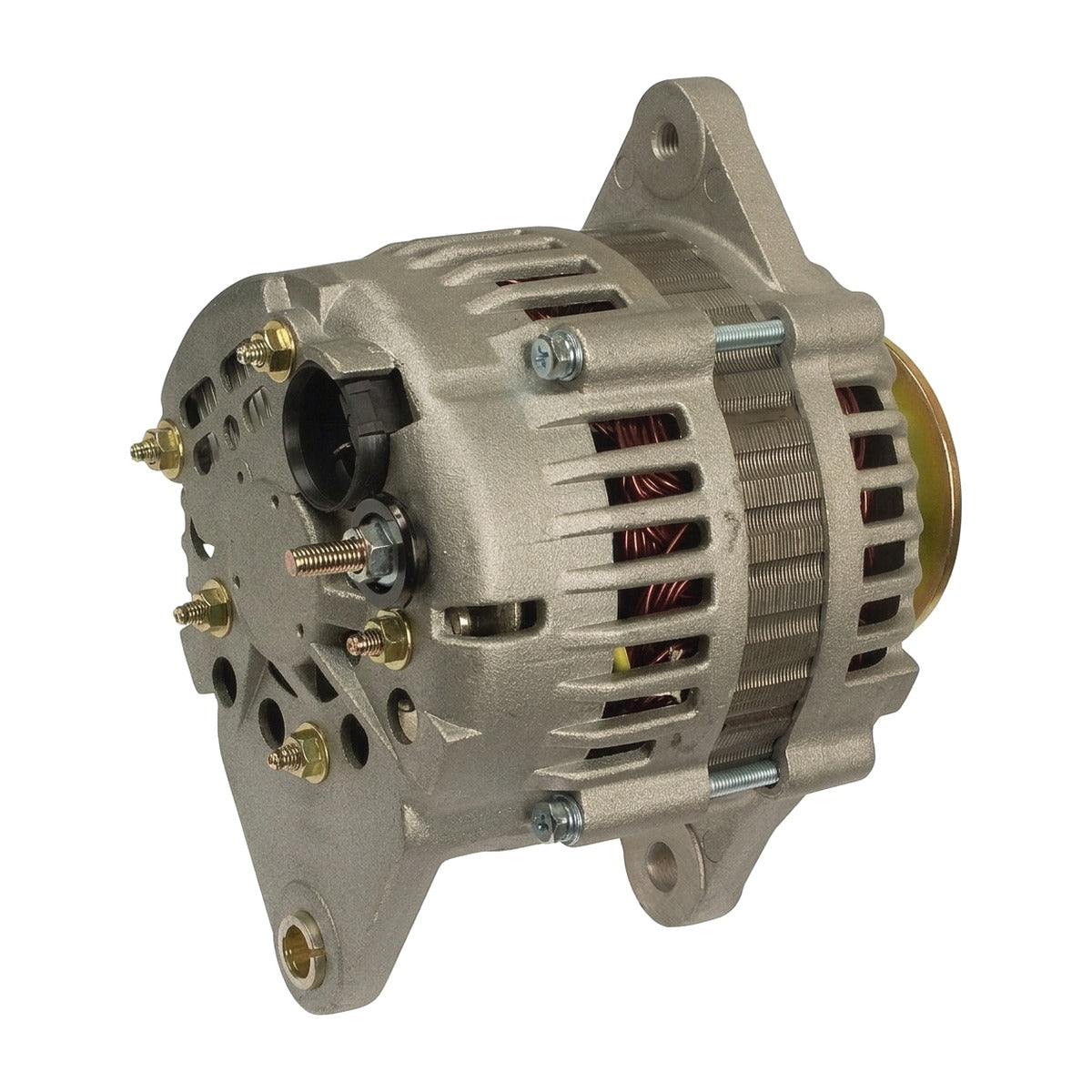

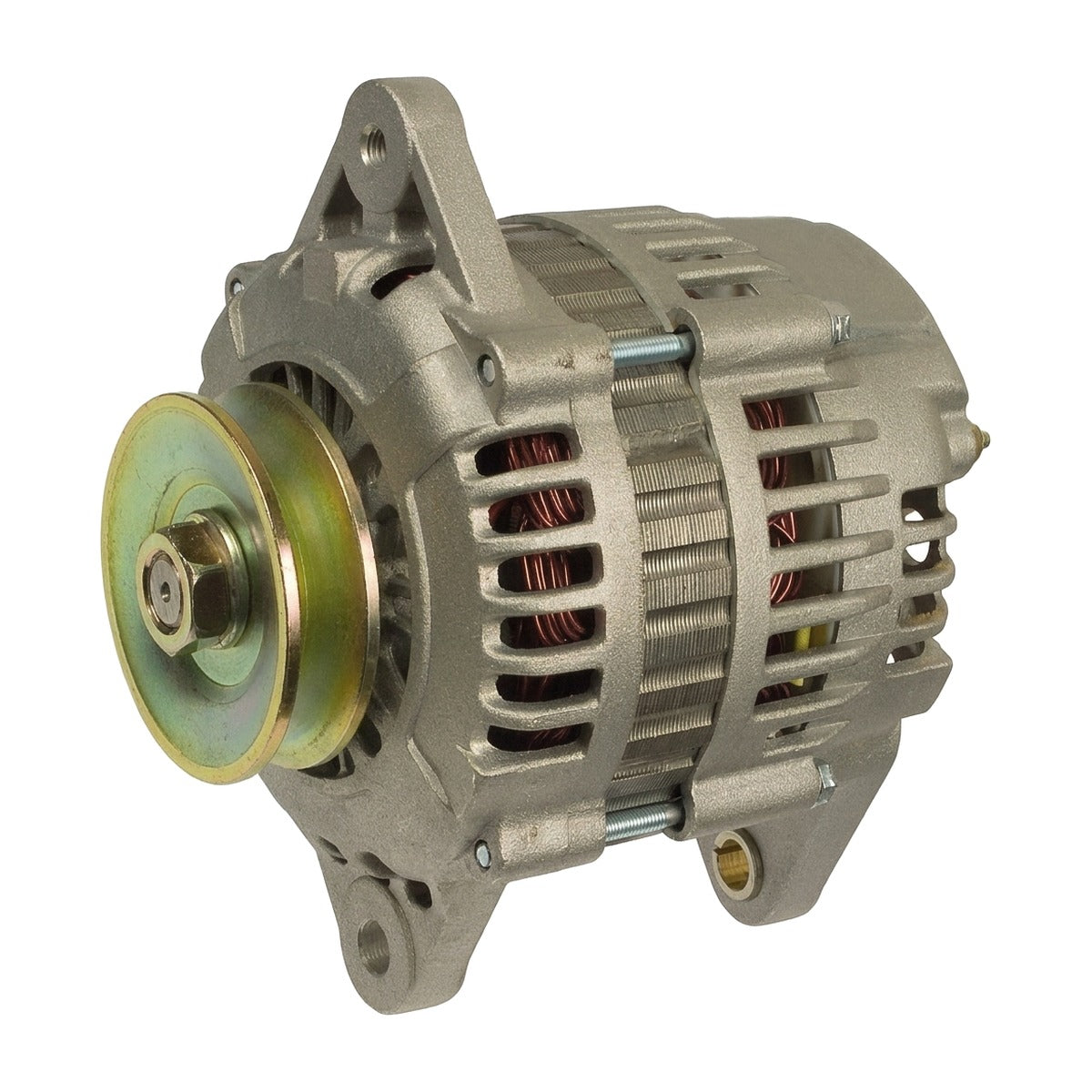

High Output Alternator for Isuzu Rodeo (1991-1992) 2.6L

Direct-Fit 120A High Output Alternator for 1991-1992 Isuzu Rodeo (UC)

What it Does: The High Output Alternator replaces the low-output factory charging unit on the 1991-1992 Rodeo to maintain continuous 13.5V to 14.5V system stability under heavy auxiliary electrical loads.

The Stock Isuzu Rodeo Charging Limitations

Factory charging systems on the first-generation UC chassis Rodeo utilized stock Hitachi units rated at a modest 55 to 60 amps. When running modern off-road equipment, winches, supplemental halogen or LED lighting, electric cooling fans, or upgraded audio amplifiers, total amperage demand quickly surpasses factory stator output. This continuous deficit causes severe voltage sag at idle, thermal breakdown of the factory rectifier diodes, premature battery degradation, and dimming instrument clusters. High thermal loads within the engine bay also accelerate winding insulation breakdown on aging original units.

The Engineering Solution

This upgraded remanufactured unit provides a true 120-amp charging curve built inside a bolt-on housing. Hand-wound with heavy-gauge copper stator windings and matched to a dynamically balanced rotor, it dissipates internal heat efficiently to minimize resistance losses. High-grade sealed bearings manage continuous high-RPM drive belt loads, while a solid-state internal voltage regulator maintains clean DC voltage across the RPM band. It retains the factory 4ZE1 bracket geometry, clocking, drive pulley dimensions, and harness connector for zero-modification installation.

What's Included

• 1 High Output 120-Amp Alternator (Remanufactured, Bench Tested, Part # 14960)

Technical Specifications

Compatibility

• 1991 Isuzu Rodeo S / XS (2.6L L4 4ZE1 Gas)
• 1992 Isuzu Rodeo S / XS (2.6L L4 4ZE1 Gas)

Frequently Asked Questions & Fitment Warnings

Does this fit the UC Rodeo?

Yes, this unit directly bolts onto the 1991-1992 Isuzu Rodeo equipped with the 2.6L 4ZE1 4-cylinder engine; it does not fit models equipped with the 3.1L GM V6 engine.

Do I need to upgrade the factory charging wiring?

While this alternator connects directly to the OEM harness, installing an upgraded 4-gauge main battery positive charge wire and ground cables is highly recommended to safely flow the full 120-amp capacity without line resistance.

The Isuzu Trail Caliber

Built to handle harsh backroad and overland duty, this unit delivers the reserve electrical current needed to power recovery gear, compressors, and high-draw lighting without stalling out system voltage on remote trails.
