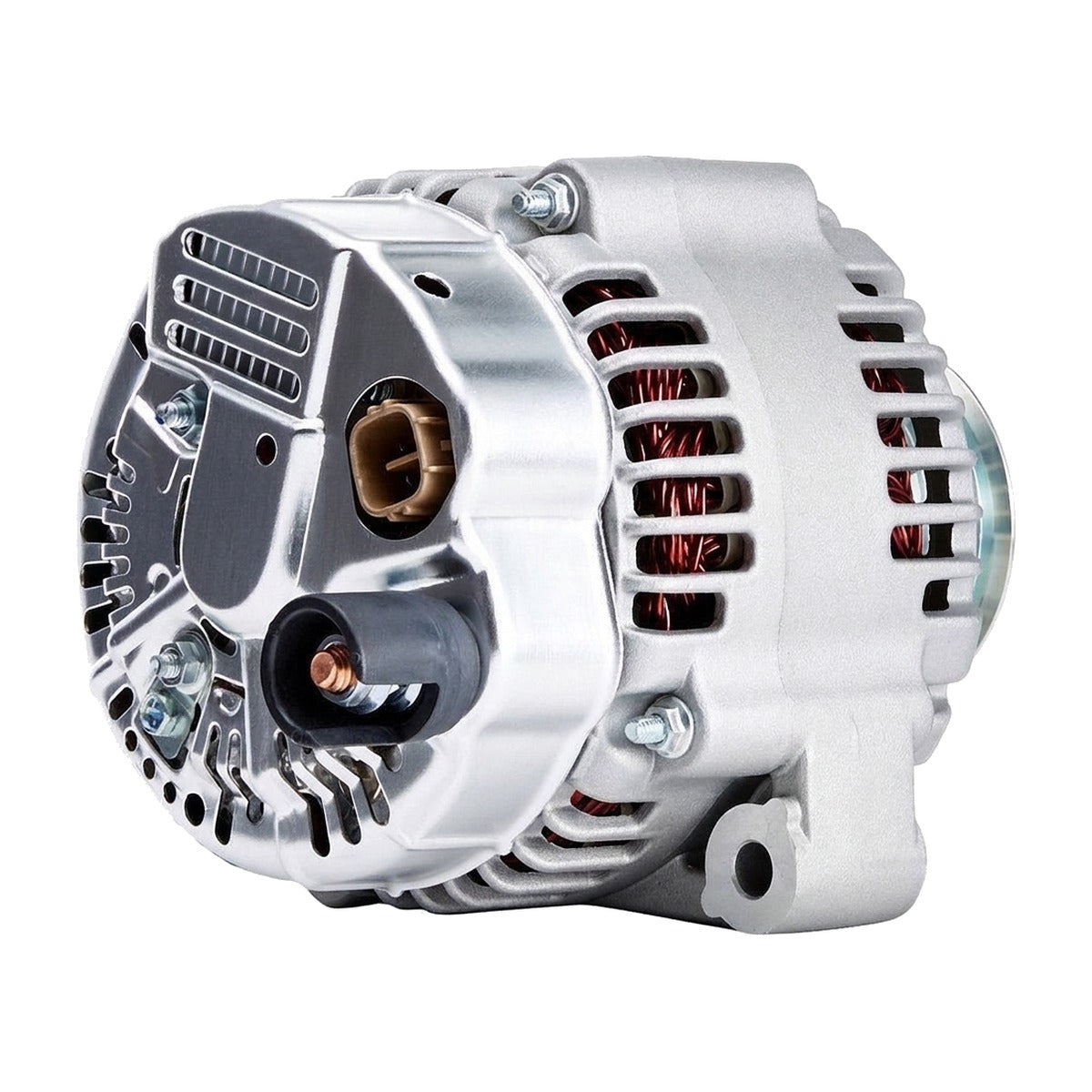

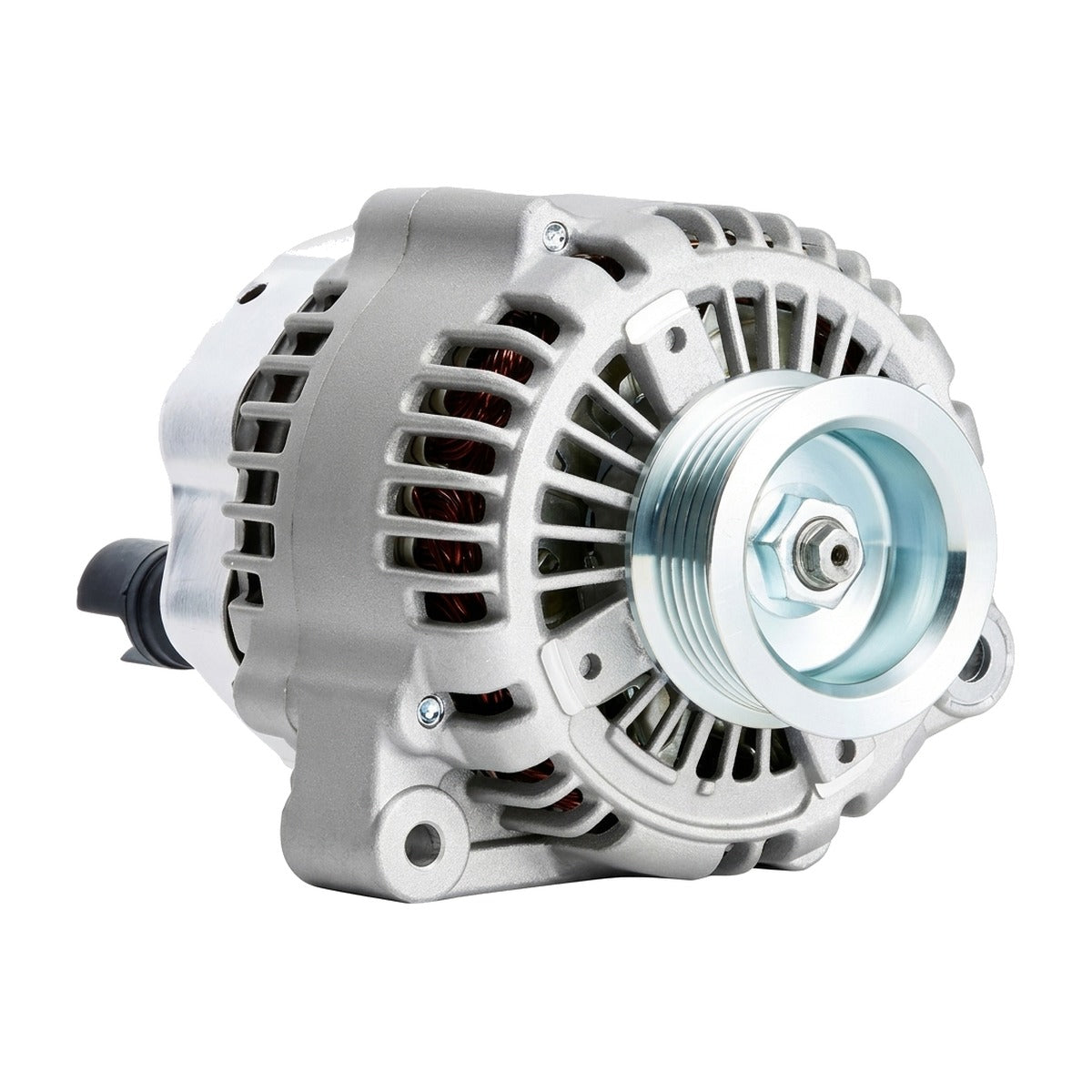

High Output Alternator for Honda Pilot (2003-2004) 3.5L

High-Amp Charging High Output Alternator for 2003-2004 Honda Pilot (YF1)

What it Does: The High Output Alternator upgrades the factory charging system on the 2003-2004 Pilot to deliver 200 amps of stable current, preventing voltage drops under heavy auxiliary electrical loads.

The Stock Honda Pilot Charging Deficit

The factory 105-amp unit on the YF1 chassis struggles when owners add aftermarket amplifiers, auxiliary off-road lighting, winches, or trail gear. Under peak thermal load and low engine RPM, the stock unit suffers from excessive internal resistance and diode heat soak, dropping system voltage below 12.6V at idle. This deficit results in dimming dash lights, accelerated battery sulfation, slow starter engagement, and potential ECM/TCM low-voltage error codes during severe electrical demand.

The Engineering Solution

Engineered for the 3.5L J35A4 V6, this direct-bolt 200-amp alternator features heavy-gauge, high-conductivity copper stator windings and an optimized rotor assembly to maximize output at idle speeds. Premium dual-sealed bearings eliminate rotational runout and whining under serpentine load, while an internal heavy-duty solid-state regulator manages stable 13.5V to 14.5V output across fluctuating operating temperatures. Every unit is balanced and 100% bench tested to ensure direct plug-and-play fitment with the factory bracketry and harness connector.

What's Included

• 1 High Output 200-Amp Alternator (Part # 13769)

Technical Specifications

Compatibility

• 2003 Honda Pilot LX 3.5L V6
• 2003 Honda Pilot EX 3.5L V6
• 2004 Honda Pilot LX 3.5L V6
• 2004 Honda Pilot EX 3.5L V6

Frequently Asked Questions & Fitment Warnings

Does this fit the YF1 Pilot?

Yes, this is a direct fit for the 2003-2004 Honda Pilot equipped with the J35A4 engine.

Do I need to upgrade my charging wiring when installing this unit?

While this alternator retains the factory plug, completing a "Big 3" power and ground wire gauge upgrade is strongly recommended to support the full 200-amp transfer without resistance loss.

The Honda Reliability Standard

Designed to sustain heavy accessory draws and off-road overland builds, this high-output unit delivers the dependable electrical reserve needed to preserve starter longevity and secondary module voltage.
