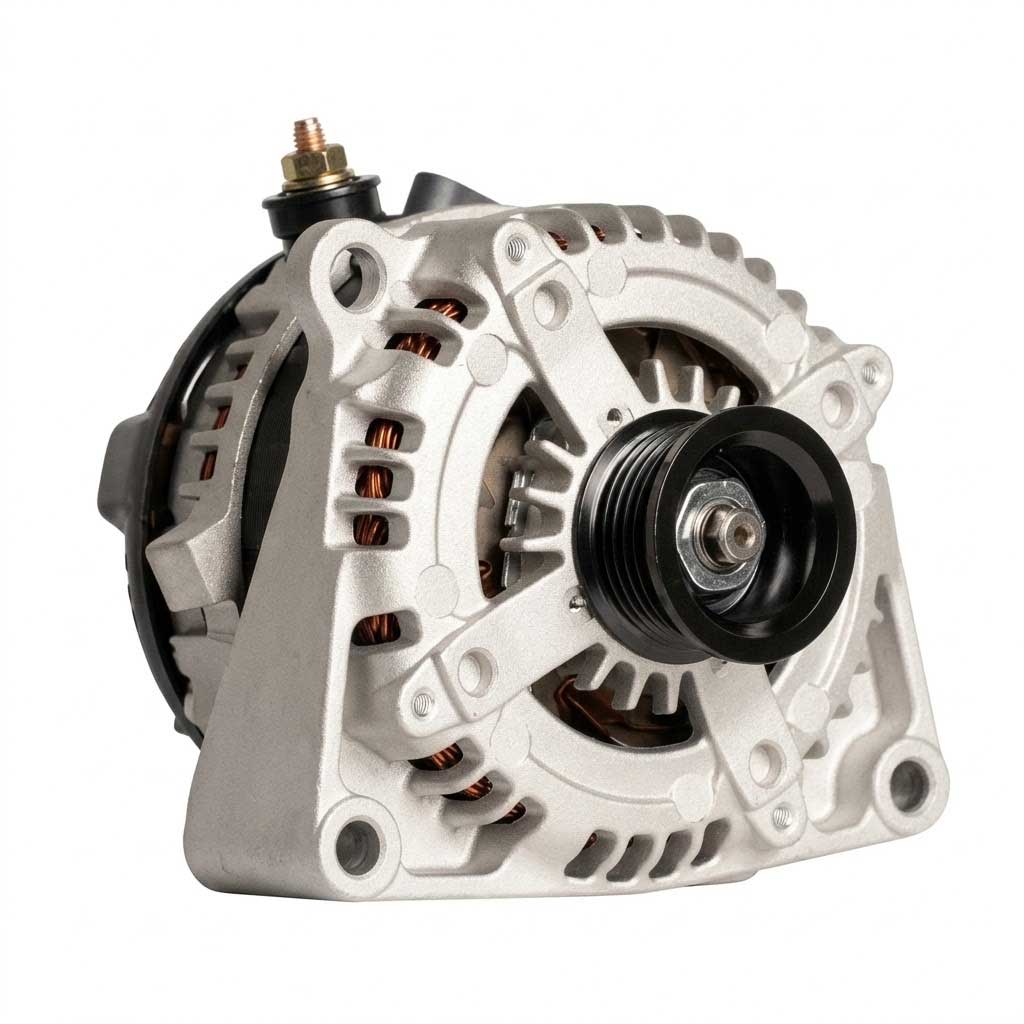

High Output Alternator for GMC Yukon (2007-2013) 5.3L 6.0L 6.2L

High-Amp 300A Alternator for 2007-2013 GMC Yukon (GMT900)

What it Does: The 300-amp high-output alternator replaces the factory charging unit on the 2007-2013 GMC Yukon to eliminate voltage drop and deliver consistent electrical current under heavy electrical and auxiliary loads.

The Stock GMC Yukon Electrical Limitation

The factory 145-amp and 160-amp alternators on the GMT900 platform are engineered strictly for baseline electrical demands. When adding aftermarket audio, heavy winches, auxiliary lighting, or towing equipment, the stock unit suffers from intense thermal stress and severe idle voltage drop. Under sustained high-draw conditions, the factory internal bridge rectifiers heat-soak rapidly, triggering battery discharge warnings, dimming headlamps, and inadequate current supply to critical engine sensors and ignition coils on Gen IV Vortec powerplants.

The Engineering Solution

This 300-amp upgrade delivers maximum current density and heat dissipation for heavy-draw setups. Engineered with premium high-temperature copper hairpin windings, low-resistance internal components, and heavy-duty avalanche diodes, this unit maintains over 160 amps at idle while maxing out at a true 300-amp capacity at operating RPM. The housing features reinforced mounting lugs engineered to direct-bolt to the factory accessory drive bracket without modifications, replacing failure-prone OEM units stamped 15093928 or 25877026 with clean, stable 14.4-volt power.

What's Included

• 1 x 300-Amp High Output Alternator

Technical Specifications

Compatibility

• 2007-2013 GMC Yukon 5.3L V8
• 2007-2013 GMC Yukon 6.0L V8
• 2007-2013 GMC Yukon 6.2L V8

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT900 Yukon?

Yes, this is a direct bolt-on fit for all 2007-2013 GMC Yukon models equipped with the Gen IV Vortec 5.3L, 6.0L, or 6.2L V8 engines.

Do I need to upgrade my main power cabling?

To safely support 300 amps without excessive line resistance or thermal hazard, a 0-gauge or 1/0-gauge "Big 3" battery-to-alternator power and ground wire upgrade is strongly recommended.

The GMC Heavy-Duty Standard

Built for demanding towing applications and serious accessory loads, this direct-fit unit ensures your electrical bus maintains continuous operating voltage under severe load conditions.
