High Output Alternator for GMC Jimmy Sonoma (1996-1997) 4.3L

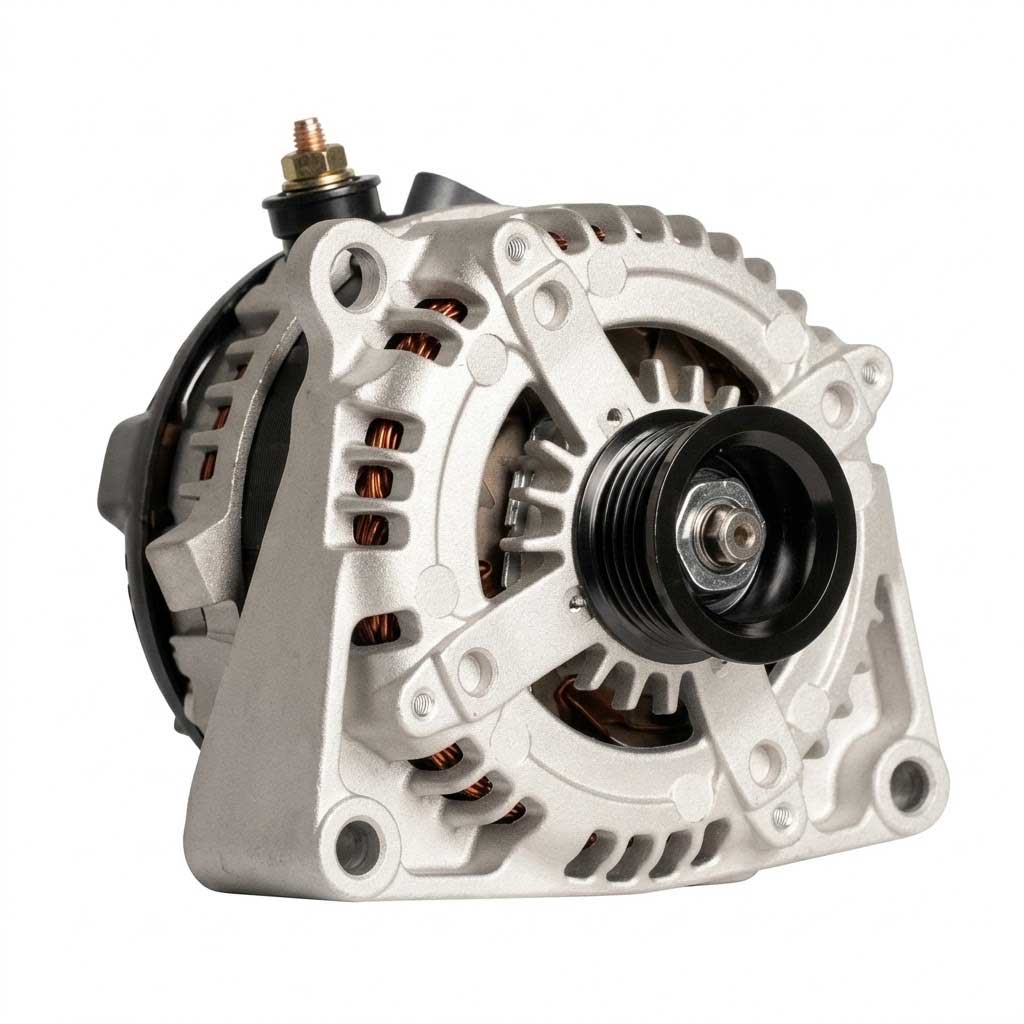

250-Amp High-Output Alternator for 1996-1997 GMC Jimmy and Sonoma (GMT325/GMT330)

What it Does: The 250-amp high-output alternator replaces the low-output factory unit on 1996-1997 GMC Jimmy and Sonoma trucks to deliver stable electrical system voltage under heavy auxiliary loads and eliminate voltage sag at idle.

The Stock GMC Jimmy and Sonoma Electrical Limitations

Factory GMT325 and GMT330 platforms equipped with the 4.3L V6 utilize standard Delco alternators rated at only 100 to 105 amps. These stock units suffer thermal stress when powering aftermarket equipment such as off-road lighting, winches, snow plows, and high-draw audio systems. Under heavy electrical draw, the factory internal bridge rectifiers overheat, causing diode failure, bearing degradation, and severe voltage drop at engine idle speeds, which starves the ignition and electronic fuel injection of stable power.

The Engineering Solution

Engineered for high current delivery, this Made-in-USA 250-amp unit features precision-wound heavy-gauge copper stators, an oversized rotor, and heavy-duty press-fit heat sink diodes. The upgraded rectifier dissipates heat efficiently under continuous load, maintaining solid 14.4V charging profiles across the entire RPM range. It mounts directly to factory bracket locations for seamless belt alignment without chassis or bracket modifications.

What's Included

• 1 x 250-Amp High-Output Alternator

Technical Specifications

Compatibility

• 1996-1997 GMC Jimmy 4.3L V6
• 1996-1997 GMC Sonoma 4.3L V6

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT325/GMT330 Jimmy and Sonoma?

Yes, this is a direct bolt-on fit for 1996-1997 GMC Jimmy and Sonoma models equipped with the Vortec 4300 (L35) 4.3L V6 engine.

Do I need to upgrade the factory charging wire?

To safely handle the full 250-amp output and avoid thermal resistance in the harness, performing a "Big 3" 1/0 AWG battery-to-alternator power cable upgrade is strongly recommended.

The GMC Truck Standard

Built to handle rigorous work truck demands and heavy auxiliary loads, this high-output unit delivers the sustained amperage needed to support towing winches, commercial gear, and job-site accessories without system strain.
