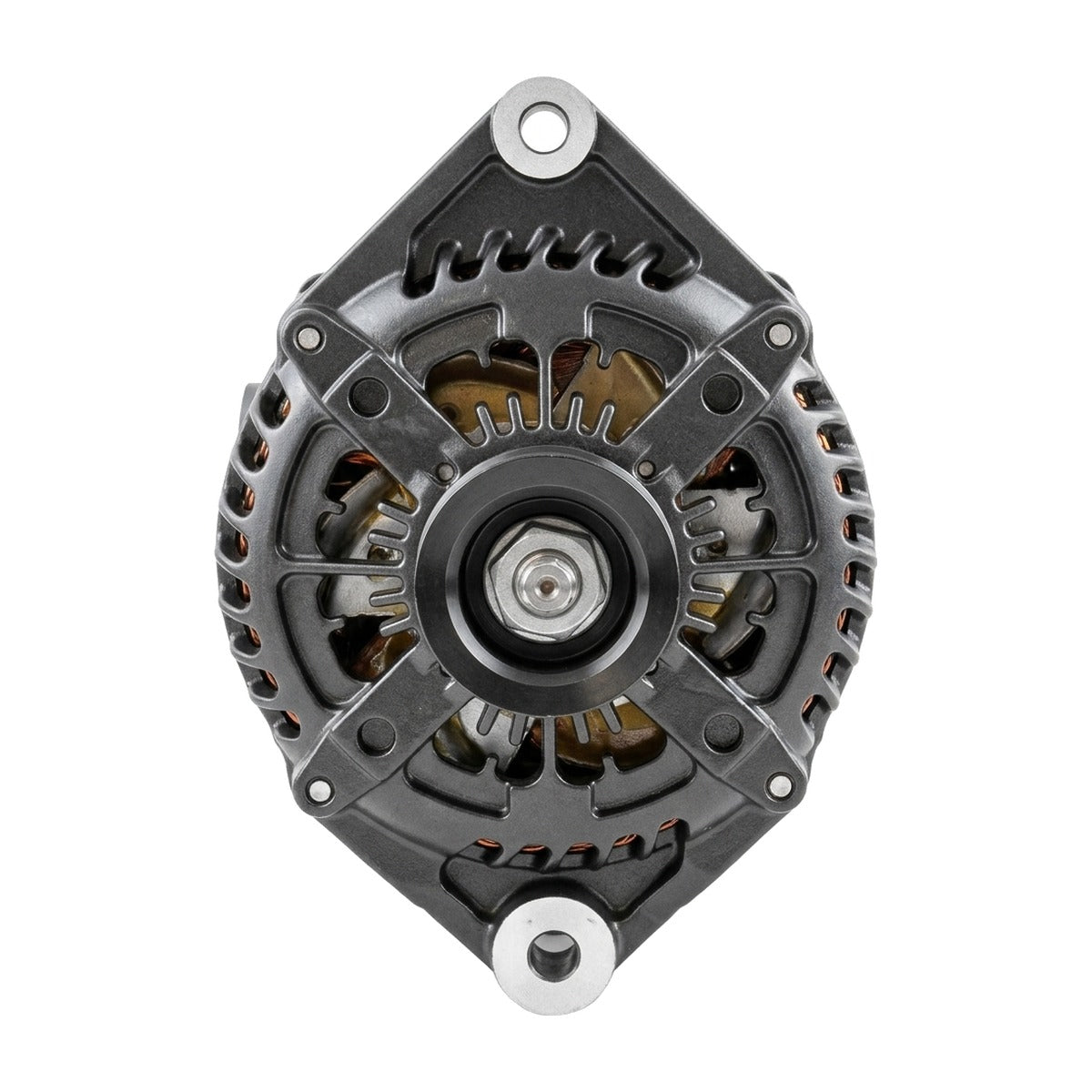

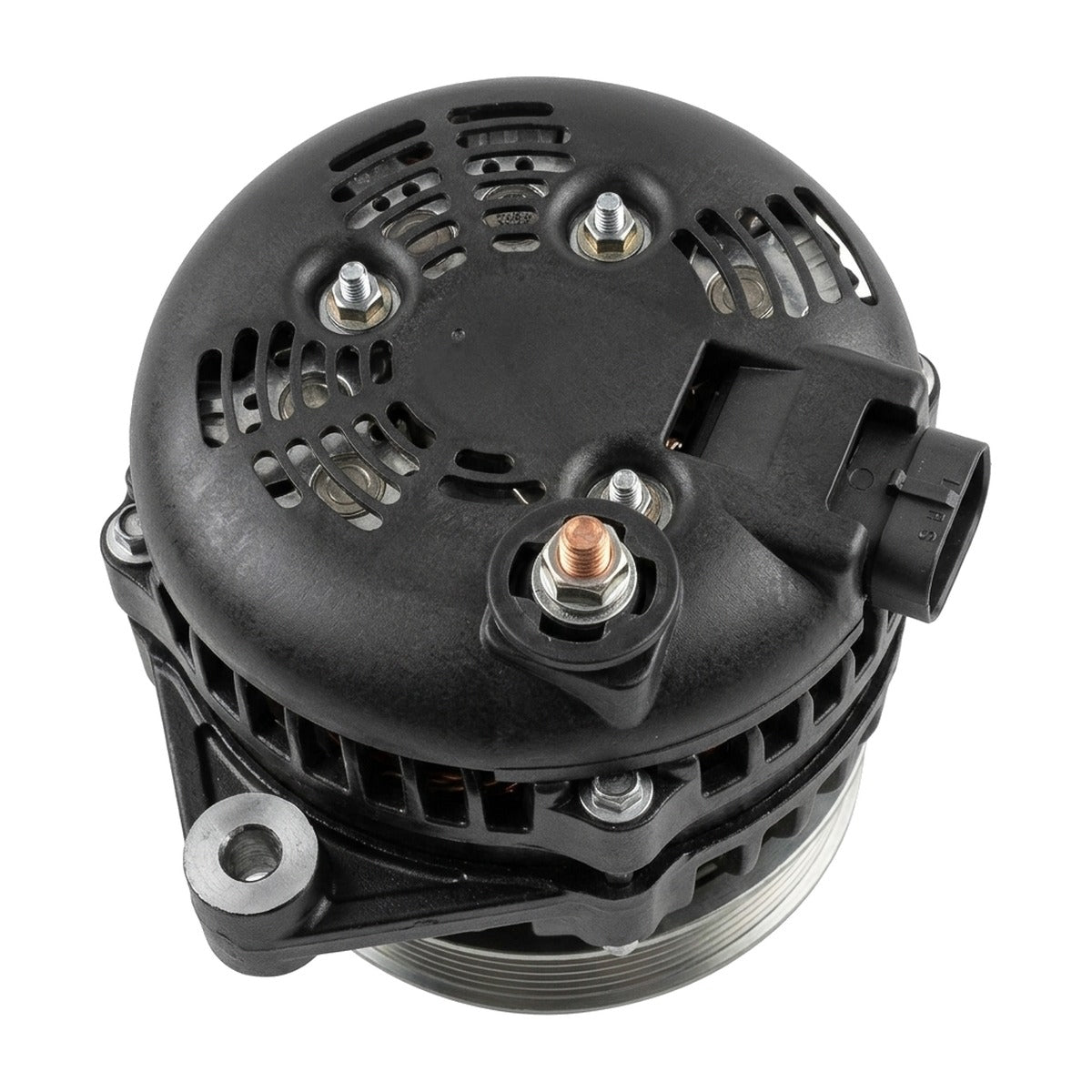

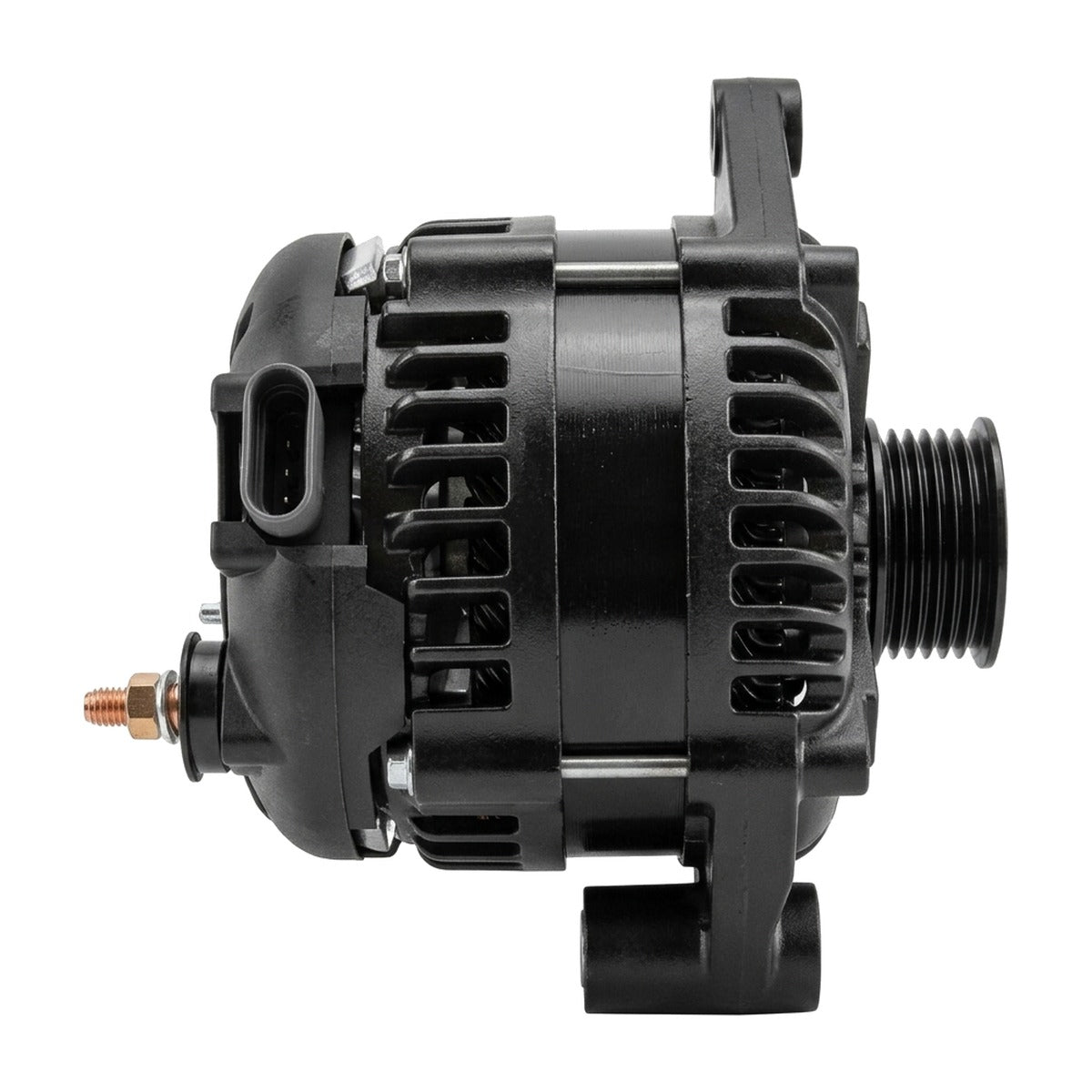

High Output Alternator for GMC B7 (1992-1996) 6.0L

High-Amperage 400A Charging Upgrade for 1992-1996 GMC B7 (B-Series)

What it Does: The 400-amp high-output alternator replaces the low-output factory charging unit on the 1992-1996 GMC B7 to deliver sustained electrical current, eliminate system voltage drop, and stabilize idle charging across heavy accessory loads.

The Stock GMC B7 Low-Amperage Limitation

Factory charging systems on the commercial B-Series platform typically produce between 85 and 105 amps. Under heavy duty cycles—such as commercial bus lighting, wheelchair lifts, auxiliary heater blowers, two-way radios, and warning flashers—the factory stator quickly hits thermal saturation. At idle, OEM units drop below 13.0 volts, starving auxiliary circuits and cycling the lead-acid batteries through deep discharge states. This continuous heat soak deteriorates internal diodes, causing premature bridge failure, dimming cabin electronics, and hard-start conditions.

The Engineering Solution

Engineered for maximum thermal dissipation and high low-RPM output, this direct-mount replacement incorporates dense hairpin stator windings paired with heavy-gauge pure copper wire. The design produces 200 amps at engine idle and surges to a true 400 amps at 1,200 shaft RPM. Precision-balanced internal rotors ride on high-temperature sealed bearings to eliminate harmonic vibration. Charging is governed by an integrated one-wire voltage regulator calibrated to 15.1V, bypassing corroded OEM harness pigtails to deliver regulated current directly through a single battery lug.

What's Included

• 1 High Output 400-Amp Alternator (Part # 7678-11) with Integrated 15.1V One-Wire Regulator

Technical Specifications

Compatibility

• 1992-1996 GMC B7 Conventional Bus Chassis (6.0L V8 Gas)
• 1992-1996 GMC B7 School Bus / Commercial Chassis (6.0L V8 Gas)

Frequently Asked Questions & Fitment Warnings

Does this fit the B-Series B7?

Yes, this is a direct bolt-on fit for the 1992-1996 GMC B7 equipped with the 6.0L 366 commercial V8 engine.

What wiring upgrades are required for this 400-amp unit?

Because this unit flows up to 400 amps via a single-wire connection, a 1/0 AWG pure copper charge lead and matching engine ground are required to prevent harness resistance and fire risk.

The GMC Commercial Heavy-Duty Standard

Built to endure the punishing thermal cycles of municipal, school, and commercial fleet use, this alternator delivers uninterrupted, high-current stability to maintain operational safety under the most demanding severe-duty transport conditions.
