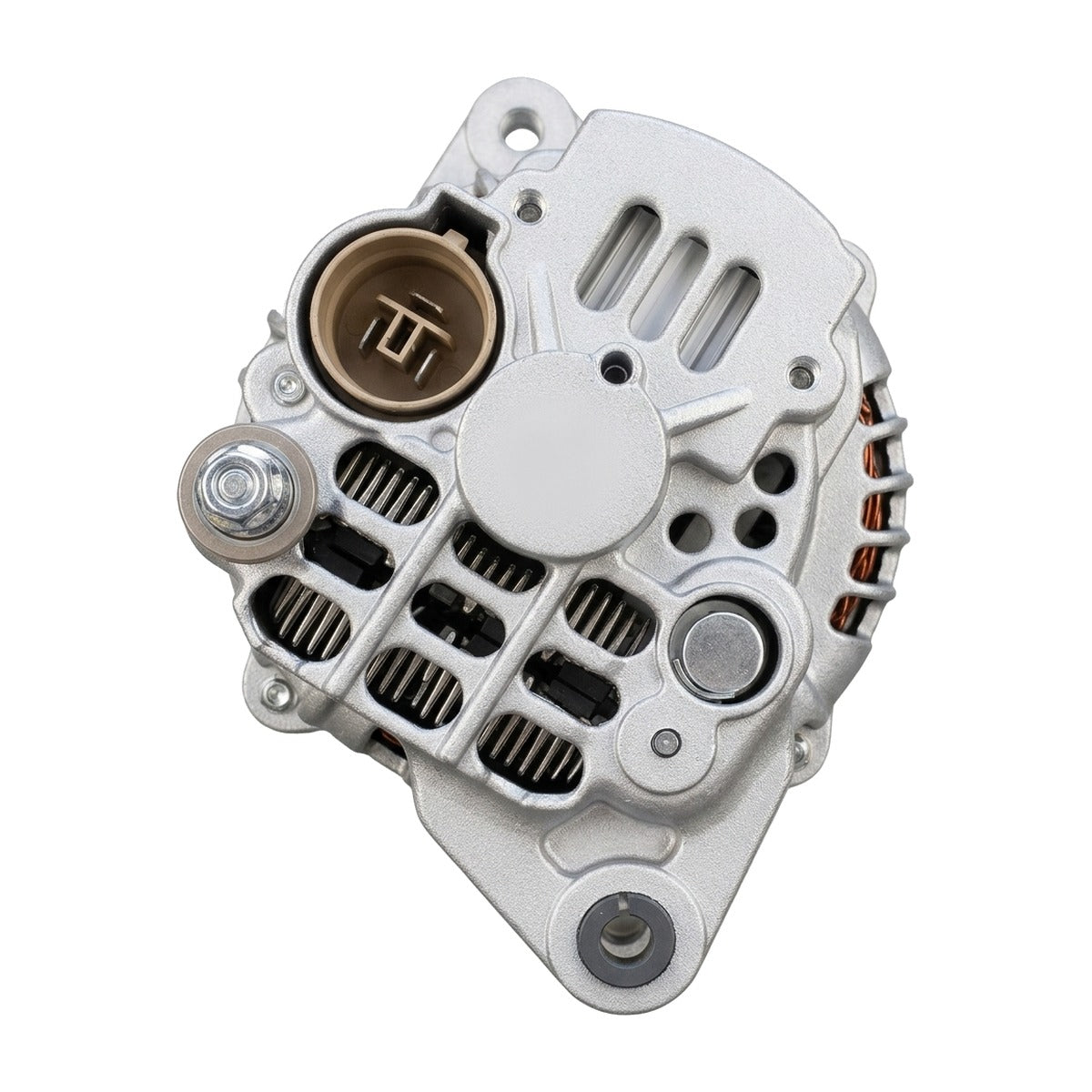

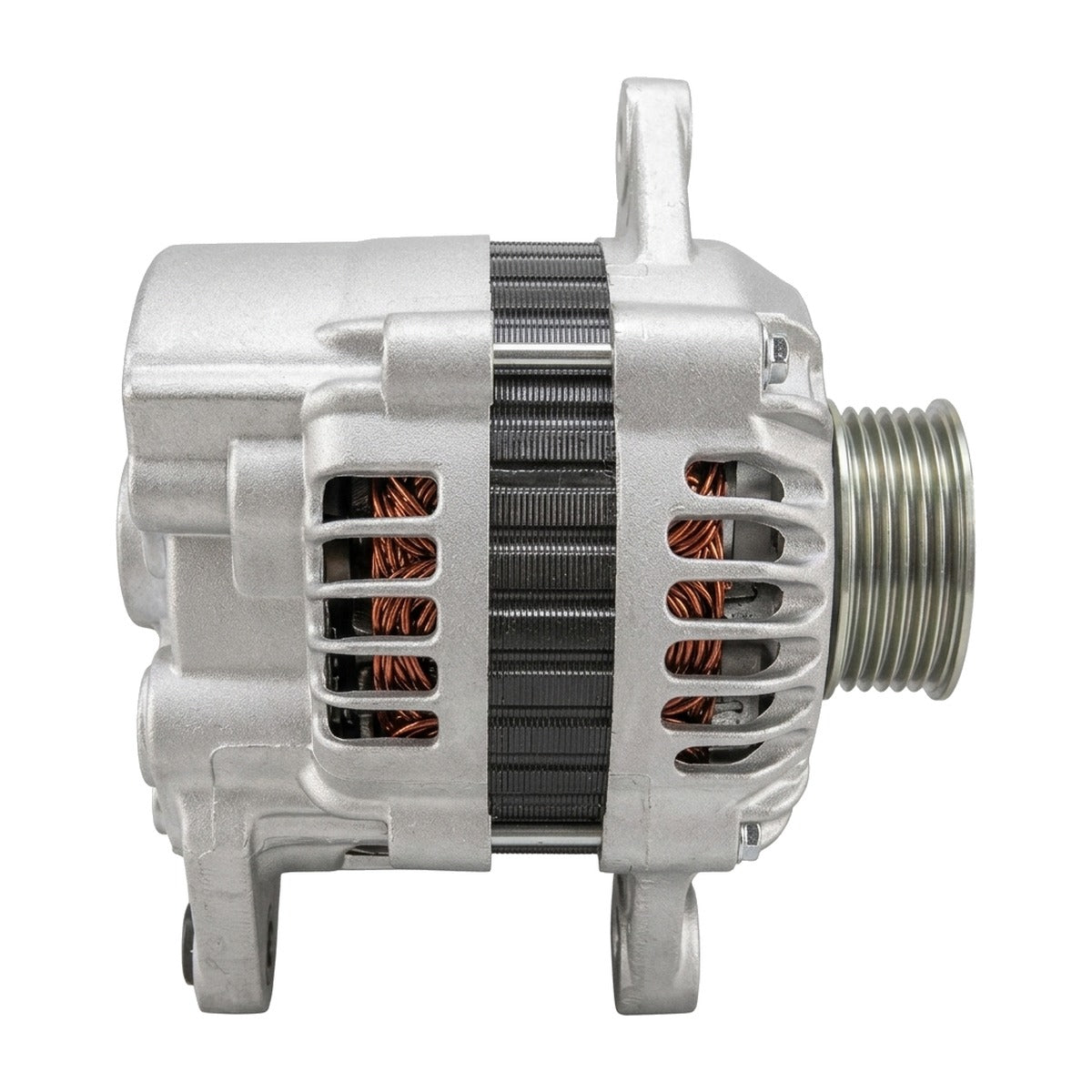

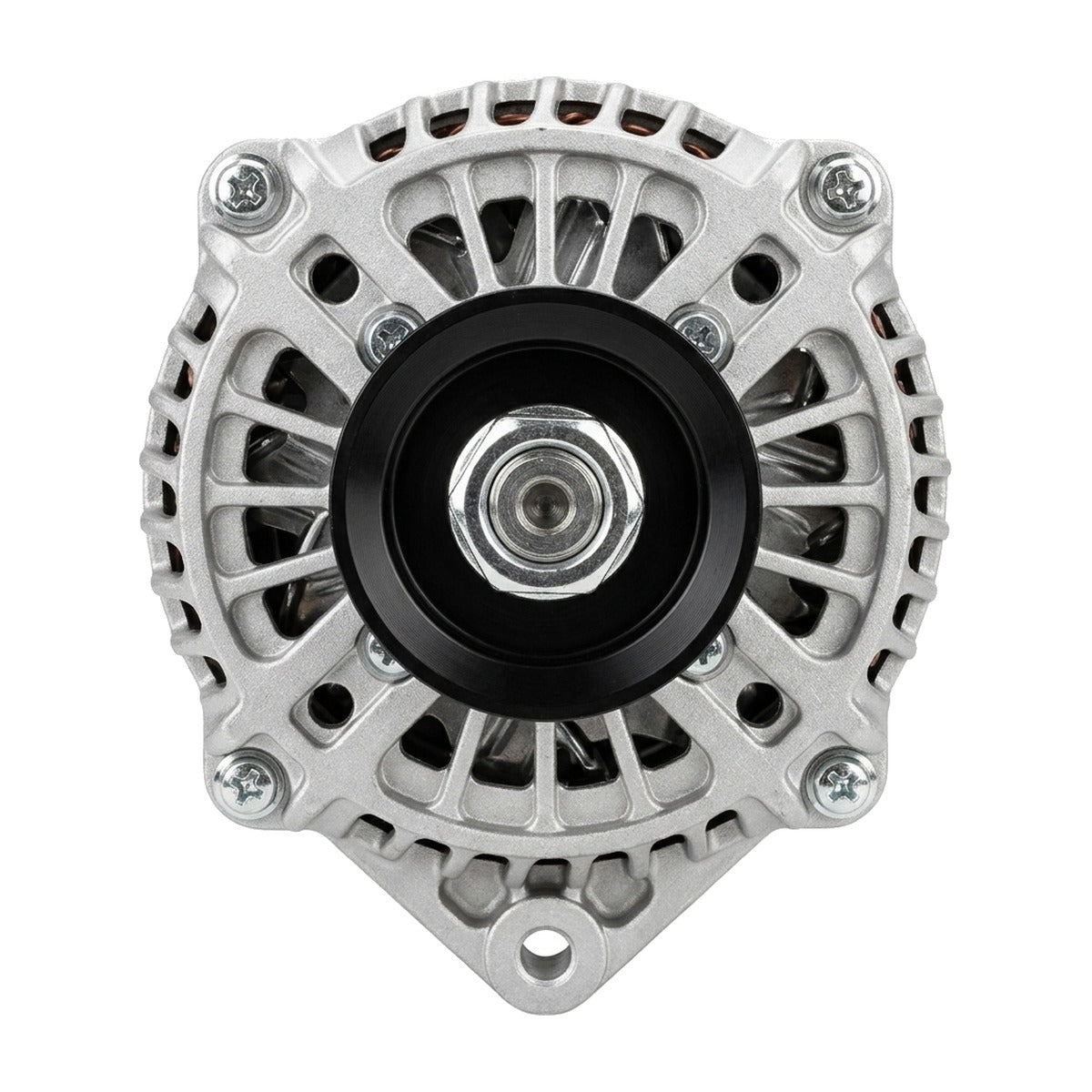

High Output Alternator for Geo Tracker (1989-1995) 1.6L

High-Output 110A Charging Alternator for 1989-1995 Geo Tracker (SE416)

What it Does: The High Output Alternator replaces the low-output factory charging unit on the 1989-1995 Geo Tracker to deliver 110 amps of continuous electrical current, preventing severe voltage drop when powering heavy auxiliary accessories.

The Stock Geo Tracker Charging Deficit

The factory charging system on the SE416 chassis was engineered around a marginal 50-to-60 amp unit designed only for barebones stock electronics and low-draw halogen bulbs. When users add recovery winches, auxiliary LED lighting, upgraded audio systems, or electric radiator fans, the factory stator windings face severe thermal saturation. This causes extreme voltage drop below 12.5V at idle, accelerated battery sulfation, erratic gauge cluster behavior, and insufficient spark energy from the ignition coil under heavy load.

The Engineering Solution

This heavy-duty 110-amp unit solves electrical bottlenecking by utilizing tightly wound, high-density copper stator windings and a dynamically balanced rotor assembly to maximize electromagnetic efficiency without parasitic drag. Built with an upgraded internal solid-state voltage regulator and heavy-duty avalanche diode bridge, it maintains a stable 13.5V to 14.5V output even at low trail RPM. High-temperature sealed bearings reduce rotational friction and eliminate bearing whine under sustained load. The casing matches OEM mounting ears and utilizes factory-spec harness connections for direct-fit installation on the G16A and G16B powerplants.

What's Included

• 1x 110-Amp High Output Alternator (Internal Regulator)

Technical Specifications

Compatibility

• 1989-1995 Geo Tracker Base 1.6L 4-Cylinder
• 1989-1995 Geo Tracker LSi 1.6L 4-Cylinder

Frequently Asked Questions & Fitment Warnings

Does this fit the SE416 Tracker?

Yes, this is a direct fit for the 1989-1995 Geo Tracker equipped with the G16A and G16B 1.6L 4-cylinder engines using factory bracketry.

Do I need to upgrade my electrical wiring with this alternator?

While the unit operates with factory wiring, upgrading the primary B+ battery cable and engine ground cables to 4-gauge wire is recommended to achieve peak 110-amp current transfer without thermal resistance.

The Geo Trail-Duty Standard

Engineered for rugged 4x4 use, this alternator delivers dependable current capacity for demanding winch recoveries, trail navigation equipment, and off-road illumination without sacrificing under-hood clearance or reliability.
