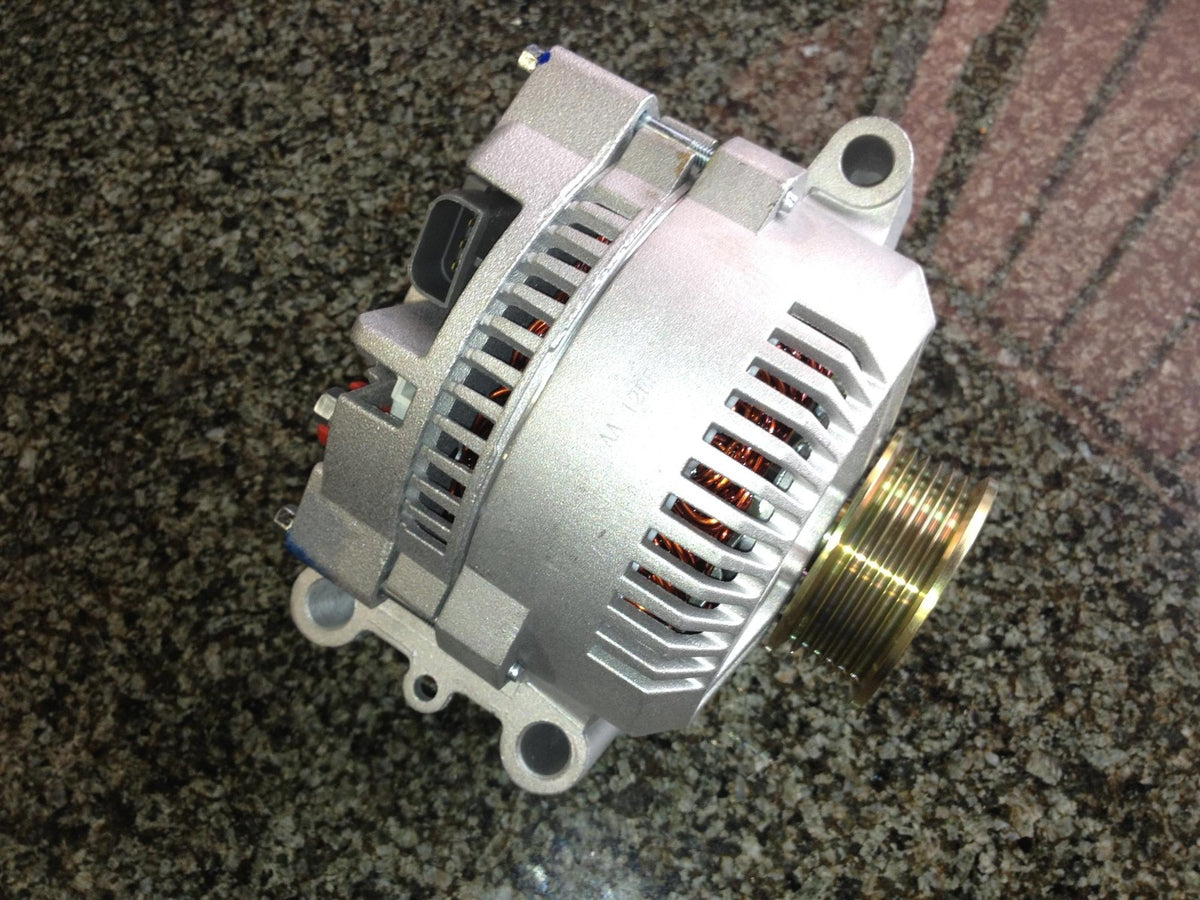

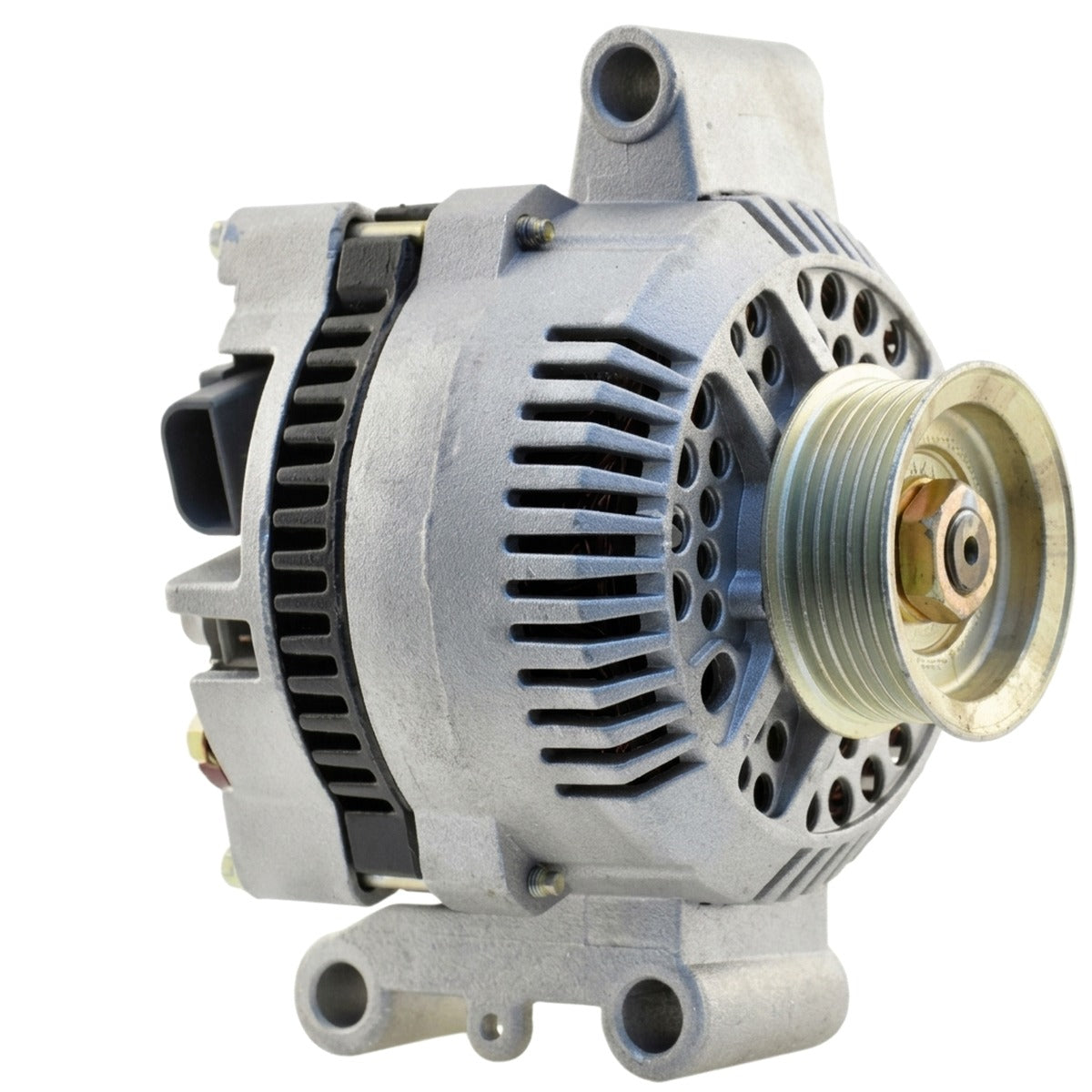

High Output Alternator for Ford Ranger (1992-1997) 2.3L 3.0L 4.0L

High-Amp 250A Charging Solution for 1992-1997 Ford Ranger (VN58)

What it Does: The 250-amp high output alternator replaces the low-output factory charging unit on 1992-1997 Ford Ranger pickups to provide stable voltage delivery under severe electrical demand from winches, audio systems, and auxiliary lighting.

The Stock Ford Ranger Charging Deficiency

Factory Ford alternators on the second-generation VN58 Ranger produce between 60 to 95 amps maximum, with idle output dropping below 40 amps. When running aftermarket equipment such as off-road winches, high-draw halogen/LED arrays, auxiliary cooling fans, or high-RMS amplifiers, this limited capacity creates substantial voltage drop. Sustained low voltage accelerates battery plate sulfation, overheats the OEM internal rectifier diodes, and causes ignition coil spark scatter, leading to misfires and dead batteries on the trail.

The Engineering Solution

Engineered and assembled in the USA, this heavy-duty 250-amp alternator utilizes precision copper windings, heavy-gauge hairpin stators, and dual internal rectifier plates equipped with high-amp avalanche diodes for optimal heat dissipation. Precision balance prevents rotor shaft deflection at high RPM, while upgraded internal voltage regulation maintains a stable 14.4-volt charge curve even under heavy continuous loads. Designed to directly replace factory units stamped F07F-10300-AA, F07U-AA, and 7750, it delivers high amperage at low engine speeds without requiring bracket fabrication.

What's Included

• 1 250-Amp High Output Alternator

Technical Specifications

Compatibility

• 1992-1997 Ford Ranger 2.3L Inline-4
• 1992-1997 Ford Ranger 3.0L V6
• 1992-1997 Ford Ranger 4.0L V6

Frequently Asked Questions & Fitment Warnings

Does this fit the VN58 Ranger?

Yes, this is a direct bolt-in fit for the 1992-1997 Ford Ranger equipped with the 2.3L Lima, 3.0L Vulcan, or 4.0L Cologne engines.

Do I need to upgrade my main power cabling?

Yes, running a 250-amp unit requires upgrading the battery-to-alternator charging lead and ground straps to 1/0 or 2 AWG (Big 3 upgrade) with an inline 250A to 300A fuse to avoid fire risk and resistance loss.

The Ford Truck Durability Standard

Built for harsh working environments and off-camber trail abuse, this high-output alternator provides the clean, heavy-duty electrical reserve needed to power winches, continuous work loads, and secondary battery systems without compromising baseline engine management.
