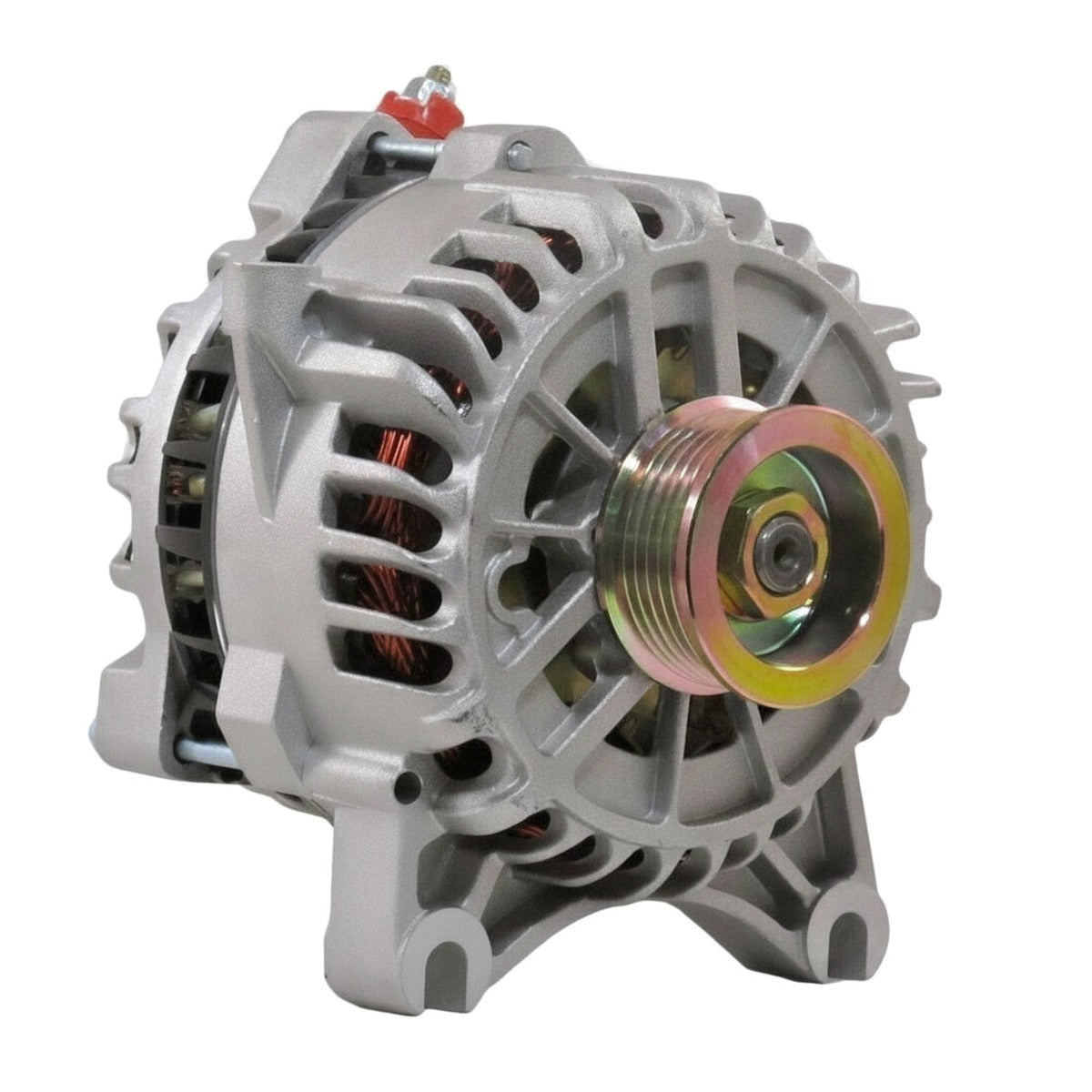

High Output Alternator for Ford Mustang (1999-2004) 4.6L

High-Output 250-Amp Alternator for 1999-2004 Ford Mustang (SN95)

What it Does: The 250-Amp High Output Alternator replaces the factory low-output charging unit on the 1999-2004 Ford Mustang to eliminate voltage drop and deliver stable electrical current under heavy auxiliary loads.

The Stock Ford Mustang Charging Limitation

Factory charging systems on the SN95 equipped with the Modular 4.6L typically came equipped with 105-amp or 130-amp units that produce minimal surplus amperage at curb idle. When vehicles are modified with high-flow electric cooling fans, aftermarket fuel systems, auxiliary gauges, or audio hardware, the factory alternator experiences severe thermal saturation. Internal diodes in the OEM bridge rectifier degrade under high engine bay temperatures, leading to dropped system voltage below 12.6V, weak spark output, and premature battery discharge.

The Engineering Solution

Engineered for sustained electrical output, this 250-amp upgrade features heavy-gauge high-temperature copper windings and an upgraded avalanche diode rectifier to resist heat soak. Direct-fit housing matches factory mounting bosses for OE numbers XR3U10300AA and 8252 without bracket modification. The internal voltage regulator maintains a consistent 14.4-volt charging plateau across the rev range, ensuring optimal spark energy, uninterrupted fuel pump flow, and stable ECU sensor reference voltages during demanding operation.

What's Included

• 1 Alternator

Technical Specifications

Compatibility

• 1999-2004 Ford Mustang GT 4.6L V8
• 1999-2004 Ford Mustang 4.6L V8 (Base/Bullitt/Mach 1 trims matching OE specifications)

Frequently Asked Questions & Fitment Warnings

Does this fit the SN95 Mustang?

Yes, this is a direct fit for the 1999-2004 Ford Mustang equipped with the Modular 4.6L engine.

Do I need to upgrade my main power wire when installing this alternator?

Yes, upgrading to a fused 4-gauge or 1/0-gauge main charging cable from the alternator positive stud directly to the battery is strongly recommended to safely carry the 250-amp capacity.

The Ford Muscle Caliber

Designed to support performance muscle builds, this charging solution delivers clean, stable electrical power so high-draw fuel systems and ignition components operate at maximum capacity without voltage drops.
