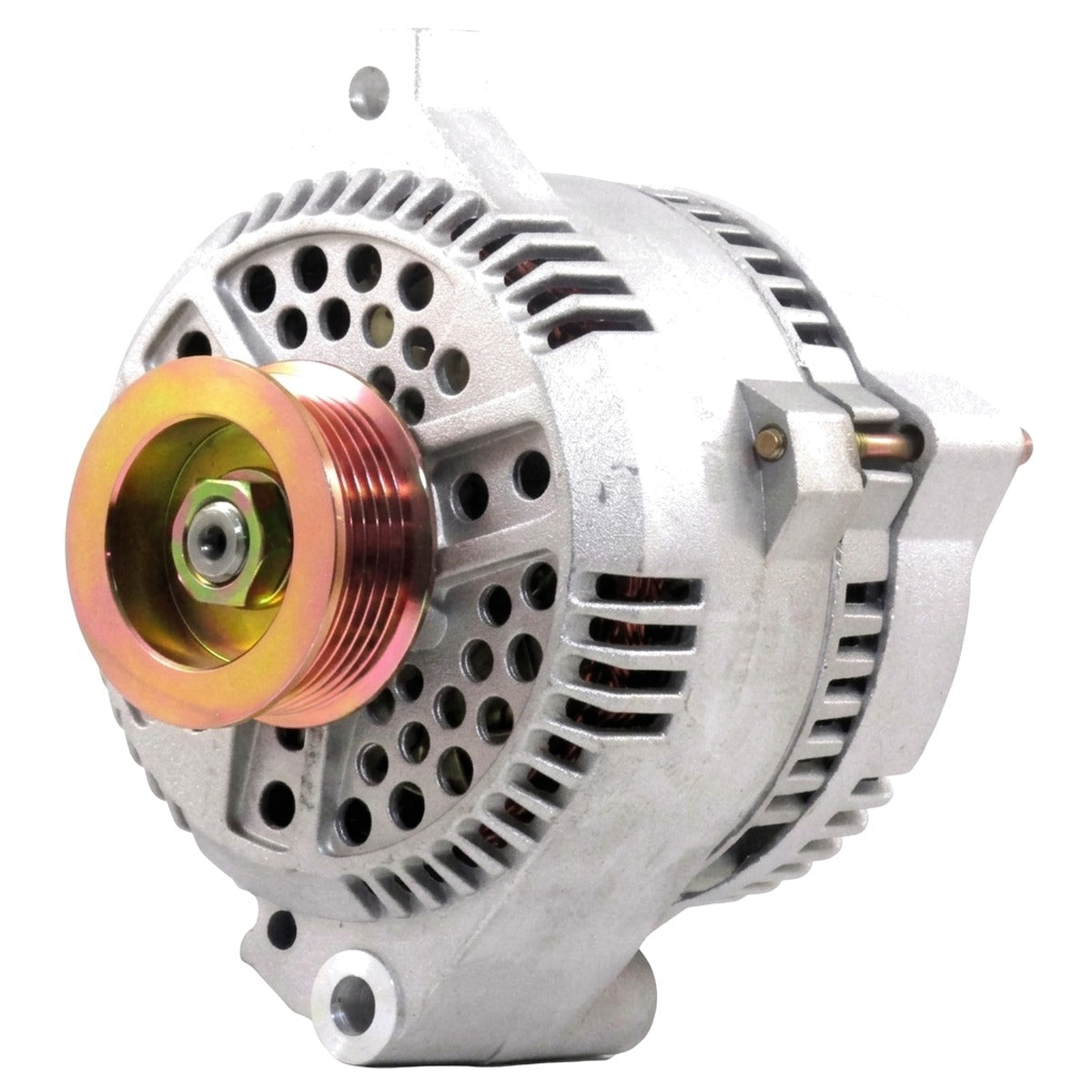

High Output Alternator for Ford Mustang (1986-1991) 5.0L

High-Amp Charging High Output Alternator for 1986-1991 Ford Mustang (Fox Body)

What it Does: The High Output Alternator replaces the failure-prone factory charging unit on the 1986-1991 Mustang to deliver a consistent 150-amp power supply and eliminate voltage drops across aftermarket fuel pumps, electric fans, and ignition setups.

The Stock Ford Mustang Charging Deficiency

Factory 1986-1991 Fox Body Mustangs equipped with the 5.0L Windsor V8 left the assembly line with an inadequate 65-amp 2G alternator. This obsolete architecture suffers from a critical design flaw: the factory dual-spade push-in stator harness terminal creates excessive electrical resistance under sustained current load. This resistance generates intense localized heat soak that melts the factory wiring harness connector, leading to catastrophic short circuits and documented engine compartment fires. Furthermore, the OEM 65-amp output collapses to sub-12V levels at engine idle, starving the ignition coils, causing electric radiator fans to stall, and inducing voltage-related drivability issues under load.

The Engineering Solution

Engineered as a robust 3G-based direct conversion, this 150-amp high-output alternator resolves factory charging bottlenecks completely. Constructed with high-purity copper windings, heavy-duty internal rectifier diodes, and a premium internal voltage regulator, this unit maintains over 14 volts continuous output even at low-RPM idle. The precision-balanced rotor prevents high-RPM field collapse during wide-open-throttle pulls, while the heavy-duty aluminum casing delivers superior passive thermal dissipation to combat underhood heat soak. By converting to modern threaded power lug architecture, it permanently eliminates the dangerous resistance points of the OEM dual-spade harness connection.

What's Included

• 1 Alternator

Technical Specifications

Compatibility

• 1986-1991 Ford Mustang GT 5.0L V8
• 1986-1991 Ford Mustang LX 5.0L V8
• 1986-1991 Ford Mustang SVT 5.0L V8

Frequently Asked Questions & Fitment Warnings

Does this fit the Fox Body Mustang?

Yes, this is a direct fit for the 1986-1991 Ford Mustang equipped with the 5.0L Windsor engine.

Do I need to upgrade my battery charge cable?

Yes, because this delivers 150 amps, you must bypass the brittle OEM 10-gauge charge wire with an upgraded 4-gauge fused power lead straight to the starter solenoid to prevent harness failure.

The Ford Muscle Caliber

Maximize your pushrod small block's potential with uncompromised electrical stability, ensuring maximum spark intensity and rock-solid fuel pump pressure from idle to redline.
