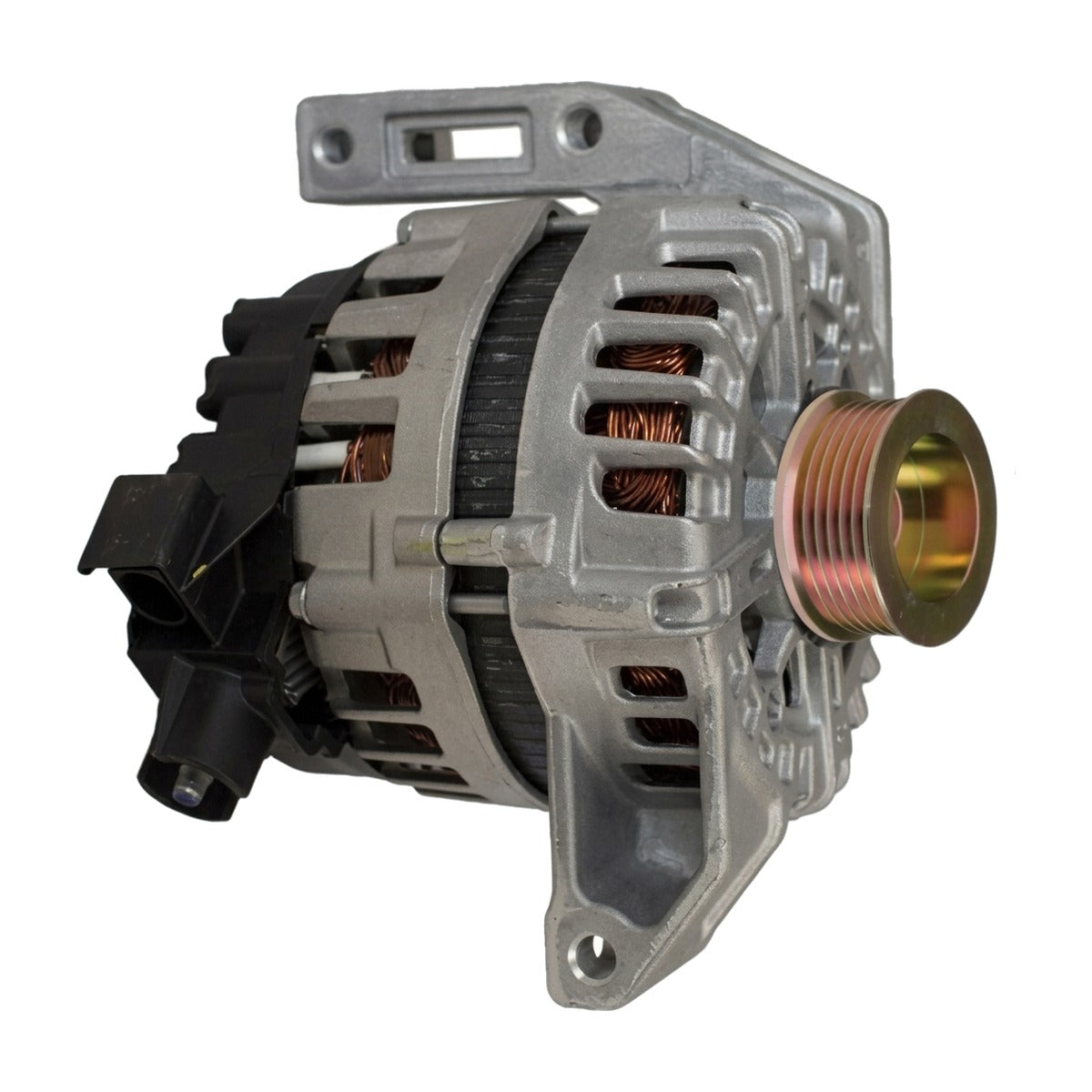

High Output Alternator for Ford Focus (2012-2018) 2.0L

High-Output 300A Direct-Fit Alternator for 2012-2018 Ford Focus (C346)

What it Does: The 300-amp high output alternator replaces the factory charging unit on the 2012-2018 Ford Focus to deliver reliable 12-volt electrical current under heavy electrical loads and eliminate idle voltage drops.

The Stock Ford Focus Charging System Limitations

The OEM charging system on the third-generation C346 chassis utilizes a standard low-amp alternator built strictly to handle factory electrical demands. When vehicles are upgraded with aftermarket audio amplifiers, auxiliary lighting, high-flow cooling fans, or high-draw electronics, the stock alternator cannot maintain sufficient amperage at low RPM. This deficit forces the battery to supply auxiliary current, resulting in thermal stress on factory diodes, dimming headlamps, erratic idle voltage, and shortened battery life.

The Engineering Solution

This high-output unit delivers up to 300 amps via heavy-gauge copper stator windings and heavy-duty internal rectification designed to manage continuous high-current demands. Assembled with an internal regulator and an internal cooling fan to mitigate heat soak, this alternator maintains stable voltage levels at idle and throughout stop-and-go driving. Designed for an exact bolt-on installation, it matches the OEM mounting points, factory plug layout, and includes a matching 6-groove pulley to directly replace factory units like OEM part number CV6Z10346B.

What's Included

• 1x 300-Amp High Output Alternator with 6-groove pulley

Technical Specifications

Compatibility

• 2012-2018 Ford Focus 2.0L (6-groove pulley models)

Frequently Asked Questions & Fitment Warnings

Does this fit the C346 Focus?

Yes, this is a direct fit for the 2012-2018 Ford Focus equipped with the Duratec 20 2.0L engine using the factory 6-groove belt configuration.

Do I need to upgrade my electrical wiring?

For installations handling high electrical loads, upgrading the main charging wire and ground cable with heavy-gauge cabling (Big 3 upgrade) is strongly recommended to safely utilize the full 300-amp capacity.

The Ford Electrical Standard

Engineered to handle sustained auxiliary loads, this unit maintains factory electrical reliability and battery health across daily driving and demanding high-draw duty cycles.
