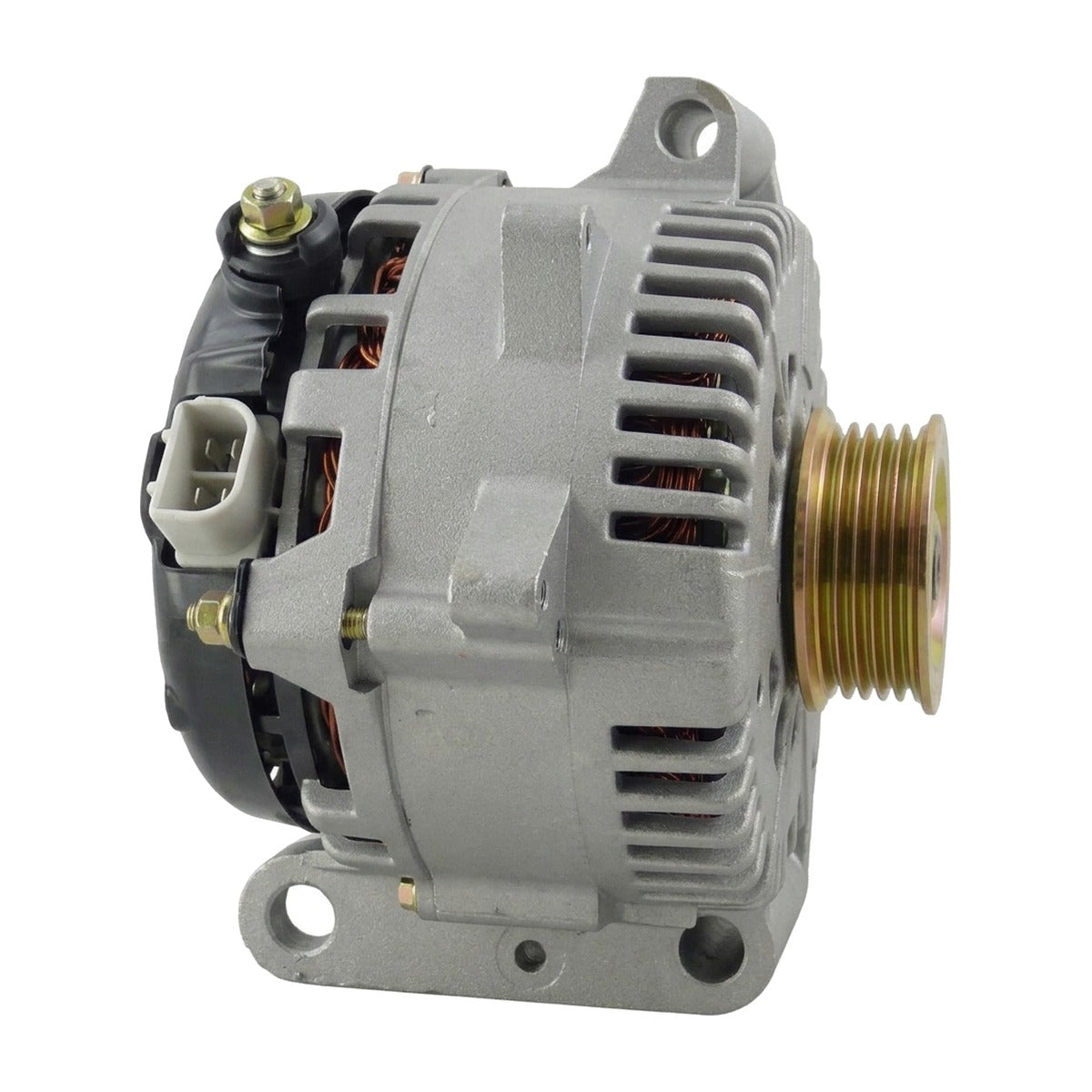

High Output Alternator for Ford Five Hundred Freestyle (2006-2007) 3.0L

High-Capacity 250A Alternator for 2006-2007 Ford Five Hundred, Freestyle (D3)

What it Does: The 250A High Output Alternator replaces the factory charging unit on the 2006-2007 Five Hundred and Freestyle to provide stable electrical current and eliminate idle voltage drops under heavy accessory loads.

The Stock Ford Five Hundred, Freestyle Electrical Limitations

Factory charging systems on the D3 platform utilize an OEM unit rated strictly for base operational loads. When demanding accessories such as aftermarket audio amplifiers, inverter setups, or high-draw cooling fans are added, the stock alternator induces severe voltage sag, dropping system potential below 12.5V at engine idle. Additionally, continuous high-duty operation in the cramped engine bay of the Duratec 30 causes thermal saturation, leading to degraded internal rectifiers, diode failure, whining bearings, and premature battery degradation.

The Engineering Solution

Engineered as a direct bolt-on replacement, this 250-amp unit features heavy-gauge, high-temperature copper stator windings coupled to a precision-balanced rotor to maximize magnetic flux density and output efficiency. Premium high-speed sealed bearings reduce rotational friction and eliminate mechanical whine under load, while an integrated solid-state internal voltage regulator maintains a steady 13.5V to 14.5V output profile across the entire operating RPM band. Factory mounting brackets, OE-spec pulley configuration, and direct-fit harness indexing ensure zero physical or wiring modifications are necessary during installation.

What's Included

• 1 x 250 Amp High Output Alternator (Part # 8442-250A)

Technical Specifications

Compatibility

• 2006-2007 Ford Five Hundred 3.0L
• 2006-2007 Ford Freestyle 3.0L

Frequently Asked Questions & Fitment Warnings

Does this fit the D3 Five Hundred, Freestyle?

Yes, this unit directly bolts onto all 2006-2007 Ford Five Hundred and Freestyle models equipped with the Duratec 30 3.0L V6 engine.

Do I need to upgrade my factory charging wire?

While this alternator utilizes the OEM plug and harness, upgrading your primary B+ alternator output cable and chassis ground to a heavy-gauge wire (Big 3 upgrade) is highly recommended to safely flow full 250A loads without thermal resistance.

The Ford Platform Caliber

Purpose-built to withstand severe heat cycles and heavy multi-accessory draw, this high-output alternator provides the clean, uninterrupted amperage required to keep the D3 platform operating at maximum electrical reliability.
