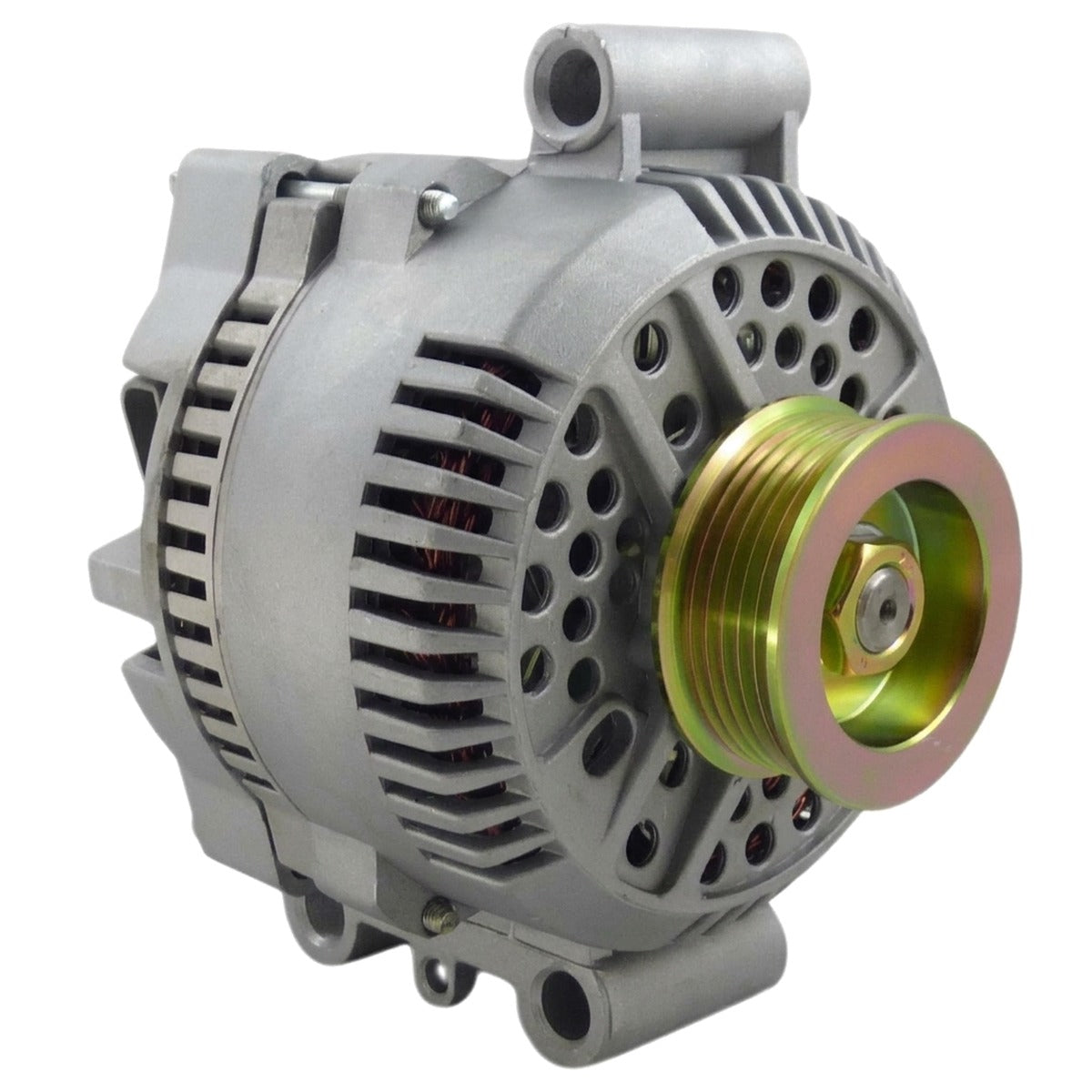

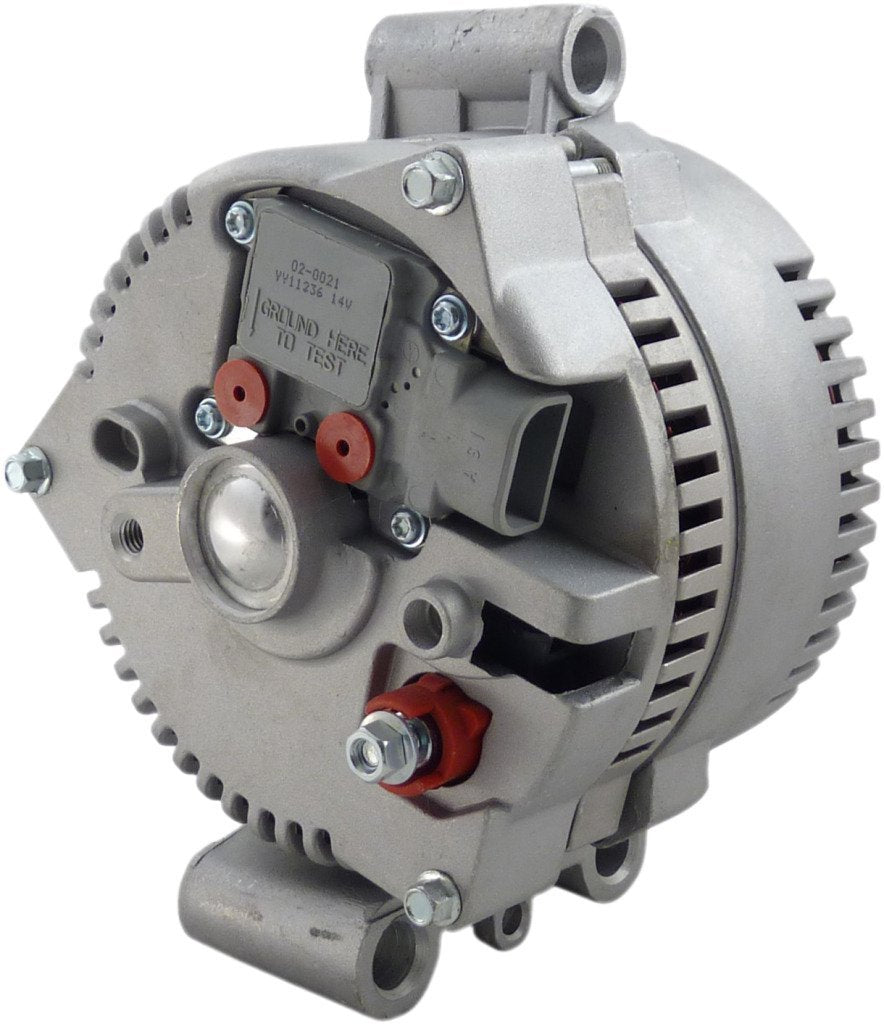

High Output Alternator for Ford F-250 F-350 (1992-1997) 7.3L

High-Amp Heavy-Duty Alternator for 1992-1997 Ford F-250,F-350 (OBS)

What it Does: The 250-Amp High Output Alternator replaces the low-output factory unit on 1992-1997 Ford F-250 and F-350 trucks to supply continuous, high-current charging and eliminate idle voltage drops.

The Stock Ford F-250,F-350 Charging System Weakness

The factory 95A to 130A charging systems on the OBS 9th-generation Ford trucks fall short under modern electrical demands. The 7.3L Power Stroke and 7.3L IDI diesel engines pull upwards of 100 amps at startup solely to energize the glow plug relay. When combined with dual battery banks, auxiliary lighting, trailer power feeds, or heavy winches, the factory internal bridge rectifiers experience extreme heat soak. This leads to severe diode breakdown, stator insulation failure, and chronic sub-12.5V drops at idle that ruin batteries and starve electrical accessories.

The Engineering Solution

Engineered for high-draw applications, this 250-amp unit features precision-wound, heavy-gauge copper stators and a reinforced rotor assembly that generates substantial current even at low diesel engine RPMs. High-capacity avalanche diodes and an upgraded internal heat sink mitigate thermal breakdown under sustained heavy-duty operation. Designed to match OEM clocking and casing geometry, it bolts directly into the factory bracket assembly without requiring bracket modifications, restoring steady 14.4V charging stability across all operating loads.

What's Included

• 1 x 250 Amp High Output Alternator

Technical Specifications

Compatibility

• 1992-1997 Ford F-250 7.3L Diesel
• 1992-1997 Ford F-350 7.3L Diesel

Frequently Asked Questions & Fitment Warnings

Does this fit the OBS F-250,F-350?

Yes, this is a direct fit for the 1992-1997 Ford F-250,F-350 equipped with the 7.3L Diesel engine.

Do I need to upgrade the stock charging wire?

Yes, running an upgraded 1/0-gauge or 4-gauge fused primary charging cable from the alternator positive terminal to the battery bank is mandatory to safely carry 250 amps.

The Ford Heavy-Duty Truck Caliber

Built to handle heavy towing, plow installations, and commercial job-site accessory loads, this high-output alternator provides the electrical capacity and heat resistance required to keep your heavy-duty Ford working reliably under full electrical stress.
