High Output Alternator for Ford F-250 (2000-2001) 5.4L 6.8L
Die Abholverfügbarkeit konnte nicht geladen werden
- Garantierte Passgenauigkeit
- Leistungsgeprüft
- Lebenslange Garantie
Sie möchten es bald? Bestellen Sie innerhalb von

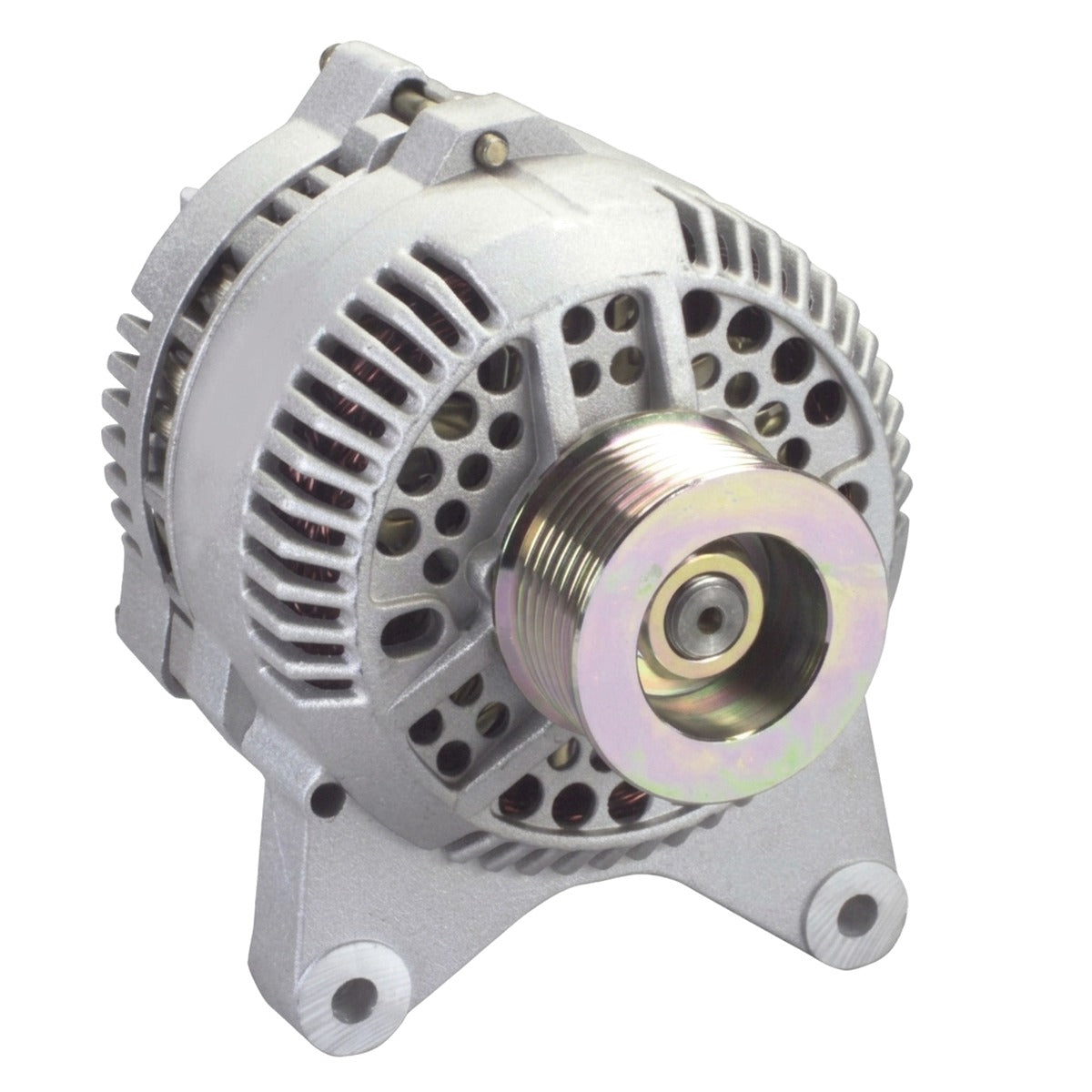

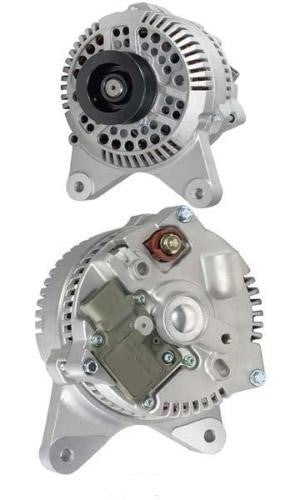

High-Amp 250A Alternator for 2000-2001 Ford F-250 (P131)
What it Does: The 250-amp high-output alternator replaces the low-output factory charging unit on the 2000-2001 F-250 to eliminate voltage drop and deliver stable DC power under heavy auxiliary electrical loads.
The Stock Ford F-250 Charging Bottleneck
Factory Ford P131 Super Duty platforms equipped with the 5.4L Triton V8 or 6.8L Triton V10 left the assembly line with stock 95-amp to 130-amp alternators. These units cannot keep pace with commercial-duty accessories such as winches, snowplow hydraulics, auxiliary lighting, or high-draw power inverters. Under continuous load, the OEM diode bridge overheats, causing extreme ripple current, secondary battery drain, and thermal breakdown at idle.
The Engineering Solution
Engineered to handle harsh thermal duty cycles, this 250-amp direct replacement utilizes heavy-gauge hairpin copper windings and a heavy-duty rectifier packed with high-amperage avalanche diodes. The precision-machined housing optimizes airflow to counter heat soak, generating substantial amperage at low engine RPM to prevent battery depletion without modifying OEM accessory belt routing or mounting brackets.
What's Included
- 1 x 250-Amp High-Output Alternator
Technical Specifications
| Fitment | 2000-2001 Ford F-250 |
|---|---|
| Engine / Chassis | 5.4L Modular V8, 6.8L Modular V10 / P131 |
| Stock Output | 260–310 hp / 350–425 lb-ft |
| Replaces OEM Part # | GL497, F7UU-AB, F65U-EA, F65U-10300-EA, F6PZ-10346-RA, F7UU-10300-AB, 334-2273, 7790, AL7546N, AL7546X, GL372, 7790N, 7790R, 7790-250A |
Compatibility
- 2000-2001 Ford F-250 Super Duty 5.4L V8 Triton
- 2000-2001 Ford F-250 Super Duty 6.8L V10 Triton
Frequently Asked Questions & Fitment Warnings
Does this fit the P131 F-250?
Yes, this is a direct bolt-in fit for the 2000-2001 Ford F-250 equipped with the 5.4L Triton or 6.8L Triton engines; it does not fit 7.3L Power Stroke diesel models.
Do I need to upgrade my main power cabling?
Yes, a 1/0 AWG "Big Three" power wire upgrade with an inline 250A fuse is mandatory to handle the increased current safely without voltage drop.
The Ford Super Duty Standard
Designed for severe-duty commercial service, this charging system upgrade delivers steady, uncompromised current for high-demand towing, recovery, and job-site workloads.
