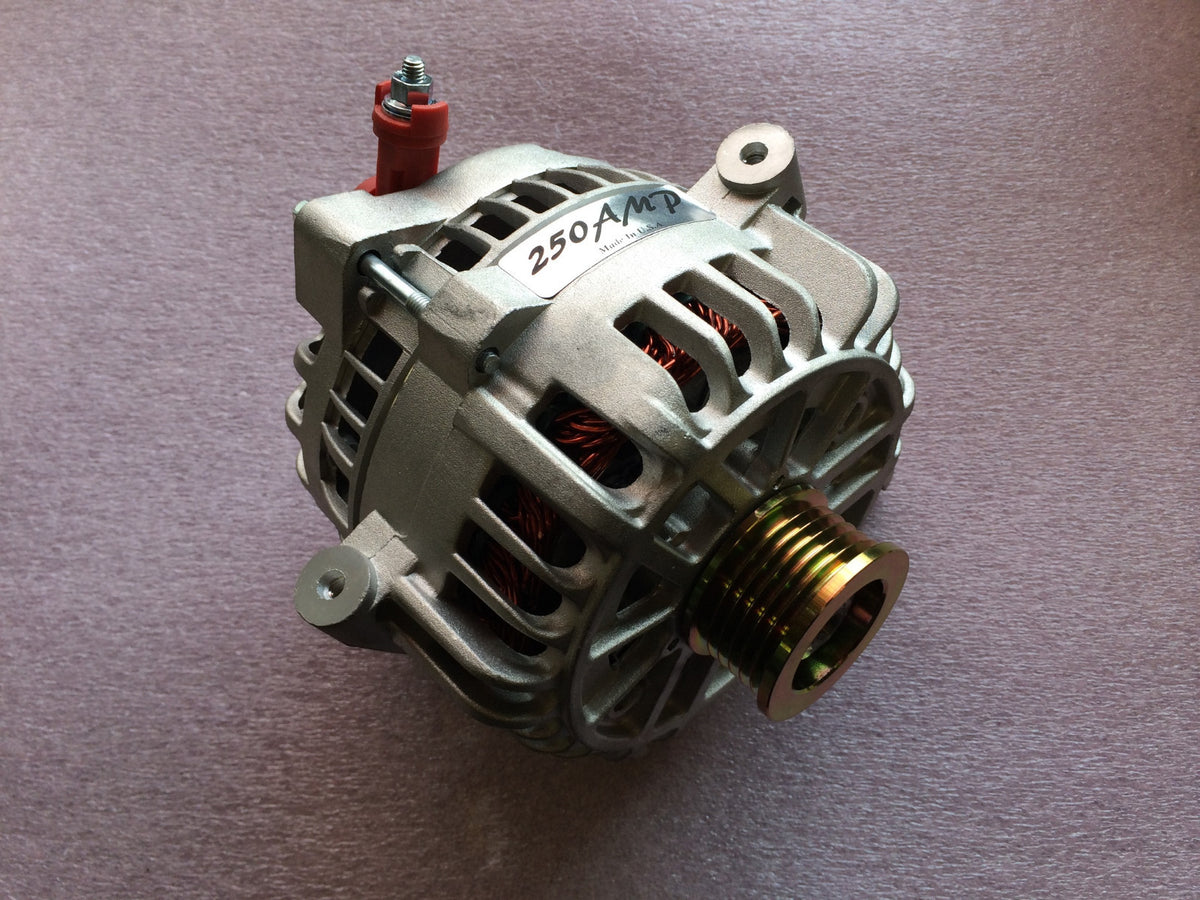

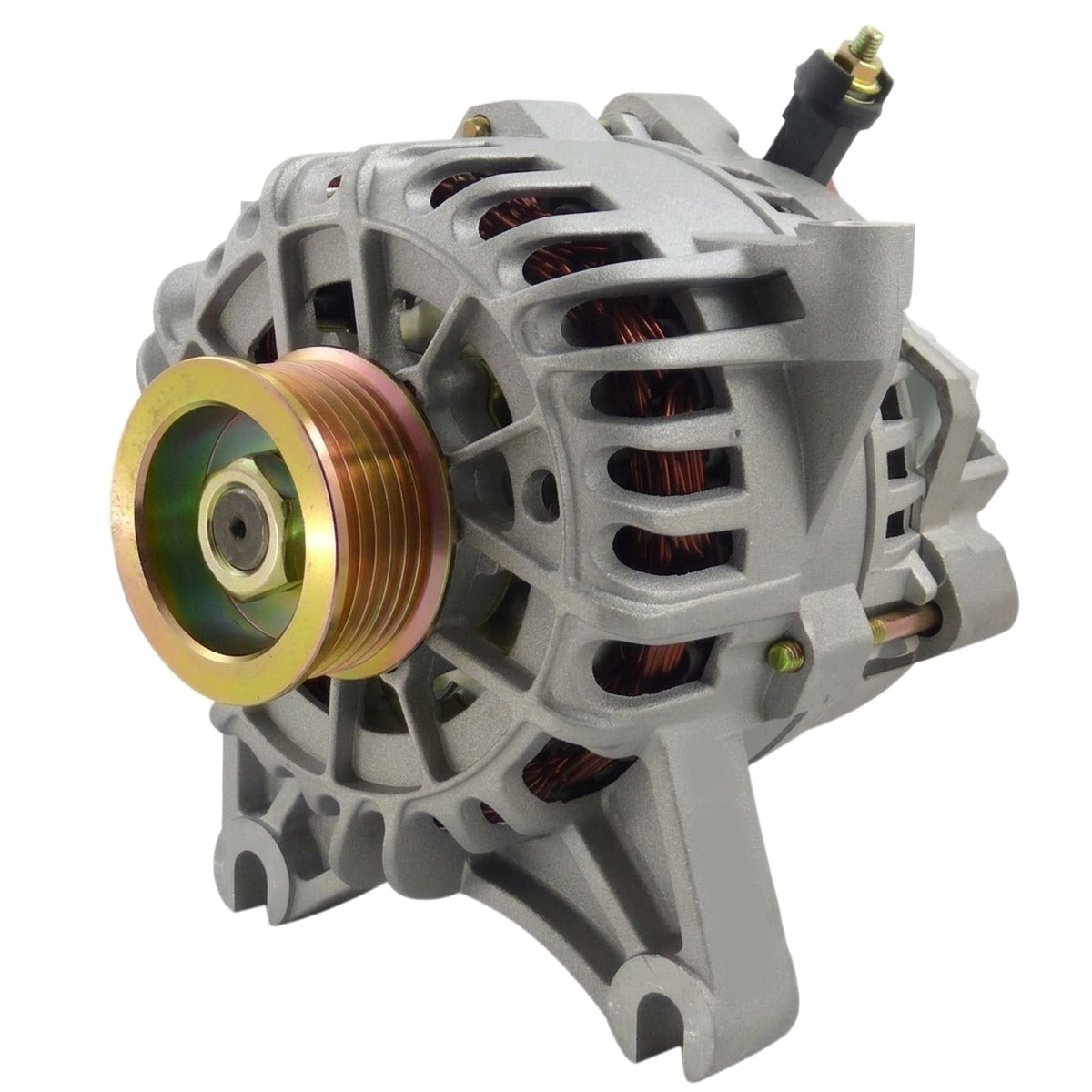

High Output Alternator for Ford F-150 (2004-2008) 4.6L 5.4L

High-Amp Heavy-Duty Alternator for 2004-2008 Ford F-150 (P221)

What it Does: The 250 Amp High Output Alternator replaces the undersized factory charging unit on the 2004-2008 Ford F-150 to deliver stable, high-amperage electrical current under demanding auxiliary and towing loads.

The Stock Ford F-150 Charging Deficiencies

Factory alternators installed on the eleventh-generation P221 platform produce a modest 110A to 130A, which severely limits modern electrical capability. When owners equip their trucks with high-draw equipment—such as winches, snow plows, heavy trailer brakes, work inverters, or aftermarket lighting—the OEM charging system suffers from chronic voltage drop. Sustained amperage demands cause the stock diode trio and internal voltage regulator to overheat, triggering premature stator burnout, battery starvation, and erratic ECU sensor readings.

The Engineering Solution

Engineered to resolve charging deficits, this 250-amp unit delivers massive charging capability directly to your electrical harness. Built around heavy-gauge copper stator windings and an oversized heavy-duty diode bridge, it optimizes thermal transfer through a cast-aluminum heat-sink housing. High-temperature bearings prevent rotational failure under heavy belt tension, ensuring consistent voltage output from idle up to redline without thermal throttling.

What's Included

• 1x 250 Amp Alternator

Technical Specifications

Compatibility

• 2004-2008 Ford F-150 4.6L V8
• 2004-2008 Ford F-150 5.4L V8

Frequently Asked Questions & Fitment Warnings

Does this fit the P221 F-150?

Yes, this is a direct bolt-in fit for the 2004-2008 Ford F-150 equipped with the Modular V8 4.6L or 5.4L engines.

Do I need to upgrade my electrical wiring with this high-amp unit?

Yes, running a "Big 3" heavy-gauge charging wire upgrade (4-gauge or 1/0-gauge) from the alternator positive stud to the battery and chassis ground is required to safely support the full 250-amp capacity.

The Ford Towing Standard

Built to handle rigorous fleet workloads and extreme towing environments, this alternator upgrade ensures your auxiliary equipment operates reliably without compromising primary vehicle electronics or draining your battery bank in the field.
