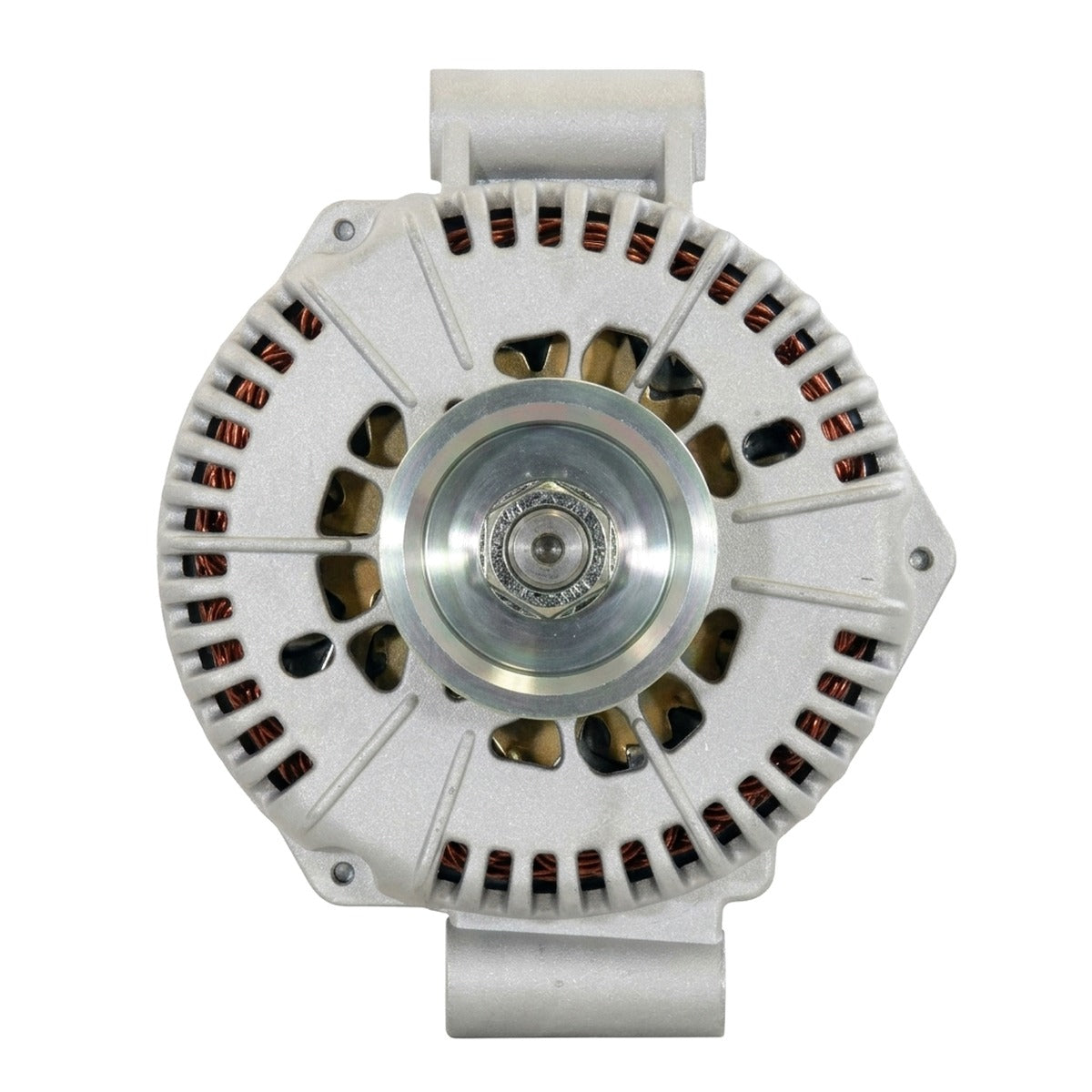

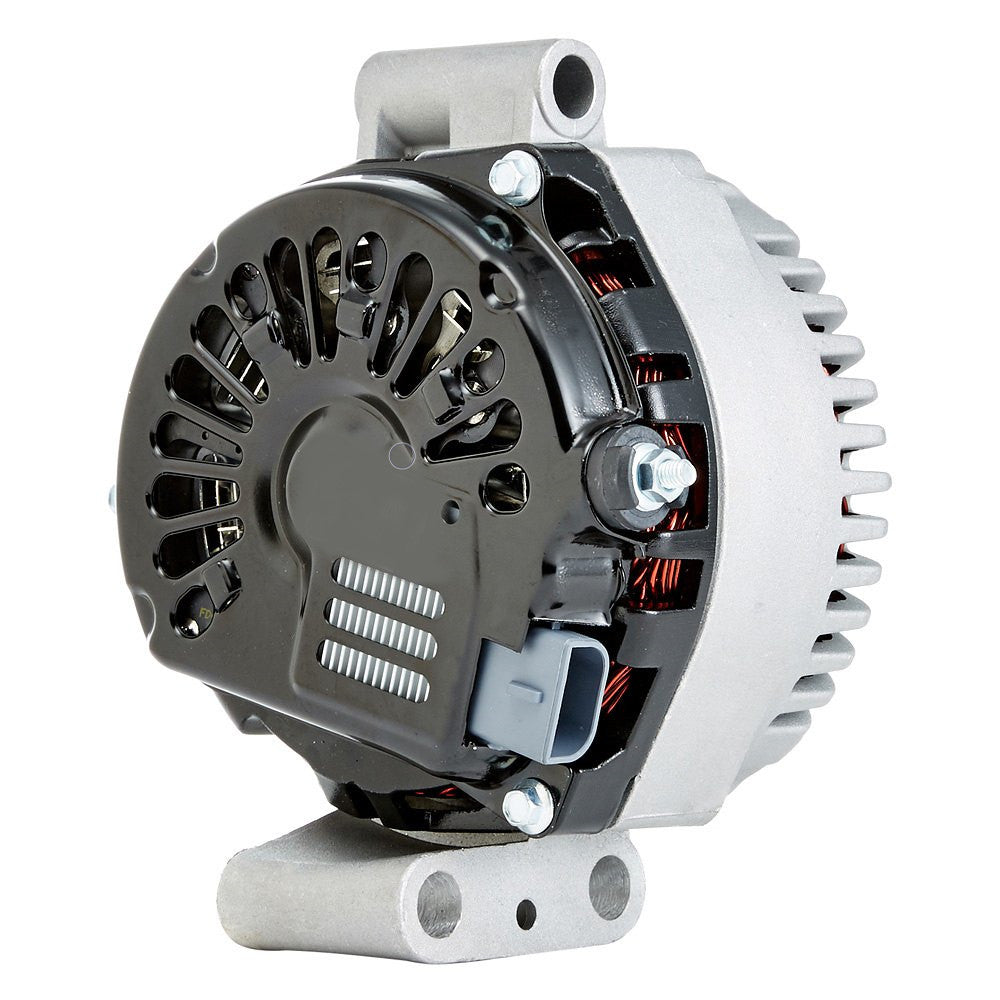

High Output Alternator for Ford Explorer (2002-2004) 4.0L

High-Output 300A Alternator for 2002-2004 Ford Explorer (U152)

What it Does: The 300 Amp High Output Alternator replaces the factory charging unit on the 2002-2004 Ford Explorer to deliver continuous high-amperage stability and prevent voltage sag under heavy electrical loads.

The Stock Ford Explorer Charging Limitations

The factory charging system on the U152 platform is engineered around an OEM 130-amp unit designed strictly for stock electronics. When auxiliary lighting, winches, heavy-draw inverters, or aftermarket audio systems are introduced to the 4.0L Cologne SOHC V6, the stock stator windings rapidly experience severe heat soak. This thermal saturation reduces overall conductance, leading to diode bridge degradation, battery undercharging, and significant idle voltage drop below 12.6V, which strains ignition components and onboard vehicle modules.

The Engineering Solution

Constructed in the USA, this high-output 300-amp unit solves thermal and mechanical bottlenecks by utilizing heavy-gauge copper windings, premium heavy-duty rectifiers, and high-amperage avalanche diodes. The precision-machined casing maximizes airflow across internal heat sinks to dissipate heat efficiently under continuous load. Delivering substantial amperage output even at low engine RPM, it ensures clean, stable 14.4V power delivery across the electrical bus, directly replacing failure-prone stock numbers like F77Z10346AB and XL2U10300AA.

What's Included

• 1x 300 Amp High Output Alternator

Technical Specifications

Compatibility

• 2002 Ford Explorer 4.0L V6
• 2003 Ford Explorer 4.0L V6
• 2004 Ford Explorer 4.0L V6

Frequently Asked Questions & Fitment Warnings

Does this fit the U152 Explorer?

Yes, this is a direct fit for the 2002-2004 Ford Explorer equipped with the 4.0L Cologne SOHC V6 engine. This unit does not fit 4.6L Modular V8 models.

Do I need to upgrade my charging cables for this alternator?

Yes, installing a high-gauge "Big 3" wiring upgrade (0-gauge power and ground cables with fused protection) is strongly recommended to safely carry 300 amps of current.

The Ford Utility Standard

Built for demanding overland setups, high-draw utility applications, and towing duties, this alternator guarantees your Explorer maintains stable electrical delivery under extreme mechanical stress and extended heavy duty operation.
