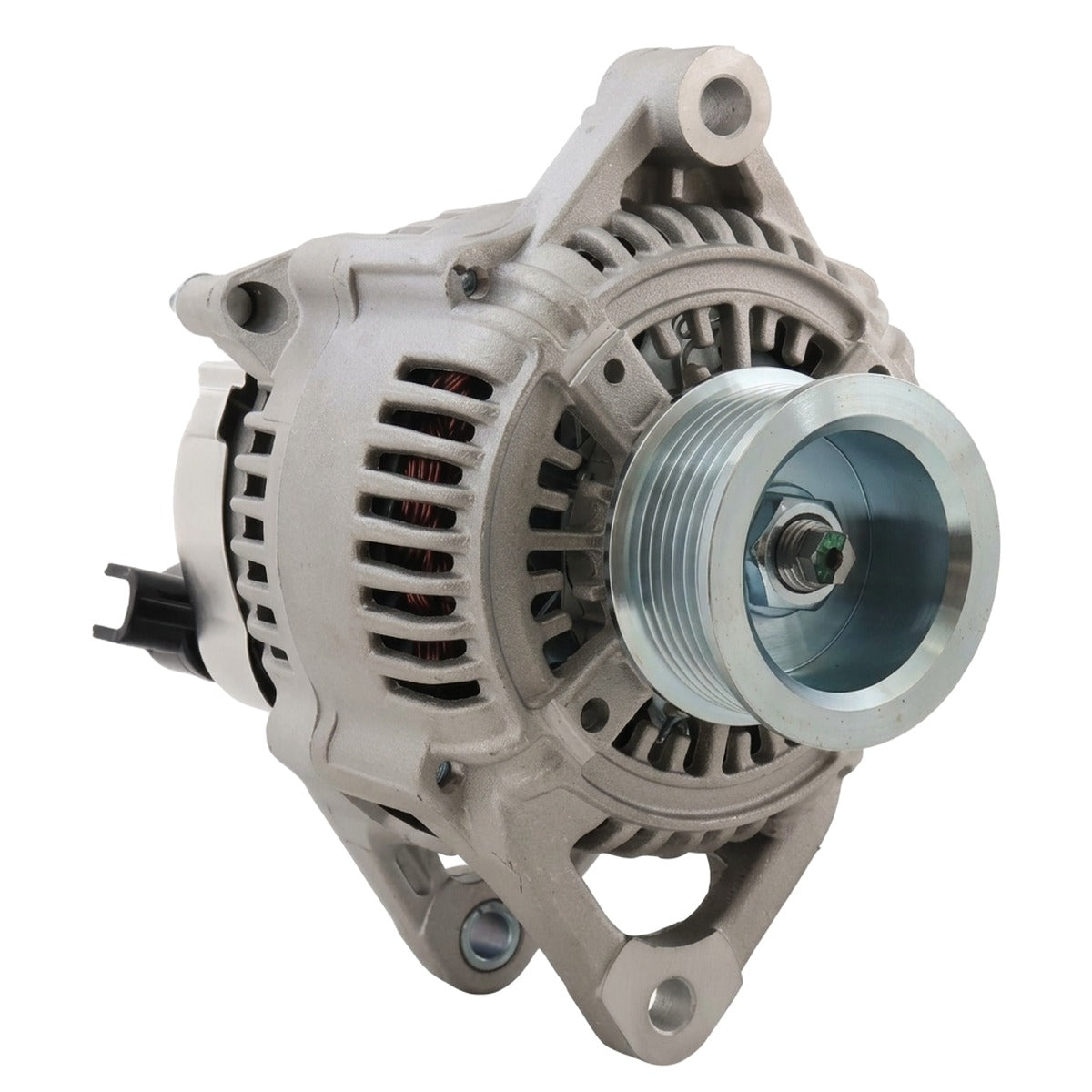

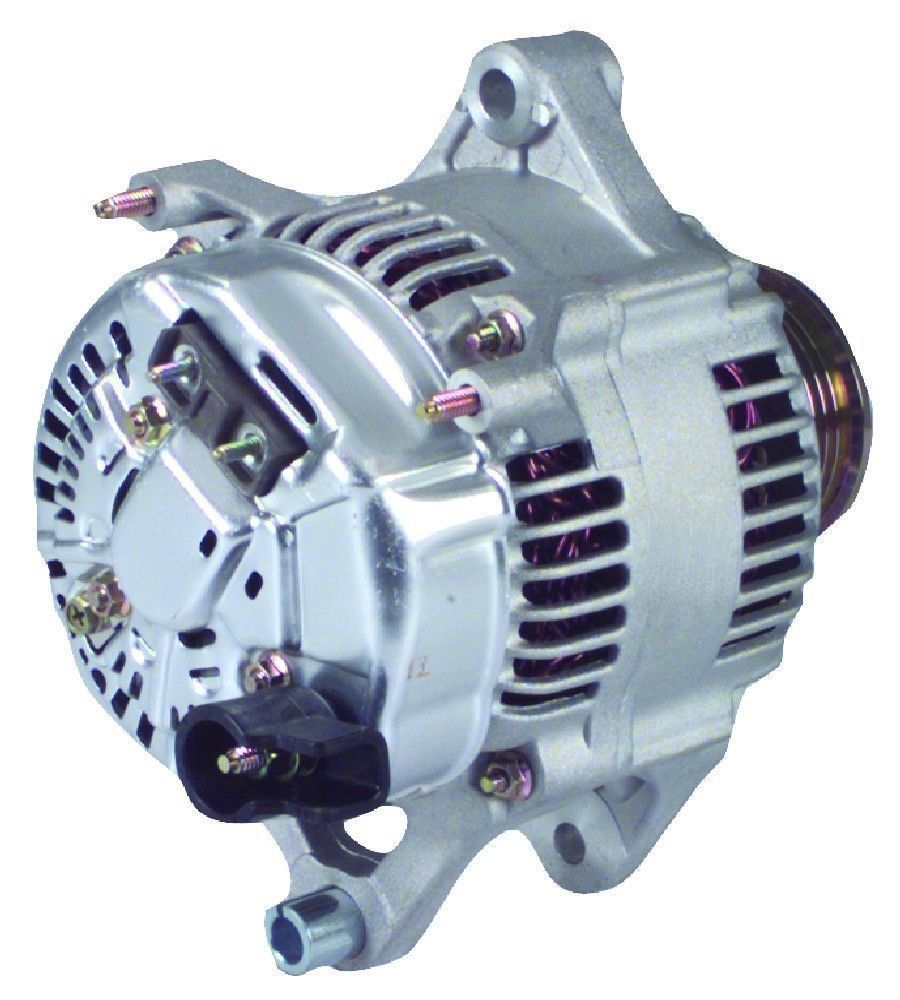

High Output Alternator for Dodge Dakota (1992-1996) 3.9L 5.2L

High-Output 250-Amp Alternator for 1992-1996 Dodge Dakota (AN Platform)

What it Does: The 250 Amp High Output Alternator replaces the low-output factory charging unit on the 1992-1996 Dodge Dakota to eliminate electrical voltage drop under heavy auxiliary loads and maintain constant system voltage across all RPM ranges.

The Stock Dodge Dakota Charging Limitations

Factory charging systems on the first-generation AN chassis Dakota utilize an OEM alternator rated between 75 and 90 amps, configured exclusively for base factory electronics, halogen headlights, and basic cabin accessories. When running modern auxiliary equipment—such as off-road winches, electric cooling fan conversions, plow hydraulics, or high-draw audio amplifiers—the stock stator and factory external rectifier suffer rapid thermal saturation. Underhood heat soak degrades OEM internal diodes, causing dangerous voltage sags down to 11.5 volts, diminished ignition spark energy, and rapid battery discharge at idle speeds where factory output drops below 40 amps.

The Engineering Solution

Engineered to handle severe thermal and electrical loads, this heavy-duty unit features high-temperature copper windings and a heavy-duty avalanche diode rectifier heat sink designed to dissipate excessive engine bay heat. Delivering a true 250 peak amps and substantial current reserve at idle, it guarantees a stable 14.4-volt charge across the electrical bus. Premium heavy-duty rotor bearings and precision-balanced armatures reduce rotational resistance and prevent high-RPM bearing failure, ensuring maximum electrical stability under continuous commercial or off-road duty.

What's Included

• 1 250-Amp High Output Alternator

Technical Specifications

Compatibility

• 1992-1996 Dodge Dakota 3.9L V6
• 1992-1996 Dodge Dakota 5.2L V8

Frequently Asked Questions & Fitment Warnings

Does this fit the AN Platform Dakota?

Yes, this is a direct bolt-on fit for the 1992-1996 Dodge Dakota equipped with the 3.9L Magnum V6 or 5.2L Magnum V8 engine.

Do I need to upgrade my main power wiring with this alternator?

Yes, executing a "Big 3" wiring upgrade using a 0-gauge or 4-gauge fused charging cable direct to the battery is essential to safely flow 250 amps without overheating the factory harness.

The Dodge Truck Standard

Engineered for relentless durability, extreme payload demands, and continuous duty-cycle towing, this unit ensures your Dakota maintains full operating voltage through severe recovery tasks, cold-weather starts, and high-amperage work accessories.
