High Output Alternator for Chrysler Town & Country (2008-2009) 3.3L 3.8L

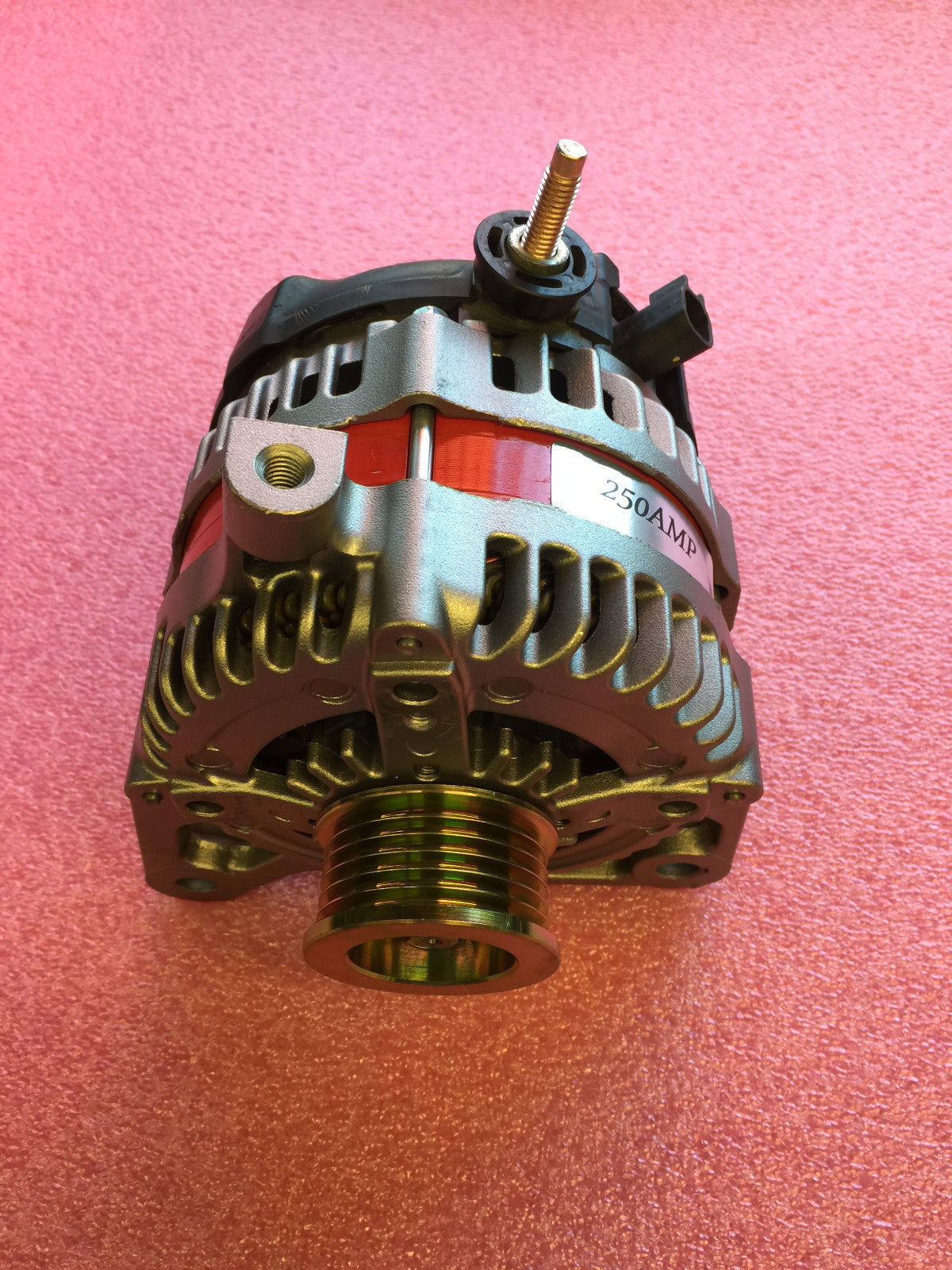

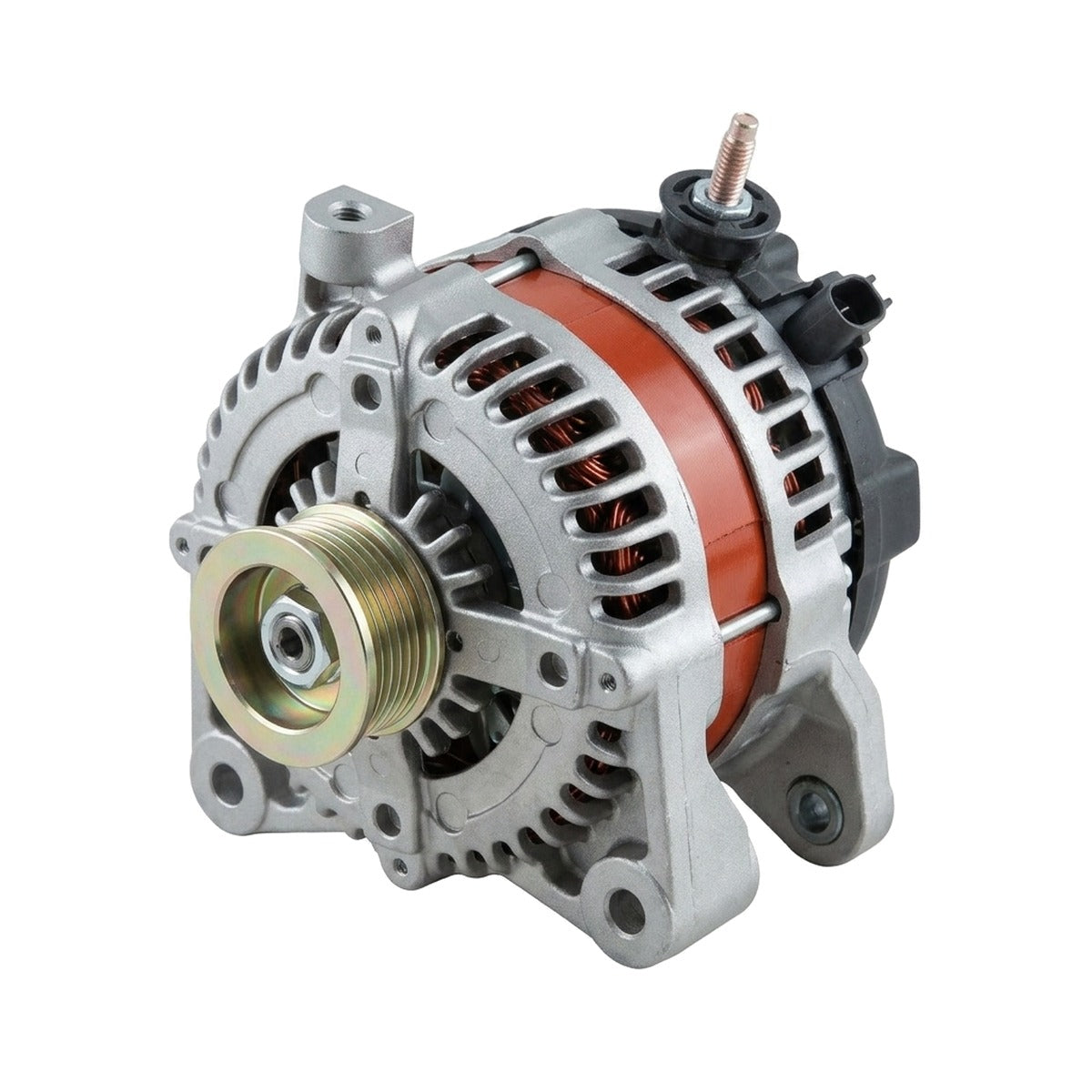

High-Output 250-Amp Alternator for 2008-2009 Chrysler Town & Country (RT)

What it Does: The 250 Amp High Output Alternator replaces the low-output factory charging unit on the 2008-2009 Chrysler Town & Country to stabilize electrical system voltage and prevent current starvation under heavy electrical loads.

The Stock Chrysler Town & Country Charging System Limitations

Factory alternators on the RT chassis output a marginal 140 to 160 amps, which quickly creates a deficit when powering dual power-sliding doors, power liftgates, multi-zone HVAC blowers, and rear-seat entertainment modules simultaneously. The stock Denso-style unit suffers severe thermal degradation during extended engine idling, causing stator heat soak, premature diode pack failure in the internal rectifier, and acute voltage drop below 12.8 volts that triggers CAN-bus communication faults and rapid battery discharge.

The Engineering Solution

Engineered and assembled in the USA, this direct-fit 250-amp alternator features heavy-gauge copper windings and an upgraded hairpin stator assembly to deliver exceptional low-RPM amperage output. Built with high-temperature avalanche diodes, precision-balanced rotors, and heavy-duty brush assemblies, it dissipates heat far more efficiently than the original component. It provides immediate, ripple-free DC power to support onboard accessories and high-draw aftermarket gear without triggering PCM charging system fault codes. Directly interchanges with OEM part numbers 04727865AB, 4727865AB, 421000-0560, 210-0651, and 11294.

What's Included

• 1x 250-Amp High Output Alternator

Technical Specifications

Compatibility

• 2008-2009 Chrysler Town & Country 3.3L V6 (EGA)
• 2008-2009 Chrysler Town & Country 3.8L V6 (EGH)

Frequently Asked Questions & Fitment Warnings

Does this fit the RT Town & Country?

Yes, this is a direct bolt-on fit for the 2008-2009 Chrysler Town & Country equipped with the EGA (3.3L) and EGH (3.8L) pushrod V6 engines. This unit does not fit 4.0L SOHC models.

Do I need to upgrade my main charging cable?

Upgrading the primary alternator-to-battery charging cable and main chassis grounds with a 4 AWG or 1/0 AWG Big-3 wire kit is strongly recommended to handle full 250-amp flow without thermal line resistance.

The Chrysler Fleet Utility Caliber

Family minivans run commercial-grade electrical duty cycles; this 250-amp high-output unit ensures continuous voltage stability and maximum charging reserve under extreme passenger, accessory, and towing demands.
