High Output Alternator for Chevrolet Trailblazer (2007-2008) 5.3L

High-Output 300A Alternator for 2007-2008 Chevrolet Trailblazer (GMT360)

What it Does: The 300 Amp High Output Alternator replaces the low-output factory charging unit on the 2007-2008 Chevrolet Trailblazer to eliminate voltage drop and deliver consistent, high-amperage current across all RPM bands.

The Stock Chevrolet Trailblazer Electrical Bottleneck

The OEM charging system on the GMT360 platform relies on a standard factory unit that maxes out around 145 amps. When running auxiliary accessories, winches, heavy trail lighting, or upgraded aftermarket audio setups, the factory stator experiences thermal saturation and severe voltage drop at idle. This deficit starves the battery, stresses ignition coils, causes instrument cluster flicker, and can skew sensor return voltages back to the PCM.

The Engineering Solution

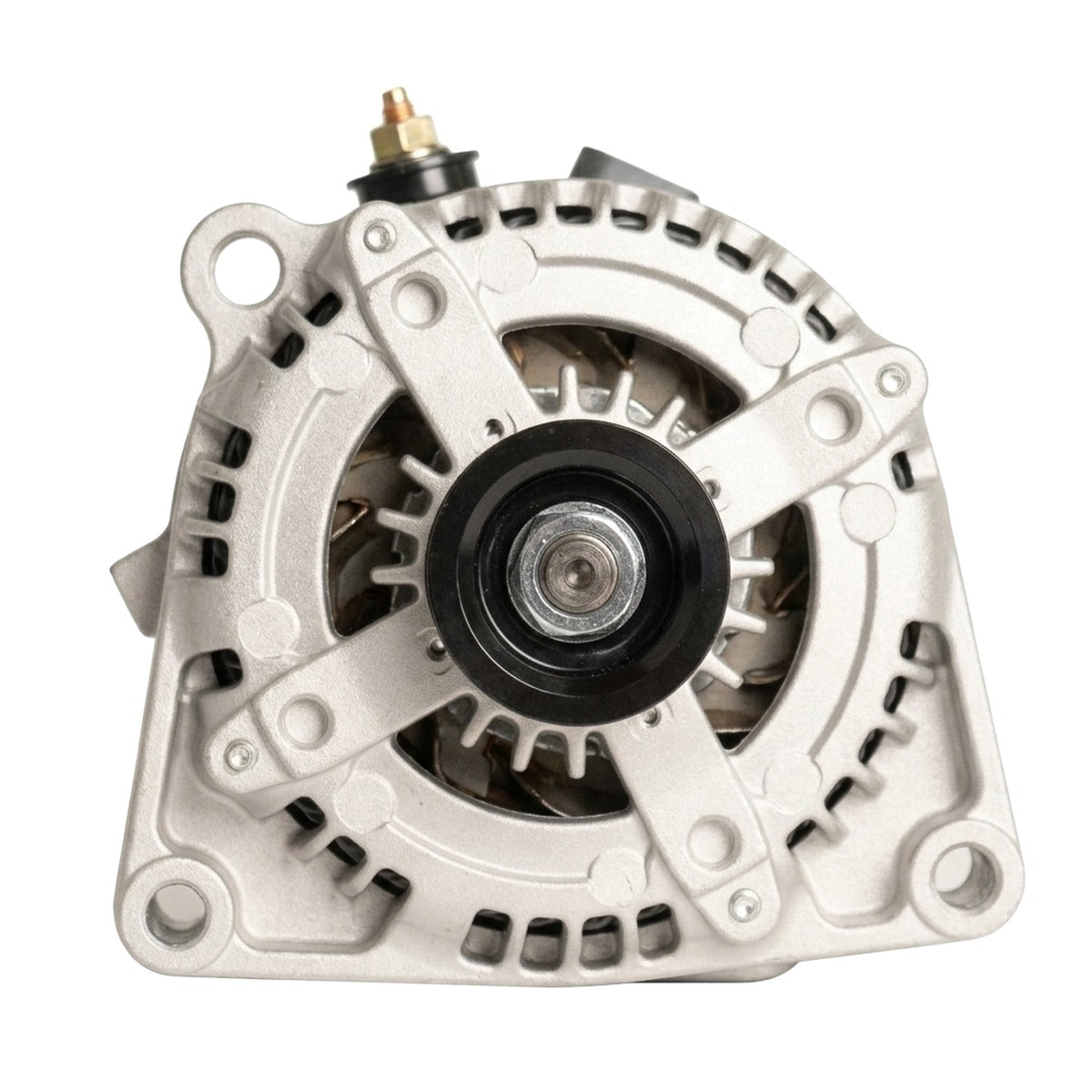

Manufactured in the USA, this high-output direct-replacement unit increases continuous capacity to a true 300 amps. Engineered with heavy-duty copper hairpin windings, high-temperature avalanche diodes, and a premium solid-state internal voltage regulator, it withstands engine-bay heat soak while delivering substantial amperage even at low engine speeds. Built to factory bolt patterns, it directly swaps into the accessory bracket of the 5.3L LH6 engine without custom shimming, cross-referencing OEM numbers 8302N, 10392759, and 15263858.

What's Included

• 1 x 300 Amp High Output Alternator

Technical Specifications

Compatibility

• 2007 Chevrolet Trailblazer LT 5.3L V8 (LH6)
• 2008 Chevrolet Trailblazer LT 5.3L V8 (LH6)

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT360 Trailblazer?

Yes, this is a direct fit for the 2007-2008 Chevrolet Trailblazer equipped with the 5.3L LH6 engine. Does not fit models equipped with the 4.2L Inline-6 (LL8) or 6.0L V8 (LS2) due to differing bracket geometry and pulley offset.

Do I need to upgrade my wiring with this alternator?

A "Big 3" wiring upgrade utilizing 0-gauge or 1/0 AWG charging and ground leads is strongly recommended to safely handle the full 300-amp load.

The Chevrolet Durability Standard

Built to handle the harsh demands of heavy-duty towing, overland gear, and rigorous off-road cycling, this alternator delivers uninterrupted charging stability under sustained work conditions.
