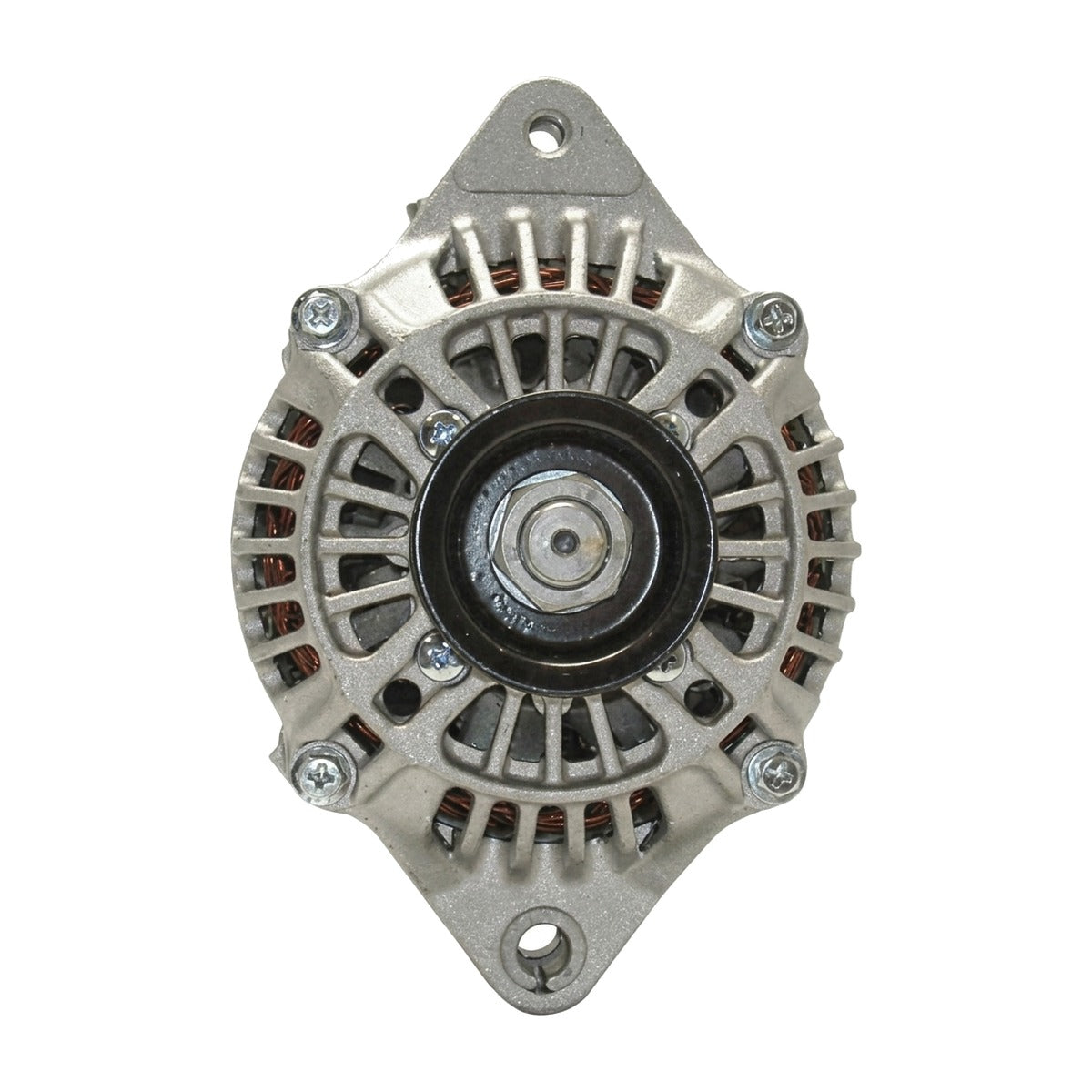

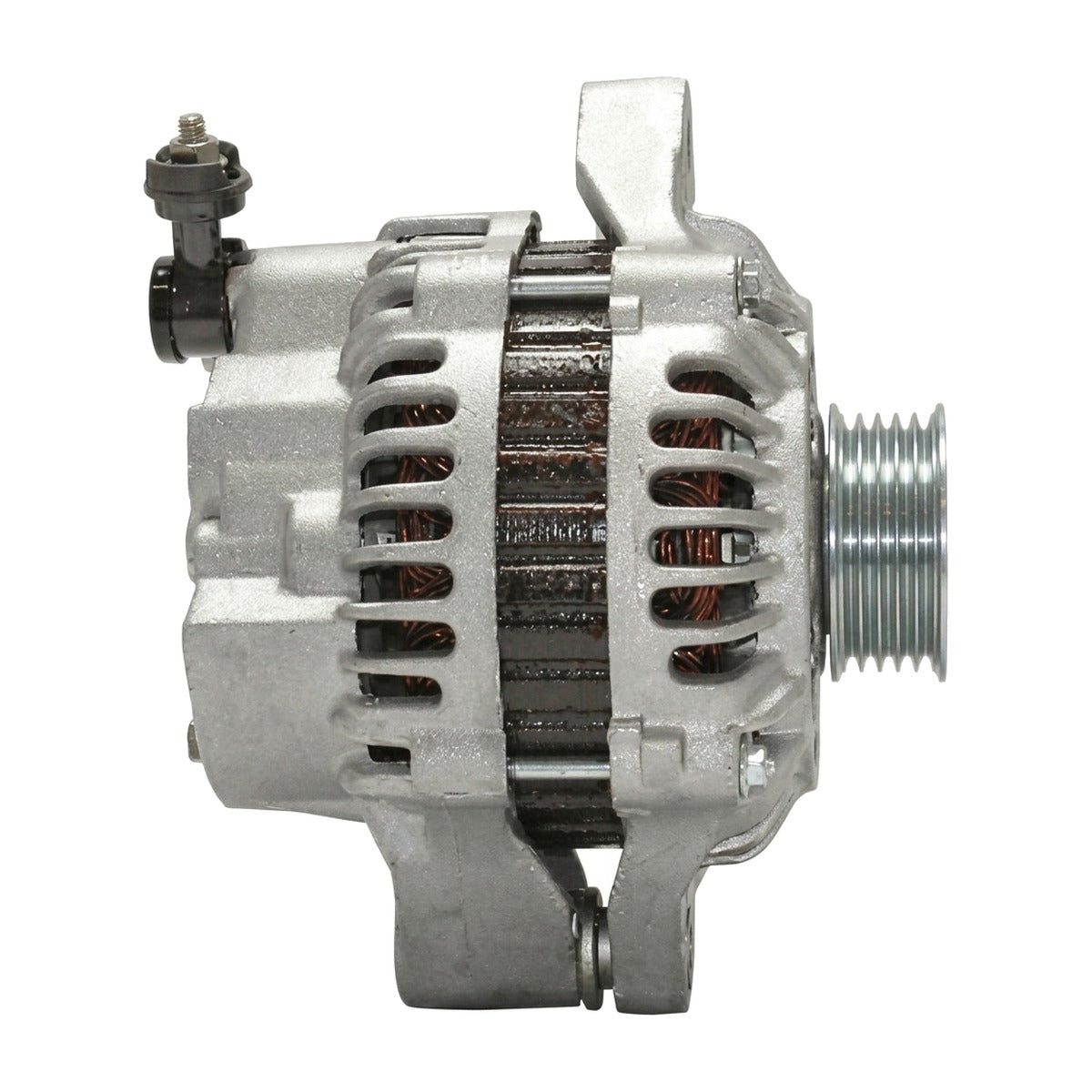

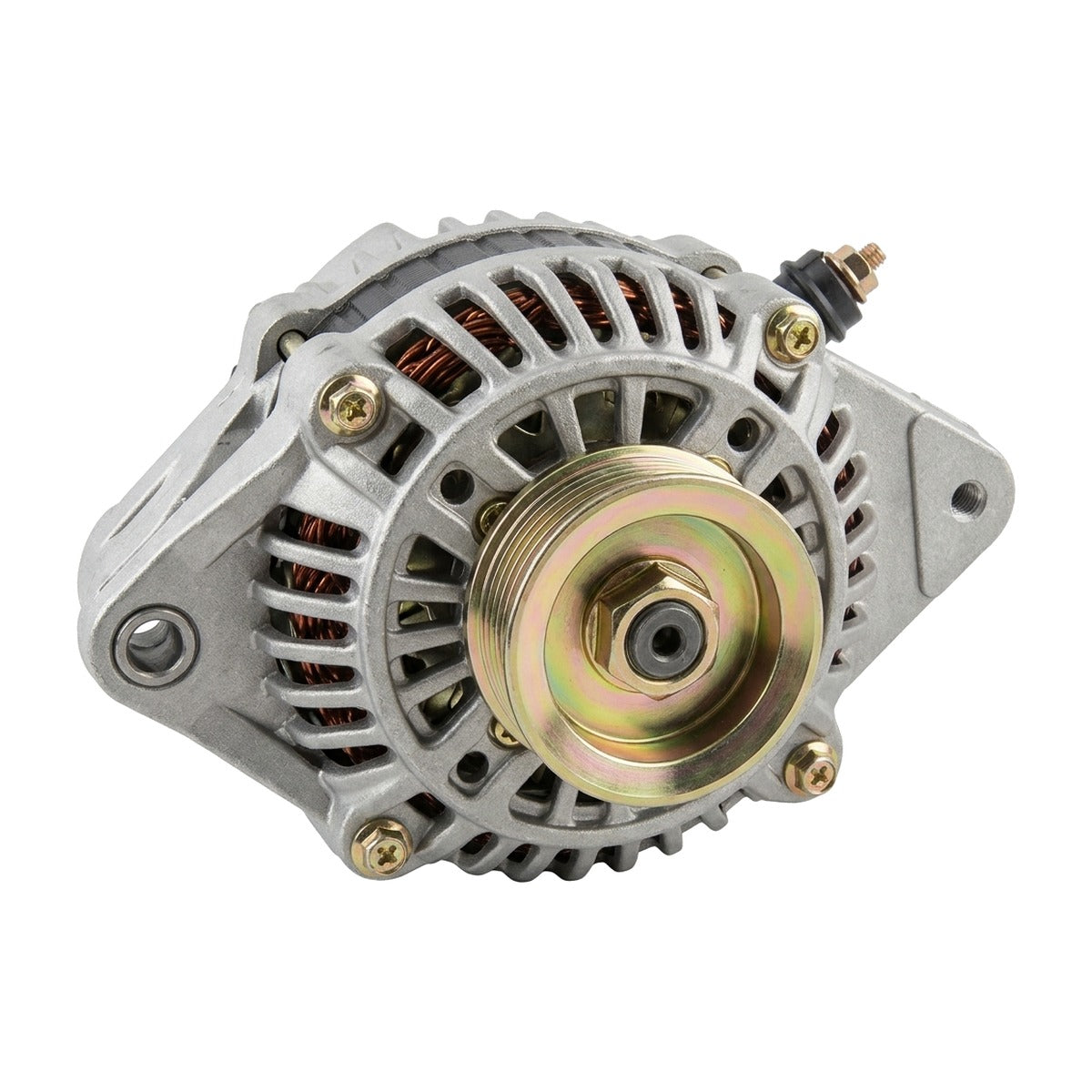

High Output Alternator for Chevrolet Tracker (1999-2003) 2.0L

High-Output 160A Alternator for 1999-2003 Chevrolet Tracker (SQ420)

What it Does: The High Output 160 Amp Alternator replaces the low-output factory charging unit on the 1999-2003 Tracker to prevent voltage drop and provide reliable high-current charging under sustained electrical load.

The Stock Chevrolet Tracker Charging System Weakness

Factory charging systems on the SQ420 platform were engineered around modest 65-to-75 amp ratings intended strictly for base electrical demands. When builders outfit the J20A engine with trail winches, high-draw audio amplifiers, auxiliary light bars, or heavy-duty cooling fans, the factory stator experiences thermal saturation. Excessive stator resistance causes severe idle voltage drop down into the 11.8V range, inducing battery depletion, flickering instrument clusters, and inconsistent fuel injector pulse-width stability under load.

The Engineering Solution

This 160-amp unit delivers more than double the OEM amperage reserve while bolting into original mounting tabs. Engineered with heavy-gauge, high-temperature copper stator windings and a precision-balanced rotor, it mitigates heat soak and parasitic drag. Premium sealed low-drag bearings reduce mechanical friction, while a heavy-duty internal voltage regulator maintains system charging between 13.5 and 14.5 volts across all RPM thresholds. Each unit is bench-tested to verify cold and hot ripple current specs prior to packaging.

What's Included

• 1 High Output Alternator (160 Amp, 12V, Part #13781)

Technical Specifications

Compatibility

• 1999-2003 Chevrolet Tracker 2.0L 4-cylinder (All Trims)

Frequently Asked Questions & Fitment Warnings

Does this fit the SQ420 Tracker?

Yes, this is a direct fit for the 1999-2003 Chevrolet Tracker equipped with the J20A 2.0L engine. It does not fit Tracker models equipped with the 1.6L or 2.5L V6 engines.

Do I need to upgrade my battery cables with this unit?

While this alternator uses the factory harness connector and fits the stock brackets, upgrading the main battery charge lead and chassis grounds to 4-gauge wire is recommended to handle the full 160-amp potential.

The Chevrolet Off-Road Standard

Engineered to handle severe overland recovery duty and off-grid demands, this heavy-duty charging unit provides the dependable current needed to keep recovery winches, communication gear, and trail lighting powered reliably in remote backcountry environments.
