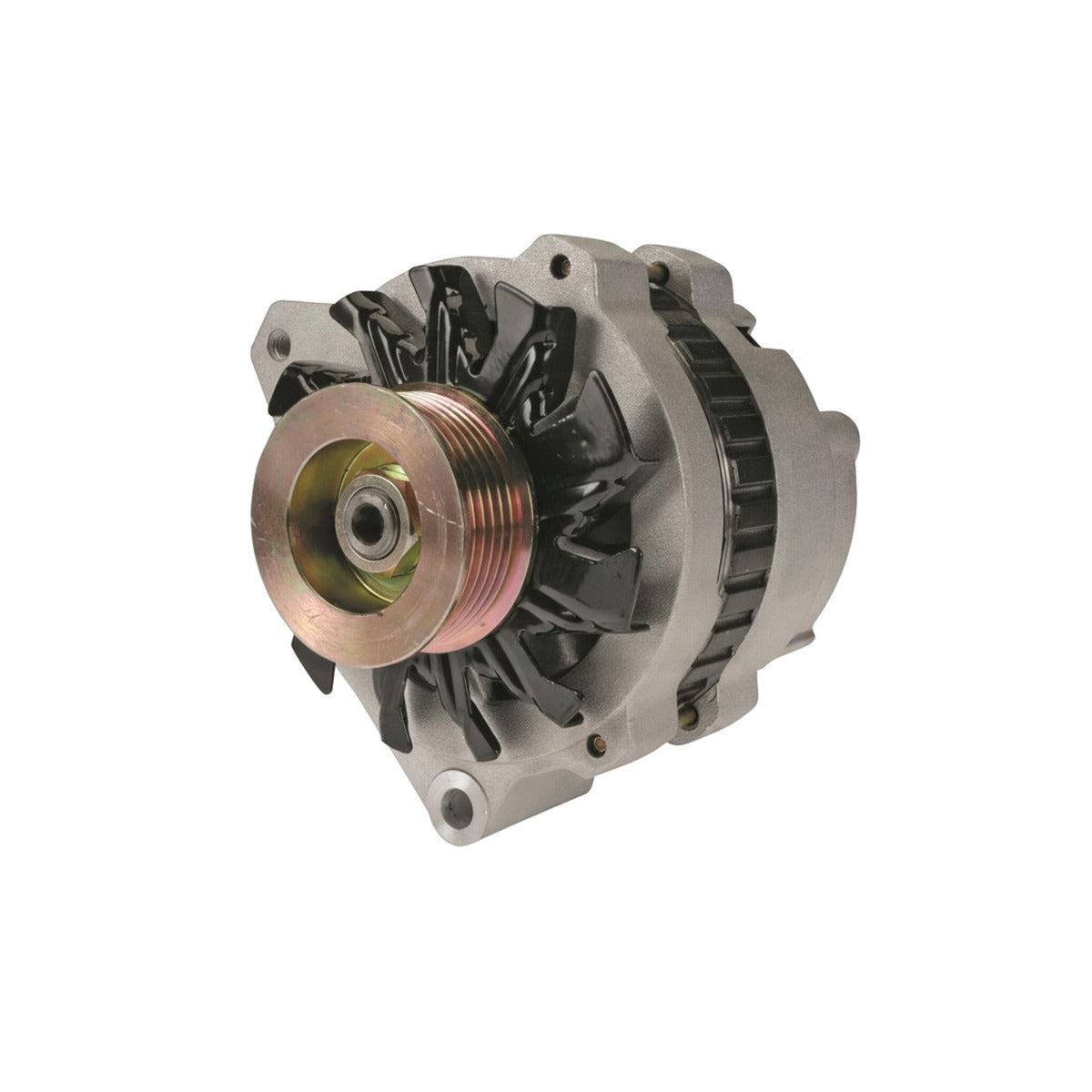

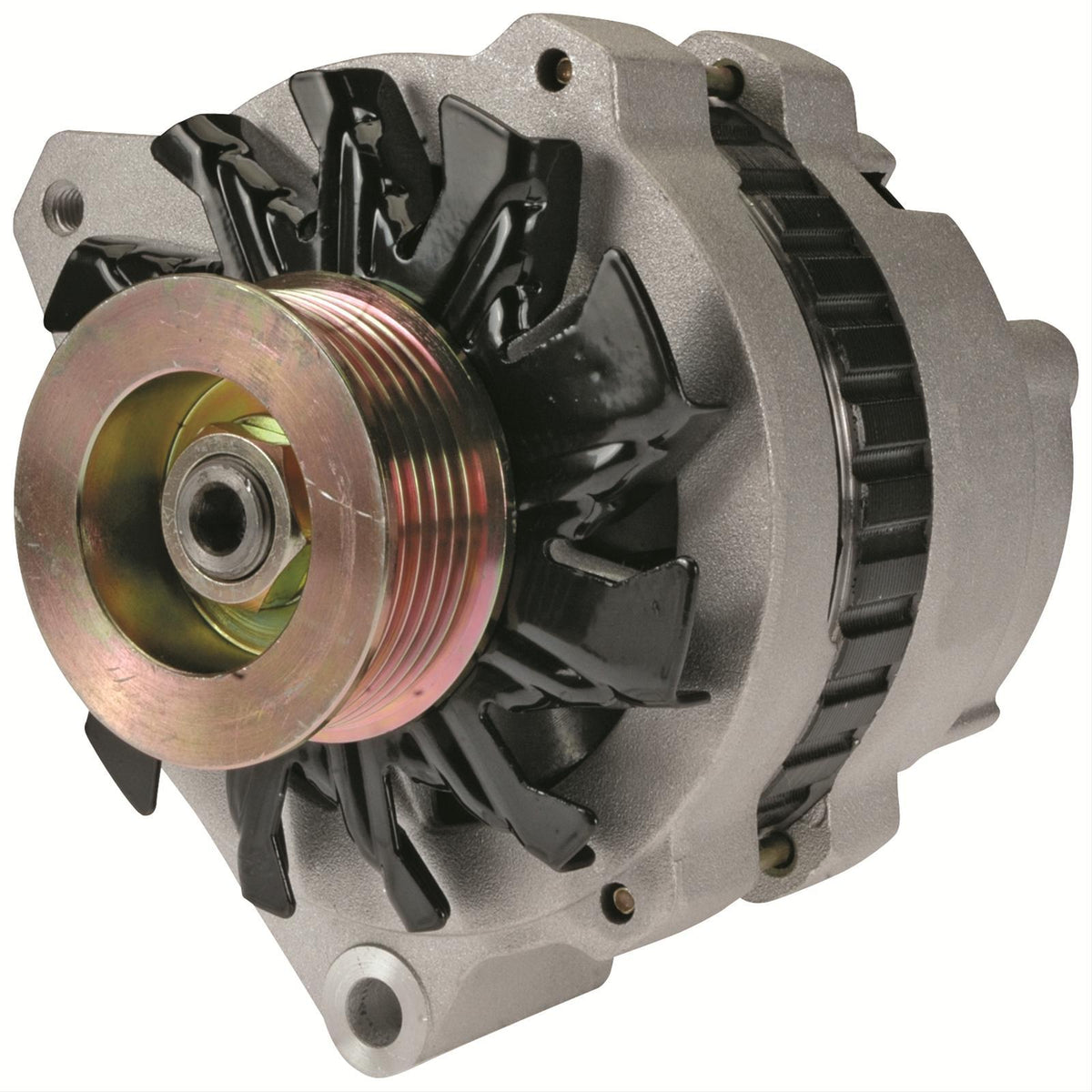

High Output Alternator for Chevrolet Suburban (1992-1994) 5.7L

High-Output 200 Amp Alternator for 1992-1994 Chevrolet Suburban (GMT400)

What it Does: The 200-amp high-output alternator replaces the low-output factory charging unit on the 1992-1994 Suburban to supply consistent, high-amperage 12V power across all RPM bands while eliminating electrical system voltage drop.

The Stock Chevrolet Suburban Charging Deficits

Factory GMT400 platforms powered by the Small Block Chevy L05 (350 TBI) were equipped with Delco CS130 series alternators rated between 85 and 105 amps. Under heavy loads—such as auxiliary lighting, trailer brake controllers, snowplow hydraulics, or winches—these units quickly suffer thermal breakdown. The OE rectifiers and small internal diodes generate excessive heat soak at idle, resulting in voltage drops below 12.5 volts, dimming headlamps, discharged batteries, and accelerated component failure due to sustained thermal strain.

The Engineering Solution

This heavy-duty 200-amp charging unit is built in the USA to deliver high-amperage stability under severe duty cycles. Featuring a heavy-duty copper stator, an oversized precision-balanced rotor, and a high-efficiency 12-diode heavy-copper heat sink rectifier, this unit maintains over 130 amps at engine idle. The rigid cast aluminum housing promotes efficient thermal dissipation, preventing internal diode desoldering and voltage regulator drift caused by elevated engine bay temperatures under continuous towing or off-road conditions.

What's Included

• 1 200 Amp High Output Alternator

Technical Specifications

Compatibility

• 1992 Chevrolet Suburban C1500 / C2500 / K1500 / K2500 5.7L V8
• 1993 Chevrolet Suburban C1500 / C2500 / K1500 / K2500 5.7L V8
• 1994 Chevrolet Suburban C1500 / C2500 / K1500 / K2500 5.7L V8

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT400 Suburban?

Yes, this is a direct bolt-on fit for the 1992-1994 Chevrolet Suburban equipped with the 5.7L L05 engine, reusing factory mounting points and harness connections.

Do I need to upgrade my main charging wire when installing a 200-amp unit?

Upgrading the primary charging lead to a fused 4-gauge or 1/0-gauge cable (Big 3 upgrade) is mandatory to prevent harness overheating and safely deliver the full 200 amps to your battery bank.

The Chevrolet Heavy-Duty Standard

Engineered for high-demand towing, trail recovery, and auxiliary accessories, this unit provides the continuous current your heavy-duty GMT400 hauler requires under brutal operating temperatures.
