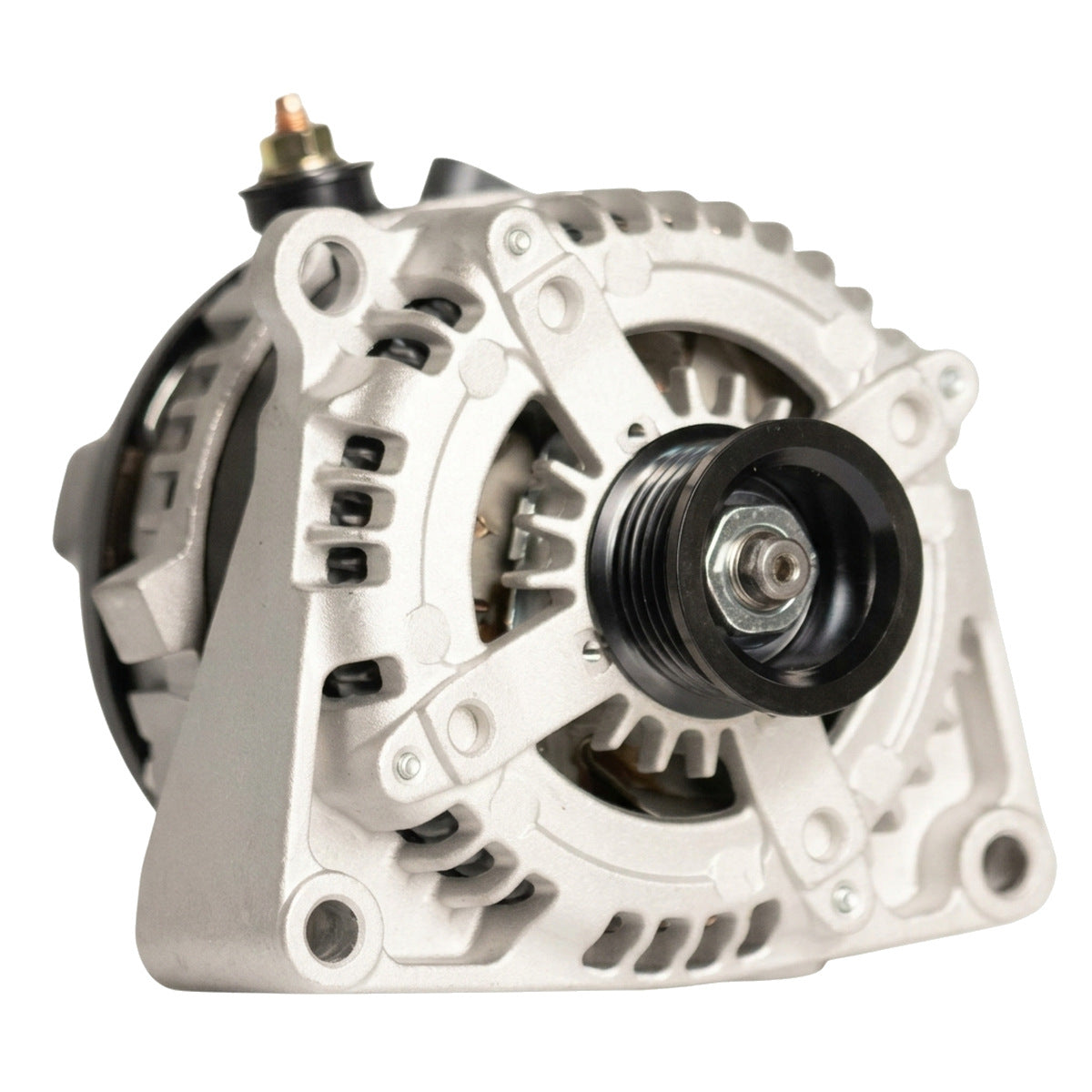

High Output Alternator for Chevrolet Silverado (2001-2004) 4.3L 4.8L 5.3L 6.0L 6.6L 8.1L

High-Amp Hairpin Alternator for 2001-2004 Chevrolet Silverado (GMT800)

What it Does: The 300-amp hairpin alternator replaces low-output factory charging units on the 2001-2004 Chevrolet Silverado to eliminate voltage drop and deliver stable 12-volt power under heavy auxiliary electrical loads.

The Stock Chevrolet Silverado Electrical Bottleneck

Factory GMT800 trucks shipped with standard 105-amp or 145-amp Delco units that struggle under modern demands. At hot curb idle (600–800 RPM), factory delta-wound stators shed amperage dramatically, falling below 65 amps. When supporting commercial snow plows, recovery winches, high-draw inverters, or dual-electric fan conversions on Vortec and Duramax platforms, the factory rectifier diodes suffer thermal breakdown, inducing battery starvation and severe cabin voltage drop.

The Engineering Solution

Engineered with a high-efficiency 300-amp square-wire hairpin stator, this unit significantly reduces internal resistance and maximizes slot-fill density over round-wire designs. The 12-volt, clockwise-rotation unit incorporates heavy-duty avalanche diode rectifiers, an internal solid-state voltage regulator with a 4-pin harness terminal, and a precision-balanced 6-groove pulley. Built in the USA, it sustains over 180+ amps at idle speeds while resisting heat soak in demanding working environments.

What's Included

• 1 x 300-Amp High-Output Hairpin Alternator (6-Groove Pulley, 4-Pin Connector)

Technical Specifications

Compatibility

• 2001-2004 Chevrolet Silverado 1500 4.3L V6
• 2001-2004 Chevrolet Silverado 1500 4.8L V8
• 2001-2004 Chevrolet Silverado 1500 / 2500 5.3L V8
• 2001-2004 Chevrolet Silverado 1500 / 2500 / 3500 6.0L V8
• 2001-2004 Chevrolet Silverado 2500HD / 3500 6.6L Duramax Turbo Diesel V8
• 2001-2004 Chevrolet Silverado 2500HD / 3500 8.1L Big Block V8

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT800 Silverado?

Yes, this is a direct bolt-on replacement for factory 105-amp or 145-amp units across the GMT800 line. It does NOT replace factory 124-amp alternators found on select models.

Is a wiring upgrade required when installing this 300A unit?

Yes, running a minimum 1/0 AWG "Big 3" power cable upgrade from alternator to battery positive and chassis ground is mandatory to avoid thermal resistance and carry 300 amps safely.

The Chevrolet Heavy-Duty Caliber

Built for severe-duty hauling, job-site auxiliary power, and demanding fleet service, this alternator provides uninterrupted current flow to sustain demanding accessory systems without compromising vehicle reliability.
