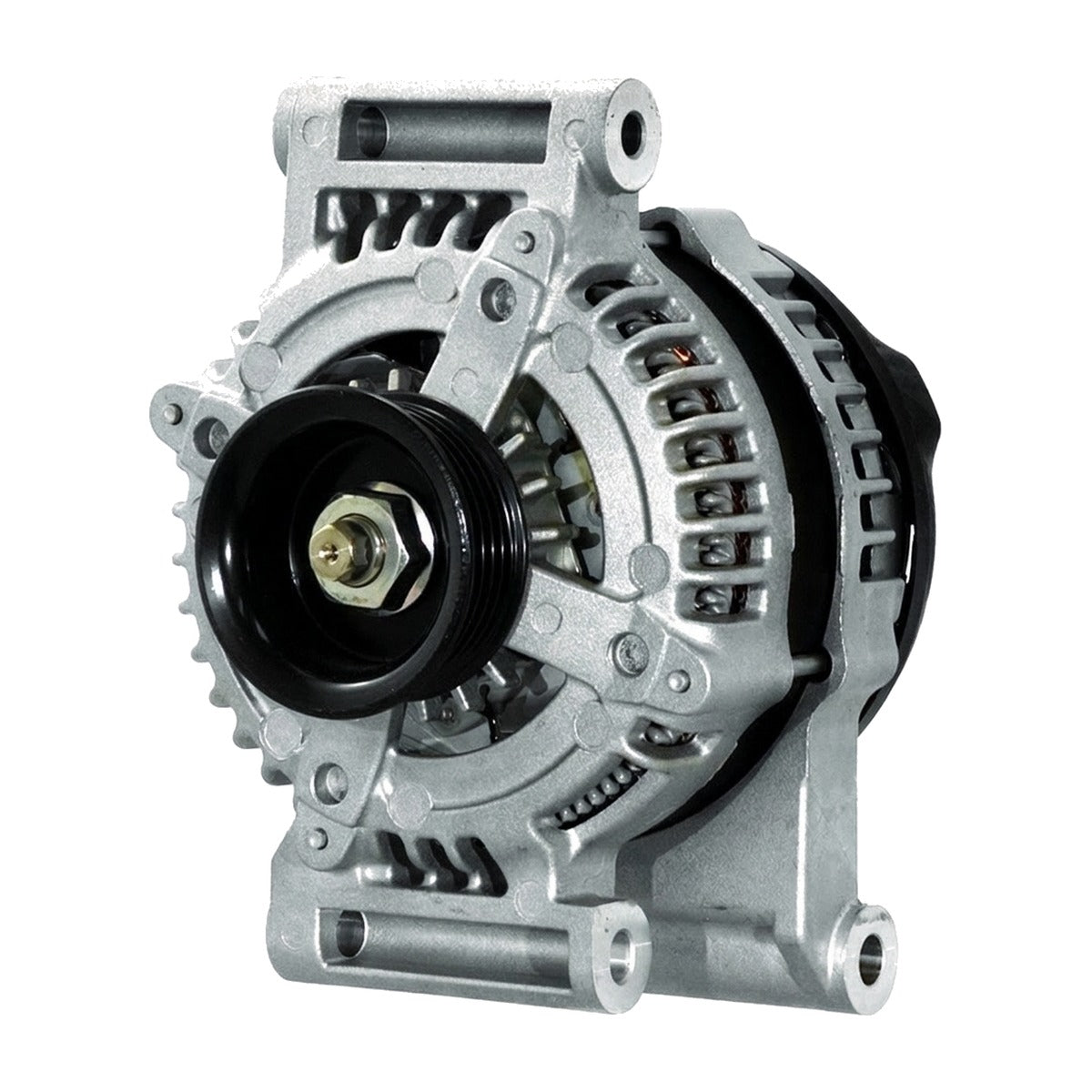

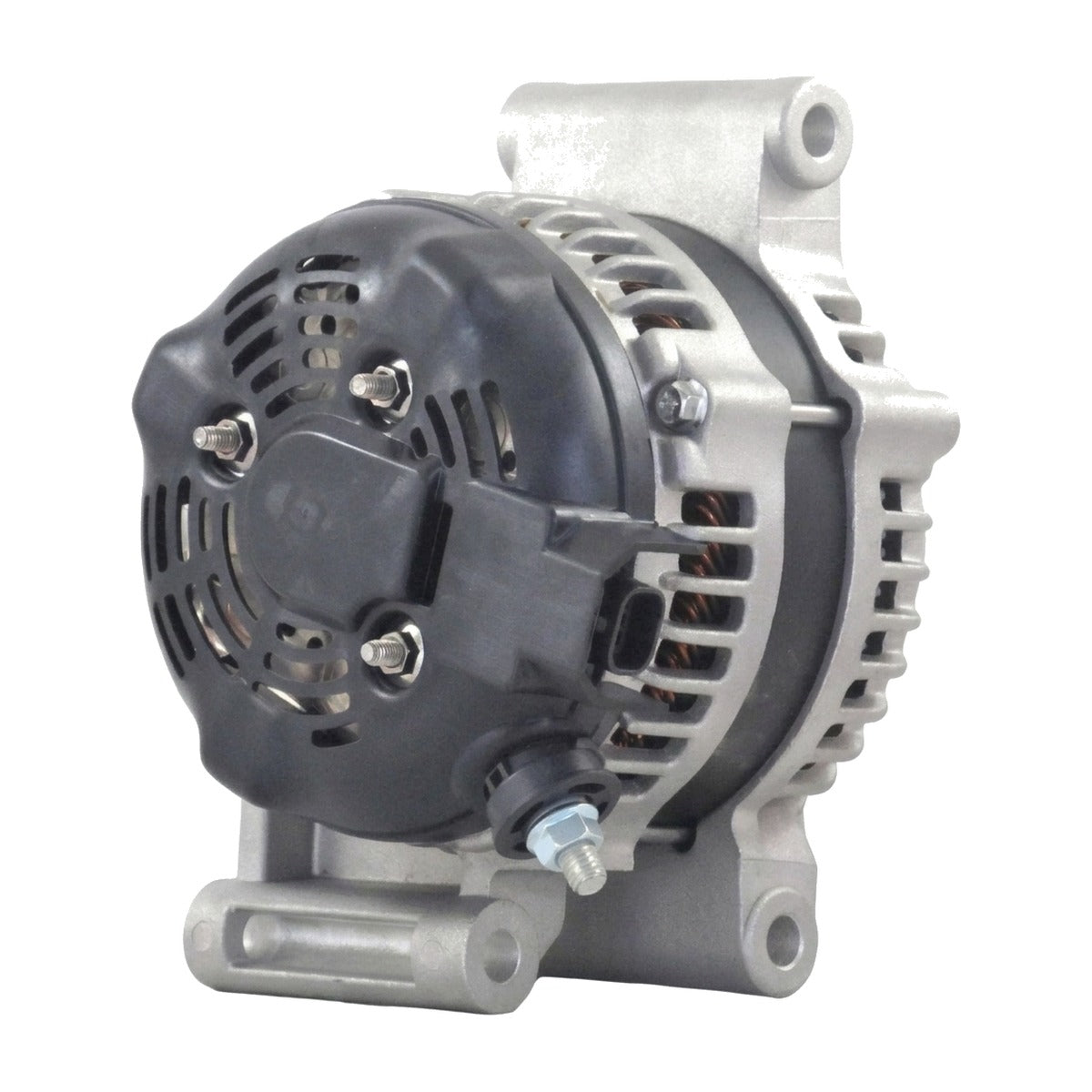

High Output Alternator for Chevrolet HHR (2006-2007) 2.2L 2.4L

High-Amperage 250A Direct-Fit Alternator for 2006-2007 Chevrolet HHR (GM Delta)

What it Does: The 250-Amp High Output Alternator replaces the factory charging unit on the 2006-2007 Chevrolet HHR to eliminate idle voltage drop and supply continuous electrical current for high-draw aftermarket accessories.

The Stock Chevrolet HHR Charging Deficiencies

The factory charging system on the GM Delta platform HHR utilizes a standard 100-to-130 amp alternator that rapidly hits thermal saturation under sustained electrical demand. When powering high-wattage audio amplifiers, auxiliary lighting, or supplemental electric cooling fans, the stock stator windings overheat and internal diode rectifiers degrade. At idle speeds, factory output plummets below critical charging thresholds, pulling operating voltage under 12.6V. This constant battery-draw cycling leads to premature cell failure, flickering instrument clusters, slow starter cranking, and sluggish ECM sensor responses.

The Engineering Solution

Engineered as a direct bolt-in replacement, this 250-amp unit utilizes dense, heavy-gauge copper stator windings and an electronically balanced rotor to dramatically reduce internal resistance and maximize amperage generation at low RPM. Premium high-temperature sealed bearings reduce rotational friction and withstand high radial belt loads. An integrated solid-state voltage regulator maintains a steady 13.5V to 14.5V output curve under thermal stress. The unit retains factory OE mounting geometry, OE-spec pulley diameter, and the stock harness connector plug for true plug-and-play installation without bracket fabrication.

What's Included

• 1 High Output 250-Amp Alternator

Technical Specifications

Compatibility

• 2006 Chevrolet HHR LS / LT 2.2L L4 (L61)
• 2006 Chevrolet HHR LT 2.4L L4 (LE5)
• 2007 Chevrolet HHR LS / LT 2.2L L4 (L61)
• 2007 Chevrolet HHR LT 2.4L L4 (LE5)

Frequently Asked Questions & Fitment Warnings

Does this fit the GM Delta HHR?

Yes, this is a direct fit for the 2006-2007 Chevrolet HHR equipped with the 2.2L L61 or 2.4L LE5 Ecotec engine. It does not fit 2008 and later models or 2.0L Turbo SS applications.

Do I need to upgrade my battery cables to use this 250A unit?

While it functions with stock wiring, a 0-gauge or 4-gauge "Big 3" charging and ground cable upgrade is strongly recommended to handle peak 250-amp current flow safely without thermal resistance.

The Chevrolet Reliability Standard

Maintain consistent electrical stability and continuous charging headroom on your daily-driven Chevrolet HHR, ensuring optimal ignition coil energy, clean audio amplifier signals, and long-term battery service life under demanding electrical conditions.
