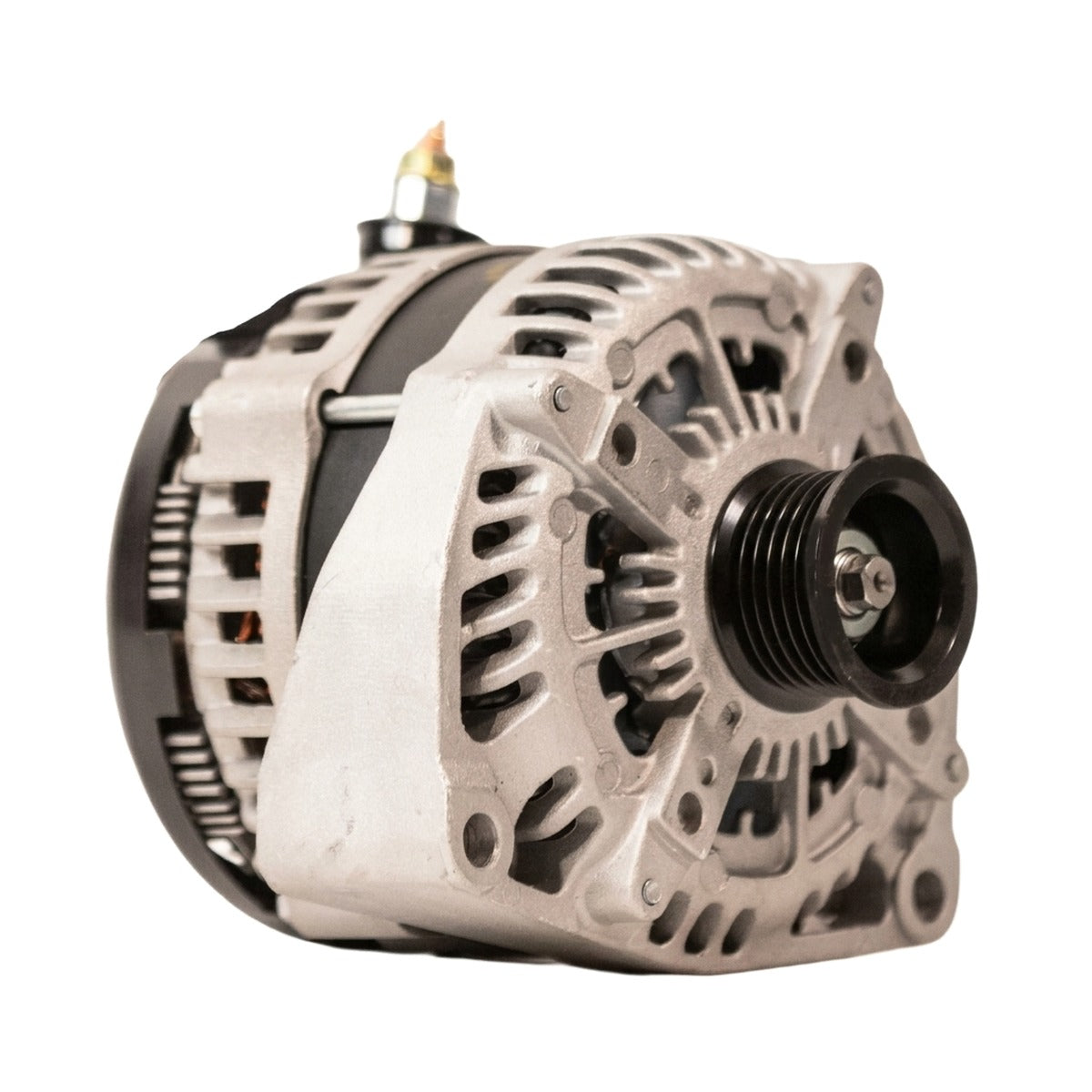

High Output Alternator for Chevrolet Express (2016-2017) 6.0L

High-Amp 350A Alternator for 2016-2017 Chevrolet Express (GMT610)

What it Does: The 350 Amp High Output Alternator replaces the low-output factory charging unit on the 2016-2017 Chevrolet Express to supply stable, high-amperage 12V power under heavy auxiliary electrical loads without voltage drop.

The Stock Chevrolet Express Electrical Bottleneck

Factory GMT610 commercial chassis ship with modest 105-amp to 145-amp units configured strictly for base chassis electronics. When commercial upfits introduce secondary battery banks, hydraulic liftgates, power inverters, or job-site lighting, the OEM rectifier suffers rapid thermal saturation. Under low-RPM idle, factory stators drop amperage significantly, dragging system voltage below 12.6V, boiling lead-acid batteries, straining starter relays, and triggering erratic powertrain control module fault codes.

The Engineering Solution

Engineered for sustained heavy-duty draw, this 350-amp alternator features precision hairpin-wound copper stators and an oversized internal bridge rectifier with heavy-duty avalanche diodes. The precision-machined housing dissipates heat far more efficiently than stock cast units, preventing heat-soak-induced amp degradation. It delivers exceptional amperage at sub-1,000 engine RPM, maintaining 14.4V charging output to protect primary engine management systems while sustaining high auxiliary current draw across commercial duty cycles.

What's Included

• 1 350-Amp High Output Alternator

Technical Specifications

Compatibility

• 2016-2017 Chevrolet Express 2500 6.0L V8
• 2016-2017 Chevrolet Express 3500 6.0L V8
• 2016-2017 Chevrolet Express 4500 Commercial Cutaway 6.0L V8

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT610 Express?

Yes, this is a direct bolt-in fit for the 2016-2017 Chevrolet Express equipped with the L96 6.0L V8 engine.

Do I need to upgrade my main battery wiring when installing a 350A alternator?

Yes, running a dedicated 0-gauge or 2-gauge positive charge cable and engine-to-chassis ground ("Big 3 upgrade") is mandatory to safely carry 350 amps without causing electrical resistance fires or tripping thermal protection.

The Chevrolet Commercial Standard

Built to handle continuous commercial fleet abuse, this heavy-duty unit ensures consistent current transfer for heavy towing accessories, fleet communications, and work-site equipment without shortening the operational lifespan of your drivetrain electrical harness.
