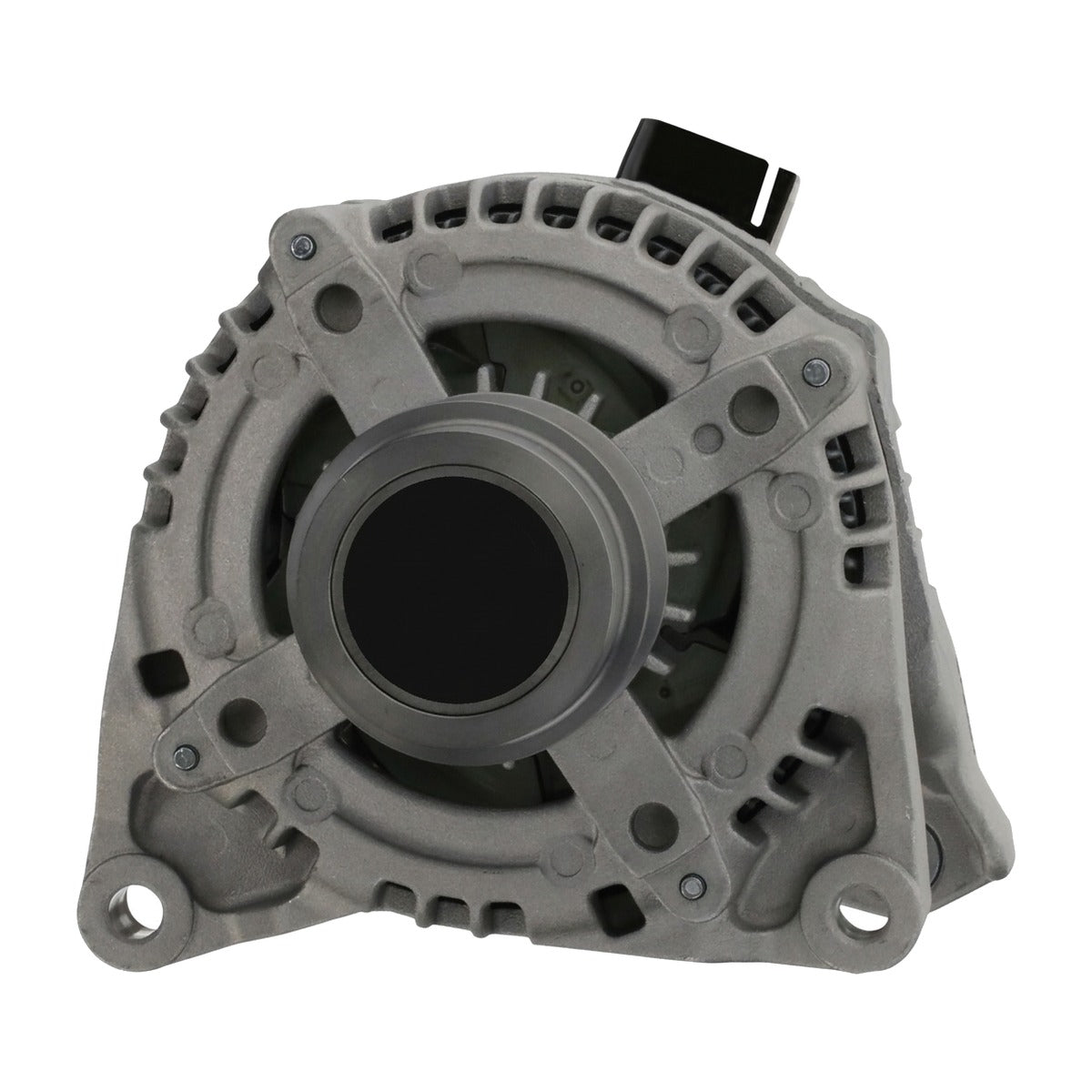

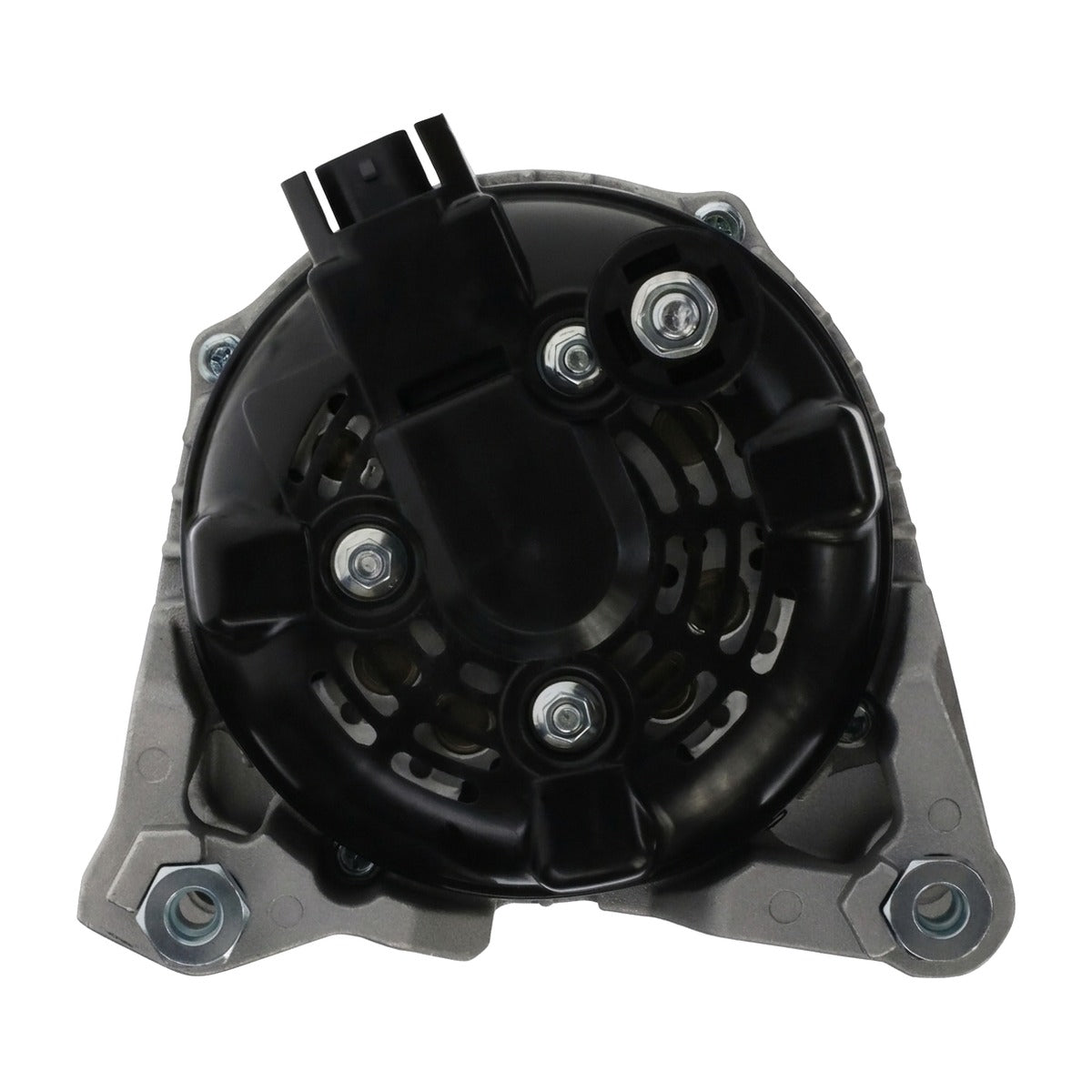

High Output Alternator for Chevrolet Camaro (2016-2023) 3.6L

High-Amperage Direct-Fit High Output Alternator for 2016-2023 Chevrolet Camaro (Alpha)

What it Does: The high output alternator replaces the factory charging unit on the 2016-2023 Chevrolet Camaro to deliver up to 320 amps of continuous electrical current, preventing voltage sag under heavy accessory loads.

The Stock Chevrolet Camaro Charging Bottlenecks

The factory charging system in the Alpha platform Camaro is engineered strictly for stock operating loads, generating roughly 140 to 150 amps. When owners integrate high-draw electrical equipment—such as multi-channel amplifiers, aftermarket sound setups, auxiliary cooling fans, or high-output lighting—the OEM unit experiences severe current starvation, especially at hot idle. This leads to thermal degradation of internal diodes, parasitic battery draw, dimming cabin electronics, and system voltages dropping below the critical 13.5V threshold.

The Engineering Solution

Engineered around precision hairpin stator windings, this 320-amp upgrade substantially lowers internal electrical resistance and maximizes slot fill density compared to conventional round-wire units. Heavy-gauge copper windings allow high low-RPM output to stabilize rail voltage at 14+ volts during idle. It incorporates balanced low-mass rotors, heavy-duty sealed high-RPM bearings, and an internal solid-state voltage regulator calibrated for smooth transient response. Designed to mount seamlessly in the LGX engine bay, it retains OE belt routing, mounting points, and factory harness interfaces.

What's Included

• 1 High Output 320-Amp Alternator (Part #44015)

Technical Specifications

Compatibility

• 2016-2023 Chevrolet Camaro LT 3.6L V6
• 2016-2023 Chevrolet Camaro 1LT 3.6L V6
• 2016-2023 Chevrolet Camaro 2LT 3.6L V6
• 2016-2023 Chevrolet Camaro 3LT 3.6L V6

Frequently Asked Questions & Fitment Warnings

Does this fit the Alpha Camaro?

Yes, this is a direct bolt-in fit for the 2016-2023 Chevrolet Camaro equipped with the LGX 3.6L V6 engine.

Do I need to upgrade my main power cabling?

To safely handle the full 320-amp output and avoid resistive heat buildup, performing a "Big 3" heavy-gauge charging wire and chassis ground upgrade is strongly recommended.

The Chevrolet Muscle Caliber

Engineered to meet the rigorous demands of modern performance builds, this charging upgrade ensures clean, uninterrupted voltage to vital powertrain and aftermarket modules across wide-open throttle pulls and sustained idle conditions.
