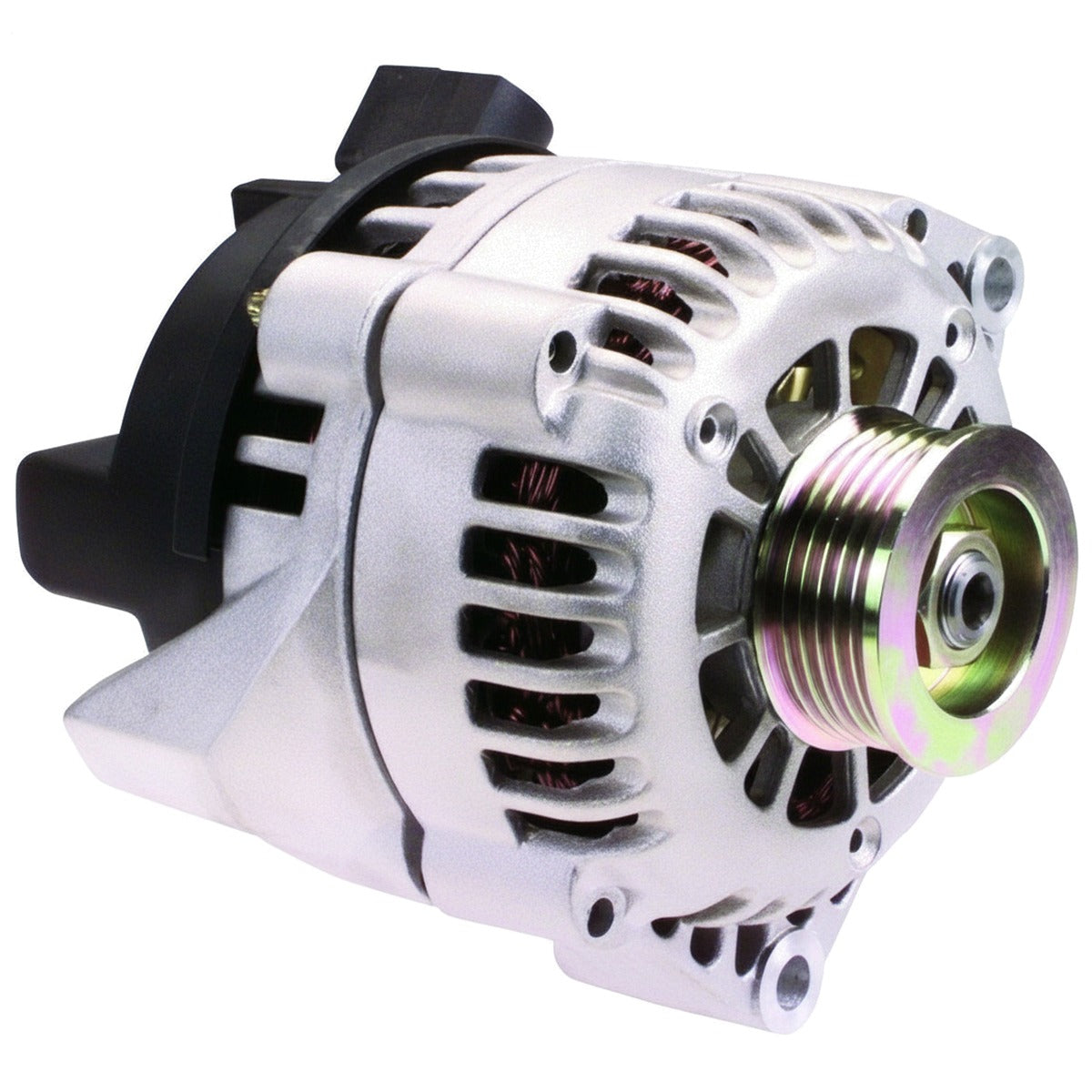

High Output Alternator for Chevrolet Camaro (1998-2002) 5.7L

High-Output 250A Alternator for 1998-2002 Chevrolet Camaro (F-Body)

What it Does: The 250 Amp High Output Alternator replaces the low-output factory charging unit on the 1998-2002 Camaro to eliminate system voltage sag and supply stable electrical current to high-draw fuel systems, ignition coils, and cooling fans.

The Stock Chevrolet Camaro Charging Limitations

Factory F-Body models left the assembly line with a Delco CS130D alternator rated for a meager 102 to 105 amps. In tight, heat-prone engine bays housing the 5.7L LS1, the factory unit suffers from severe heat soak. Elevated underhood temperatures rapidly break down stock internal rectifiers and diode trios, causing significant voltage drop at idle. When builders add high-volume electric water pumps, dual cooling fans, performance fuel pumps, or secondary audio systems, the stock charging system starves vital ignition circuits and induces battery discharge.

The Engineering Solution

This Made in USA 250-amp alternator resolves charging deficiencies through precision-wound copper stators and a heavy-duty rotor assembly that substantially increases low-RPM and peak amperage. Upgraded heavy-gauge internal bridge rectifiers and high-amperage avalanche diodes resist thermal breakdown, maintaining a consistent 14.4-volt charge under extreme operating loads. Housed in a precision cast-aluminum case designed for direct mechanical interchange with OEM part 10464407, it delivers seamless mounting onto the factory LS1 low-mount accessory bracket without modifications.

What's Included

• 1 x 250 Amp High Output Alternator

Technical Specifications

Compatibility

• 1998-2002 Chevrolet Camaro Z28 (5.7L V8 LS1)
• 1998-2002 Chevrolet Camaro SS (5.7L V8 LS1)

Frequently Asked Questions & Fitment Warnings

Does this fit the F-Body Camaro?

Yes, this is a direct bolt-on fit for the 1998-2002 Chevrolet Camaro equipped with the LS1 5.7L V8 engine. This unit is not compatible with 3.8L V6 Camaro models.

Do I need to upgrade my factory charging wire?

A 4-gauge or 1/0-gauge "Big 3" battery power and ground cable upgrade is strongly recommended to safely carry the increased 250-amp current load without damaging factory fusible links.

The Chevrolet Muscle Caliber

High-performance GM muscle demands unwavering electrical current to maintain full ignition spark energy, stable fuel pressure, and crisp engine telemetry at wide-open throttle.
