High Output Alternator for Chevrolet Avalanche (2005-2006) 5.3L

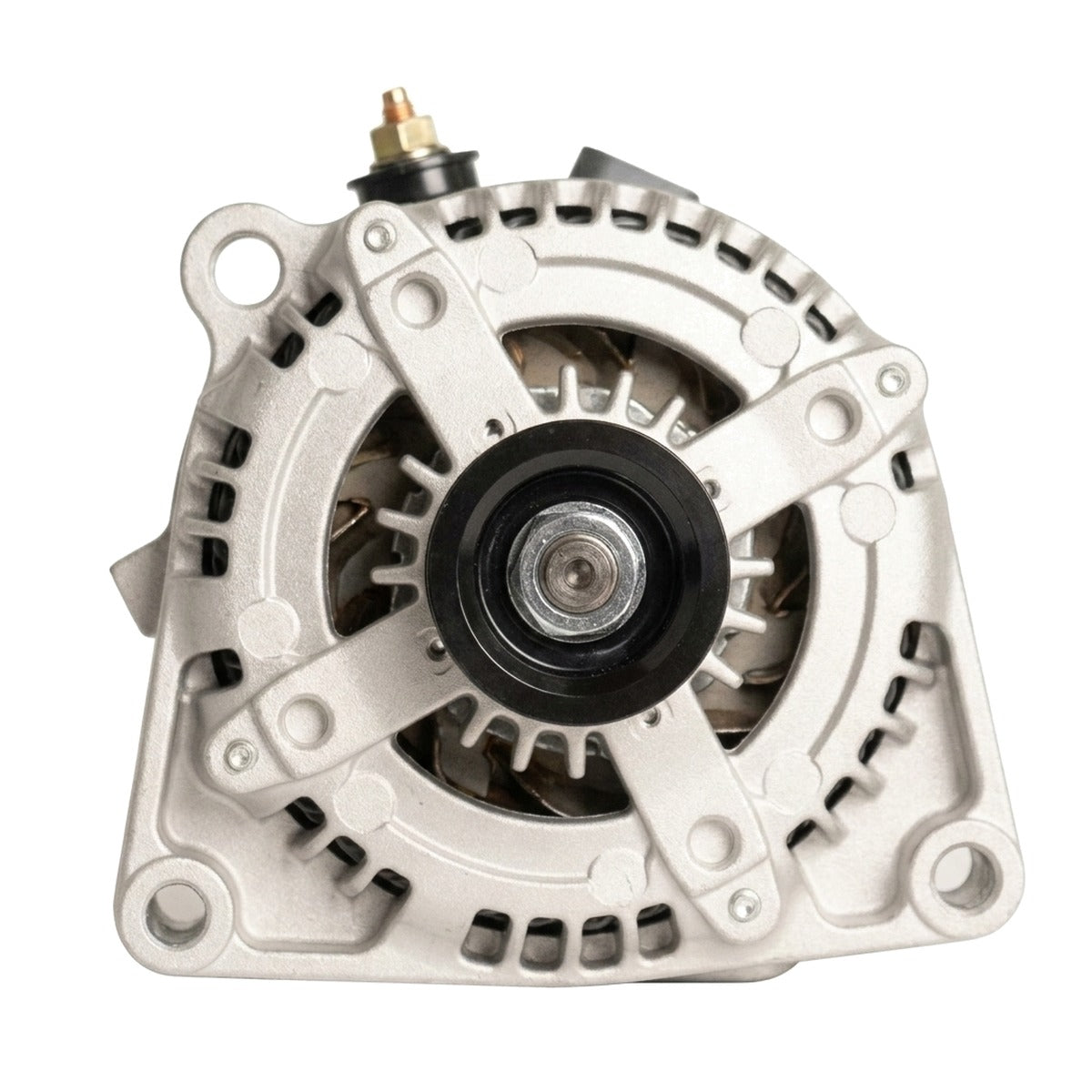

High-Output 300-Amp Alternator for 2005-2006 Chevrolet Avalanche (GMT805)

What it Does: The 300-amp high-output alternator replaces the factory charging unit on the 2005-2006 Chevrolet Avalanche to provide stable, elevated amperage across all RPM bands, preventing electrical system voltage drop under severe auxiliary loads.

The Stock Chevrolet Avalanche Charging Deficiencies

Factory charging systems on the GMT805 platform utilize standard Delco-Remy units producing either 105 or 145 amps. The OEM copper windings and single internal rectifier bridge quickly suffer thermal saturation under elevated duty cycles. Adding high-draw electrical equipment—such as auxiliary lighting, power inverters, high-current audio amplifiers, or recovery winches—routinely drives charging voltage down below 12.4 volts at curb idle. This voltage instability causes electrical bus ripple, starves onboard ignition modules on the Vortec 5300 LM7/L59 engine, and induces severe thermal degradation of the factory diode package, precipitating premature charging failure.

The Engineering Solution

This Made-in-USA 300-amp unit is engineered with high-temperature, heavy-gauge copper stator windings and an upgraded heavy-duty avalanche diode bridge rectifier to ensure high-current efficiency without thermal runaway. Machined to drop into the factory bracket assembly, it delivers reliable charging current exceeding 160 amps at engine idle speeds, reaching peak 300-amp saturation over 2,000 RPM. Direct interchange compatibility aligns with OEM part numbers 10392759, 15200268, and 15263858, providing seamless integration with factory GM charging logic and belt alignments without ECU calibration errors.

What's Included

• 1 300-Amp High Output Alternator

Technical Specifications

Compatibility

• 2005 Chevrolet Avalanche 1500 (5.3L V8)
• 2006 Chevrolet Avalanche 1500 (5.3L V8)

Frequently Asked Questions & Fitment Warnings

Does this fit the GMT805 Avalanche?

Yes, this is a direct fit for the 2005-2006 Chevrolet Avalanche equipped with the 5.3L Vortec engine. Does not fit 8.1L Vortec 8100 models or earlier 2002-2004 4-pin regulator harnesses without pin adaptation.

Is a "Big 3" wiring upgrade required for this alternator?

Yes, installing 1/0 AWG charging and ground cables is mandatory to safely carry 300 amps without excessive resistance and fire risk.

The Chevrolet Towing & Rig Standard

Engineered to sustain harsh off-road vibrations and severe utility duty cycles, this unit provides the steady electrical foundation mandatory for severe hauling, onboard winching, and high-amperage auxiliary power.
